Alpine: Caswell Details

PropertyValue
Rupture Count36,924
Ruptures Above Sect Min Mag36,884
Ruptures w/ Nonzero Rates370
Magnitude Range[7.01, 8.71]
Length Range[22, 1,129] km
Total Rate0.0025844811 /yr
Multi-Fault Rate0.0025844811 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults127

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

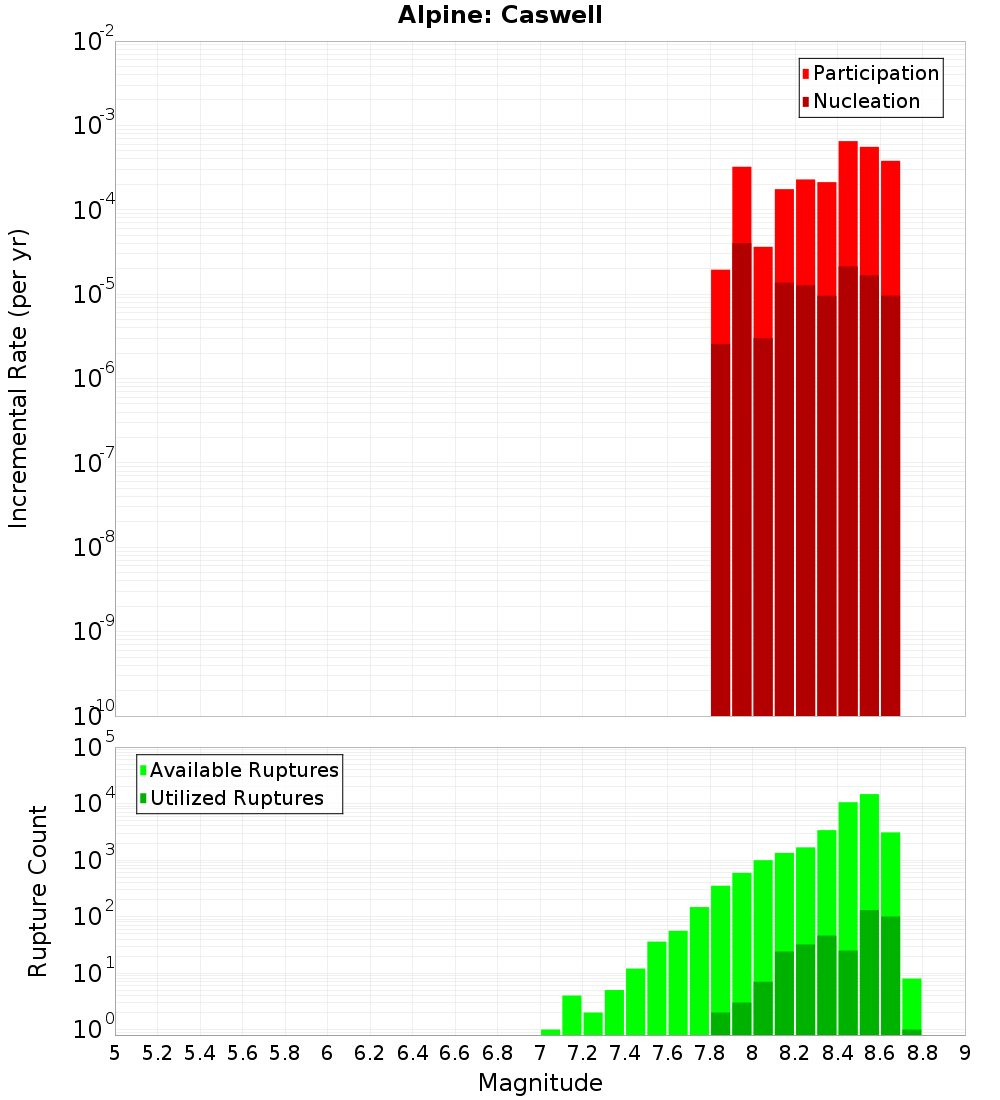

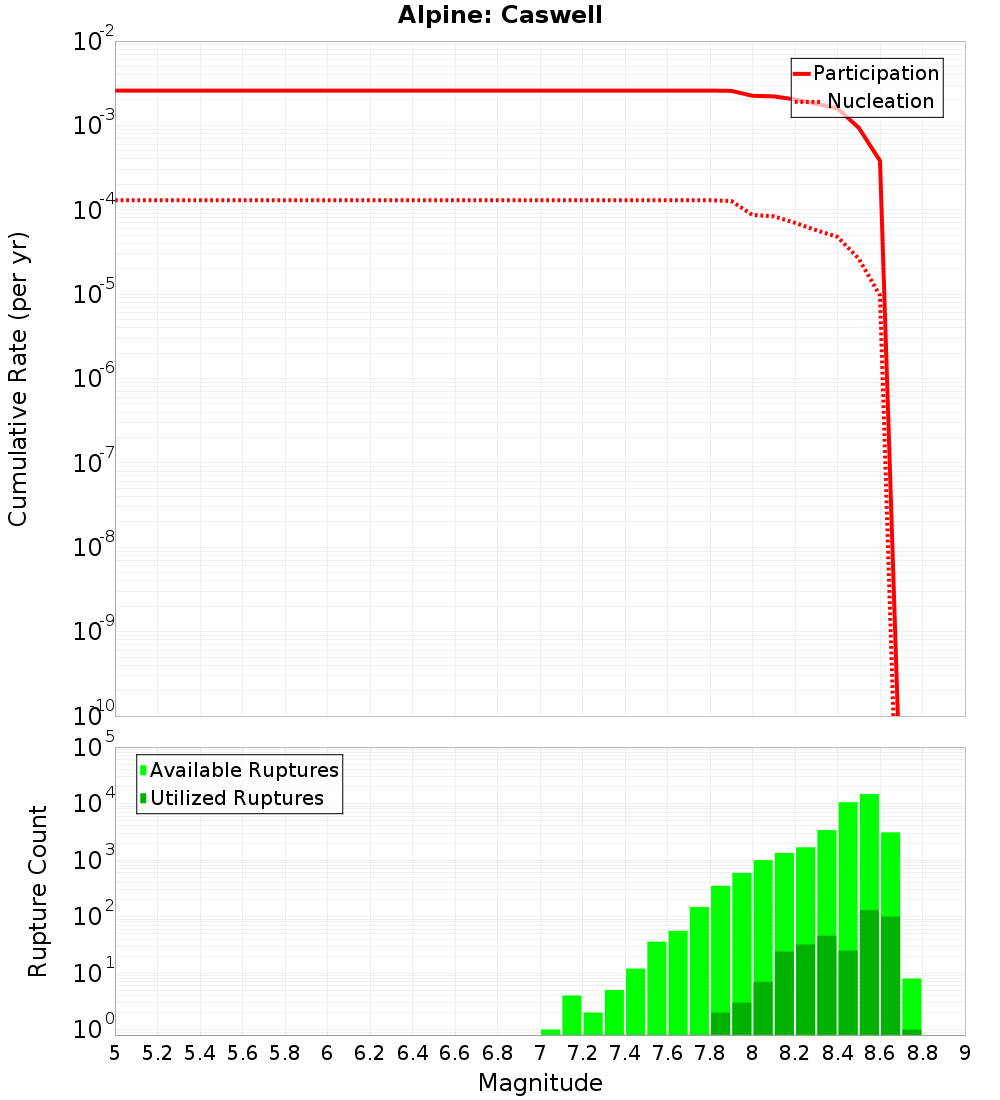

Incremental PlotCumulative Plot

Along-Strike Values

(top)

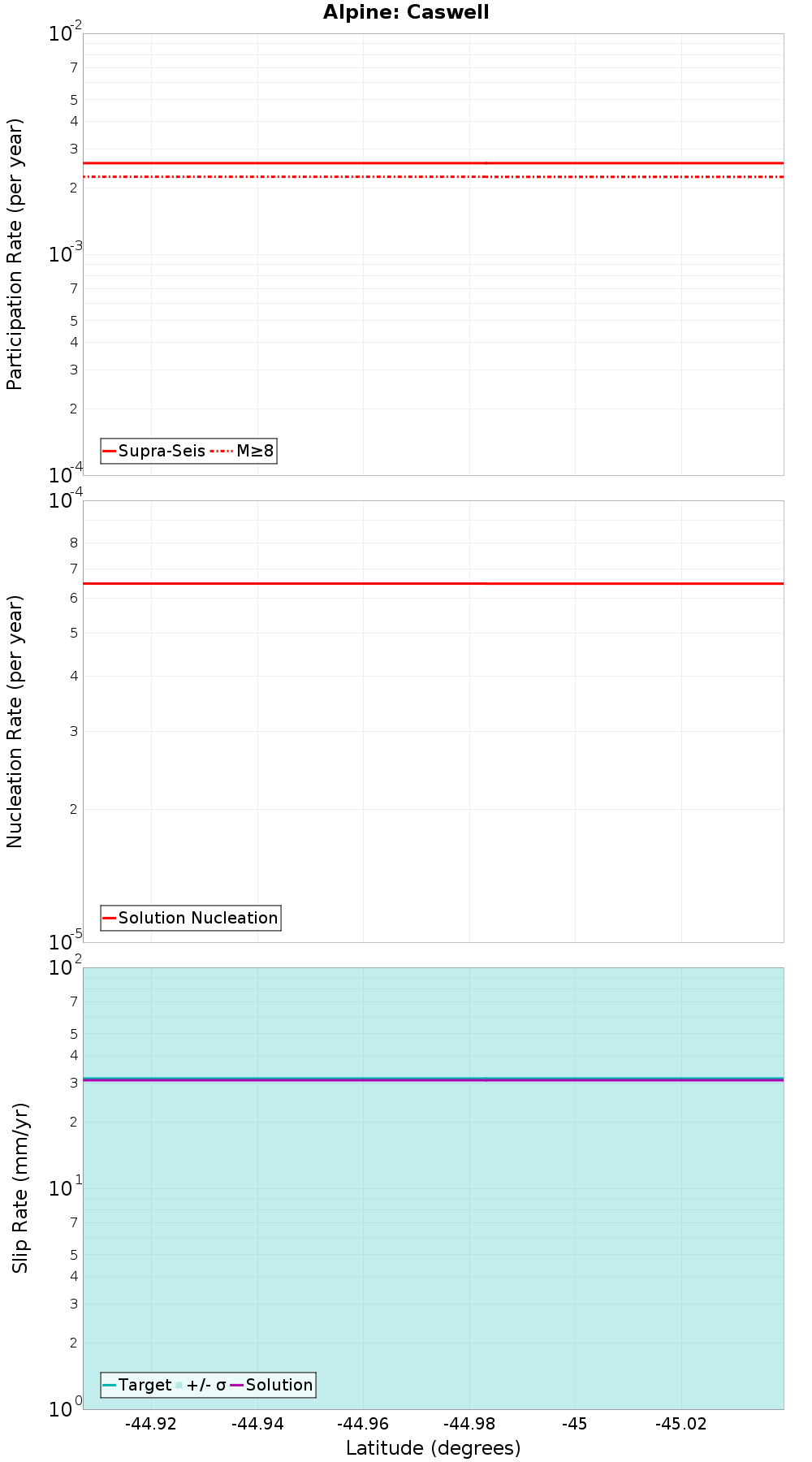

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.16 km away
South Wedge 2, 0.28 km away
Central Wedge 4 - South Wedge 411, 0.31 km away
Alpine: Resolution - Charles, 3.34 km away
Alpine: Resolution - Dagg, 11.23 km away

Alpine: Nancy, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?true
Directly Connected?true
Co-rupture Count19,719
Co-rupture Rate0.0012465825

Alpine: Caswell - South George, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?true
Directly Connected?true
Co-rupture Count36,420
Co-rupture Rate0.0021238092

Central Wedge 1 & 2 & 3, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?true
Directly Connected?true
Co-rupture Count3,279
Co-rupture Rate1.7498411E-6

South Wedge 2, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Charles, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?true
Directly Connected?true
Co-rupture Count13,047
Co-rupture Rate0.0013361488

Alpine: Resolution - Dagg, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C
Connected?true
Directly Connected?false
Co-rupture Count29,837
Co-rupture Rate0.0025897562
