Whangamata West Details
| Property | Value |
|---|---|
| Rupture Count | 11 |
| Ruptures Above Sect Min Mag | 3 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.49, 7.03] |
| Length Range | [10, 36] km |
| Total Rate | 2.6662505E-4 /yr |
| Multi-Fault Rate | 2.6662505E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

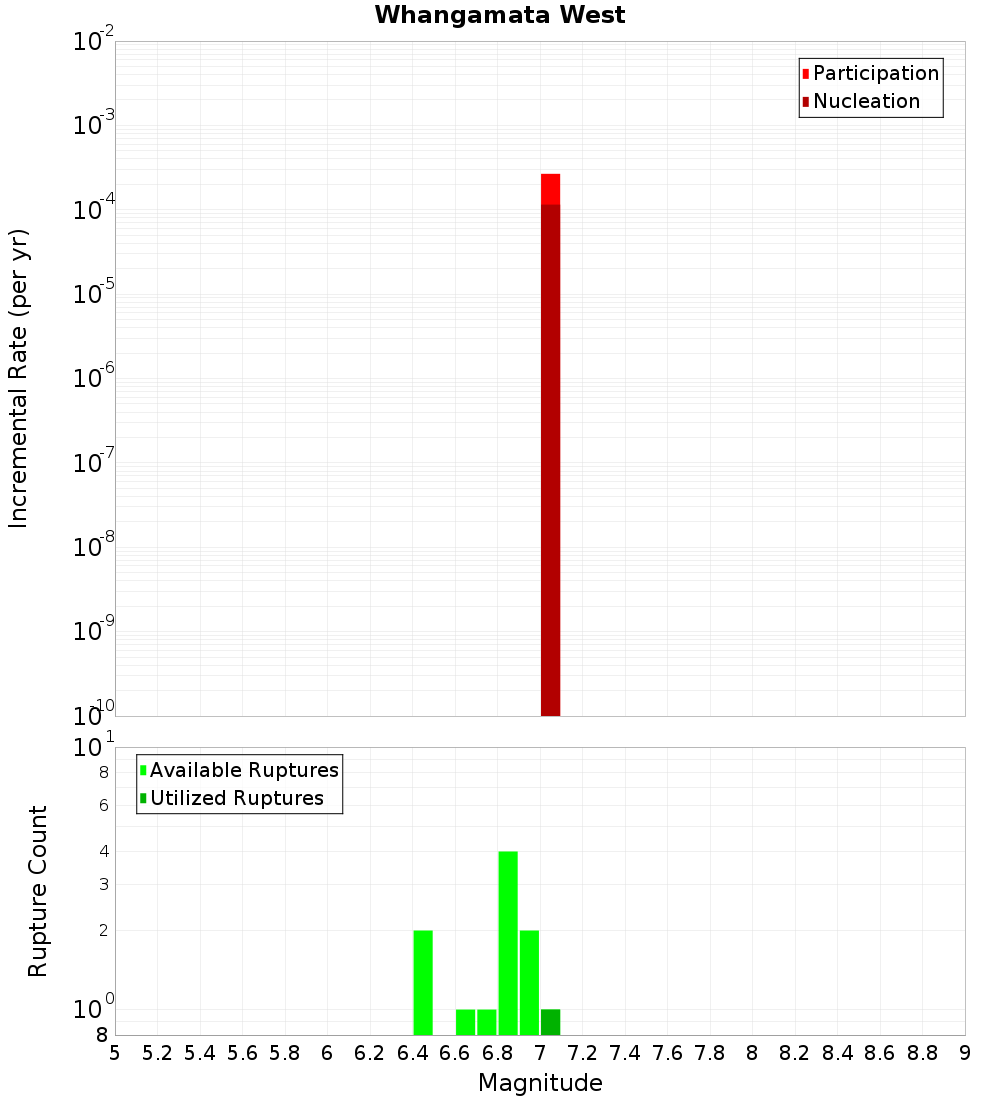

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

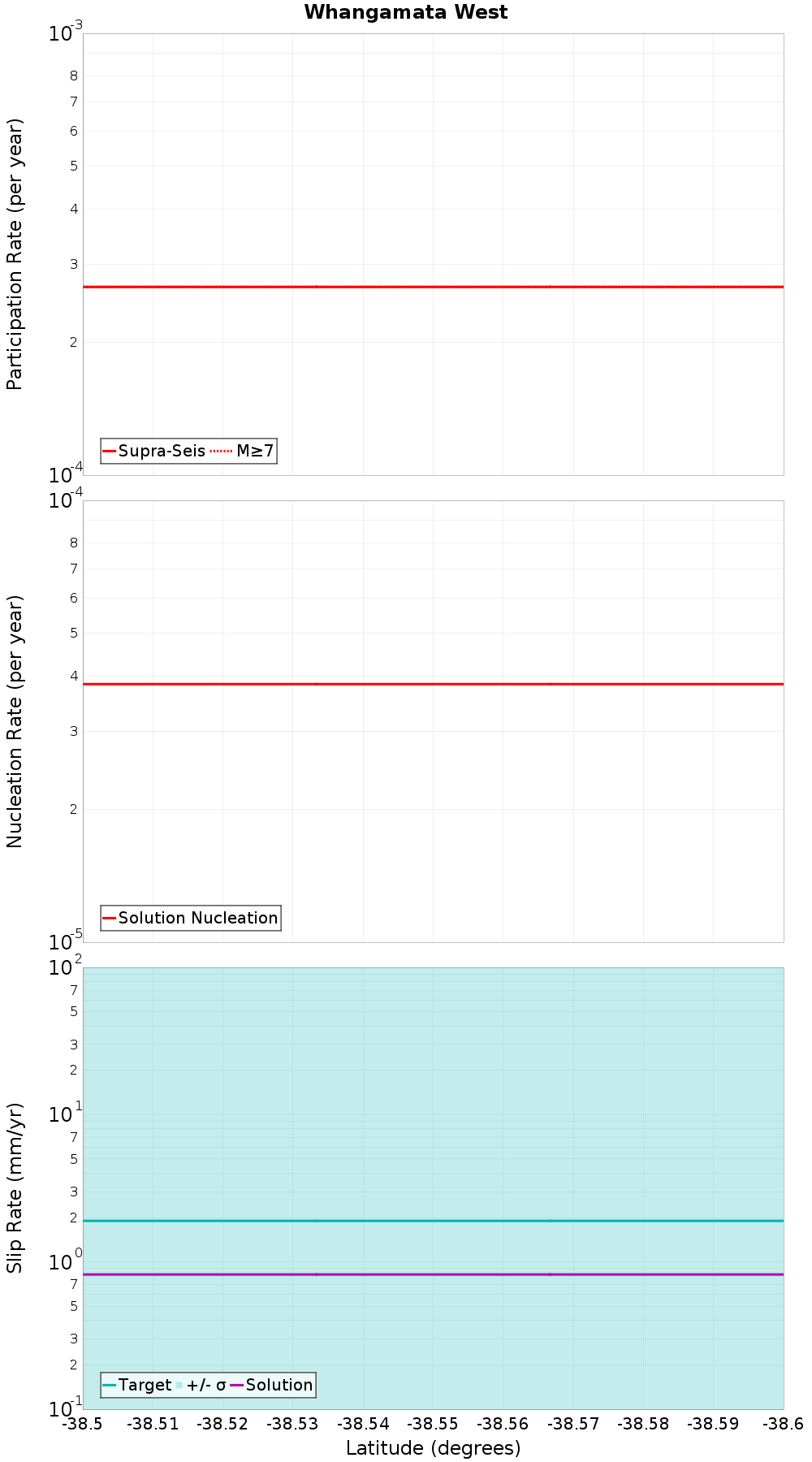

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.11 km away |
| Orakeikorako, 0.23 km away |
| Kaiapo, 0.25 km away |
| Puketerata North, 9.6 km away |
| Maleme, 12.98 km away |
| Paeroa, 13.84 km away |
Puketerata, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.6662505E-4 |
Orakeikorako, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Kaiapo, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.6662505E-4 |
Puketerata North, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maleme, 12.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paeroa, 13.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxNzUuMFJVd05C | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
