Caswell High 10 Details
| Property | Value |
|---|---|
| Rupture Count | 1,500 |
| Ruptures Above Sect Min Mag | 1,499 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.99, 8.64] |
| Length Range | [19, 878] km |
| Total Rate | 1.8823391E-4 /yr |
| Multi-Fault Rate | 9.249004E-5 /yr (49.14%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 45 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

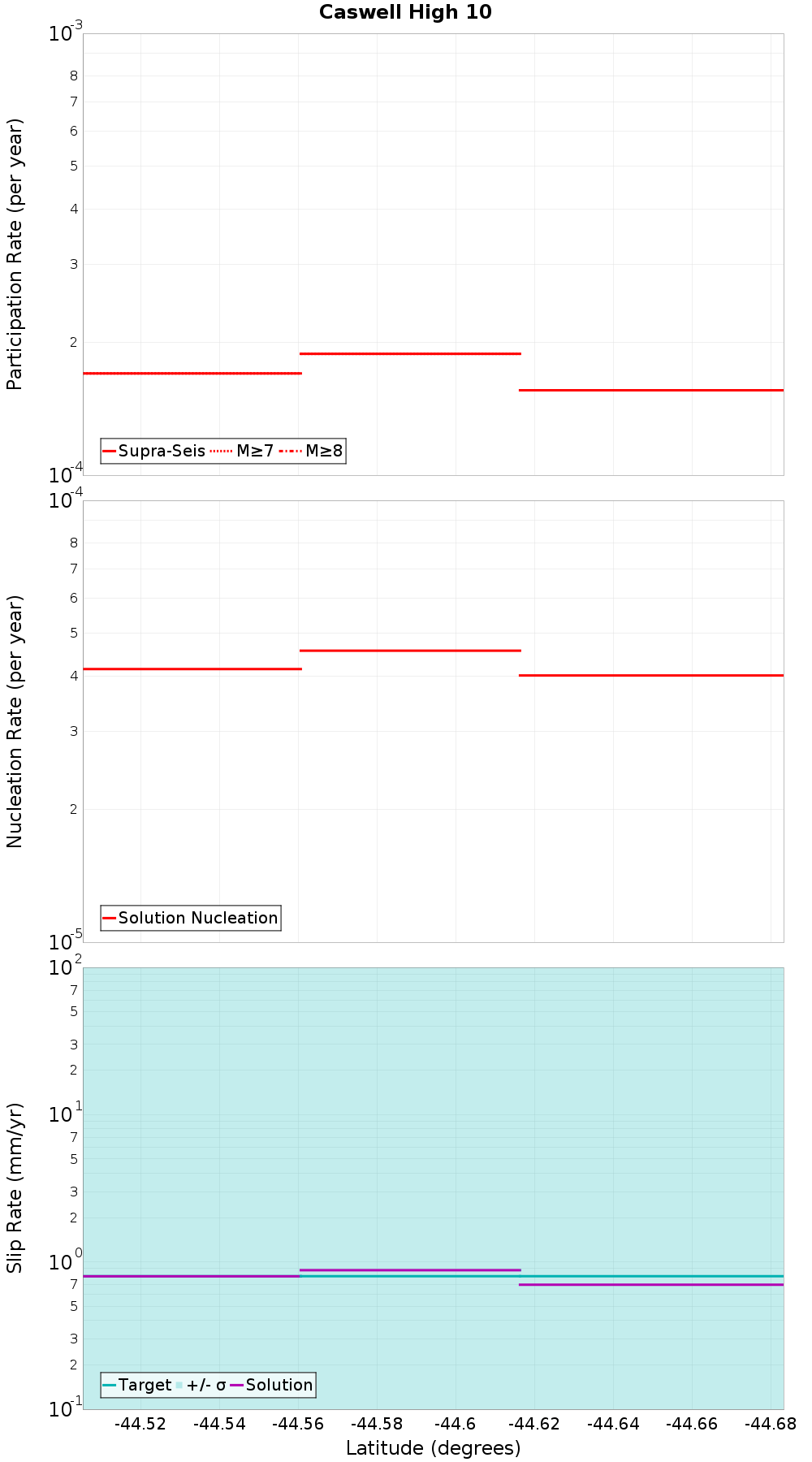

Along-Strike Values

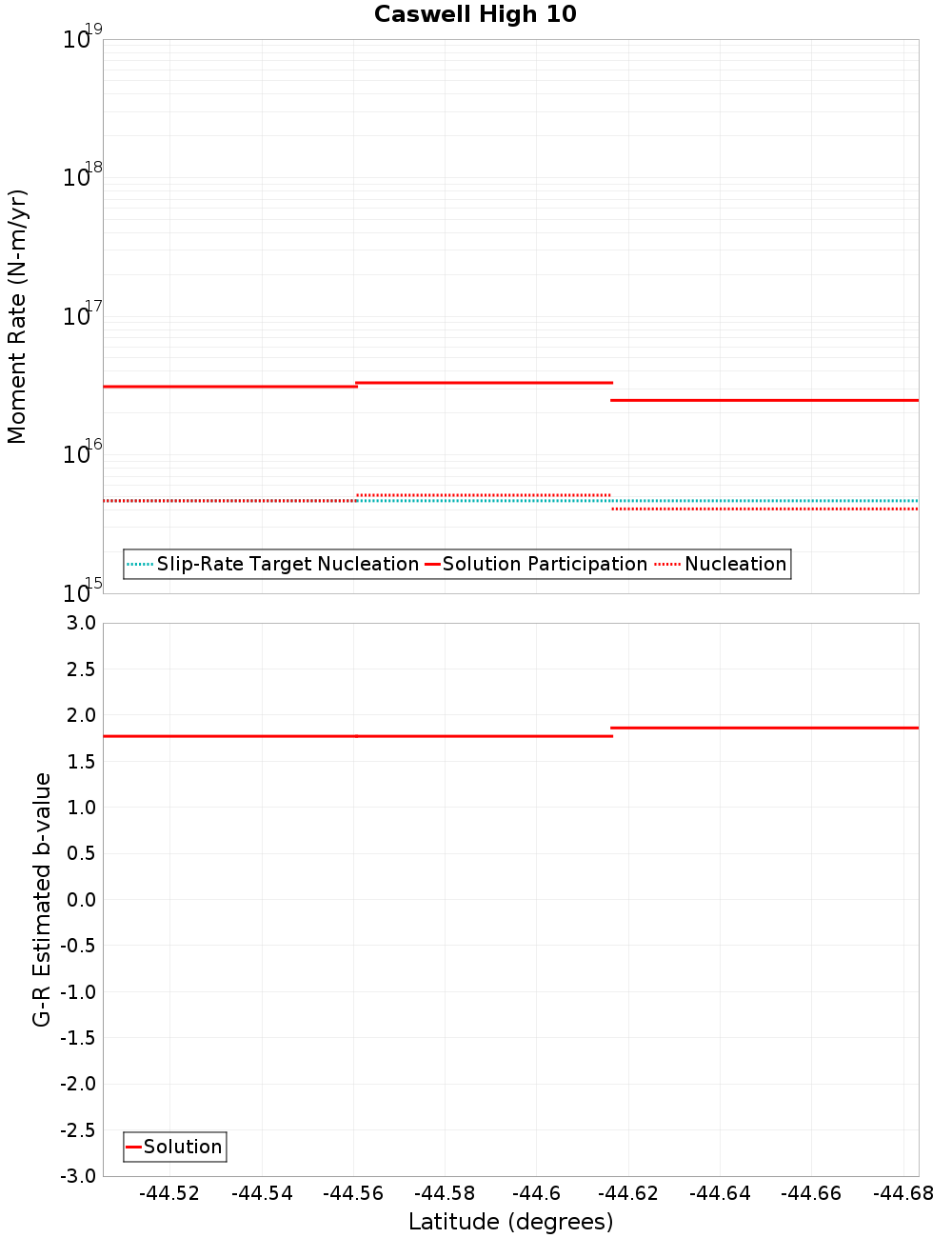

Moment-Rates and b-Values

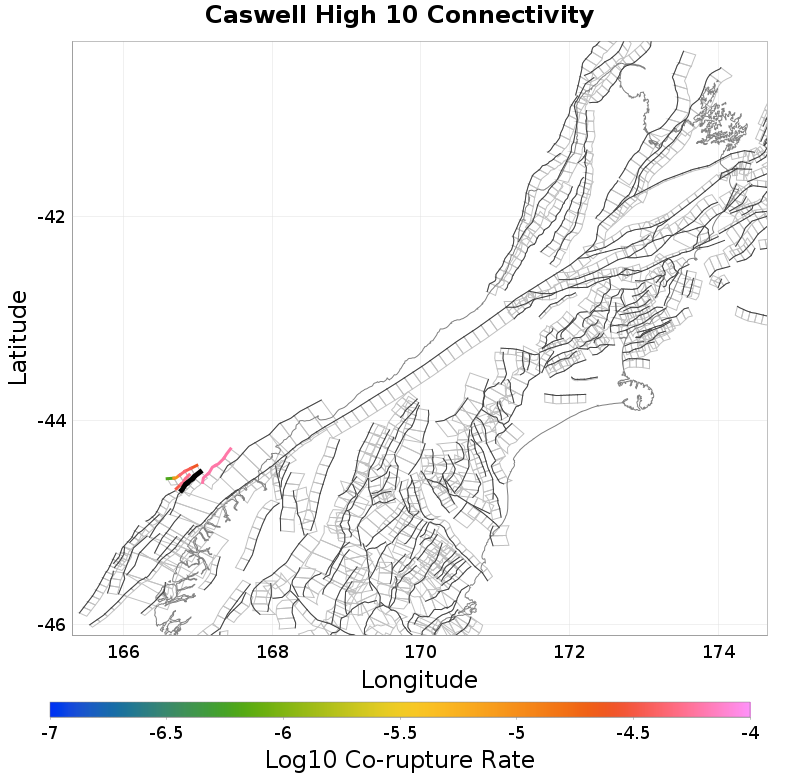

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Central Wedge 1 & 2 & 3, 1.11 km away |
| Caswell High 9, 3.01 km away |
| Caswell High 67, 5.94 km away |
| Milford Basin 5 to George R2, 6.09 km away |
| Caswell High 8, 6.72 km away |
Central Wedge 1 & 2 & 3, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxOTAuMFpuM0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,459 |
| Co-rupture Rate | 0.0 |
Caswell High 9, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxOTAuMFpuM0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 57 |
| Co-rupture Rate | 5.0894865E-5 |
Caswell High 67, 5.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxOTAuMFpuM0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Milford Basin 5 to George R2, 6.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxOTAuMFpuM0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 593 |
| Co-rupture Rate | 6.0257753E-5 |
Caswell High 8, 6.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgxOTAuMFpuM0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 4.3614546E-5 |
