Fisherman 3 Details

Property	Value
Rupture Count	209
Ruptures Above Sect Min Mag	207
Ruptures w/ Nonzero Rates	15
Magnitude Range	[6.89, 7.89]
Length Range	[20, 232] km
Total Rate	1.07310814E-4 /yr
Multi-Fault Rate	1.07310814E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	23

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

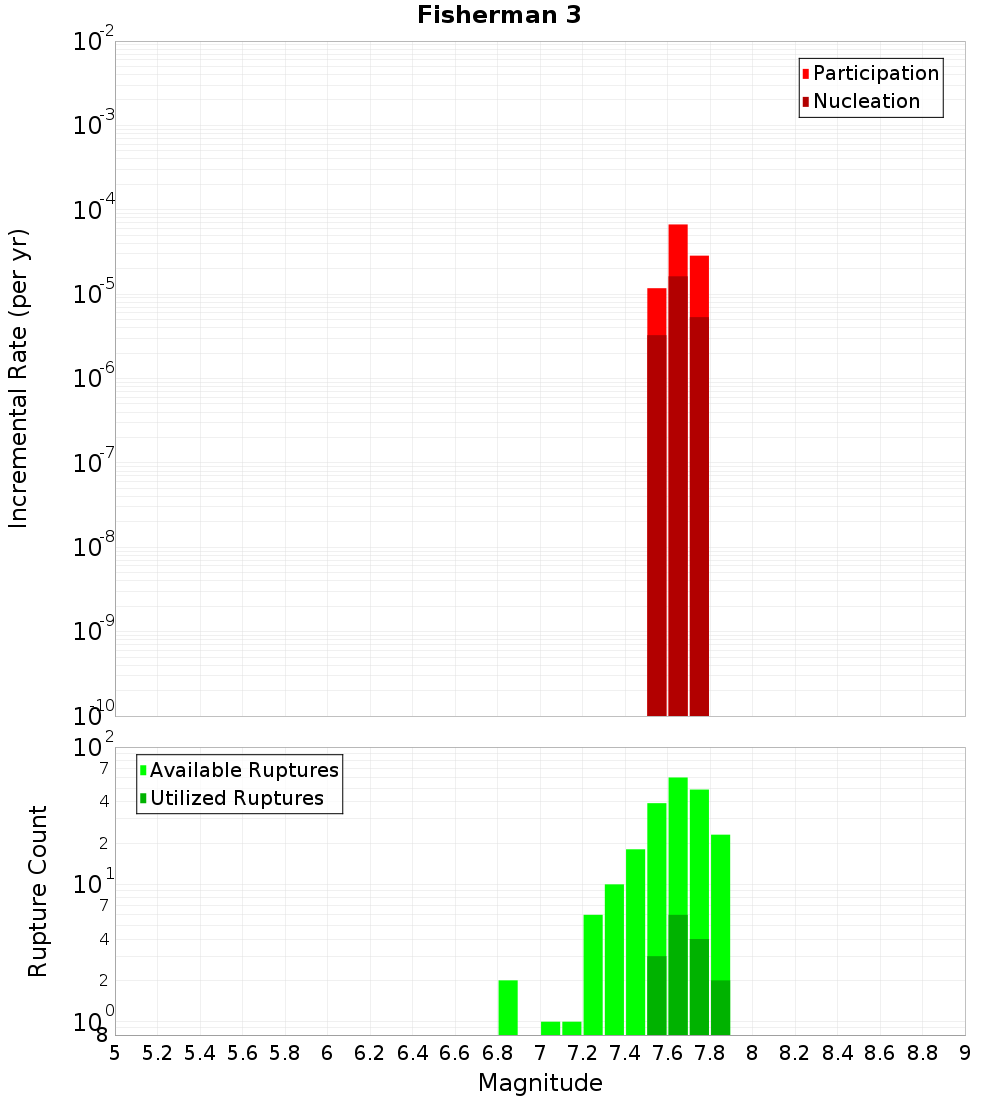

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mascarin, 0.15 km away
Onepoto, 0.22 km away
Otaheke North, 0.9 km away
Fisherman 2, 1.22 km away
Rangitikei Offshore 1, 2.73 km away
Poroutawhao, 6.43 km away
Otaheke South, 6.67 km away
Okupe 1, 8.61 km away
Himatangi, 12.2 km away
Levin Anticline, 13.22 km away

Mascarin, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	true
Co-rupture Count	52
Co-rupture Rate	5.4530835E-7

Onepoto, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	true
Co-rupture Count	79
Co-rupture Rate	2.6374863E-5

Otaheke North, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	3.179593E-5

Fisherman 2, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.4218366E-17

Rangitikei Offshore 1, 2.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	true
Co-rupture Count	42
Co-rupture Rate	4.4244738E-5

Poroutawhao, 6.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 6.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	true
Co-rupture Count	173
Co-rupture Rate	9.984601E-5

Okupe 1, 8.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	1.7421557E-5

Himatangi, 12.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 13.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMTQuMHpmRVp6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
