Maimai: North Details

Property	Value
Rupture Count	2,693
Ruptures Above Sect Min Mag	2,691
Ruptures w/ Nonzero Rates	122
Magnitude Range	[6.92, 8.33]
Length Range	[18, 395] km
Total Rate	1.4619864E-4 /yr
Multi-Fault Rate	1.4398164E-4 /yr (98.48%)
Directly-Connected Faults	5
All Co-Rupturing Faults	17

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

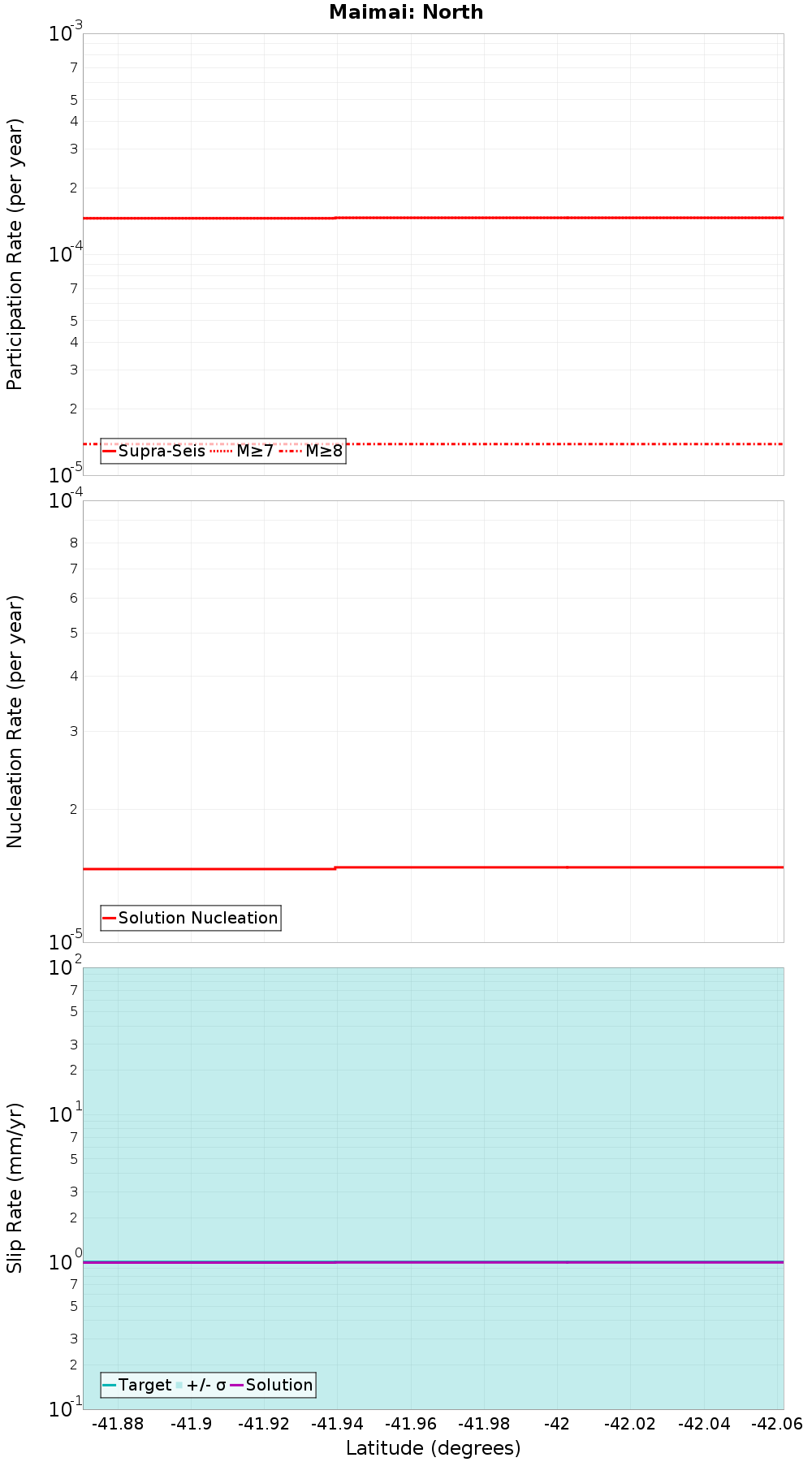

Along-Strike Values

Moment-Rates and b-Values

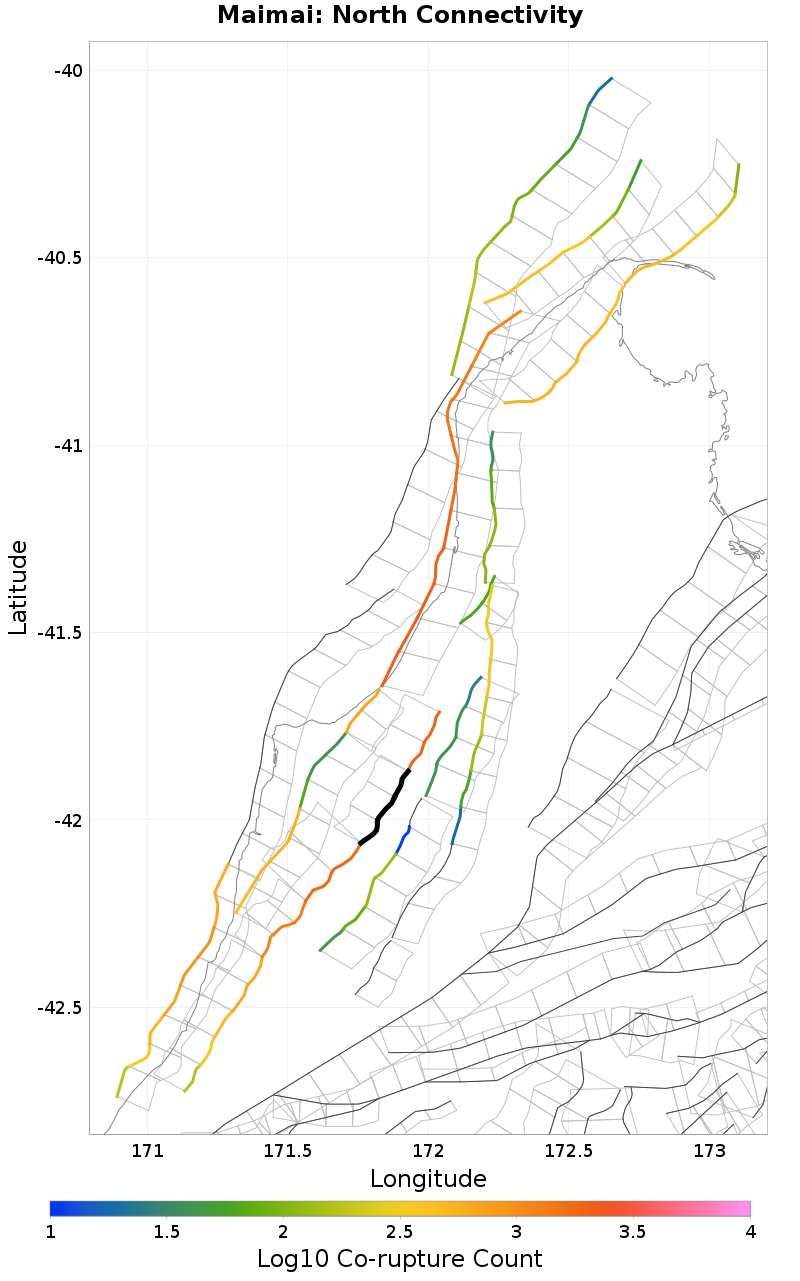

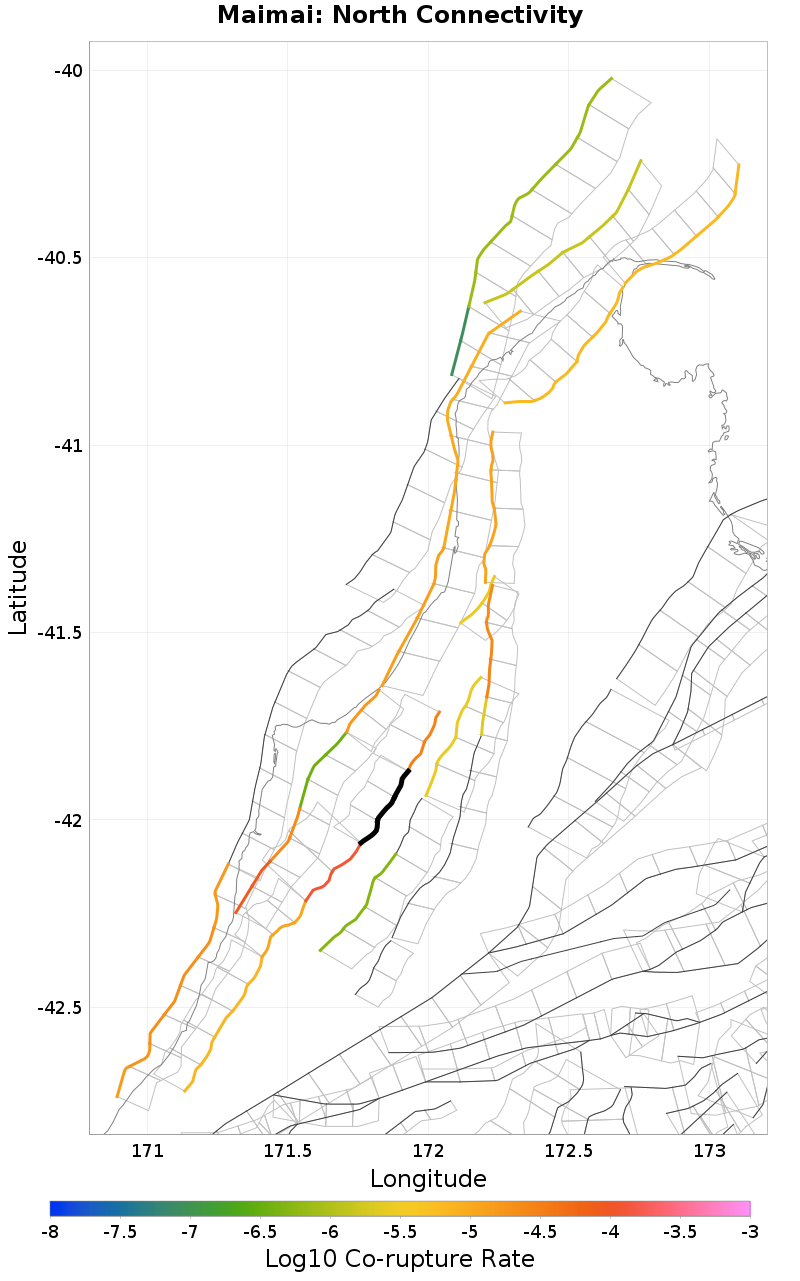

Connectivity

Nearby Sections

Fault Section
Inangahua, 0 km away
Maimai, 0 km away
Paparoa West, 1.82 km away
Paparoa West: North, 2.9 km away
Lyell South, 7.01 km away
Lyell, 7.56 km away
Cape Foulwind 2, 14.88 km away

Inangahua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,952
Co-rupture Rate	2.995503E-5

Maimai, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	1.2093313E-4

Paparoa West, 1.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	true
Directly Connected?	true
Co-rupture Count	671
Co-rupture Rate	1.0219937E-4

Paparoa West: North, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	true
Directly Connected?	true
Co-rupture Count	684
Co-rupture Rate	1.6766107E-5

Lyell South, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	5.0800514E-7

Lyell, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	2.671347E-6

Cape Foulwind 2, 14.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyMzkuMHpLOFJZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
