Marlborough Slope 2 Details

Property	Value
Rupture Count	1,095
Ruptures Above Sect Min Mag	1,094
Ruptures w/ Nonzero Rates	47
Magnitude Range	[6.98, 8.42]
Length Range	[17, 526] km
Total Rate	1.3480228E-4 /yr
Multi-Fault Rate	1.3480228E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution

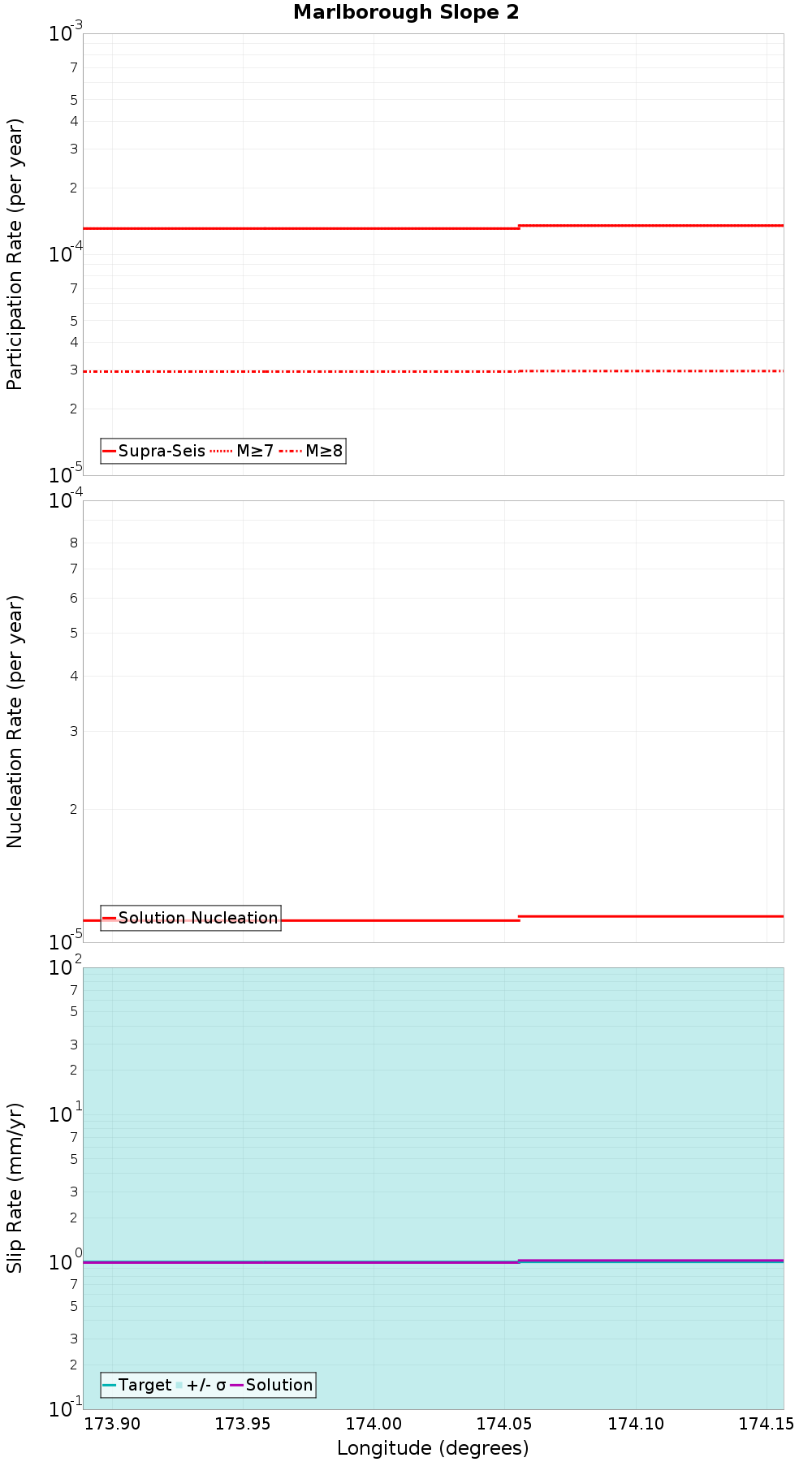

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

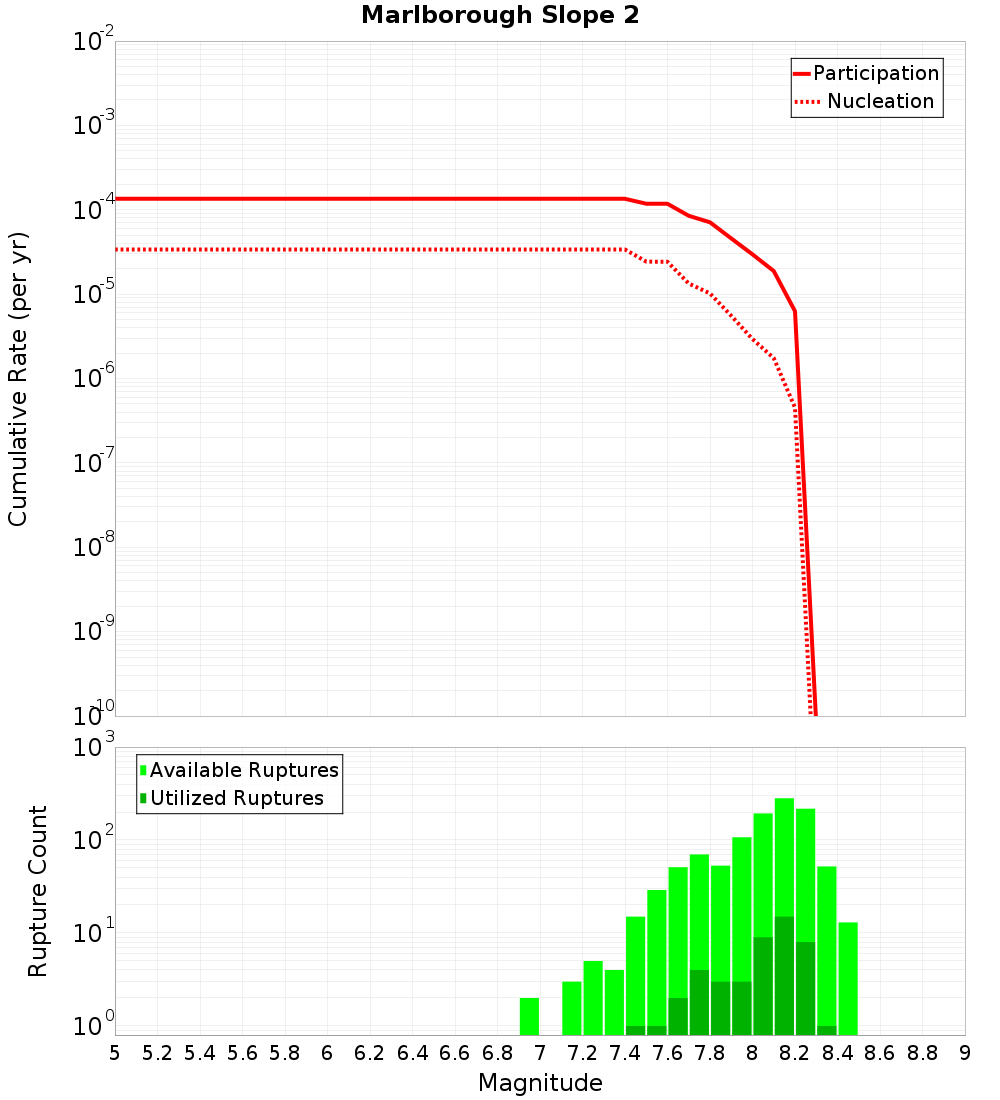

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 4.37 km away
Marlborough Slope 4, 6.6 km away
Marlborough Slope 11, 9.5 km away
Kaikoura - Mangamaunu, 11.74 km away
Conway Trough West, 12.27 km away
Conway Trough East, 13.46 km away
Marlborough Slope 9, 13.95 km away

Kekerengu Bank, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,064
Co-rupture Rate	1.0959837E-4

Marlborough Slope 4, 6.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	true
Directly Connected?	true
Co-rupture Count	257
Co-rupture Rate	3.311601E-5

Marlborough Slope 11, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	true
Directly Connected?	true
Co-rupture Count	95
Co-rupture Rate	1.6890048E-5

Kaikoura - Mangamaunu, 11.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	4.057405E-6

Conway Trough West, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Conway Trough East, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.6890048E-5

Marlborough Slope 9, 13.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
