North Mernoo K3 Details
| Property | Value |
|---|---|
| Rupture Count | 37 |
| Ruptures Above Sect Min Mag | 31 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.80, 7.58] |
| Length Range | [15, 89] km |
| Total Rate | 4.0715437E-5 /yr |
| Multi-Fault Rate | 2.2057882E-5 /yr (54.18%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

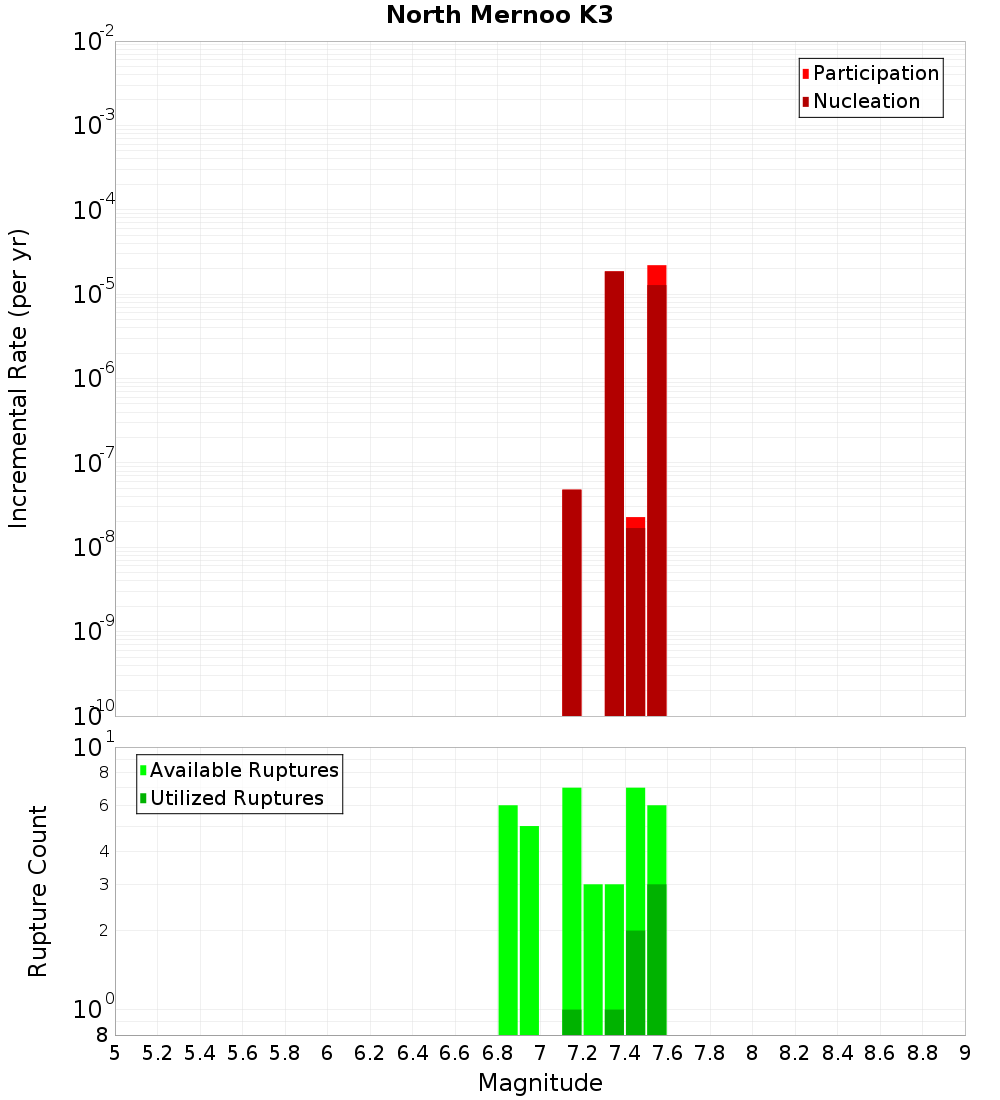

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

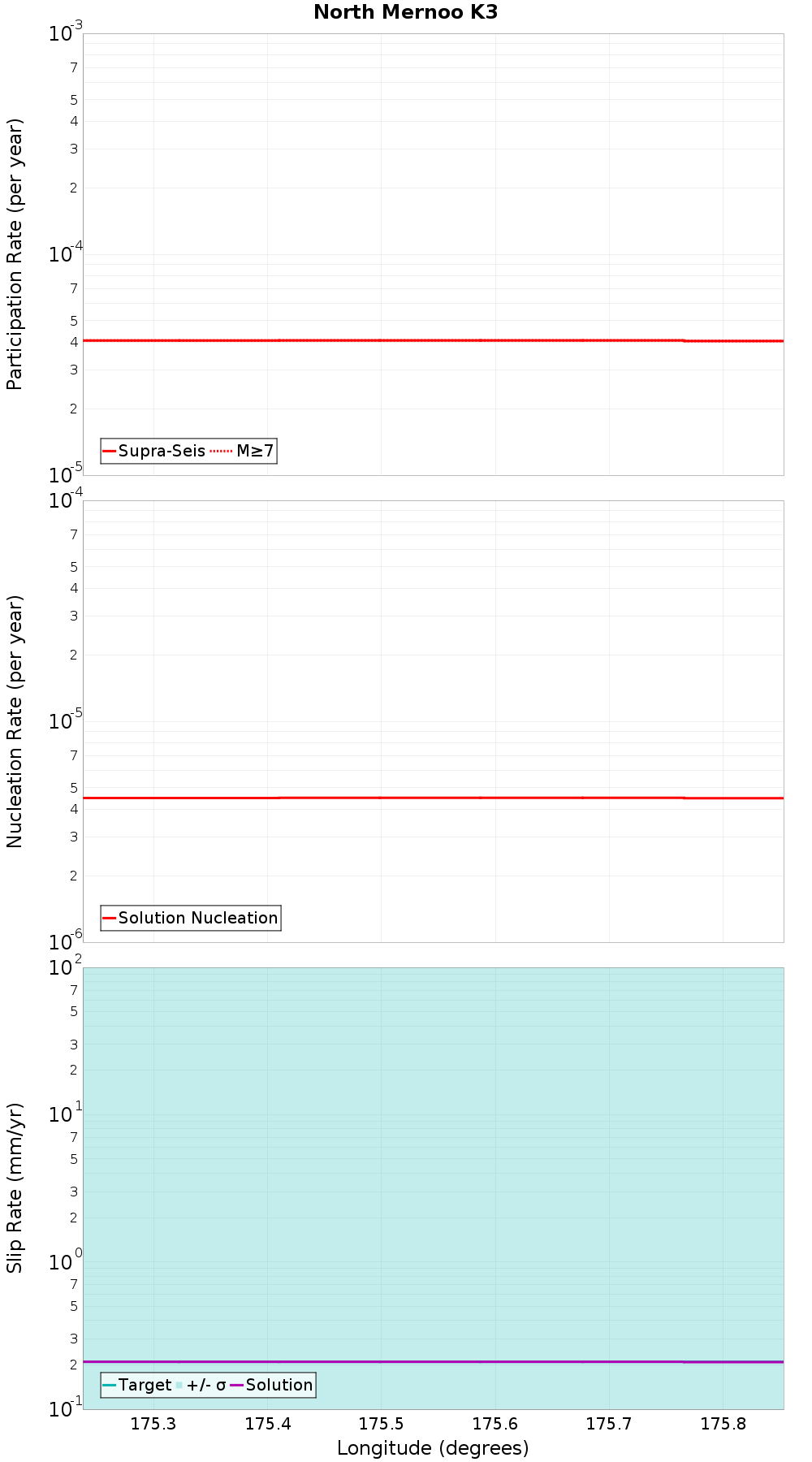

Along-Strike Values
Moment-Rates and b-Values

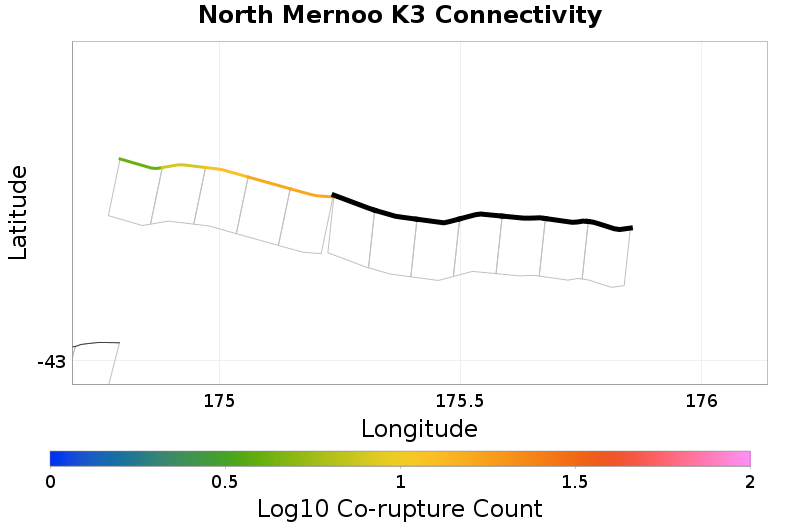

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| North Mernoo K2, 0.35 km away |
North Mernoo K2, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTAuMDd2clM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 2.2057882E-5 |
