Paparoa West Details

Property	Value
Rupture Count	2,224
Ruptures Above Sect Min Mag	2,219
Ruptures w/ Nonzero Rates	106
Magnitude Range	[6.96, 8.34]
Length Range	[18, 396] km
Total Rate	3.9977825E-4 /yr
Multi-Fault Rate	2.2092048E-4 /yr (55.26%)
Directly-Connected Faults	6
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

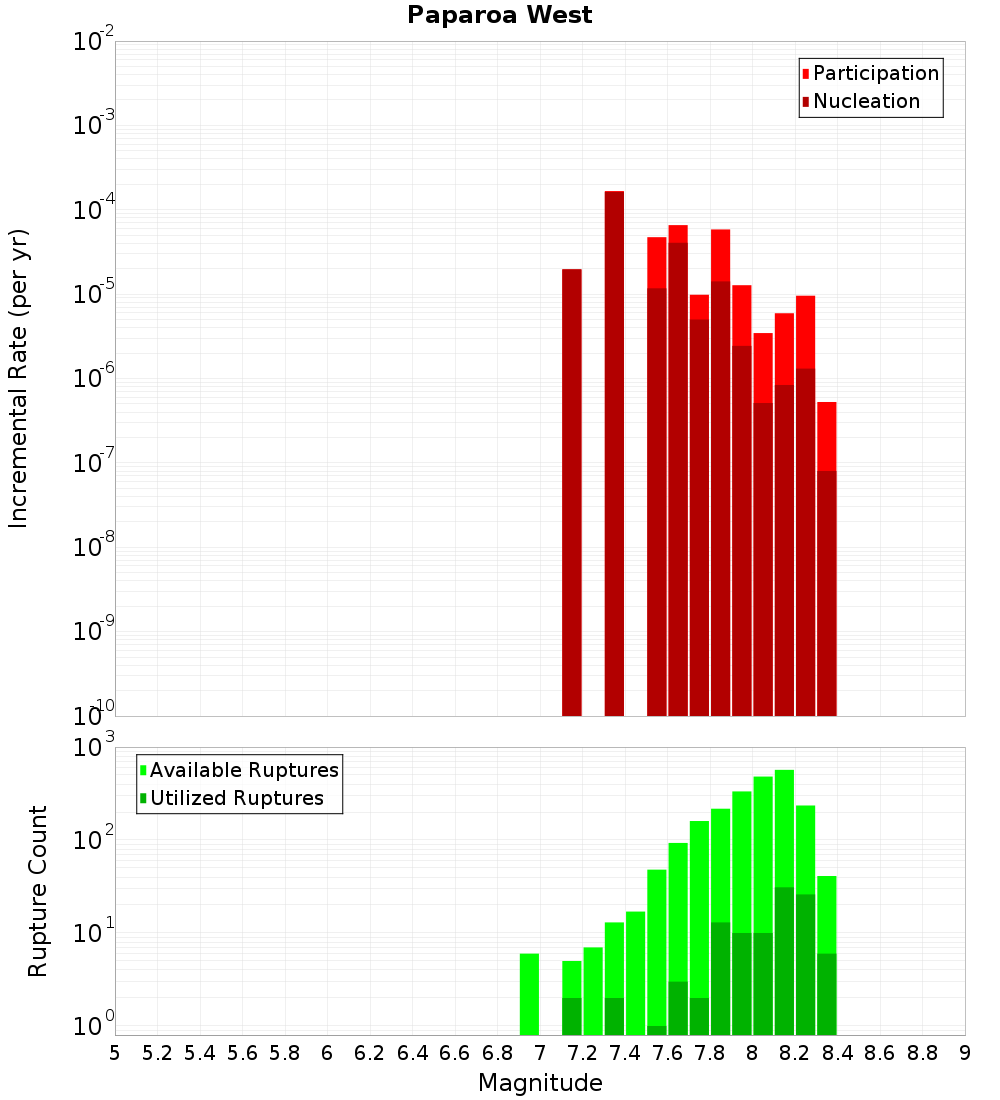

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Paparoa West: North, 0 km away
Maimai, 0.14 km away
Maimai: South, 0.22 km away
Inangahua, 1.12 km away
Maimai: North, 1.82 km away
Cape Foulwind 1, 4.61 km away
Maimai: Brunner Anticline, 7.81 km away
Cape Foulwind 2, 8.12 km away

Paparoa West: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	true
Co-rupture Count	910
Co-rupture Rate	2.176491E-5

Maimai, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	true
Co-rupture Count	280
Co-rupture Rate	1.5250238E-4

Maimai: South, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	1.850418E-5

Inangahua, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	true
Co-rupture Count	1,198
Co-rupture Rate	3.0906143E-5

Maimai: North, 1.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	true
Co-rupture Count	670
Co-rupture Rate	8.6183885E-5

Cape Foulwind 1, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	true
Co-rupture Count	616
Co-rupture Rate	2.2182072E-5

Maimai: Brunner Anticline, 7.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	false
Co-rupture Count	332
Co-rupture Rate	5.1112997E-6

Cape Foulwind 2, 8.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNTguMHpkMk5y
Connected?	true
Directly Connected?	false
Co-rupture Count	71
Co-rupture Rate	3.1022224E-5
