Motunau Details

PropertyValue
Rupture Count824
Ruptures Above Sect Min Mag819
Ruptures w/ Nonzero Rates33
Magnitude Range[6.77, 8.25]
Length Range[13, 323] km
Total Rate5.924574E-5 /yr
Multi-Fault Rate5.775163E-5 /yr (97.48%)
Directly-Connected Faults5
All Co-Rupturing Faults23

Table Of Contents

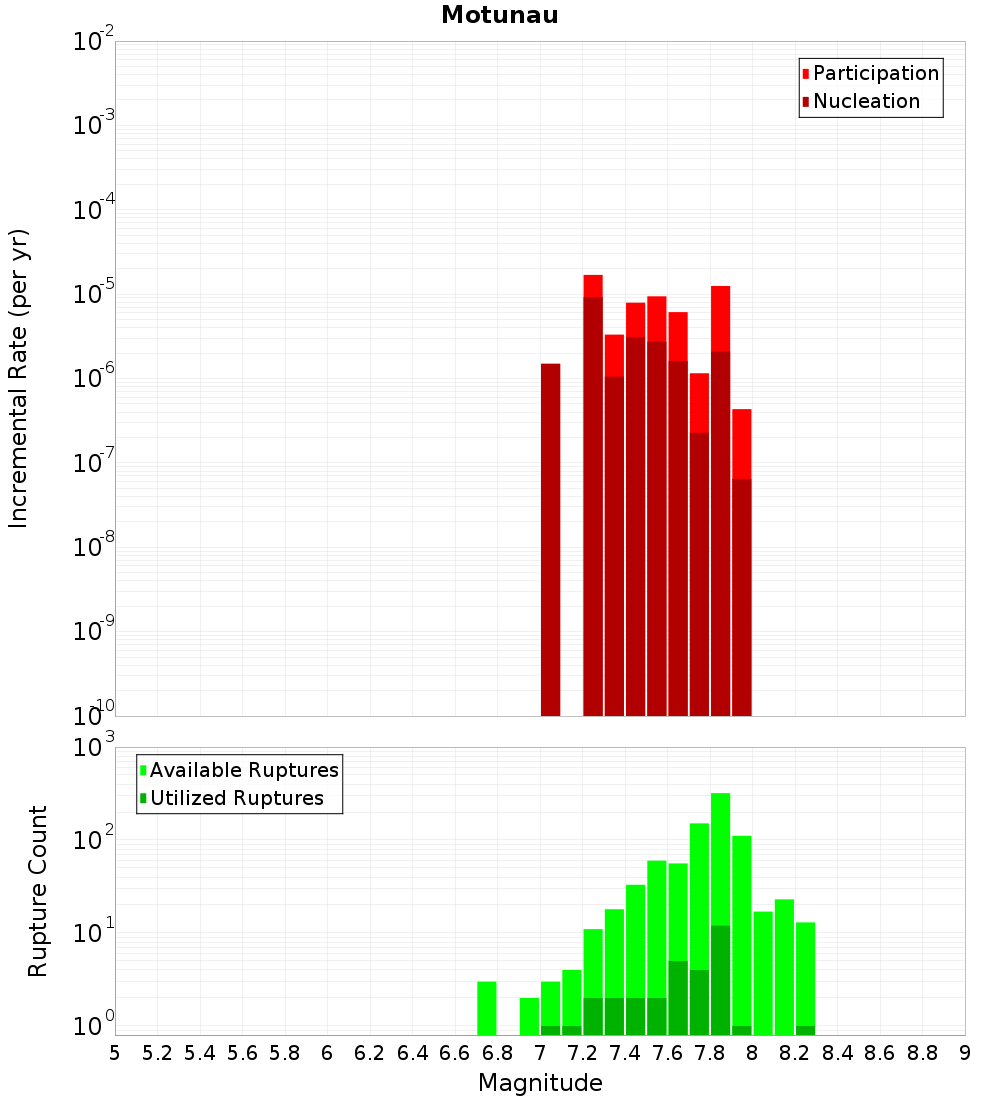

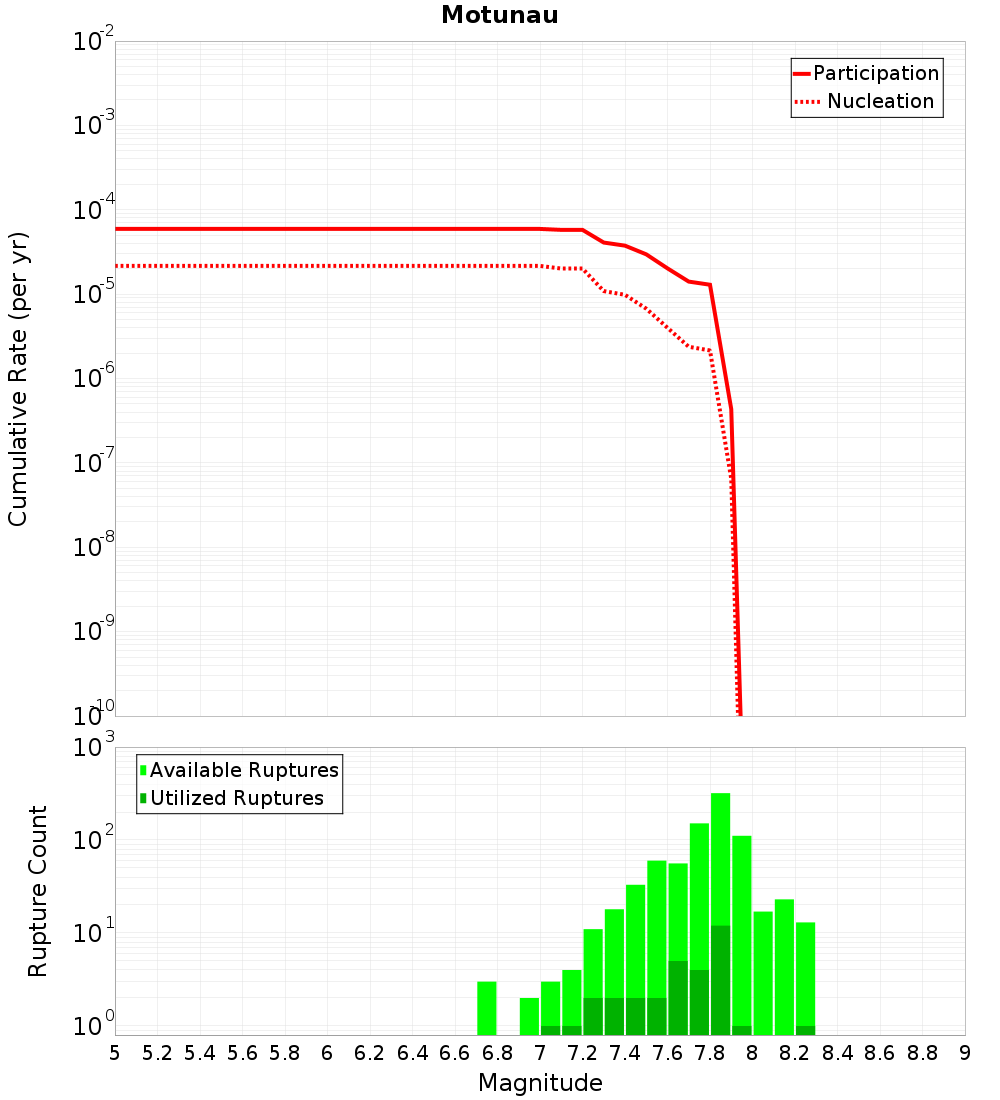

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

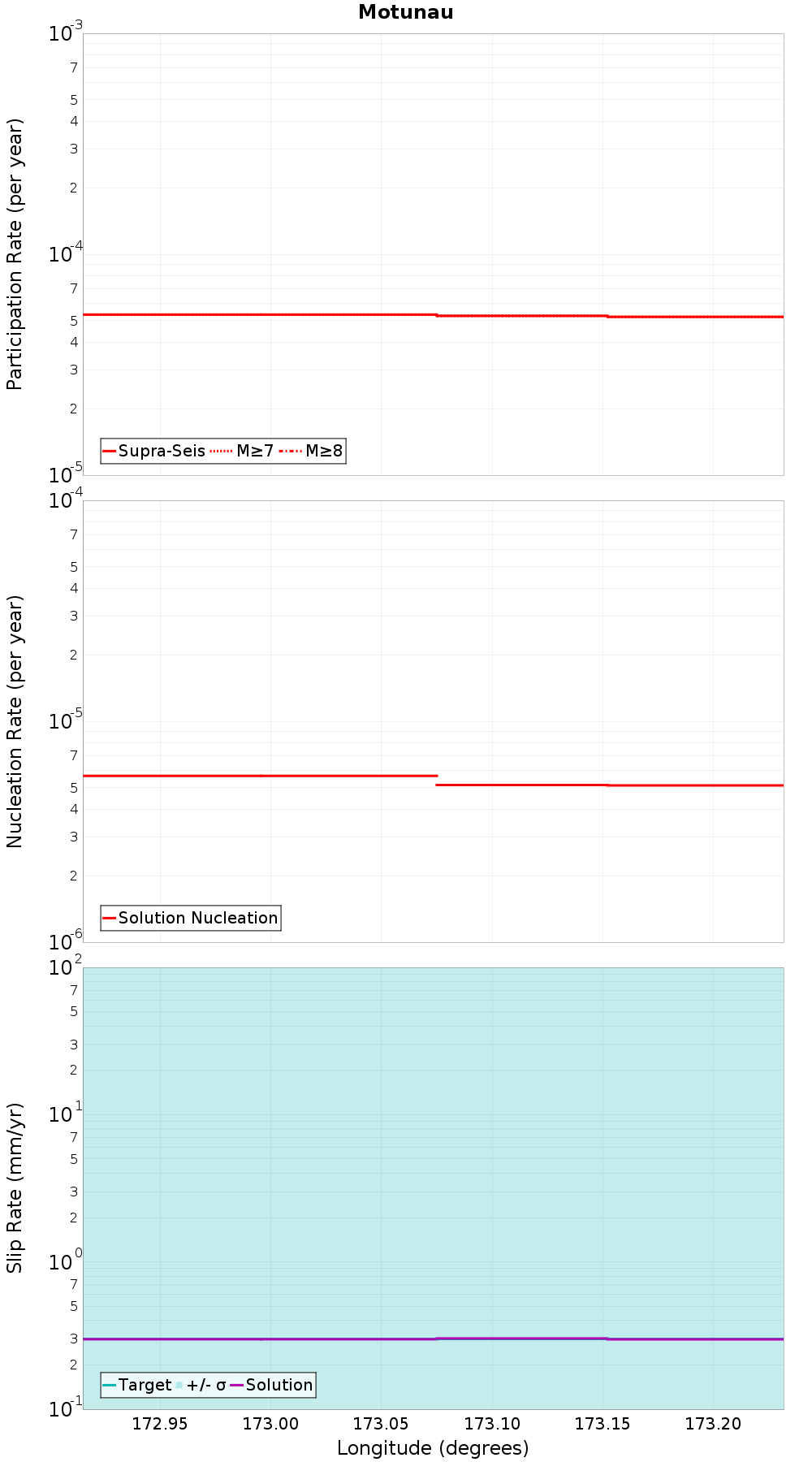

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 0.14 km away
North Canterbury Shelf 2, 0.72 km away
Leithfield - NCVI - NCVII, 1.34 km away
AmberBlyth, 2.59 km away
Point Gibson, 4.6 km away
North Canterbury Shelf 4, 6 km away
OmihiLwrHuru, 8.85 km away
Waikuku, 9.01 km away
Pegasus Bay, 11.59 km away
Boby Stream, 13.14 km away

North Canterbury Shelf 11, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?true
Co-rupture Count230
Co-rupture Rate3.955367E-5

North Canterbury Shelf 2, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate5.9380804E-6

Leithfield - NCVI - NCVII, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?true
Co-rupture Count199
Co-rupture Rate8.171904E-6

AmberBlyth, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?true
Co-rupture Count716
Co-rupture Rate3.3924E-5

Point Gibson, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?true
Co-rupture Count479
Co-rupture Rate1.0018265E-5

North Canterbury Shelf 4, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.9643923E-6

Pegasus Bay, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMGphWEhB
Connected?true
Directly Connected?false
Co-rupture Count253
Co-rupture Rate3.1420116E-6
