Pukerua - Shepherds Gully: 2 Details

PropertyValue
Rupture Count712
Ruptures Above Sect Min Mag704
Ruptures w/ Nonzero Rates13
Magnitude Range[6.33, 8.43]
Length Range[7, 942] km
Total Rate3.2010127E-4 /yr
Multi-Fault Rate3.2010127E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults71

Table Of Contents

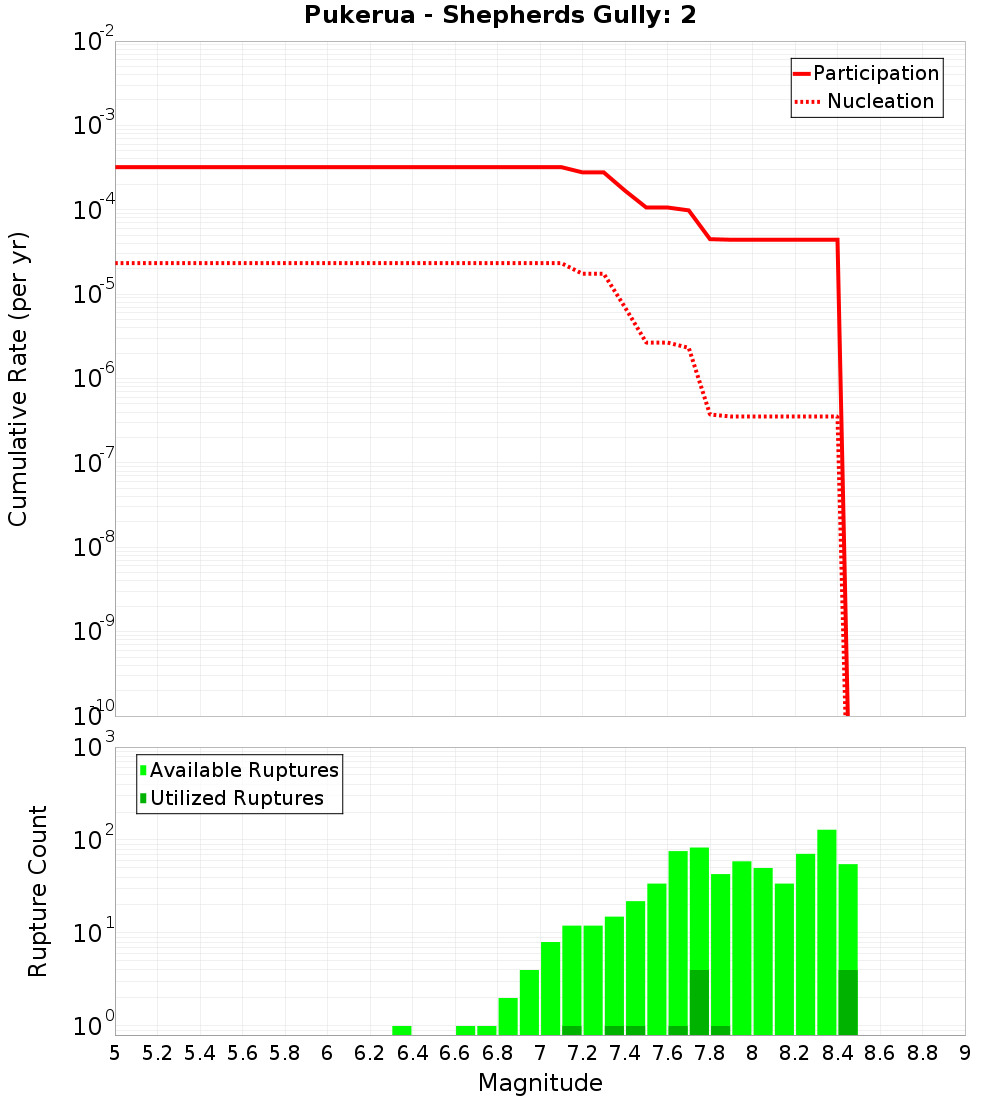

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

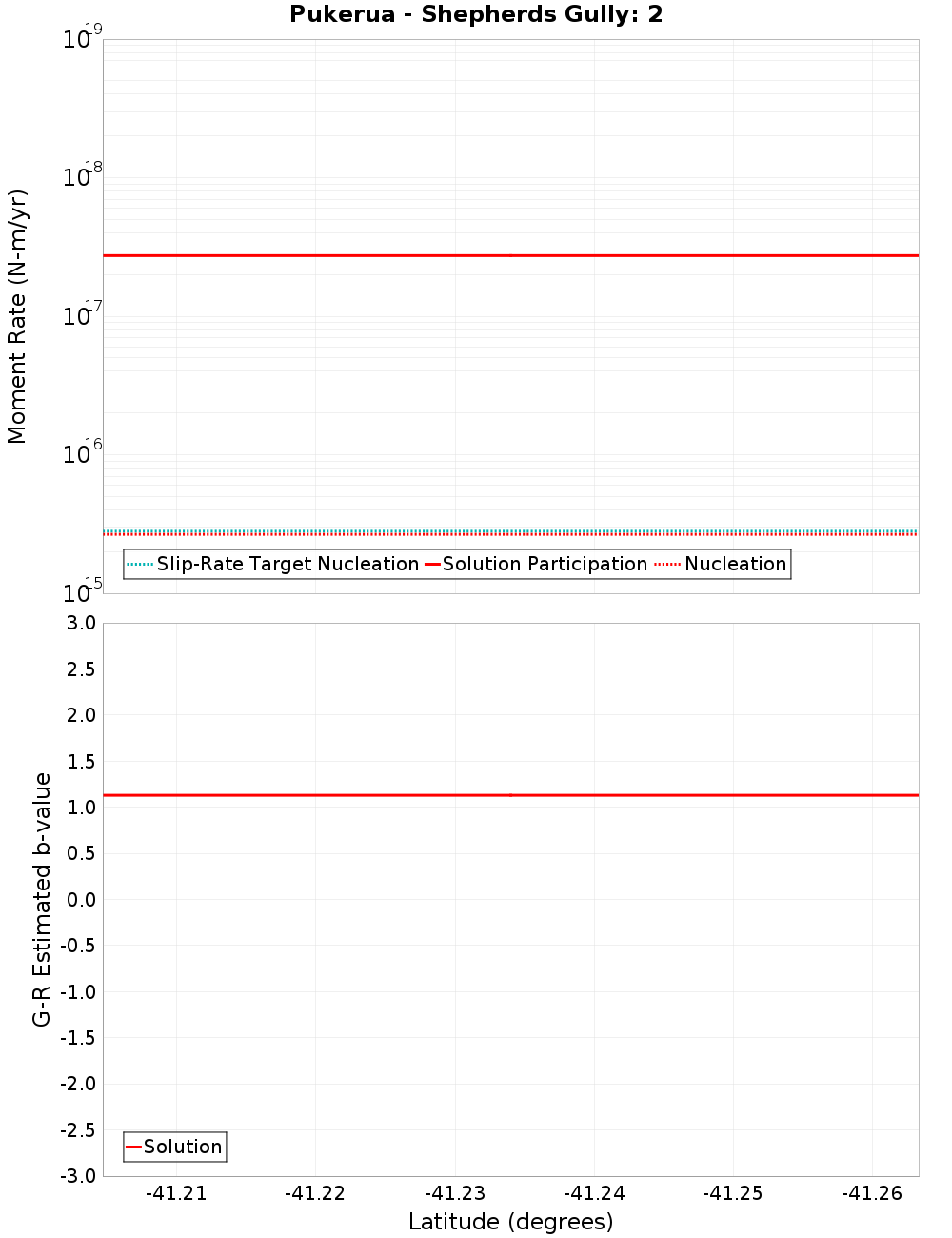

Moment-Rates and b-Values

(top)

Along-strike plot

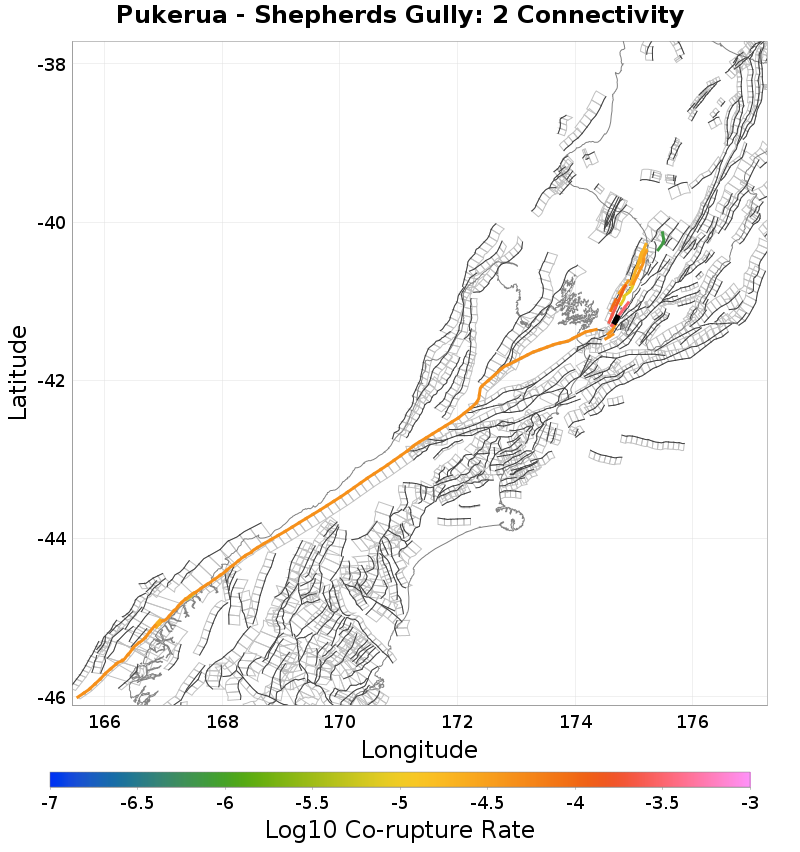

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pukerua - Shepherds Gully: 3, 0 km away
Pukerua - Shepherds Gully: 1, 0 km away
Shepherds Gully - Mana, 2.37 km away
Ohariu, 2.91 km away
Moonshine, 6.63 km away
Wellington Hutt Valley: 3, 7.12 km away
Wellington Hutt Valley: 2, 7.21 km away
Okupe 1, 7.34 km away
Otaheke South, 8.06 km away
Wellington Hutt Valley: 4, 8.22 km away
Whitemans Valley, 9.44 km away
Aotea - Evans Bay, 9.64 km away
Ohariu South 2, 10.73 km away
Wellington Hutt Valley: 1, 12.61 km away
Fisherman 1, 13.34 km away

Pukerua - Shepherds Gully: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?true
Co-rupture Count431
Co-rupture Rate3.2010127E-4

Pukerua - Shepherds Gully: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?true
Co-rupture Count594
Co-rupture Rate2.7708622E-4

Shepherds Gully - Mana, 2.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate4.3015076E-5

Moonshine, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Okupe 1, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate3.2779307E-4

Otaheke South, 8.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate8.022489E-6

Wellington Hutt Valley: 4, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count447
Co-rupture Rate4.4083754E-5

Wellington Hutt Valley: 1, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate4.3015076E-5

Fisherman 1, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgyNjQuMHphWTQ5
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate9.479062E-5
