Cloudy 2 Details
| Property | Value |
|---|---|
| Rupture Count | 3,964 |
| Ruptures Above Sect Min Mag | 3,962 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.20, 8.50] |
| Length Range | [4, 875] km |
| Total Rate | 4.0371643E-4 /yr |
| Multi-Fault Rate | 4.0371643E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 106 |
Table Of Contents

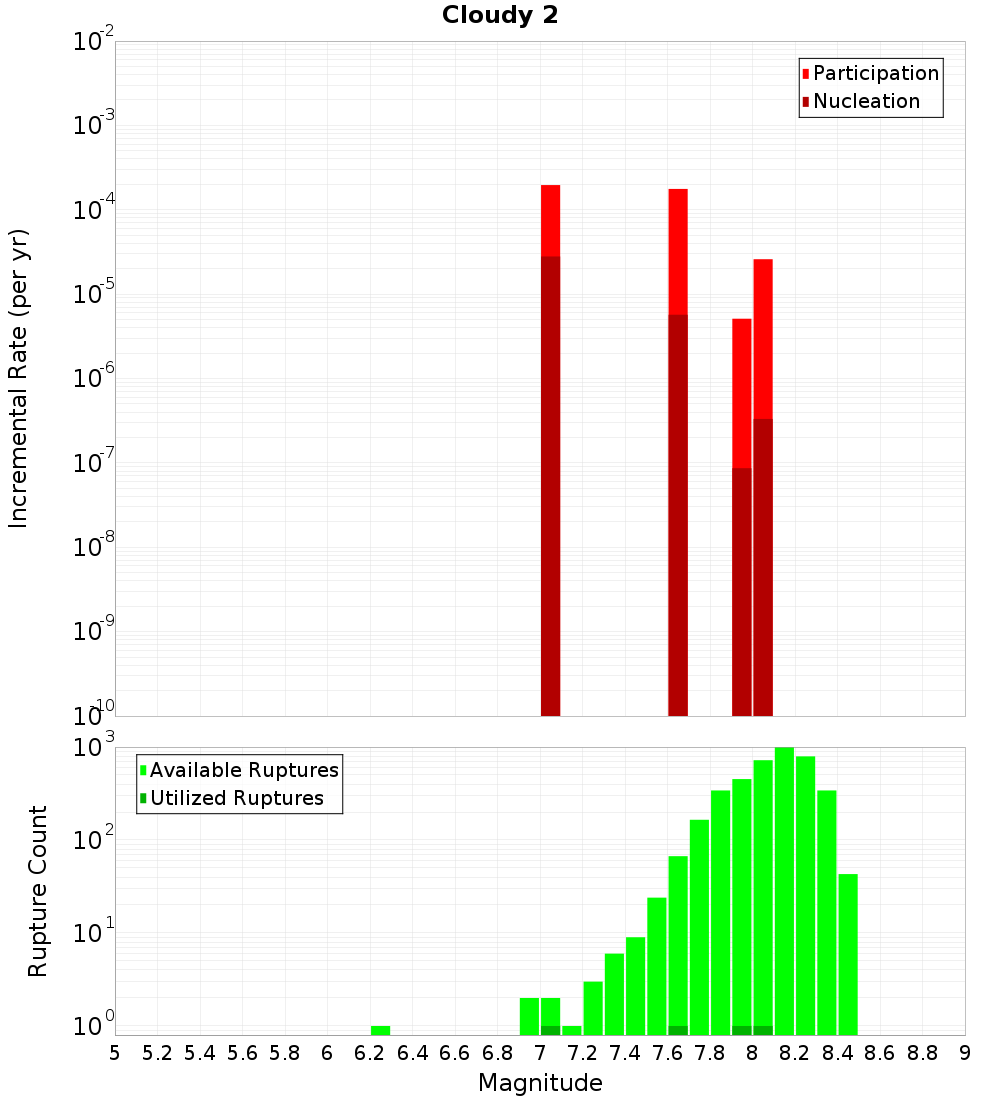

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

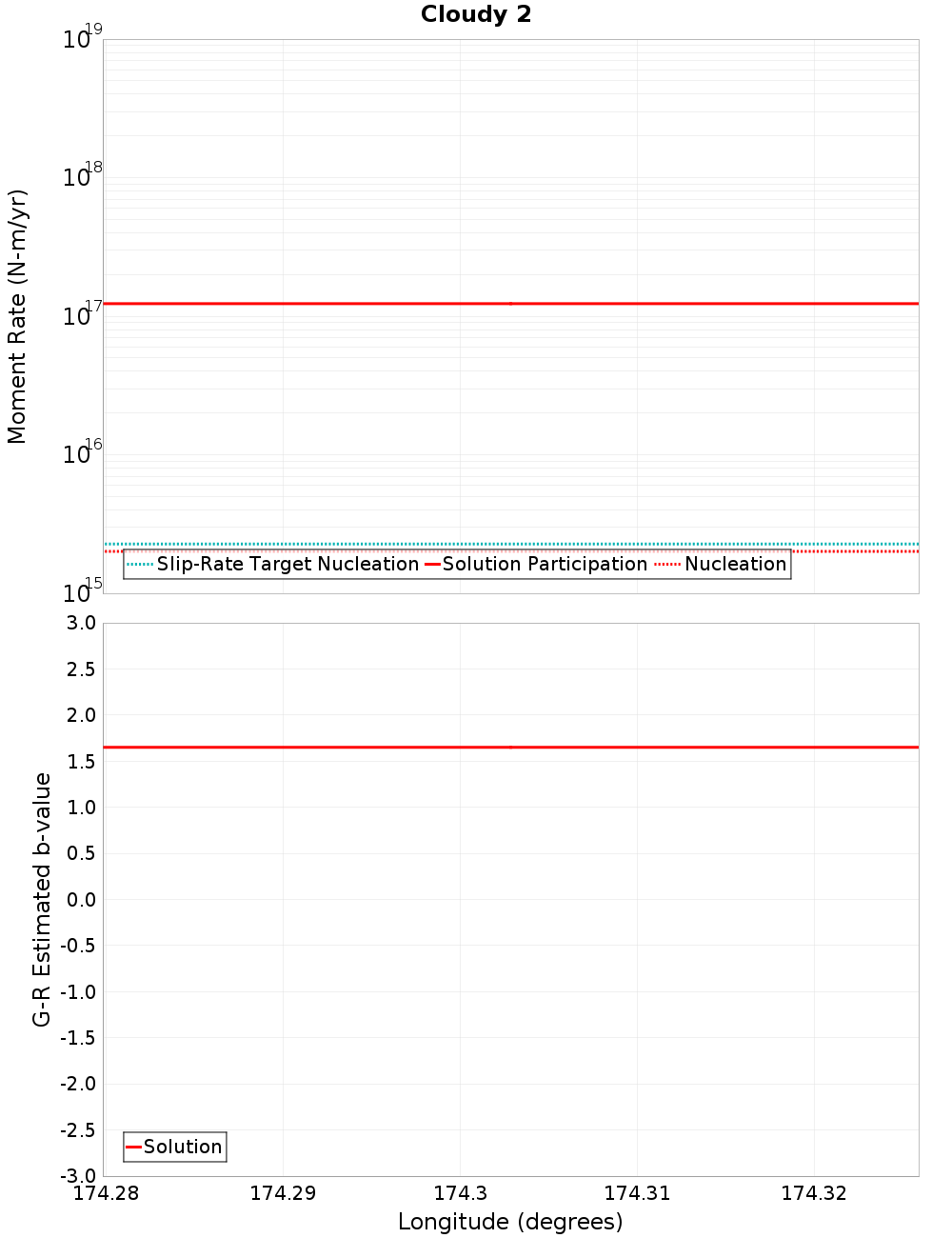

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Cloudy 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Cloudy 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 0.0 |
Awatere: Northeast 2, 4.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,477 |
| Co-rupture Rate | 1.961206E-4 |
Wairarapa: Needles, 6.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,699 |
| Co-rupture Rate | 2.0759582E-4 |
Vernon 4, 6.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 3, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.961206E-4 |
Ohariu South 1, 7.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Vernon 2, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Wairau 3, 8.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 2, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 16 |
| Co-rupture Rate | 0.0 |
Wellington Hutt Valley: 1, 14.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMDQuMGo0U2M3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
