Springbank Details

PropertyValue
Rupture Count744
Ruptures Above Sect Min Mag744
Ruptures w/ Nonzero Rates33
Magnitude Range[7.16, 8.36]
Length Range[21, 380] km
Total Rate1.6302676E-5 /yr
Multi-Fault Rate1.6302676E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults58

Table Of Contents

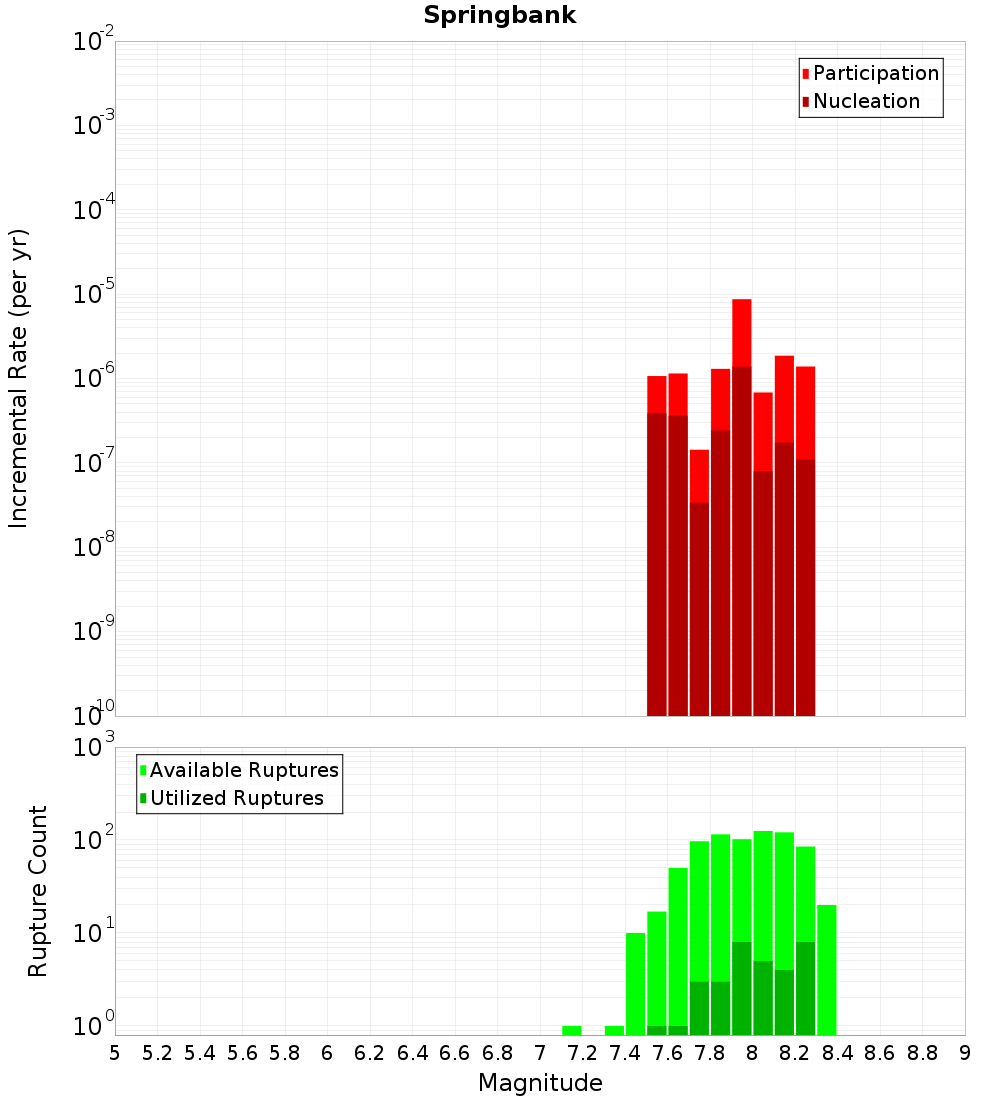

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

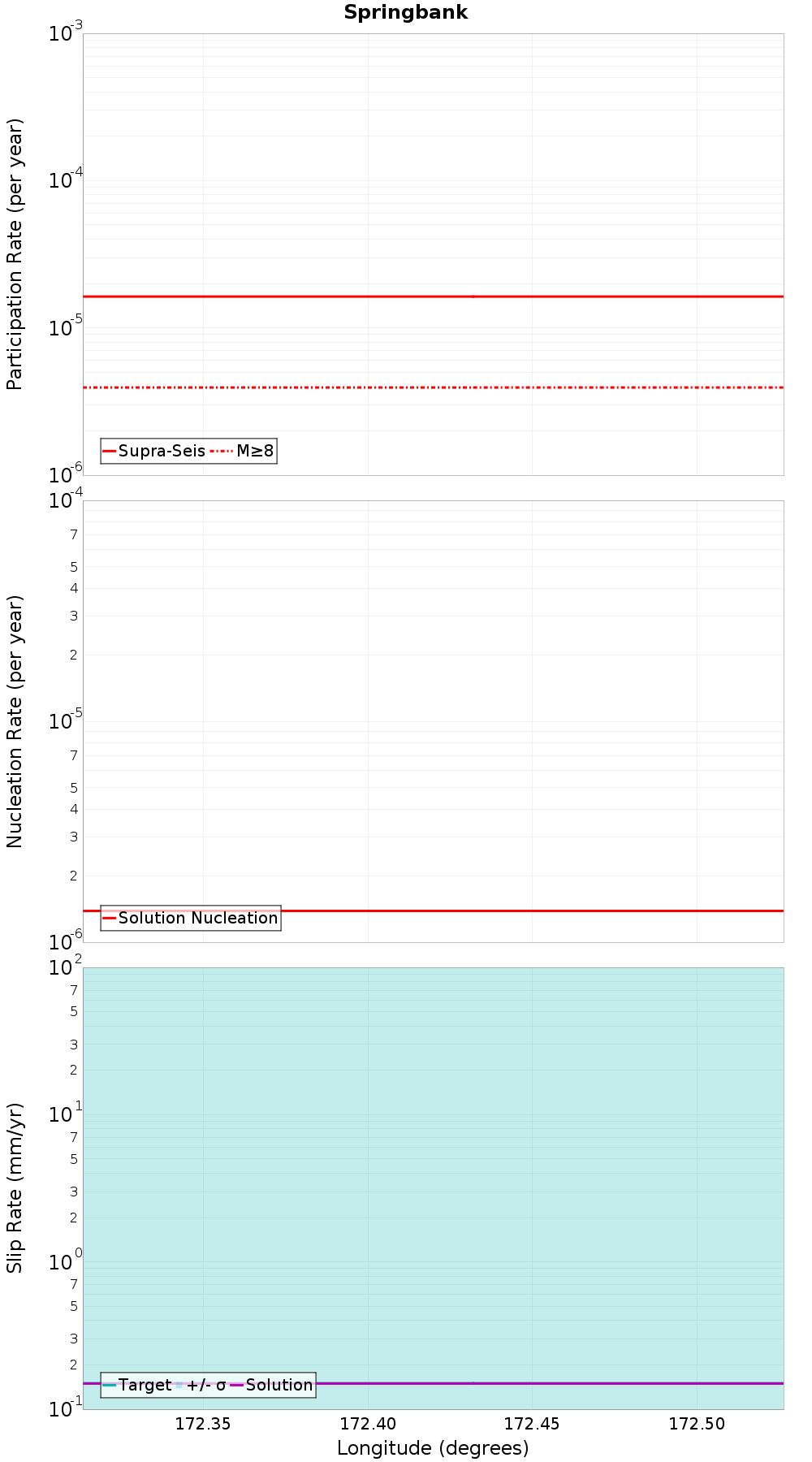

Along-Strike Values

(top)

Along-strike plot

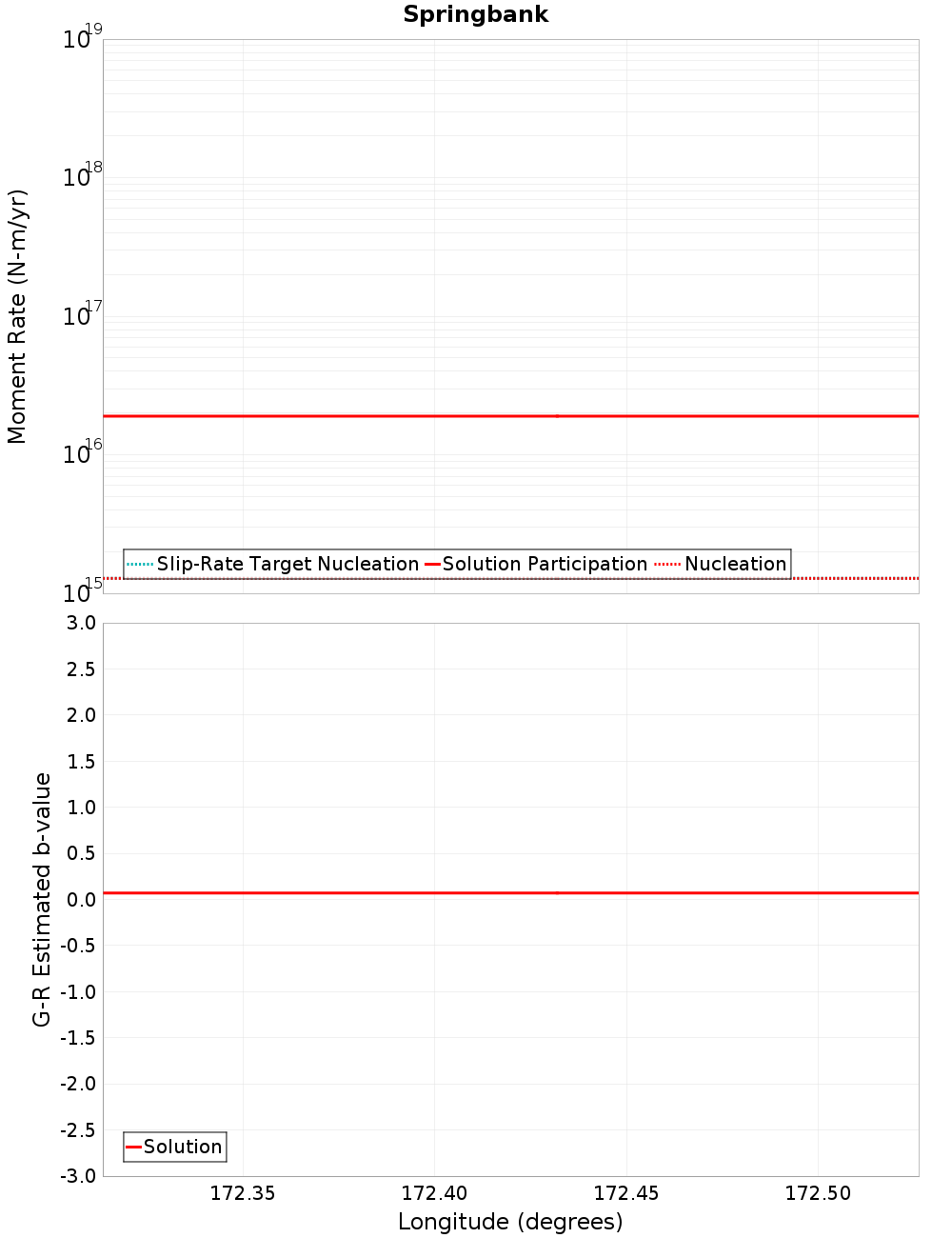

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pancake, 0.13 km away
Starvation - Ashley, 0.14 km away
Lees Valley, 0.24 km away
Mt Lawry, 0.46 km away
Esk South, 5.58 km away
Knowles Top, 8 km away
Hororata, 8.03 km away
Boby Stream, 9.36 km away
Kowai - View Hill, 10.45 km away
Mt Arden, 11.68 km away
Doctors, 12.28 km away
High Peak - Sheffield, 13.42 km away

Pancake, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Starvation - Ashley, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?true
Co-rupture Count338
Co-rupture Rate1.1204968E-6

Lees Valley, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?true
Co-rupture Count905
Co-rupture Rate2.8965274E-5

Mt Lawry, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count194
Co-rupture Rate1.4365781E-7

Boby Stream, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate0.0

Kowai - View Hill, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Mt Arden, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count291
Co-rupture Rate1.2964966E-5

Doctors, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate0.0

High Peak - Sheffield, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjMuMGlzM29O
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.4281271E-7
