Onepoto Details

Property	Value
Rupture Count	815
Ruptures Above Sect Min Mag	812
Ruptures w/ Nonzero Rates	28
Magnitude Range	[7.28, 8.21]
Length Range	[25, 232] km
Total Rate	5.153511E-5 /yr
Multi-Fault Rate	5.0879553E-5 /yr (98.73%)
Directly-Connected Faults	8
All Co-Rupturing Faults	26

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

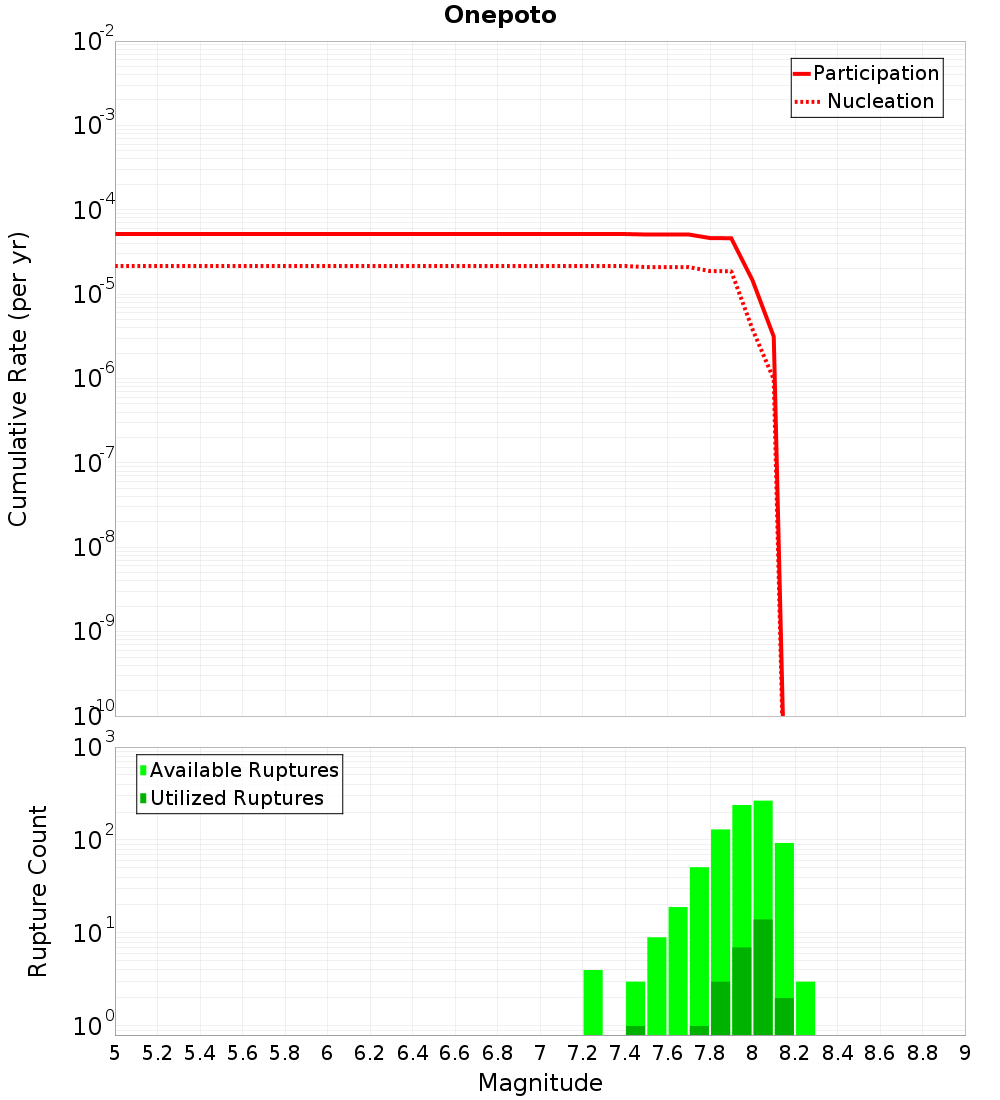

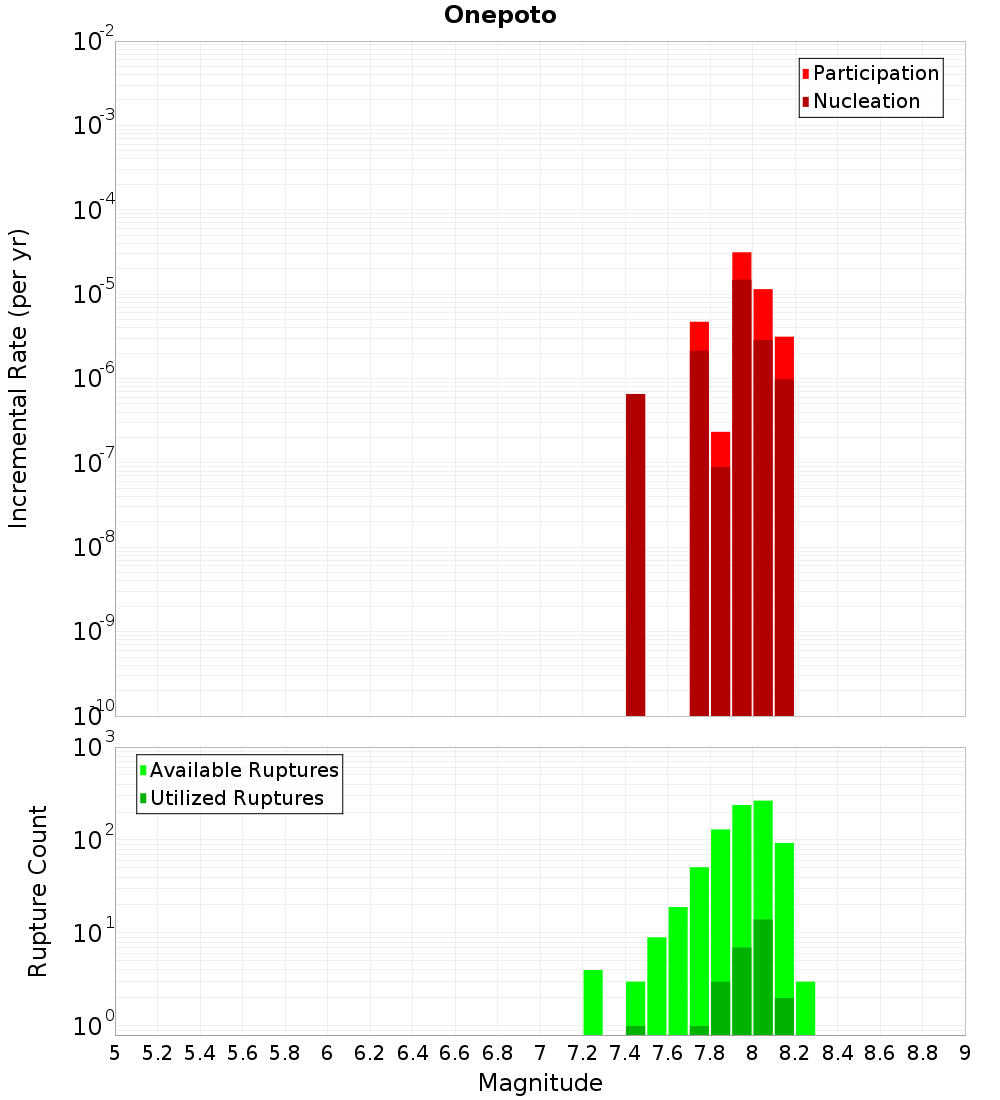

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mascarin, 0.05 km away
Fisherman 3, 0.22 km away
Otaheke North, 0.47 km away
Rangitikei Offshore 1, 0.76 km away
Fisherman 2, 2.12 km away
Otaheke South, 3.21 km away
Okupe 1, 4.91 km away
Poroutawhao, 5.72 km away
Himatangi, 5.81 km away
Leedstown, 9.01 km away
Mt Stewart, 12.32 km away
Levin Anticline, 13.2 km away
Ohariu, 14.67 km away

Mascarin, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	3.6028741E-6

Fisherman 3, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	79
Co-rupture Rate	4.0444215E-6

Otaheke North, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	83
Co-rupture Rate	6.0363127E-6

Rangitikei Offshore 1, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	127
Co-rupture Rate	3.7688245E-5

Fisherman 2, 2.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	228
Co-rupture Rate	1.0052669E-5

Otaheke South, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	386
Co-rupture Rate	1.0697151E-5

Okupe 1, 4.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	516
Co-rupture Rate	3.2436506E-5

Poroutawhao, 5.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	true
Co-rupture Count	105
Co-rupture Rate	4.294716E-6

Himatangi, 5.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	3.3231634E-6

Leedstown, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	false
Co-rupture Count	90
Co-rupture Rate	6.9260373E-6

Mt Stewart, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	4.706907E-6

Levin Anticline, 13.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 14.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMjYuMFJRalNZ
Connected?	true
Directly Connected?	false
Co-rupture Count	230
Co-rupture Rate	5.3712483E-6
