Whangamoa Details

Property	Value
Rupture Count	32,276
Ruptures Above Sect Min Mag	32,270
Ruptures w/ Nonzero Rates	43
Magnitude Range	[7.17, 8.82]
Length Range	[23, 976] km
Total Rate	1.41727705E-5 /yr
Multi-Fault Rate	1.2002594E-5 /yr (84.69%)
Directly-Connected Faults	5
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

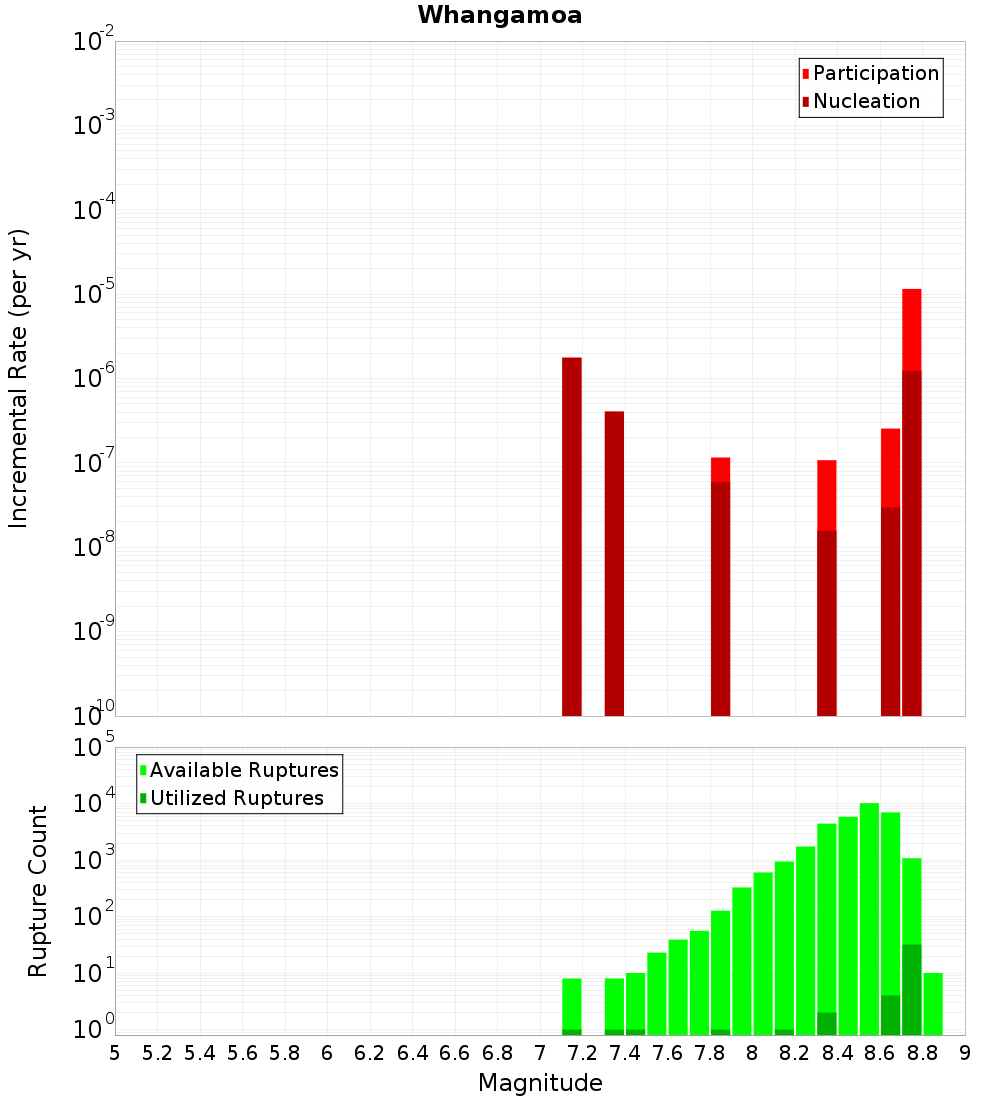

Magnitude-Frequency Distribution

Incremental	Cumulative

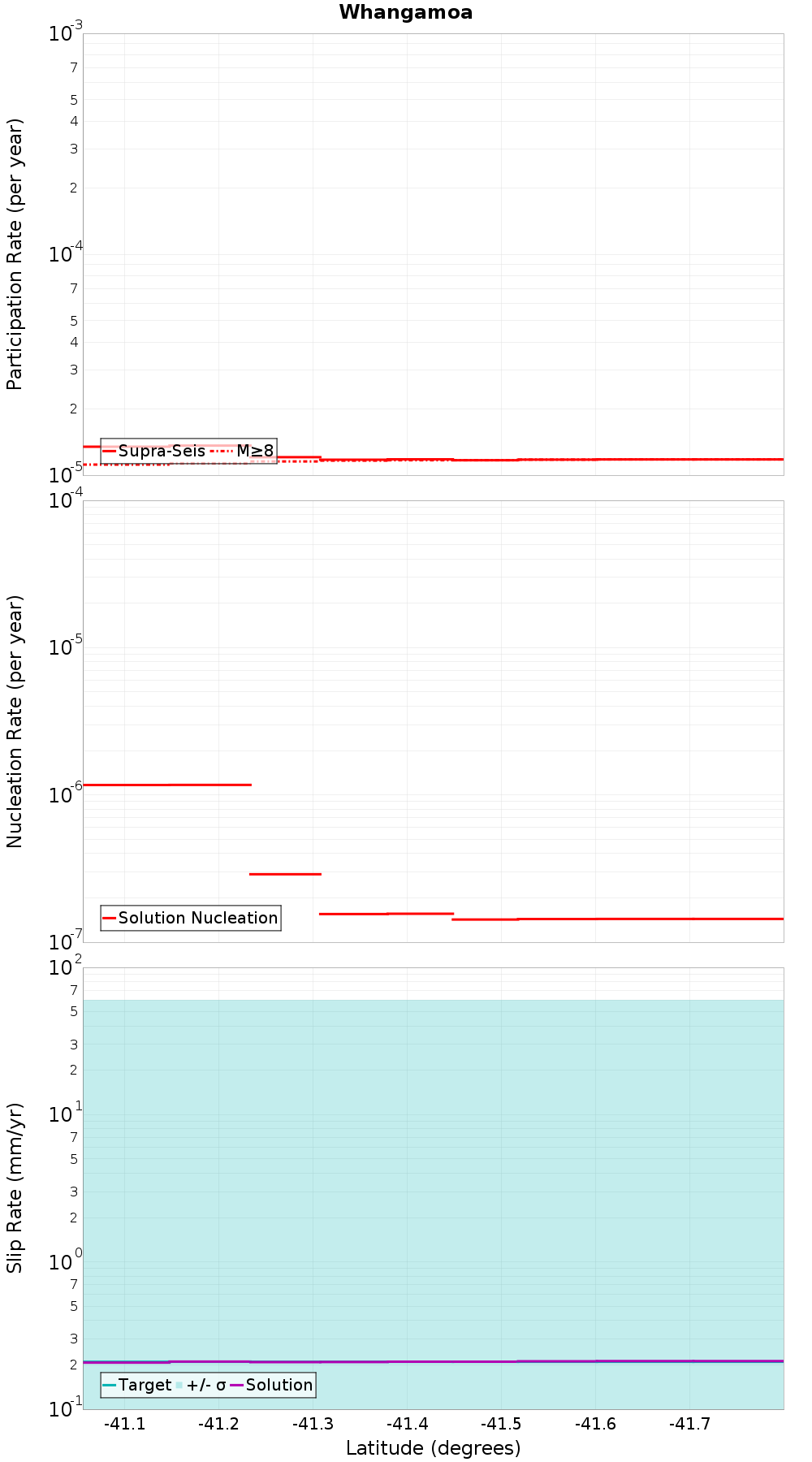

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Waimea Offshore, 0.82 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 14.86 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzIuMHJyQ2E4
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	1.1886807E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzIuMHJyQ2E4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	1.3969751E-12

Waimea Offshore, 0.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzIuMHJyQ2E4
Connected?	true
Directly Connected?	true
Co-rupture Count	12,245
Co-rupture Rate	8.842957E-6

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzIuMHJyQ2E4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	2.4040287E-7

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzIuMHJyQ2E4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,882
Co-rupture Rate	0.0

Tutaki, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzIuMHJyQ2E4
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
