Puketerata North Details

PropertyValue
Rupture Count98
Ruptures Above Sect Min Mag78
Ruptures w/ Nonzero Rates16
Magnitude Range[6.42, 7.70]
Length Range[10, 122] km
Total Rate3.2198156E-4 /yr
Multi-Fault Rate3.2198156E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults12

Table Of Contents

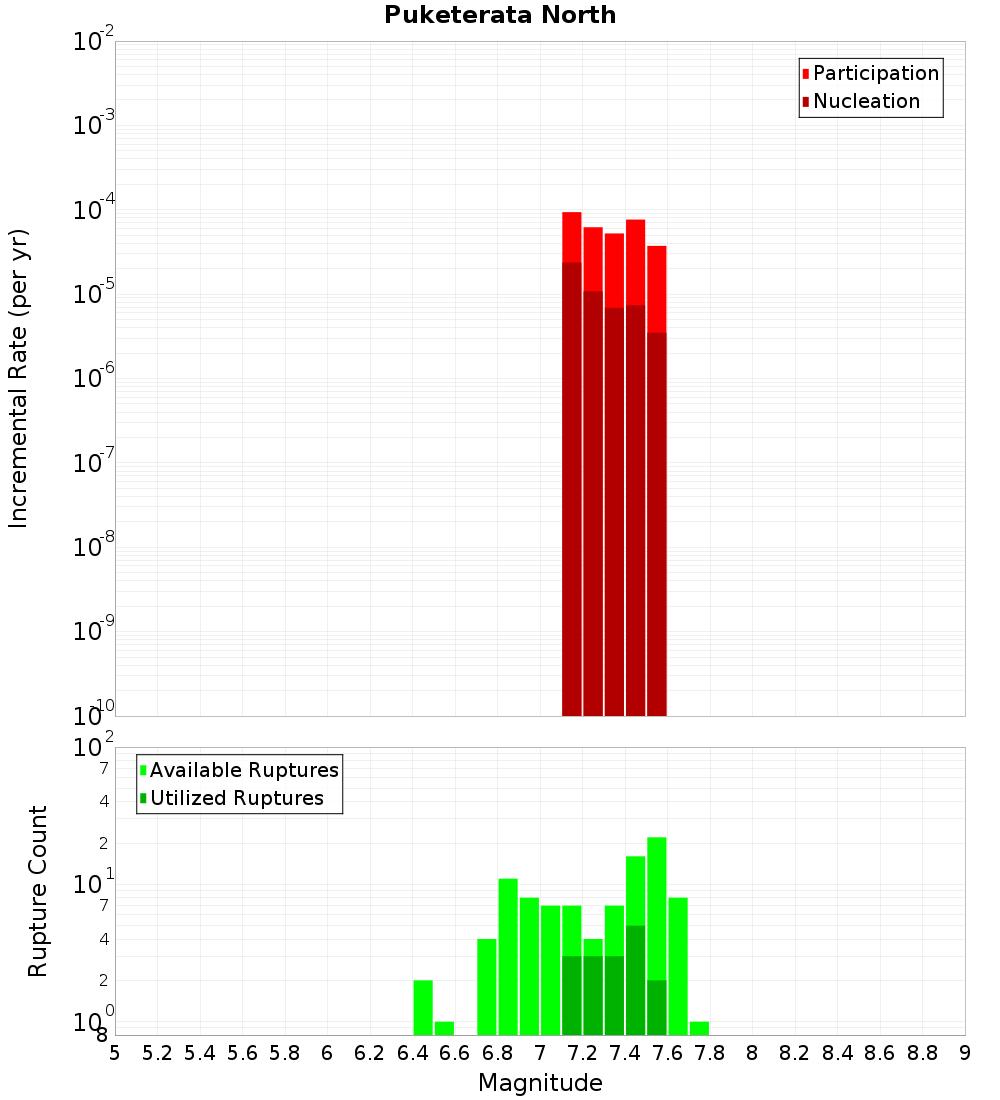

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

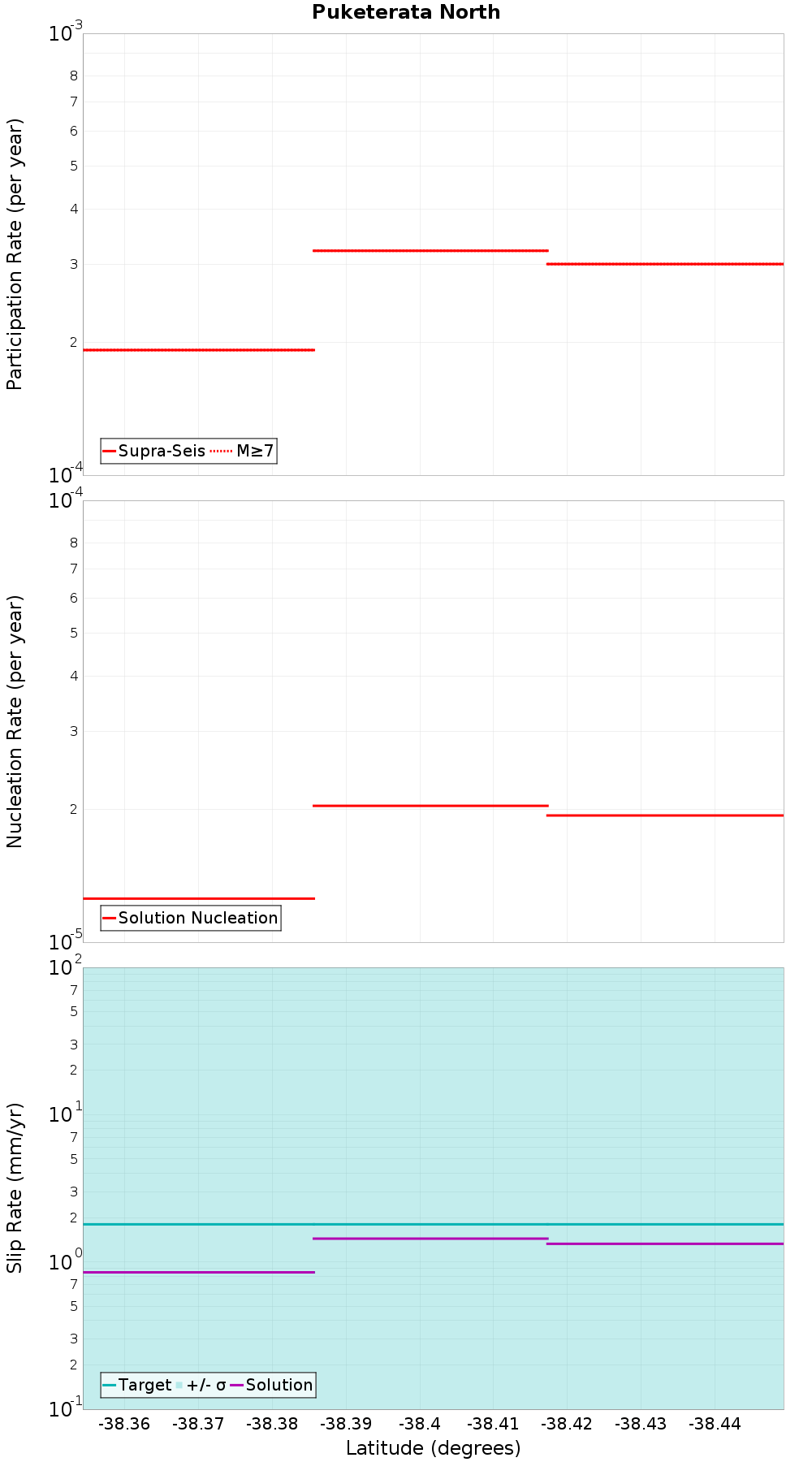

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

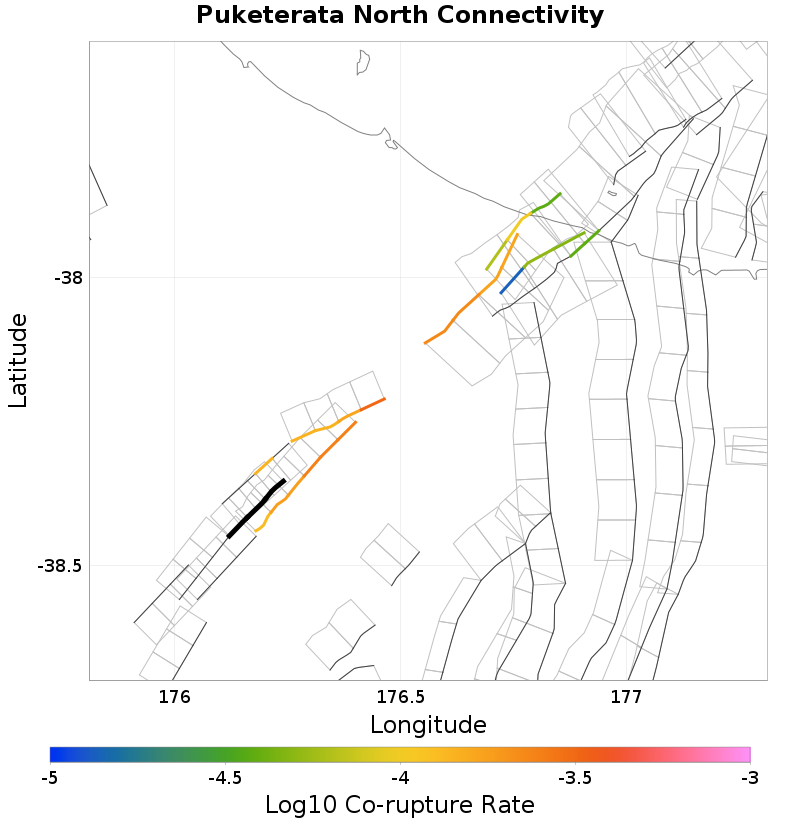

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata, 0.1 km away
Maleme, 0.15 km away
Paeroa, 2.13 km away
Orakeikorako, 3.3 km away
EarthquakeFlat - Tumunui, 7.65 km away
Whangamata West, 9.6 km away

Puketerata, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzUuMFlxdDZ6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maleme, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzUuMFlxdDZ6
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate1.4128046E-4

Paeroa, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzUuMFlxdDZ6
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate2.509723E-4

Orakeikorako, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzUuMFlxdDZ6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

EarthquakeFlat - Tumunui, 7.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzUuMFlxdDZ6
Connected?true
Directly Connected?false
Co-rupture Count75
Co-rupture Rate3.2198156E-4

Whangamata West, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzMzUuMFlxdDZ6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
