Te Arawa 2 Details

Property	Value
Rupture Count	2,060
Ruptures Above Sect Min Mag	2,059
Ruptures w/ Nonzero Rates	49
Magnitude Range	[6.92, 8.40]
Length Range	[16, 549] km
Total Rate	2.3987572E-4 /yr
Multi-Fault Rate	2.3987572E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

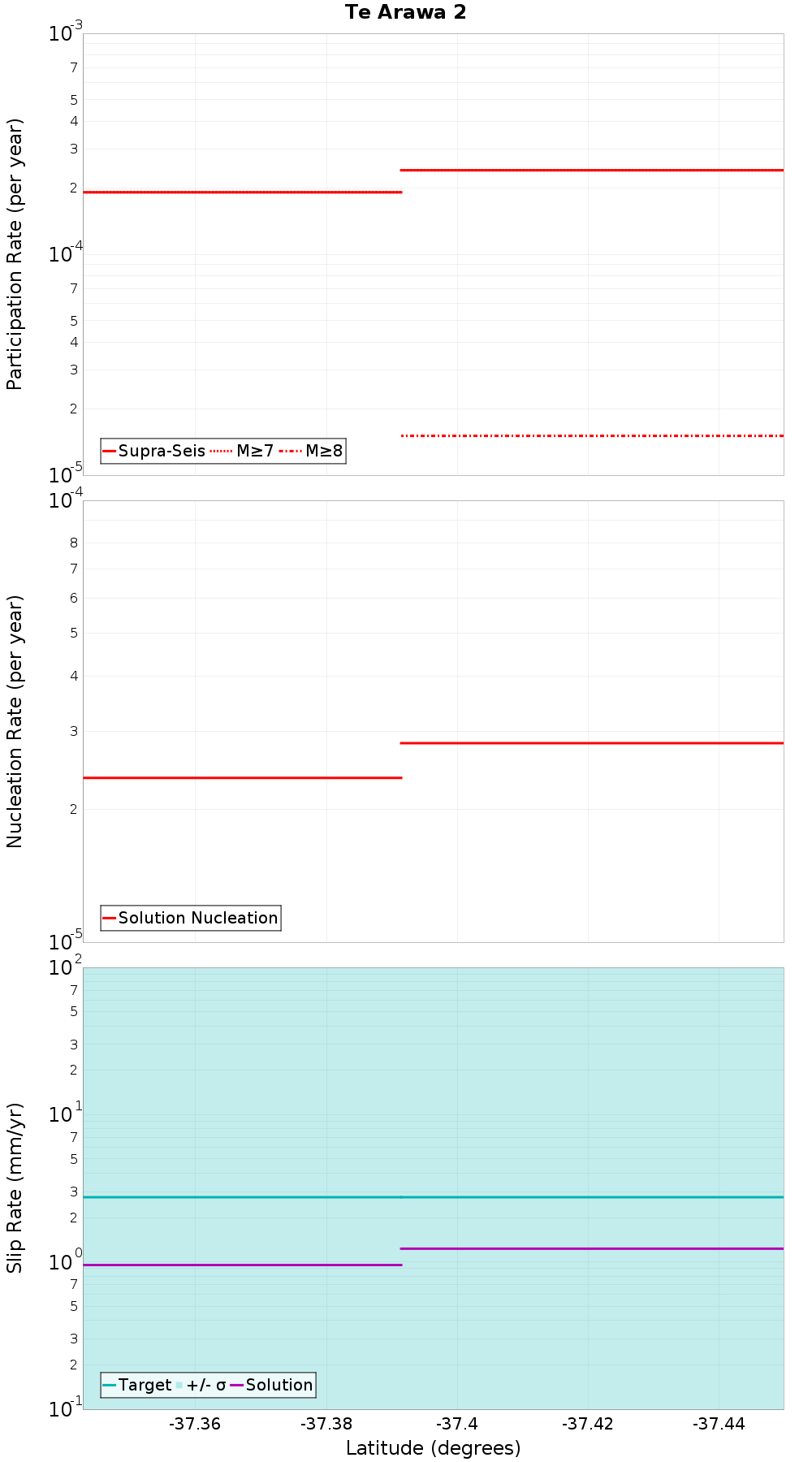

Along-Strike Values

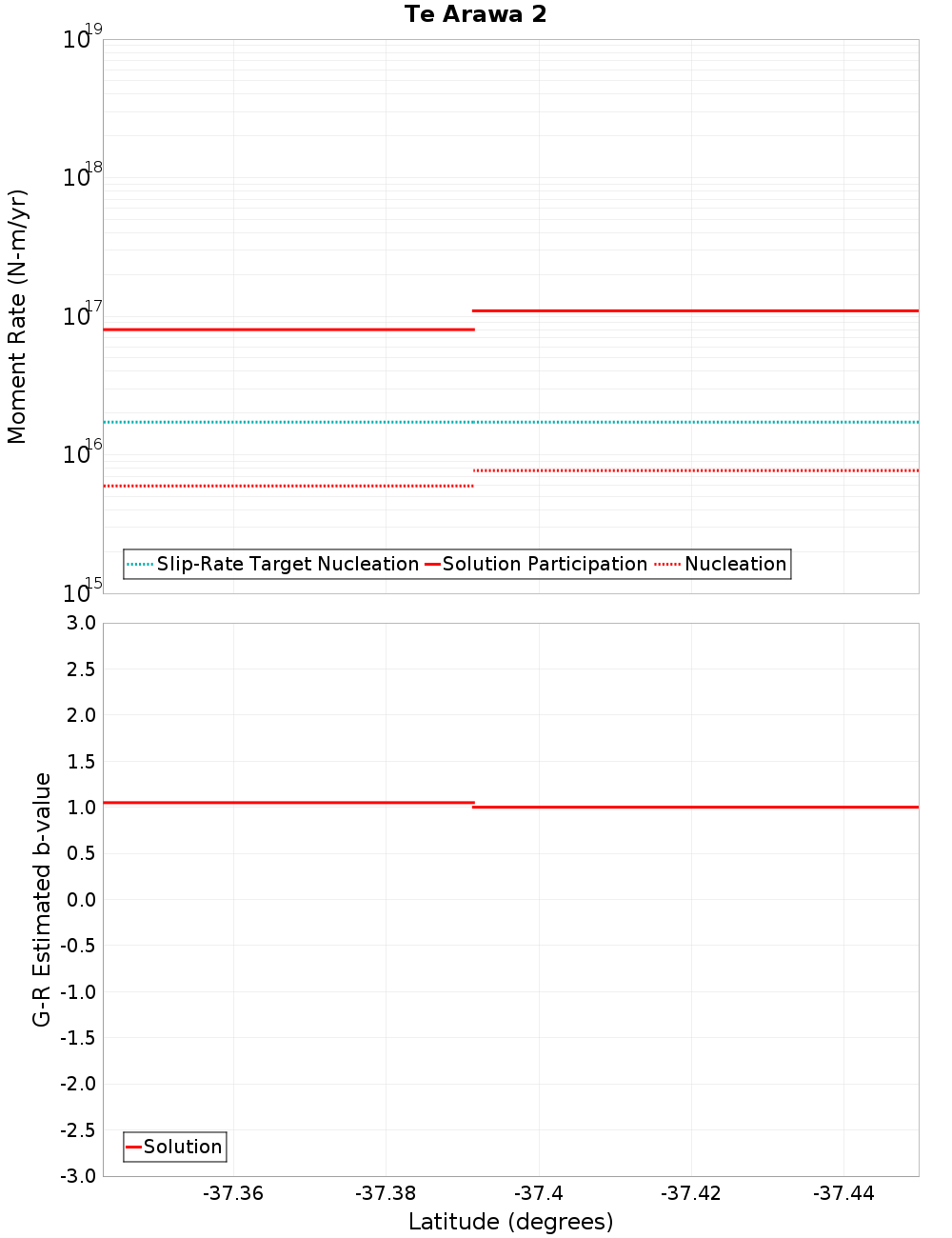

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Tuatoru 2, 0.13 km away
Te Arawa 1, 1.19 km away
Te Arawa 3, 1.67 km away
Whakaari 4, 3.86 km away
Volkner 4, 4.02 km away
Tuatoru 1, 4.64 km away
Hariki, 5.17 km away
Volkner 3, 6 km away
Calypso 2, 6.99 km away
Otara West 1, 7.42 km away
Otara East 1, 7.74 km away
White Island 2, 10.07 km away
Otara West 2, 11.66 km away
Opotiki 3, 14.7 km away
Ohiwa 1, 14.95 km away

Tuatoru 2, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	true
Co-rupture Count	627
Co-rupture Rate	1.25153E-4

Te Arawa 1, 1.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,257
Co-rupture Rate	5.2731855E-5

Te Arawa 3, 1.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	2.4526187E-5

Whakaari 4, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,281
Co-rupture Rate	3.457059E-5

Volkner 4, 4.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	3.0199749E-6

Tuatoru 1, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	true
Co-rupture Count	547
Co-rupture Rate	1.2085612E-4

Hariki, 5.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Volkner 3, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	3.0199749E-6

Calypso 2, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	true
Co-rupture Count	169
Co-rupture Rate	1.0333933E-4

Otara West 1, 7.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	3.0199749E-6

Otara East 1, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	223
Co-rupture Rate	9.889837E-5

White Island 2, 10.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	742
Co-rupture Rate	1.1287847E-4

Otara West 2, 11.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?	true
Directly Connected?	false
Co-rupture Count	269
Co-rupture Rate	5.642856E-5
