Tin Hut Details
| Property | Value |
|---|---|
| Rupture Count | 1,178 |
| Ruptures Above Sect Min Mag | 1,178 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.29, 8.65] |
| Length Range | [31, 946] km |
| Total Rate | 9.7973854E-5 /yr |
| Multi-Fault Rate | 9.7973854E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 77 |
Table Of Contents

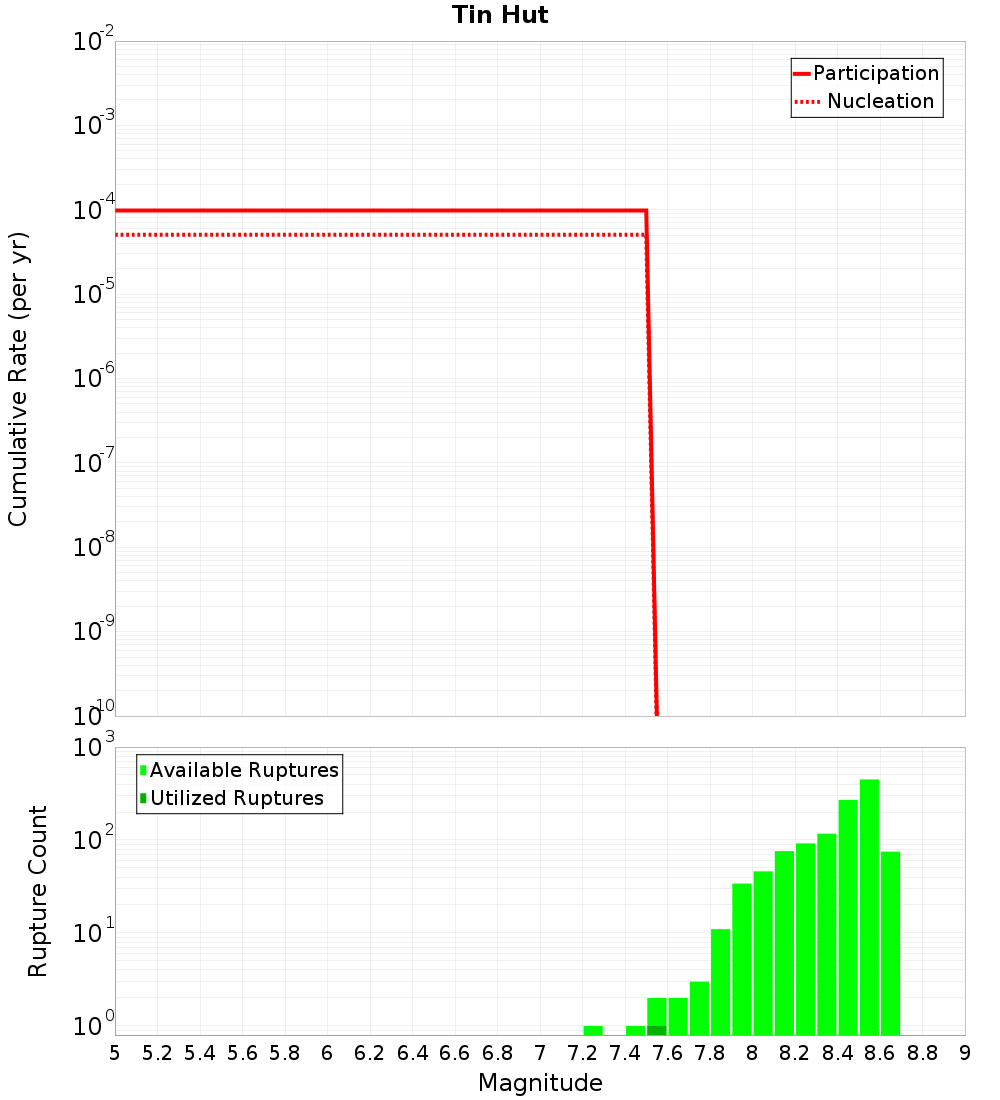

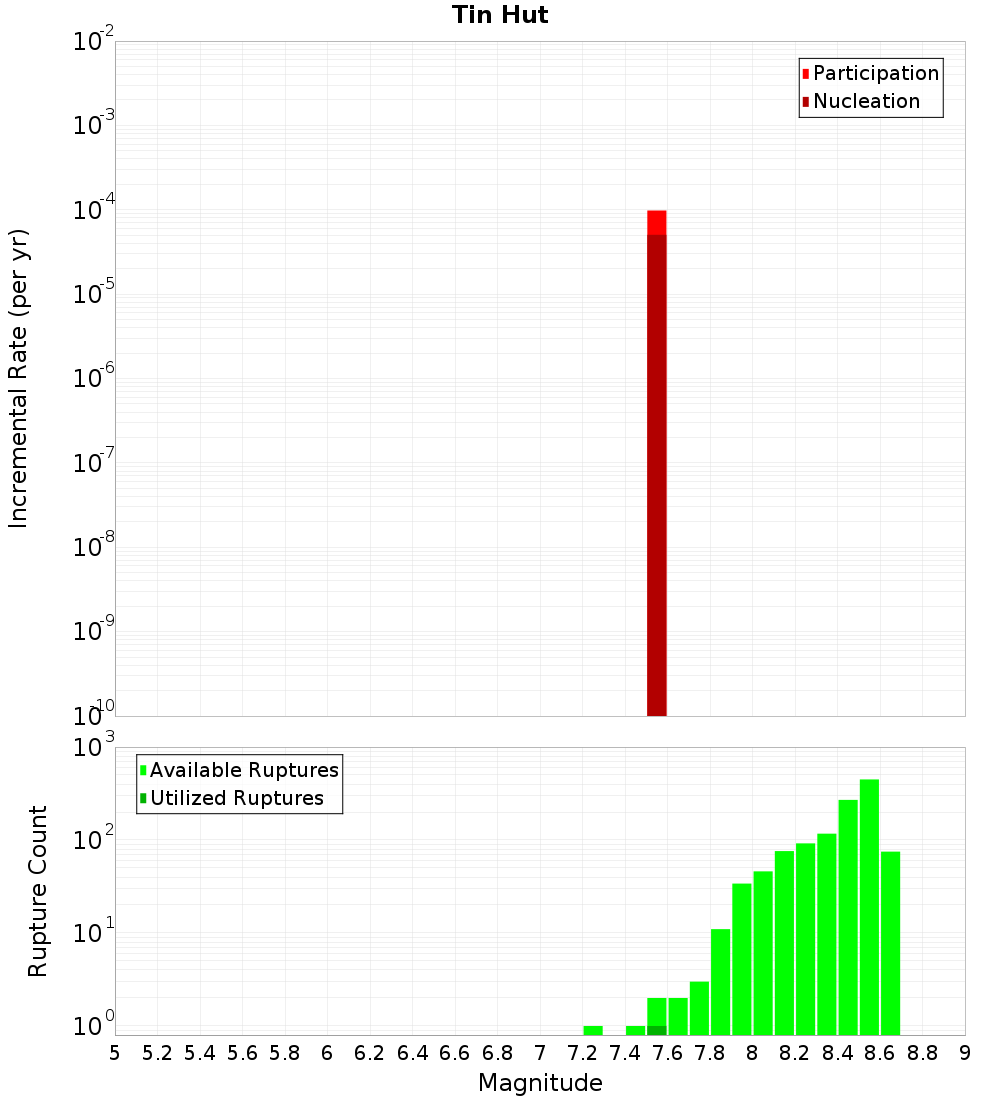

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

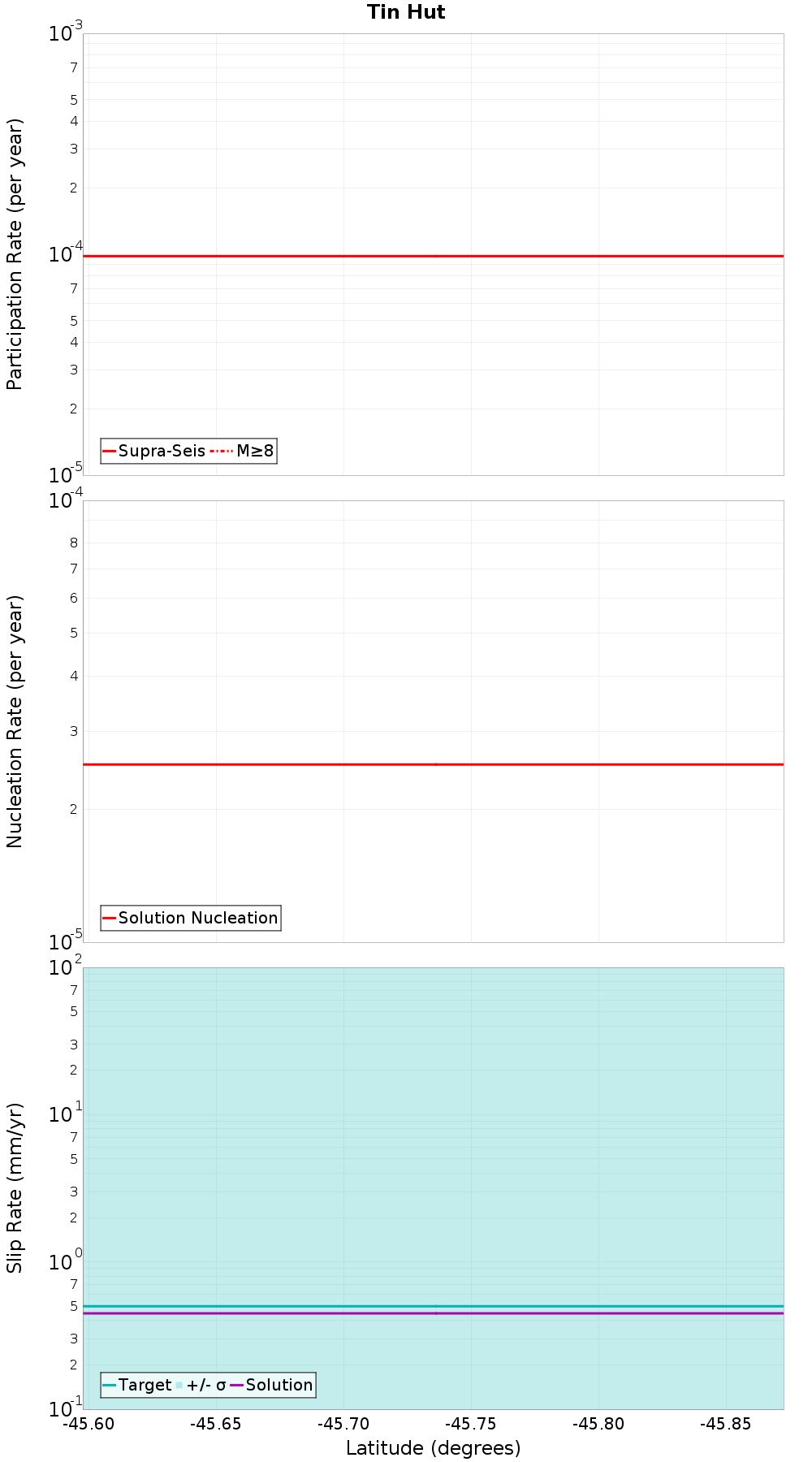

Along-Strike Values

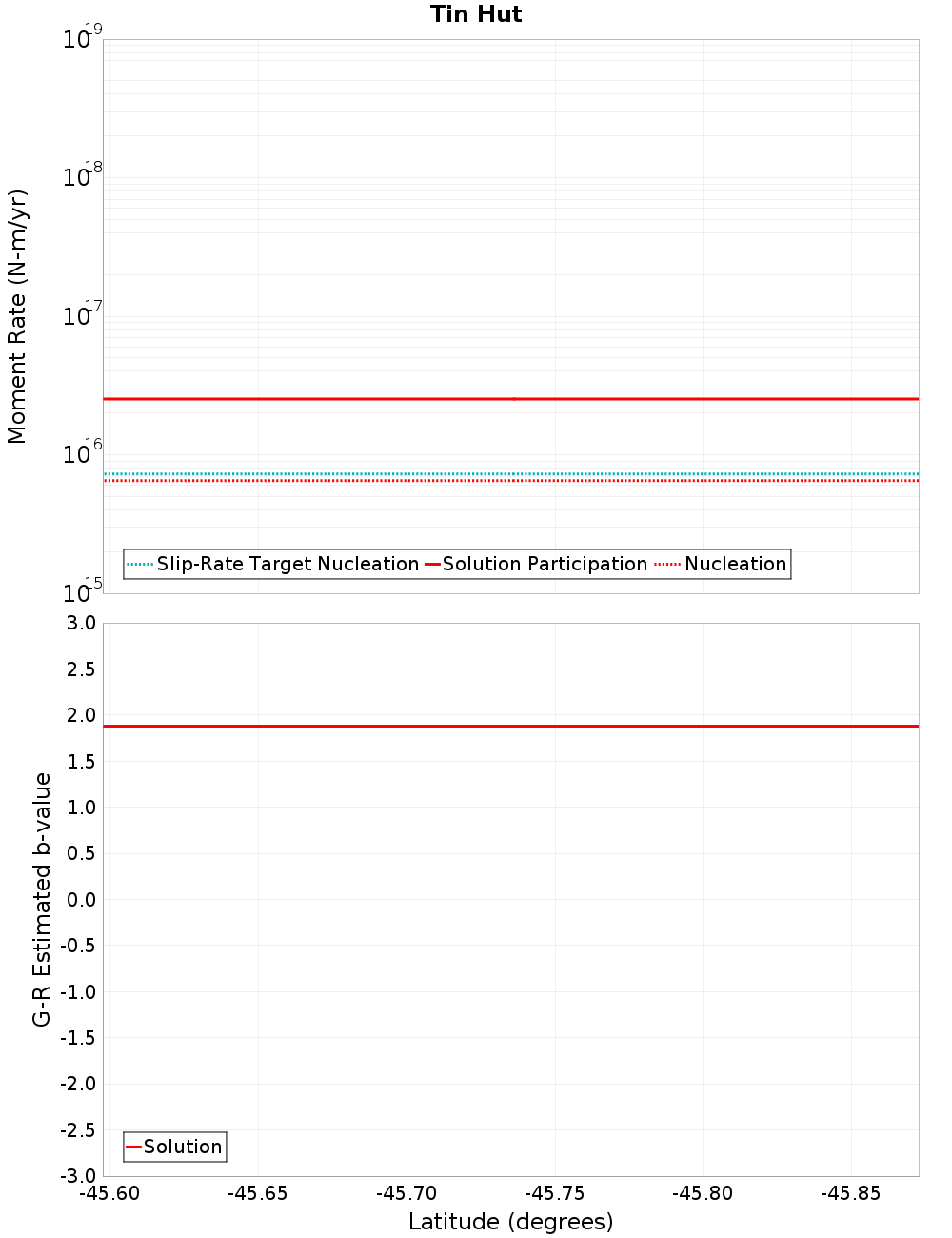

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| McKerchar, 0.06 km away |
| Moonlight South, 0.9 km away |
| Mossburn, 2.3 km away |
| Monowai, 3.53 km away |
| Hauroko: North, 14.05 km away |
McKerchar, 0.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 0.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,236 |
| Co-rupture Rate | 0.0 |
Mossburn, 2.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Monowai, 3.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 206 |
| Co-rupture Rate | 9.7973854E-5 |
Hauroko: North, 14.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
