Volkner 3 Details

PropertyValue
Rupture Count120
Ruptures Above Sect Min Mag120
Ruptures w/ Nonzero Rates21
Magnitude Range[6.99, 8.37]
Length Range[17, 501] km
Total Rate1.5879399E-4 /yr
Multi-Fault Rate1.5879399E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults37

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

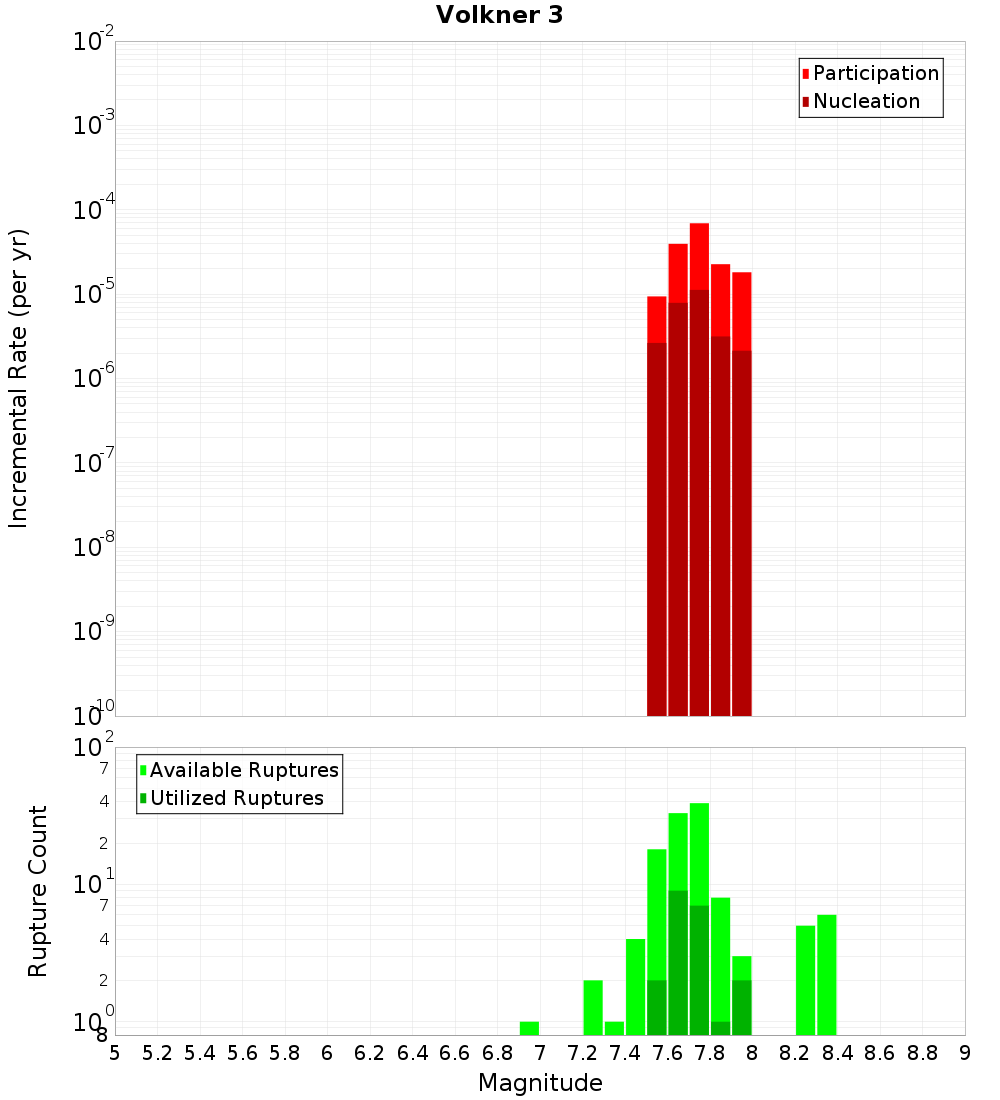

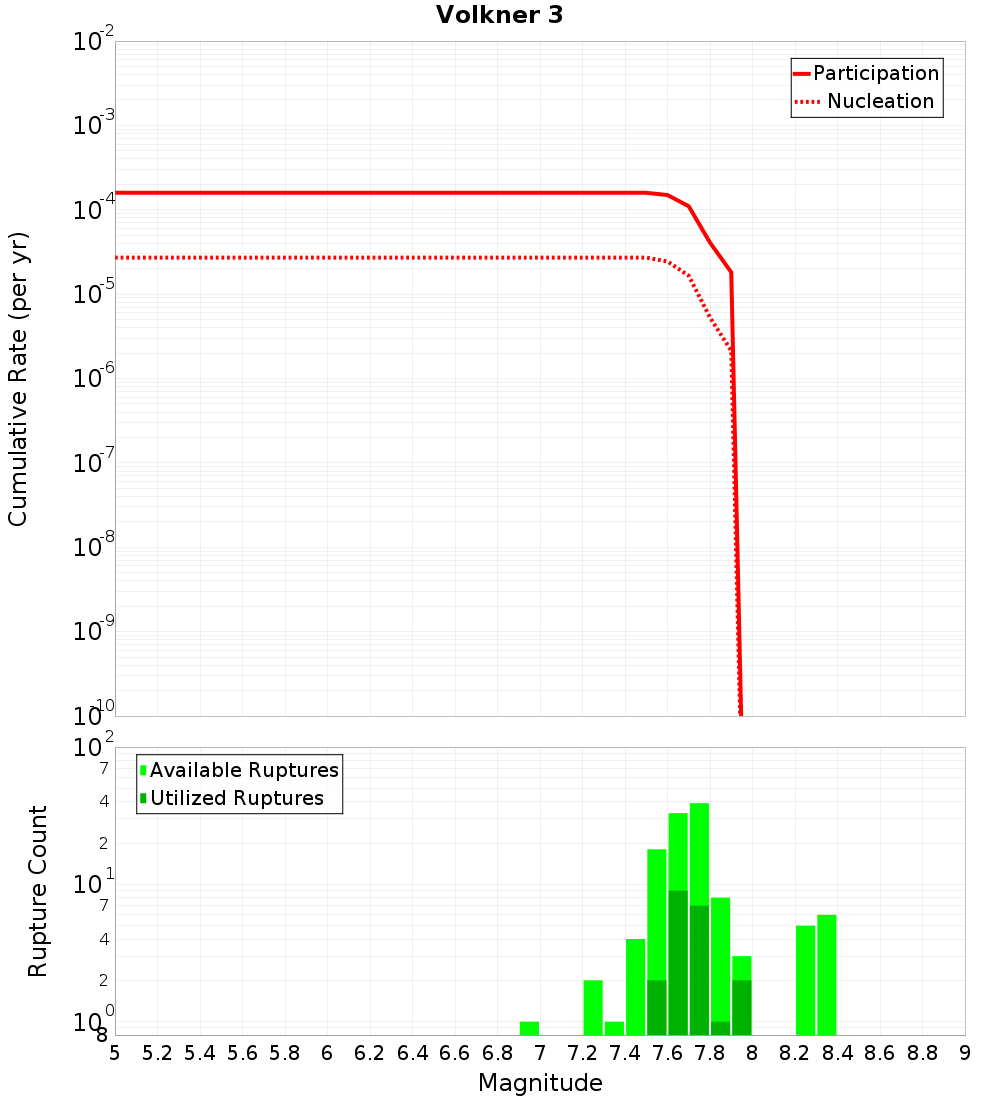

Incremental PlotCumulative Plot

Along-Strike Values

(top)

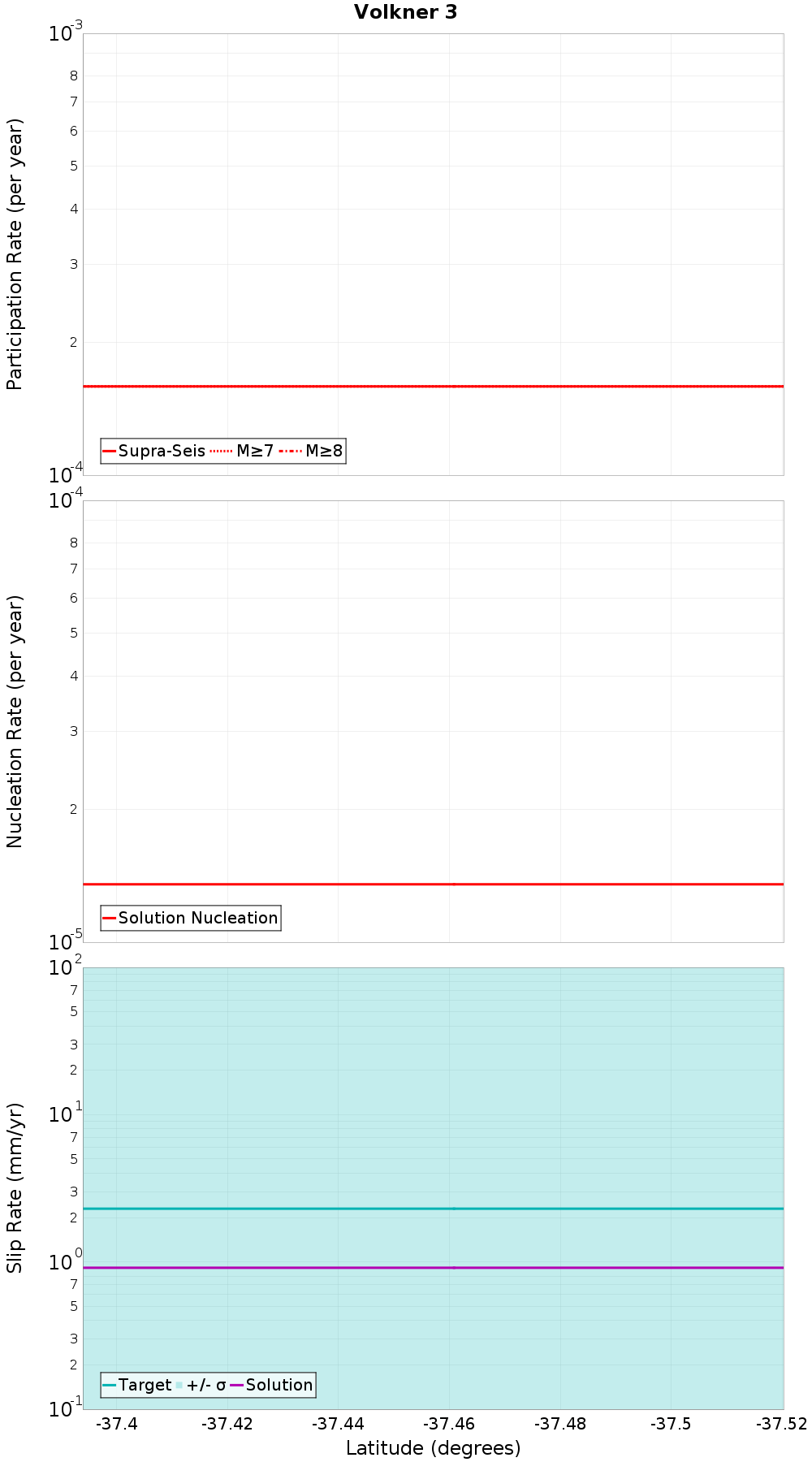

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

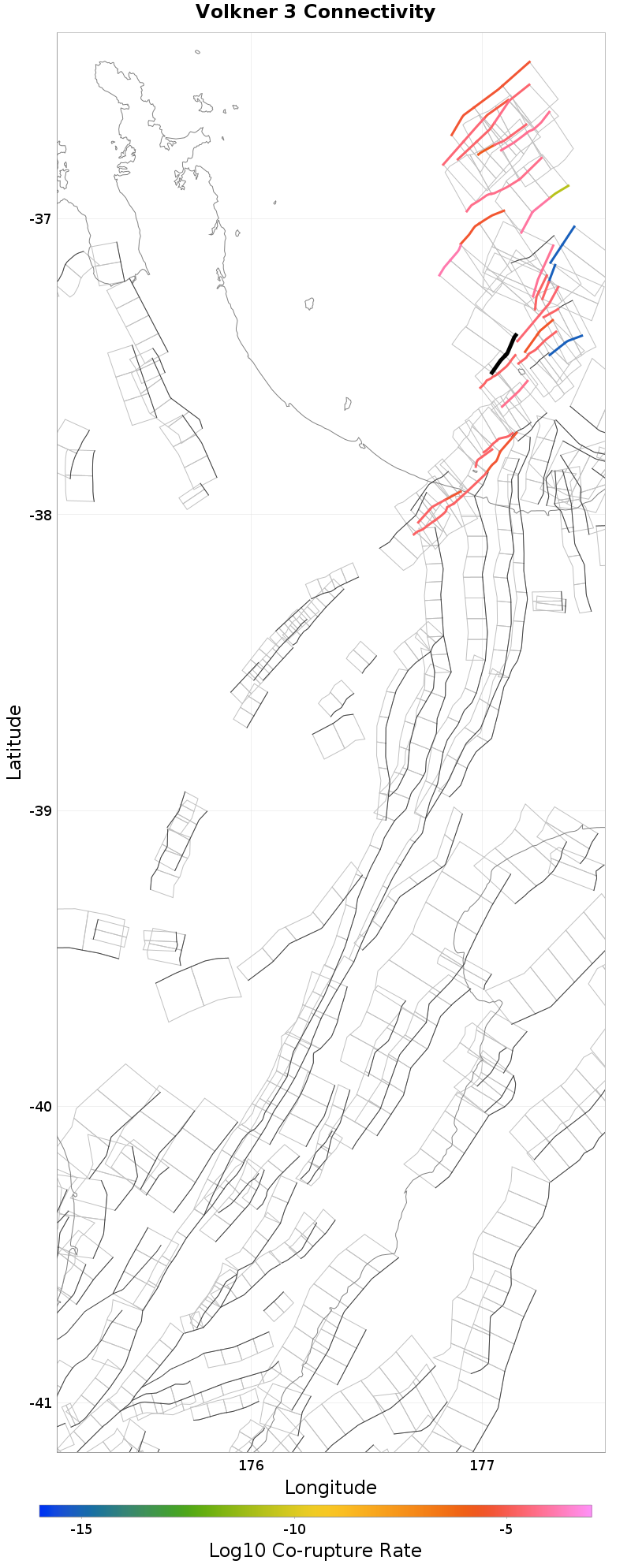

MapMap

Nearby Sections

(top)

Fault Section
Tuakana 6, 0.32 km away
Volkner 4, 1.38 km away
Whakaari 4, 1.58 km away
Te Arawa 1, 5.74 km away
Te Arawa 2, 6 km away
Otara West 1, 8.3 km away
Calypso 2, 9.04 km away
Tuakana 7, 9.15 km away
Tuatoru 1, 10.46 km away
Tuatoru 2, 12.56 km away
Te Arawa 3, 12.62 km away
Otara West 2, 12.93 km away

Tuakana 6, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate1.3287223E-4

Volkner 4, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?true
Co-rupture Count74
Co-rupture Rate2.5921763E-5

Whakaari 4, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.8154438E-5

Te Arawa 1, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.8154438E-5

Te Arawa 2, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate3.0199749E-6

Otara West 1, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate1.716165E-5

Calypso 2, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate5.6658824E-5

Tuakana 7, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate3.6627691E-6

Tuatoru 1, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 2, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate7.1508194E-16

Te Arawa 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.8154438E-5

Otara West 2, 12.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzNjIuMHM2ZEVM
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate6.814198E-5
