Fowlers Details

Property	Value
Rupture Count	11,342
Ruptures Above Sect Min Mag	11,335
Ruptures w/ Nonzero Rates	100
Magnitude Range	[6.79, 8.38]
Length Range	[21, 787] km
Total Rate	1.627877E-4 /yr
Multi-Fault Rate	1.627877E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	184

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

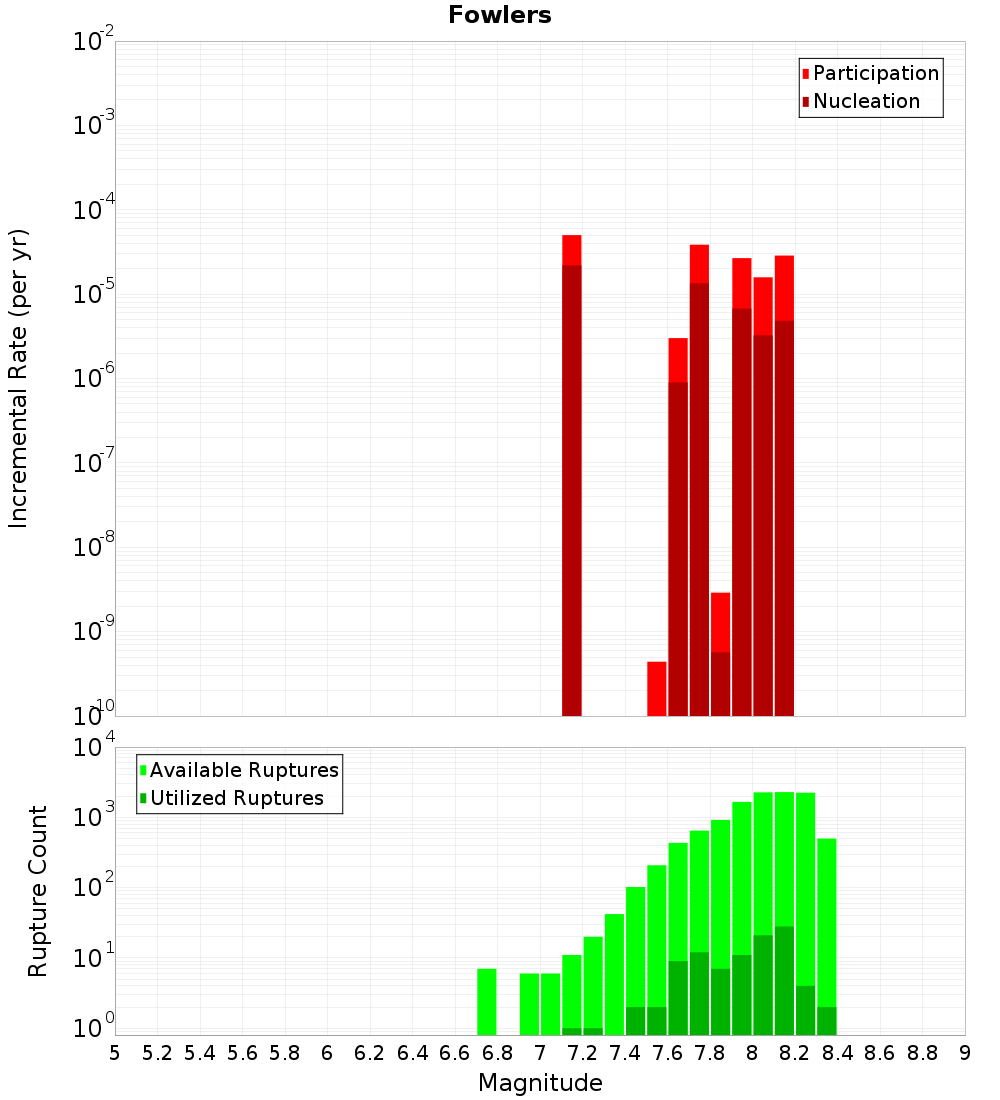

Magnitude-Frequency Distribution

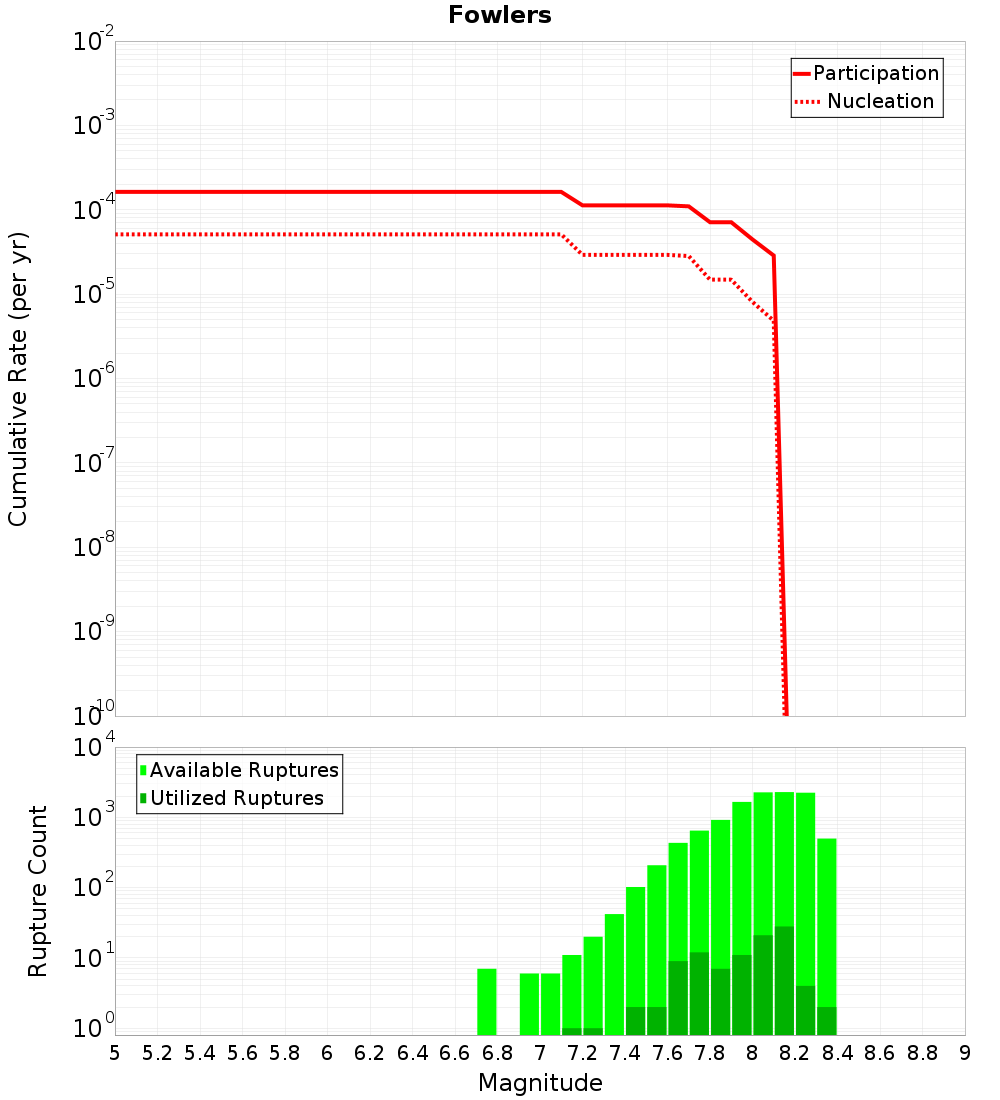

Incremental	Cumulative

Along-Strike Values

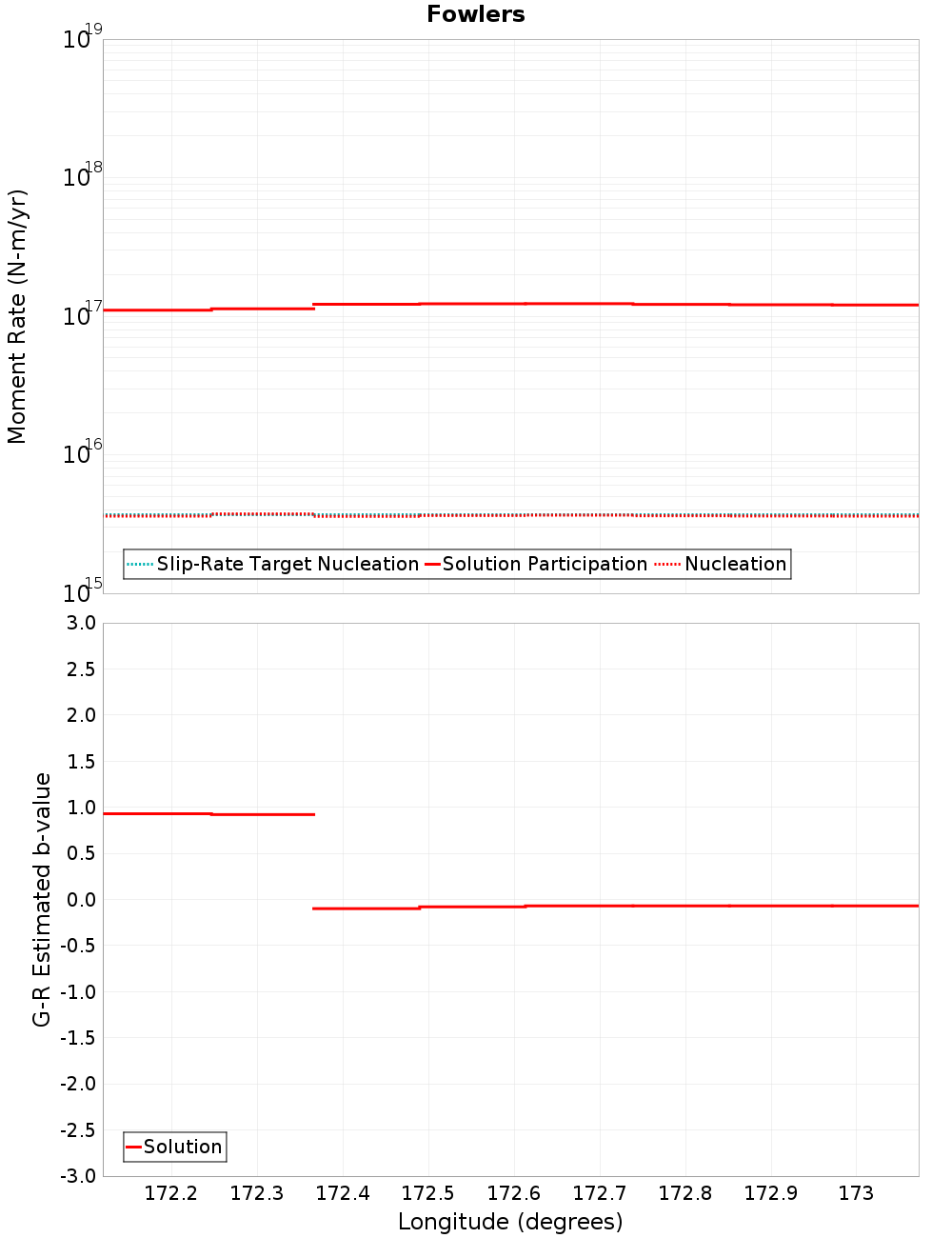

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Clarence: Central, 0.07 km away
Alpine: Springs Junction to Tophouse, 0.19 km away
Alpine: Kaniere to Springs Junction, 0.24 km away
Barefell, 0.26 km away
Elliott, 0.4 km away
Clarence: Southwest, 2.09 km away
Awatere: Southwest, 4.56 km away
Awatere: Northeast 1, 14.06 km away

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	3,012
Co-rupture Rate	1.2631027E-13

Alpine: Springs Junction to Tophouse, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	335
Co-rupture Rate	5.4304626E-5

Alpine: Kaniere to Springs Junction, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	5,408
Co-rupture Rate	1.0382409E-5

Barefell, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	2,159
Co-rupture Rate	9.810067E-5

Elliott, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,114
Co-rupture Rate	5.9946765E-14

Clarence: Southwest, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,413
Co-rupture Rate	3.879503E-14

Awatere: Southwest, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	true
Co-rupture Count	527
Co-rupture Rate	4.2345946E-6

Awatere: Northeast 1, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTgzOTcuMENVNDZF
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	9.810067E-5
