Kelly Details

PropertyValue
Rupture Count61,108
Ruptures Above Sect Min Mag61,097
Ruptures w/ Nonzero Rates848
Magnitude Range[6.71, 8.59]
Length Range[17, 973] km
Total Rate0.0028284427 /yr
Multi-Fault Rate0.0028284427 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults174

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

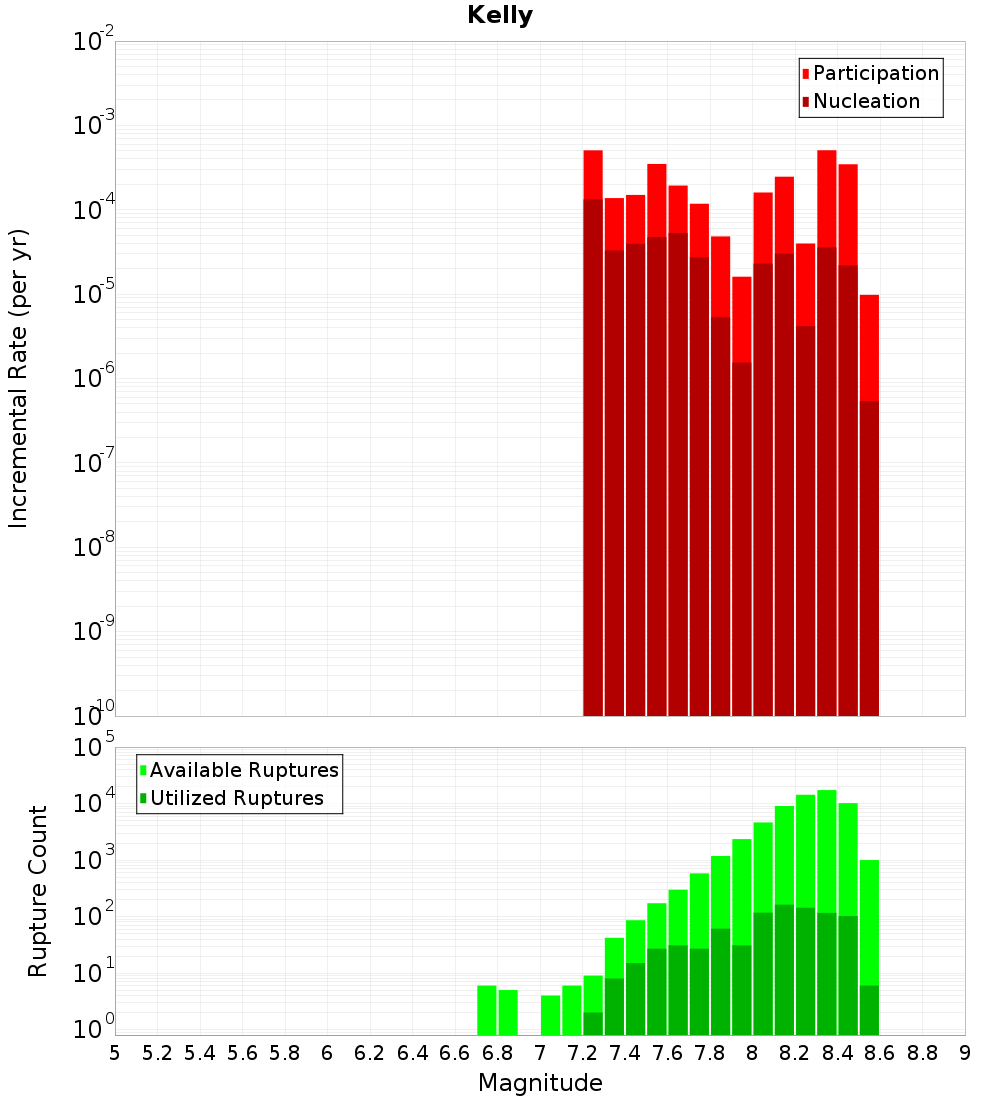

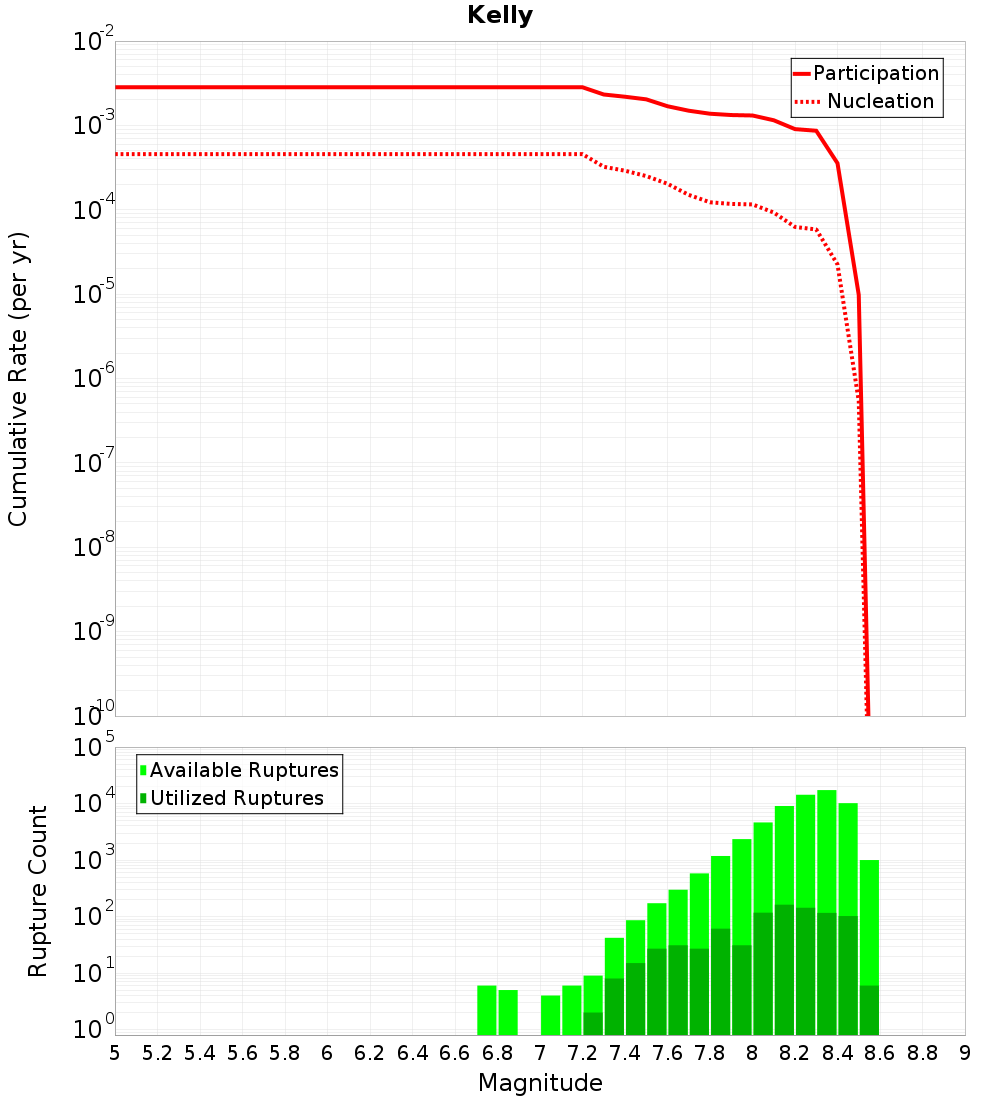

Incremental PlotCumulative Plot

Along-Strike Values

(top)

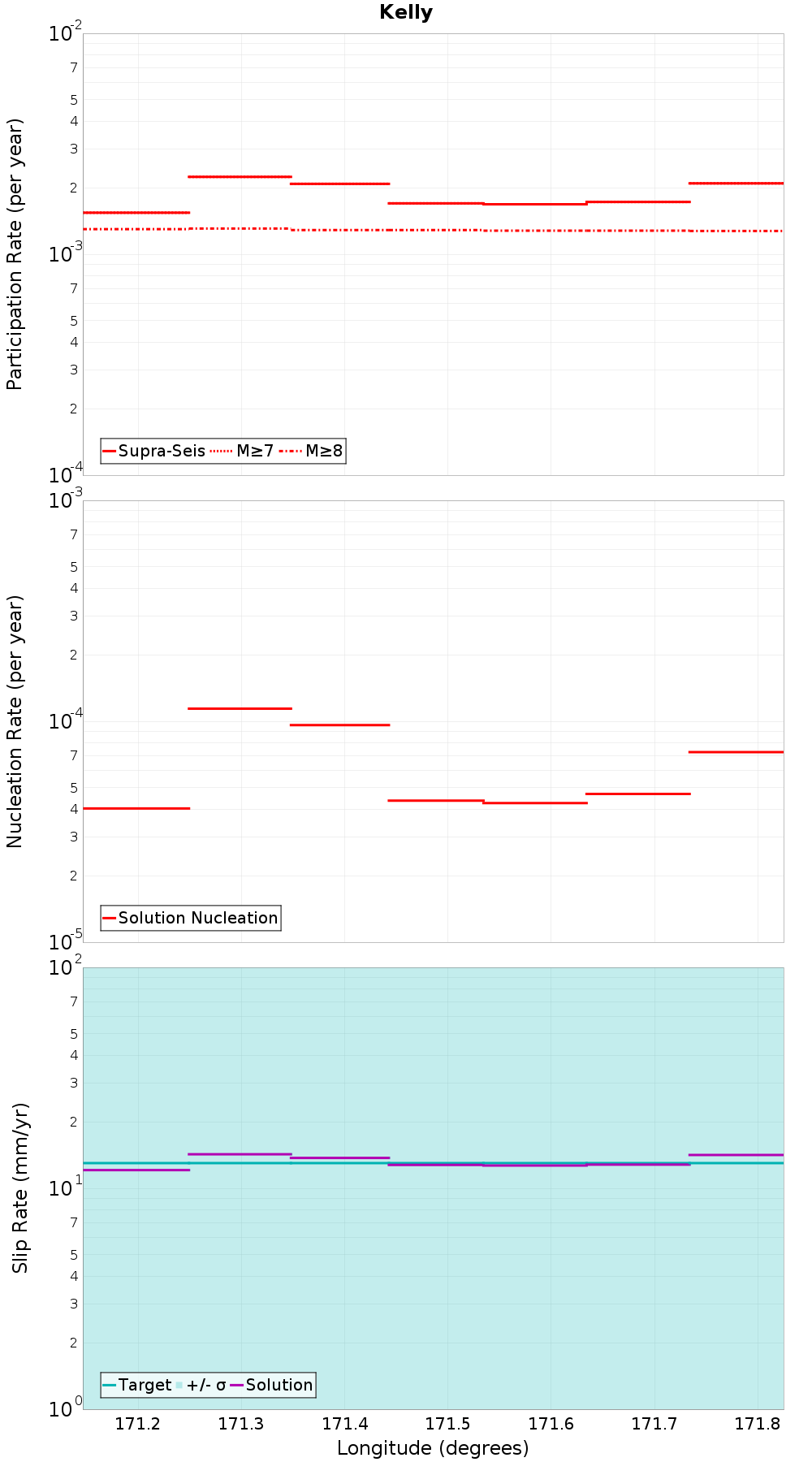

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

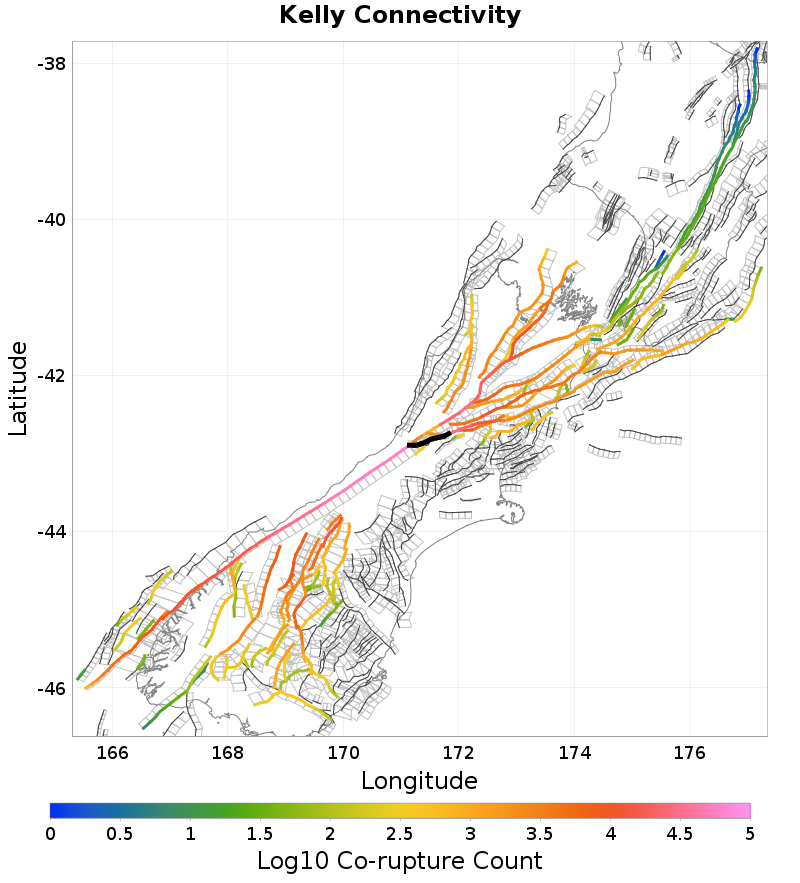

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?true
Co-rupture Count56,730
Co-rupture Rate0.0013949085

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?true
Co-rupture Count29,970
Co-rupture Rate0.0020224862

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?true
Co-rupture Count2,576
Co-rupture Rate3.790222E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?true
Co-rupture Count37,700
Co-rupture Rate0.0010992965

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?false
Co-rupture Count321
Co-rupture Rate7.027472E-5

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate2.787059E-6

Cape Foulwind 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?false
Co-rupture Count10,808
Co-rupture Rate2.4307166E-4

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?false
Co-rupture Count7,156
Co-rupture Rate7.662991E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDIuMHdZeEp3
Connected?true
Directly Connected?false
Co-rupture Count23,160
Co-rupture Rate0.00125914
