Dunstan Details

PropertyValue
Rupture Count10,699
Ruptures Above Sect Min Mag10,697
Ruptures w/ Nonzero Rates149
Magnitude Range[7.16, 8.66]
Length Range[24, 856] km
Total Rate3.0114787E-4 /yr
Multi-Fault Rate5.5426248E-5 /yr (18.40%)
Directly-Connected Faults9
All Co-Rupturing Faults80

Table Of Contents

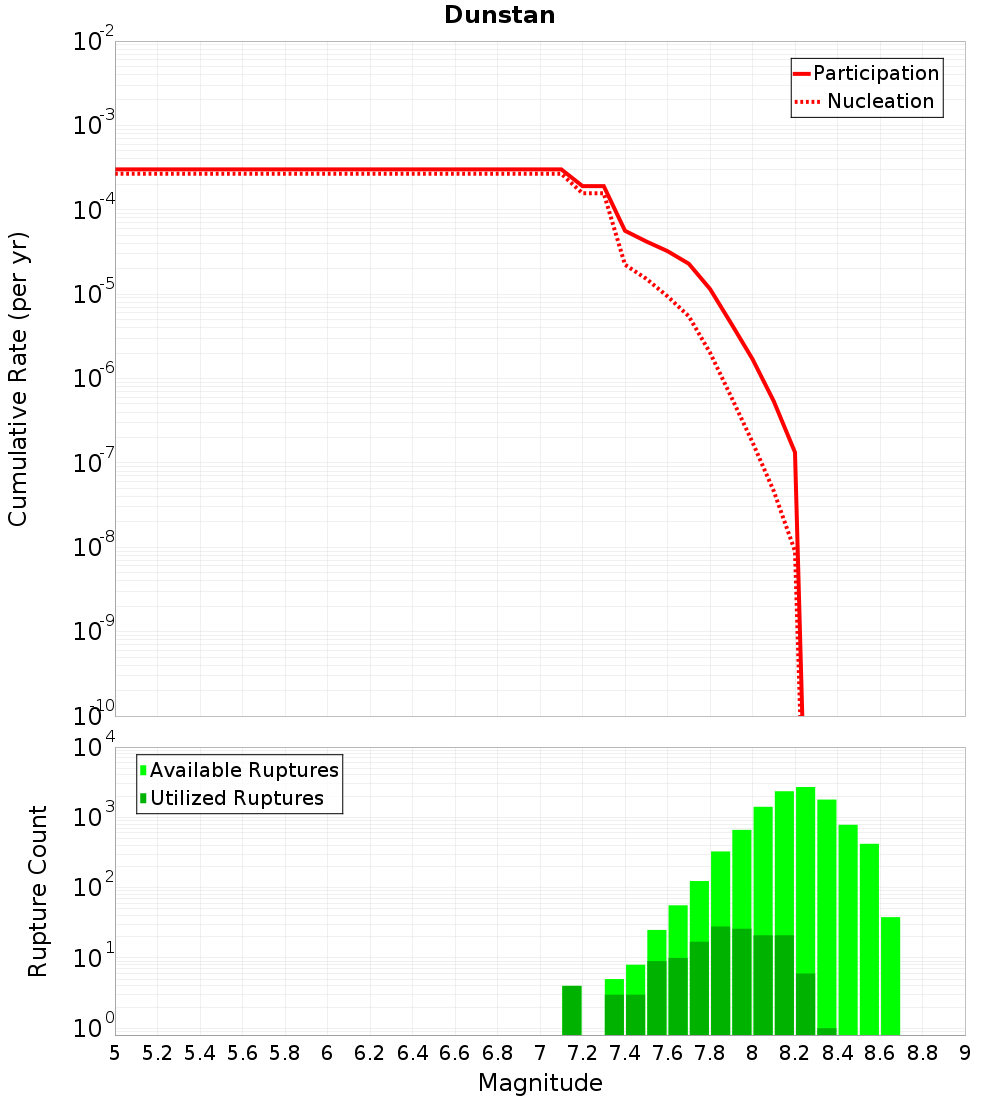

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

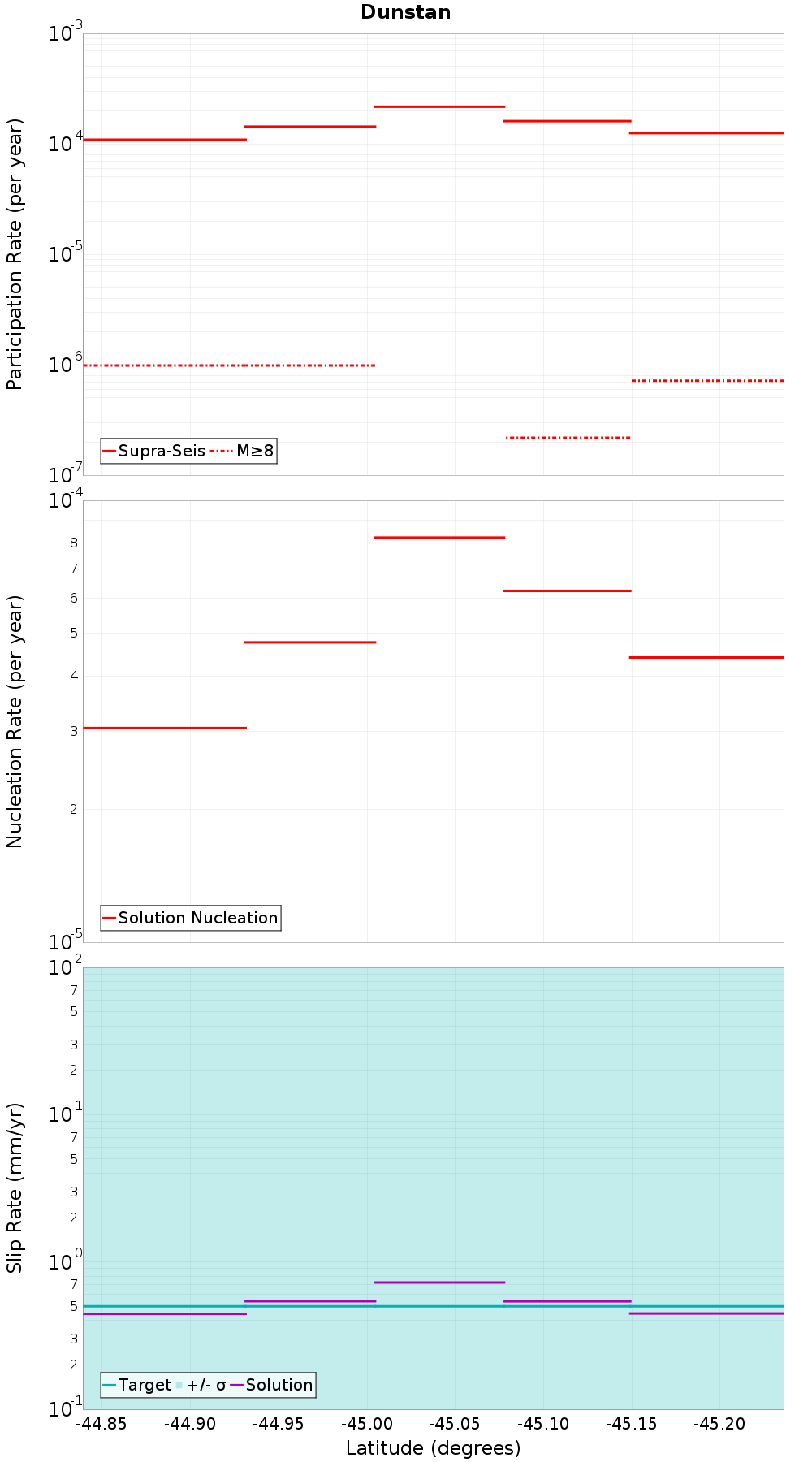

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

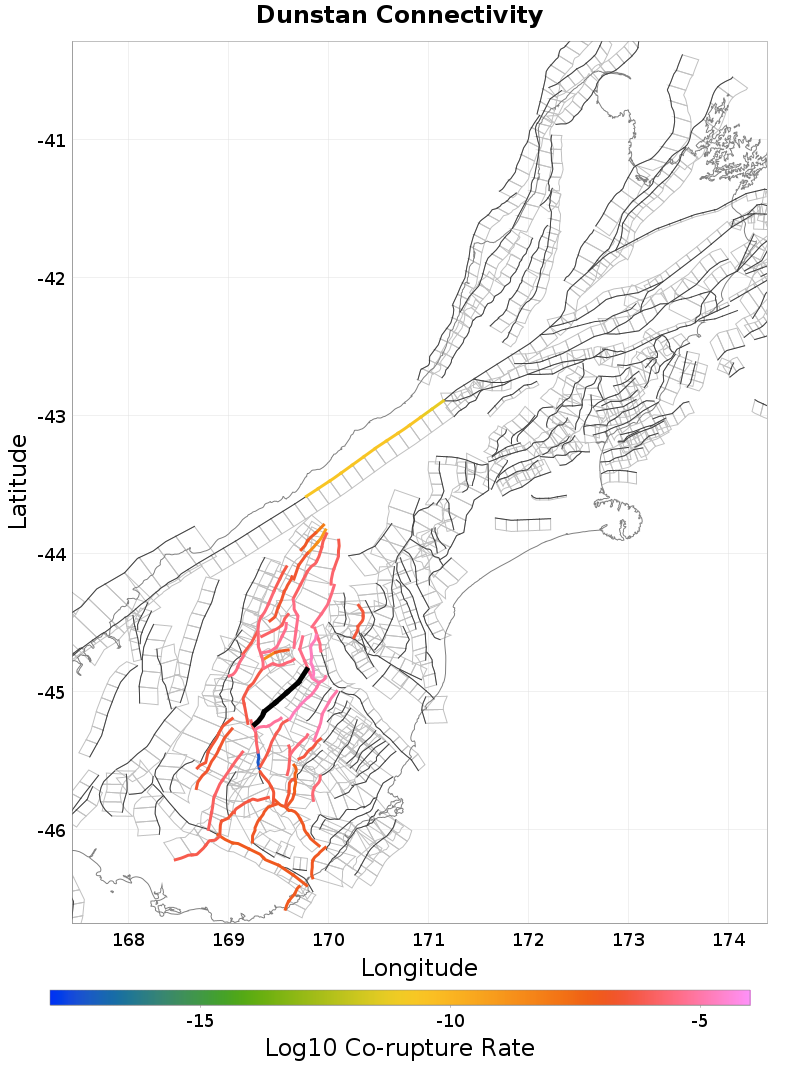

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lindis River, 0.19 km away
Goodger, 0.2 km away
Grandview, 0.21 km away
Blue Lake, 1.26 km away
Old Man, 1.92 km away
Cluden, 3.6 km away
Galloway, 3.61 km away
Pisa, 4.43 km away
Omarama Saddle, 5.06 km away
Paddys Ridge, 5.61 km away
Roaring Lion, 6.22 km away
Dromedary, 6.46 km away
Raggedy - Blackstone, 9.93 km away
Roaring Meg, 10.34 km away
Garvie, 12.95 km away

Lindis River, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count1,582
Co-rupture Rate4.668628E-6

Goodger, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count912
Co-rupture Rate1.384804E-7

Grandview, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count4,131
Co-rupture Rate2.8600168E-6

Blue Lake, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count1,799
Co-rupture Rate1.4105312E-5

Old Man, 1.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count8,776
Co-rupture Rate1.5437787E-6

Cluden, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count126
Co-rupture Rate2.2976396E-6

Galloway, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate6.5371673E-6

Pisa, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?false
Co-rupture Count452
Co-rupture Rate5.26042E-7

Omarama Saddle, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count1,215
Co-rupture Rate1.8725339E-5

Paddys Ridge, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count413
Co-rupture Rate2.9512105E-6

Roaring Lion, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate2.9401576E-7

Dromedary, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?false
Co-rupture Count3,961
Co-rupture Rate3.9628844E-6

Raggedy - Blackstone, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count447
Co-rupture Rate1.579257E-5

Roaring Meg, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?false
Co-rupture Count1,362
Co-rupture Rate2.3202625E-7
