Lachlan 3 Details

PropertyValue
Rupture Count620
Ruptures Above Sect Min Mag605
Ruptures w/ Nonzero Rates105
Magnitude Range[6.70, 7.96]
Length Range[15, 250] km
Total Rate0.0012378315 /yr
Multi-Fault Rate0.0010815534 /yr (87.37%)
Directly-Connected Faults4
All Co-Rupturing Faults14

Table Of Contents

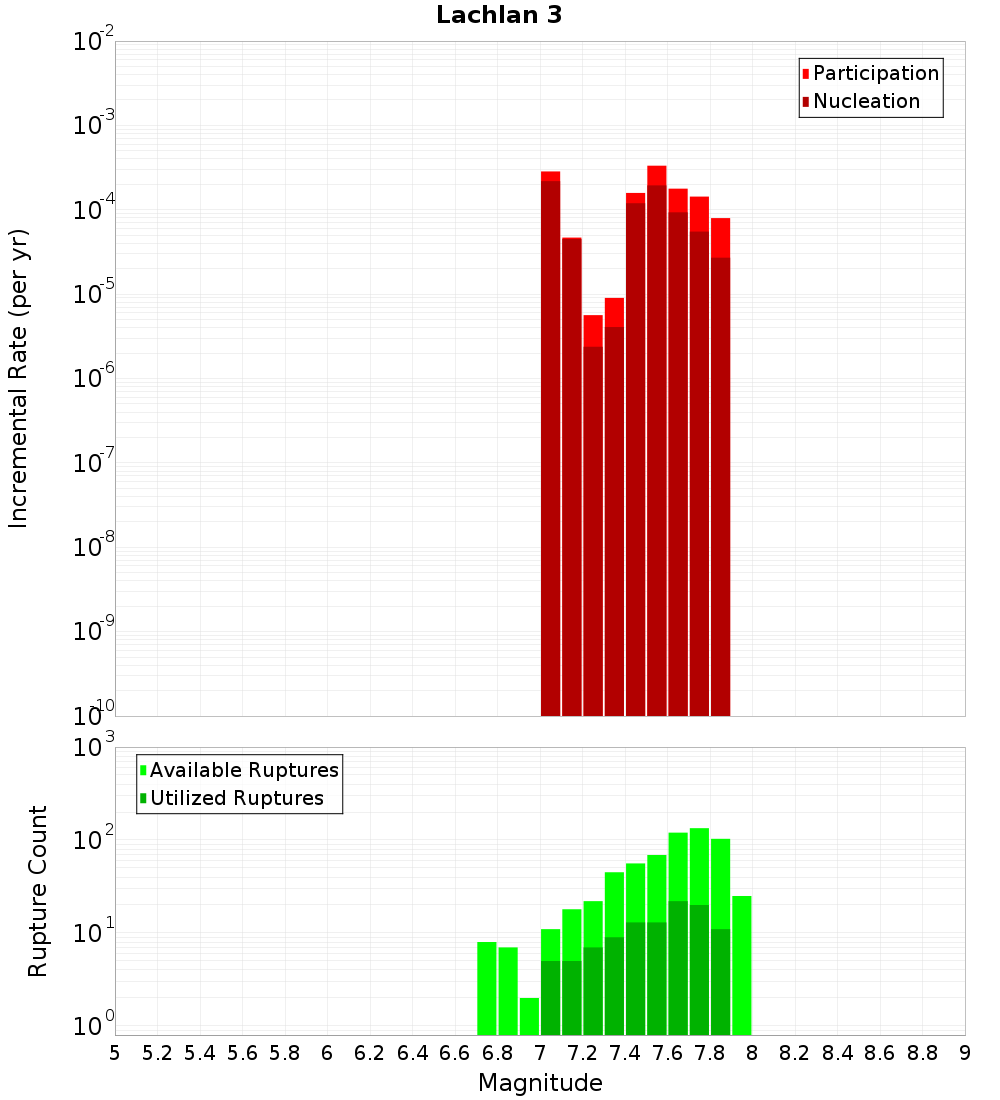

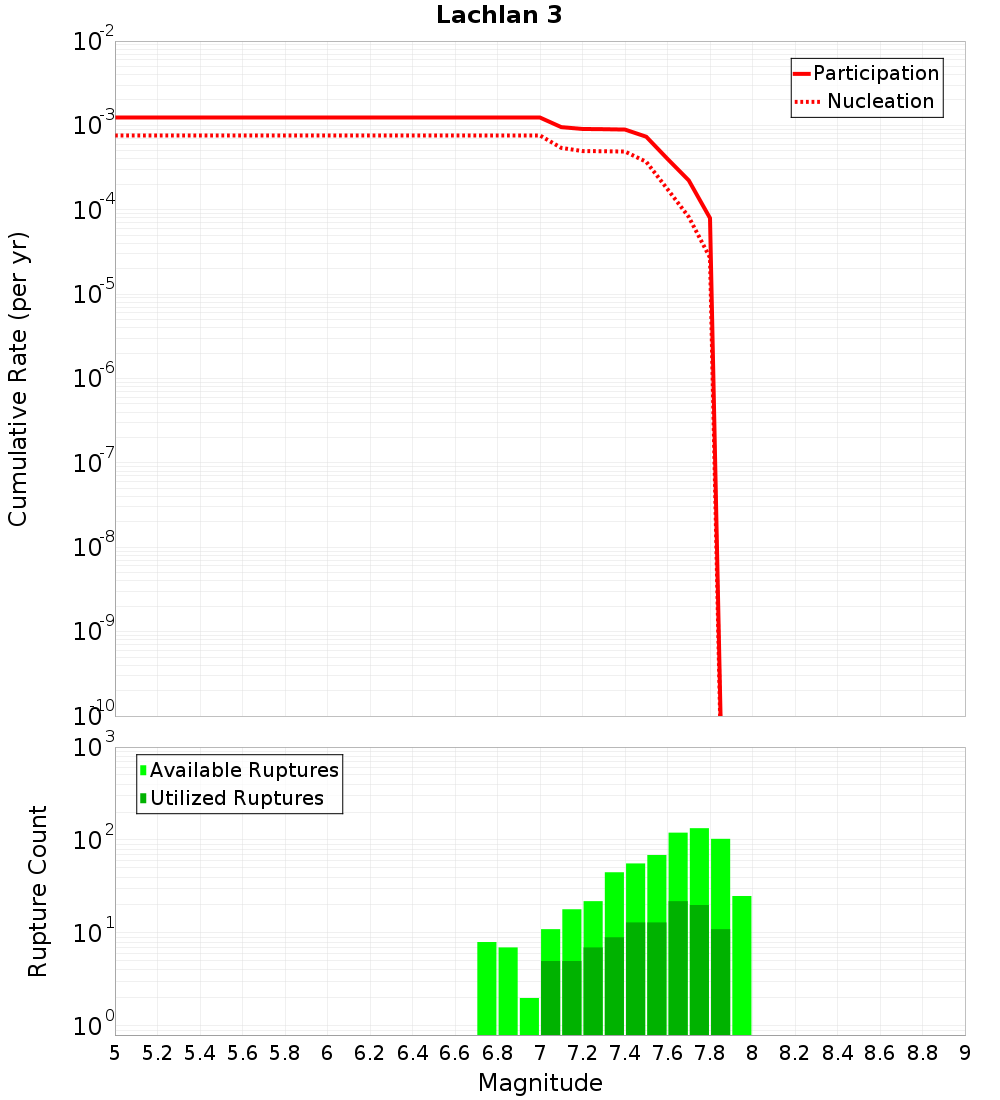

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

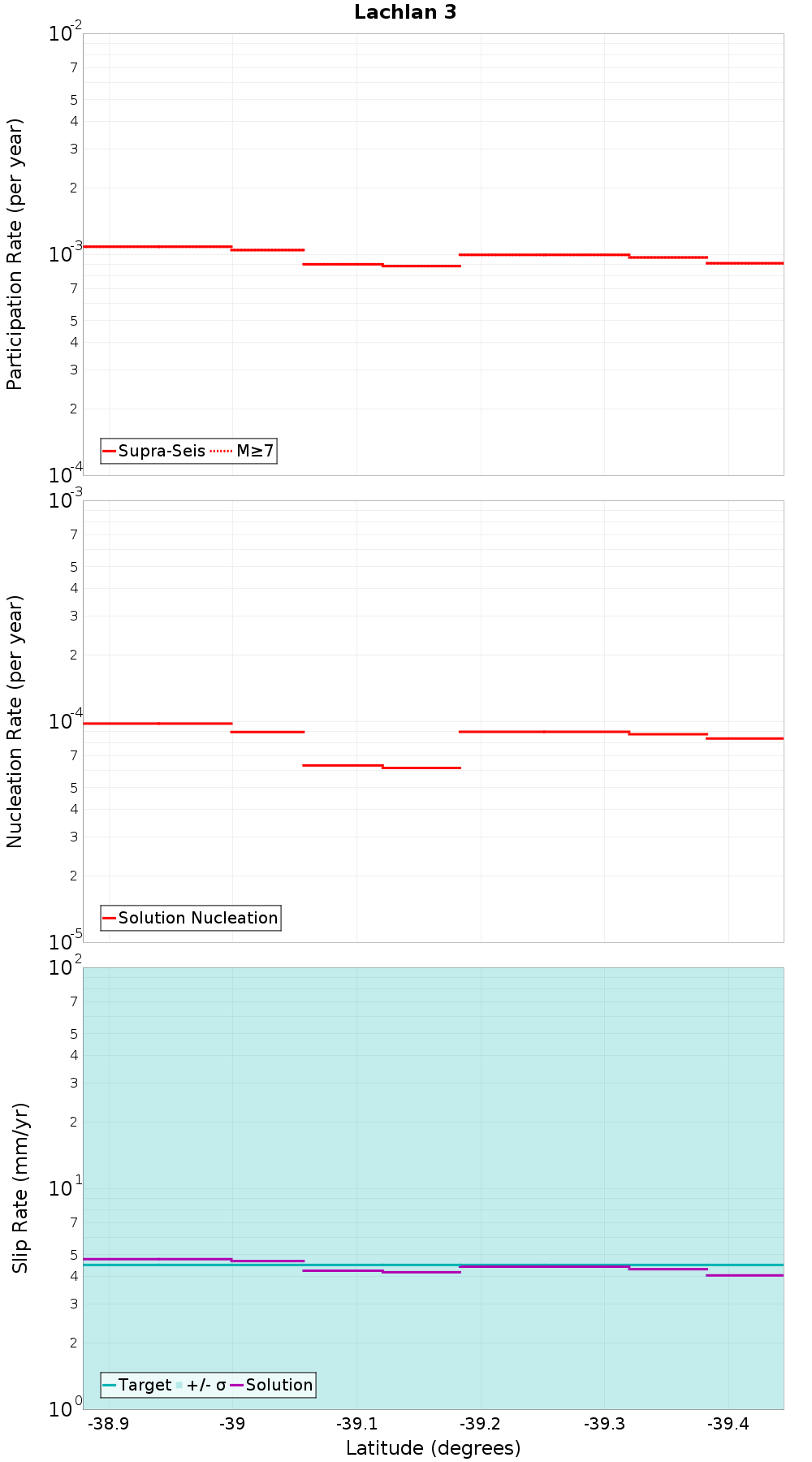

Along-Strike Values

(top)

Along-strike plot

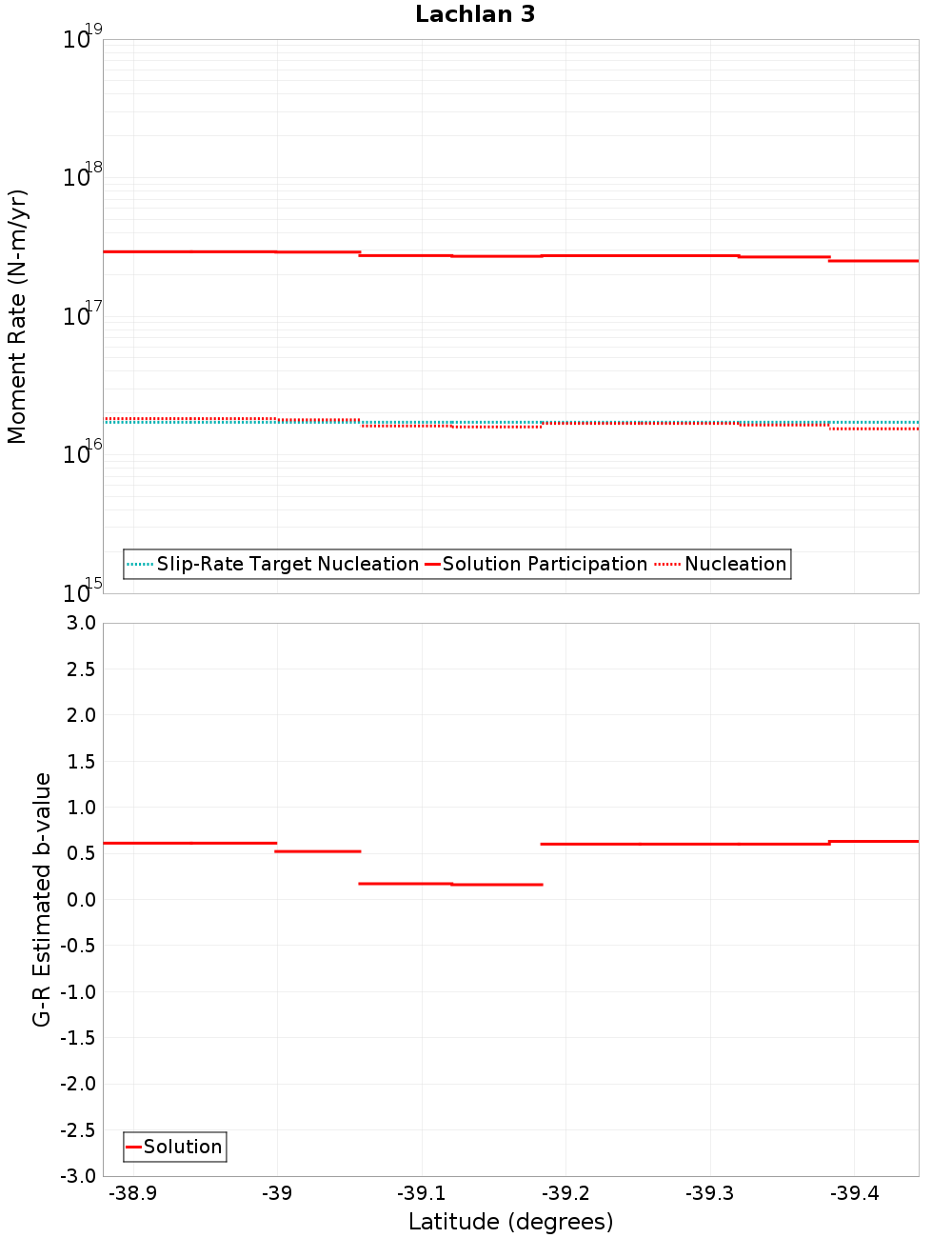

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lachlan 1 & 2, 0.51 km away
Mahia 2, 2.42 km away
Ariel East, 3.12 km away
Poverty Bay, 3.85 km away
Ariel Bank, 6.74 km away
Gable End South, 14.5 km away

Lachlan 1 & 2, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count348
Co-rupture Rate1.5284977E-4

Mahia 2, 2.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel East, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate6.714719E-5

Poverty Bay, 3.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate4.4997863E-4

Ariel Bank, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate5.644329E-4

Gable End South, 14.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMG5ZWU5h
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate4.2569614E-4
