Omarama Saddle Details

PropertyValue
Rupture Count5,045
Ruptures Above Sect Min Mag5,040
Ruptures w/ Nonzero Rates1,070
Magnitude Range[6.72, 8.34]
Length Range[18, 679] km
Total Rate9.654322E-5 /yr
Multi-Fault Rate9.654322E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults77

Table Of Contents

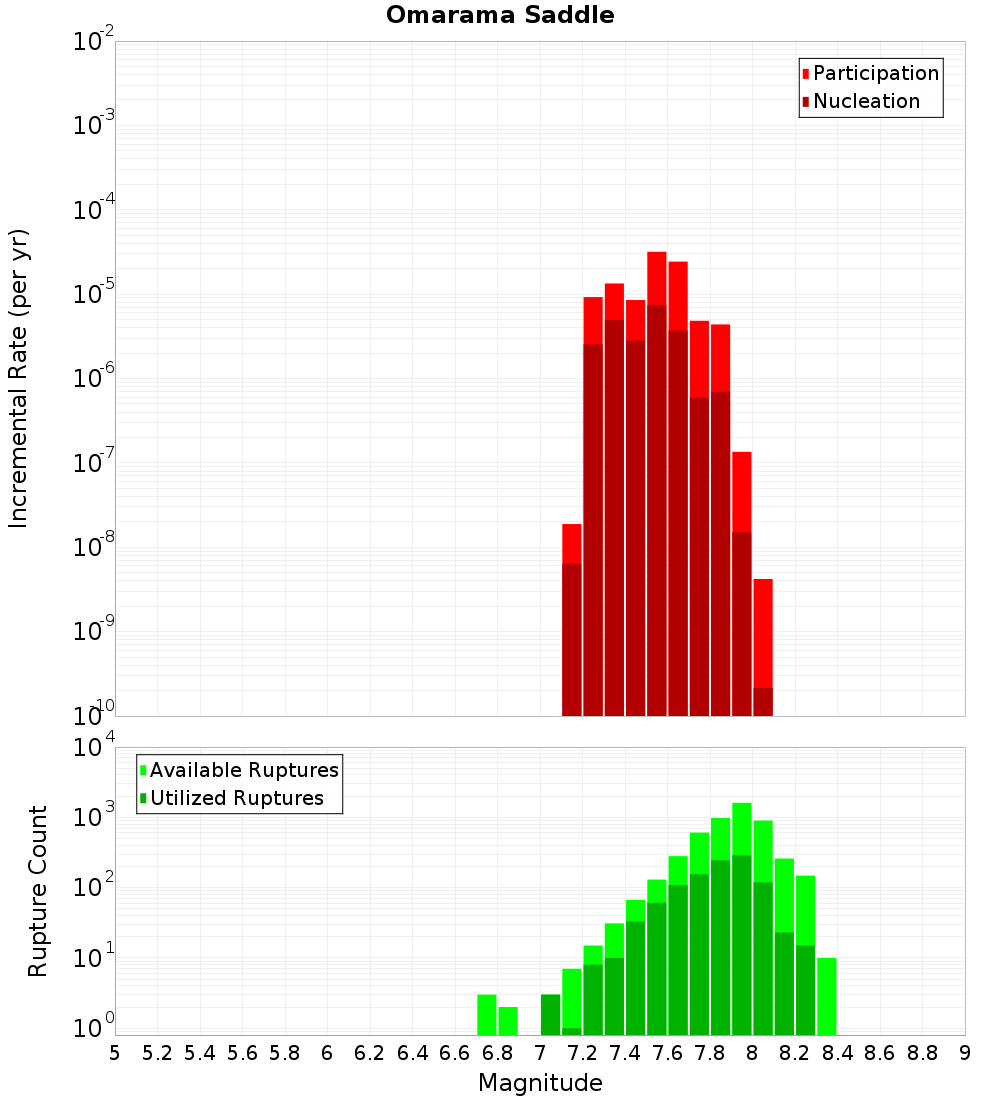

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

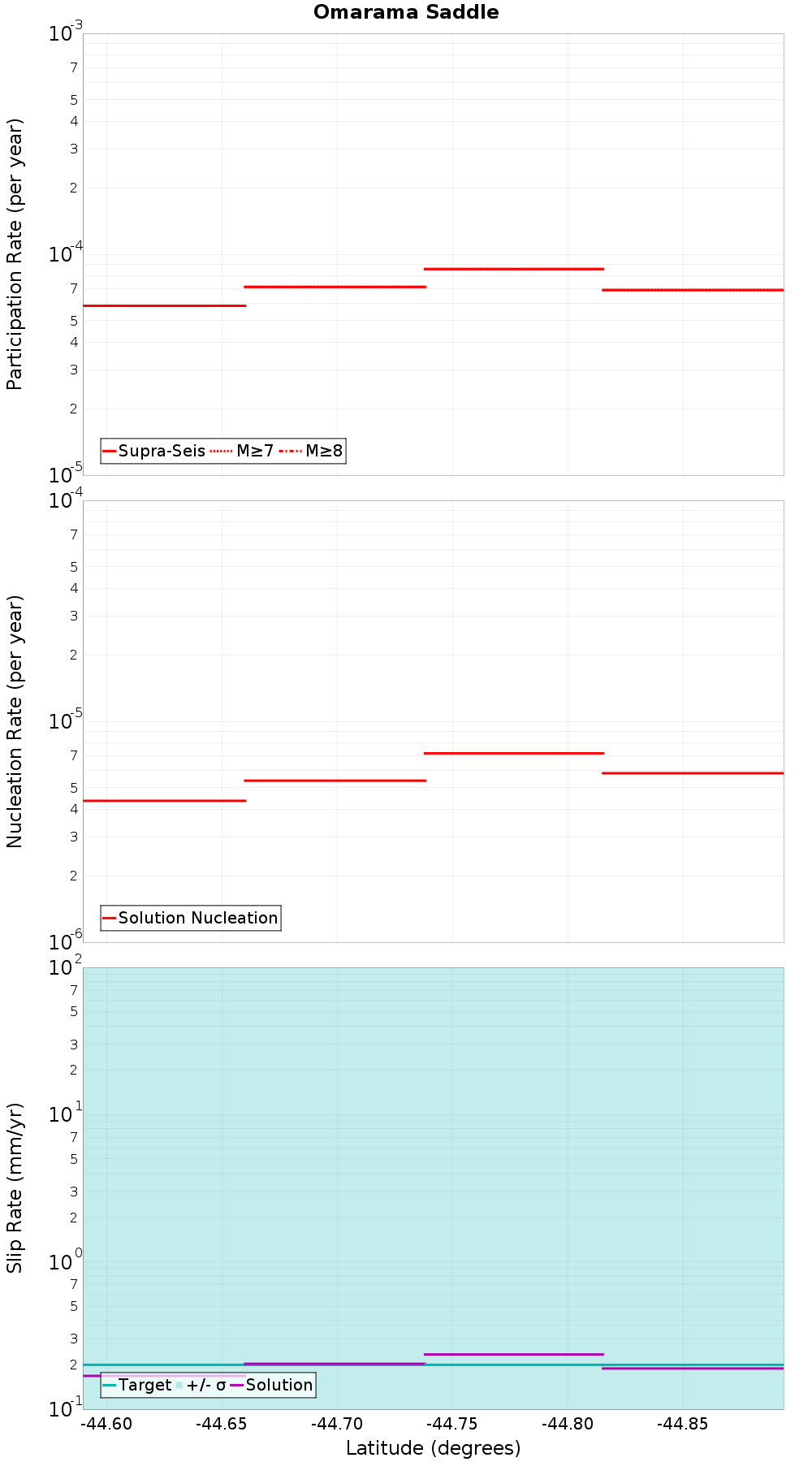

Along-Strike Values

(top)

Along-strike plot

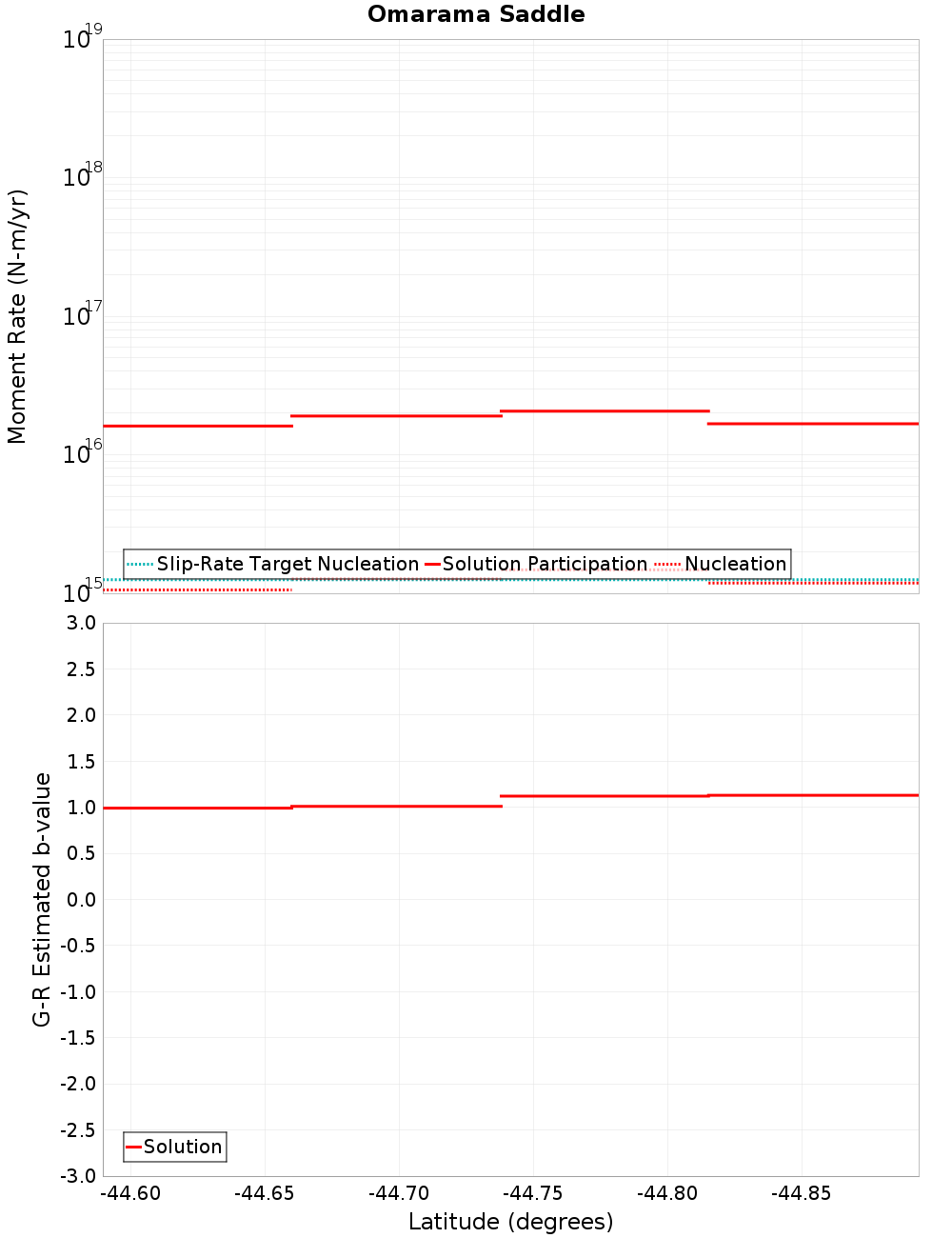

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawkdun, 0.14 km away
Raggedy - Blackstone, 0.26 km away
Fern Gully, 0.26 km away
Blue Lake, 1.09 km away
Gibson, 1.5 km away
Garibaldi, 3.15 km away
Dunstan, 5.06 km away
Gimmerburn, 6.74 km away
Falstone, 6.83 km away
Mt Sutton, 7.05 km away
Ostler South, 7.55 km away
Dromedary, 13.1 km away
Cluden, 13.48 km away
Middle Range, 14.06 km away

Hawkdun, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count2,225
Co-rupture Rate2.248064E-5

Raggedy - Blackstone, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count1,697
Co-rupture Rate1.687062E-5

Fern Gully, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count430
Co-rupture Rate1.528701E-5

Gibson, 1.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count851
Co-rupture Rate5.867369E-6

Garibaldi, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count955
Co-rupture Rate2.6352743E-6

Dunstan, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count1,215
Co-rupture Rate8.009078E-5

Gimmerburn, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?false
Co-rupture Count1,512
Co-rupture Rate8.042861E-6

Falstone, 6.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate4.758347E-10

Mt Sutton, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate2.401328E-22

Ostler South, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?false
Co-rupture Count1,033
Co-rupture Rate1.1407022E-5

Dromedary, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?true
Co-rupture Count467
Co-rupture Rate2.6296075E-5

Cluden, 13.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.6366768E-6

Middle Range, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MDcuMGVRd2lH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
