Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count9,537
Ruptures Above Sect Min Mag9,530
Ruptures w/ Nonzero Rates347
Magnitude Range[7.05, 8.66]
Length Range[23, 971] km
Total Rate2.2324112E-4 /yr
Multi-Fault Rate5.2777224E-5 /yr (23.64%)
Directly-Connected Faults7
All Co-Rupturing Faults71

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

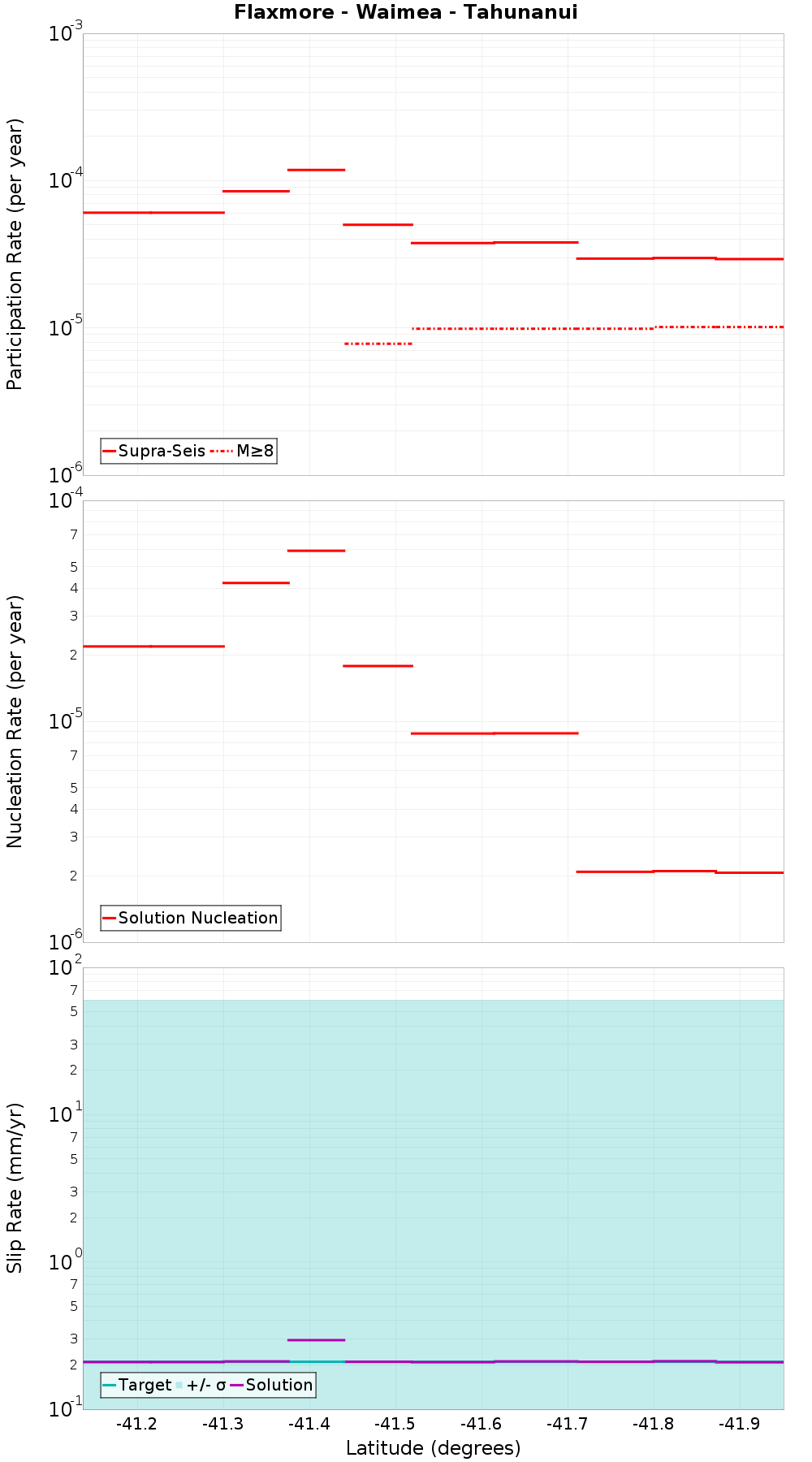

Along-Strike Values

(top)

Along-strike plot

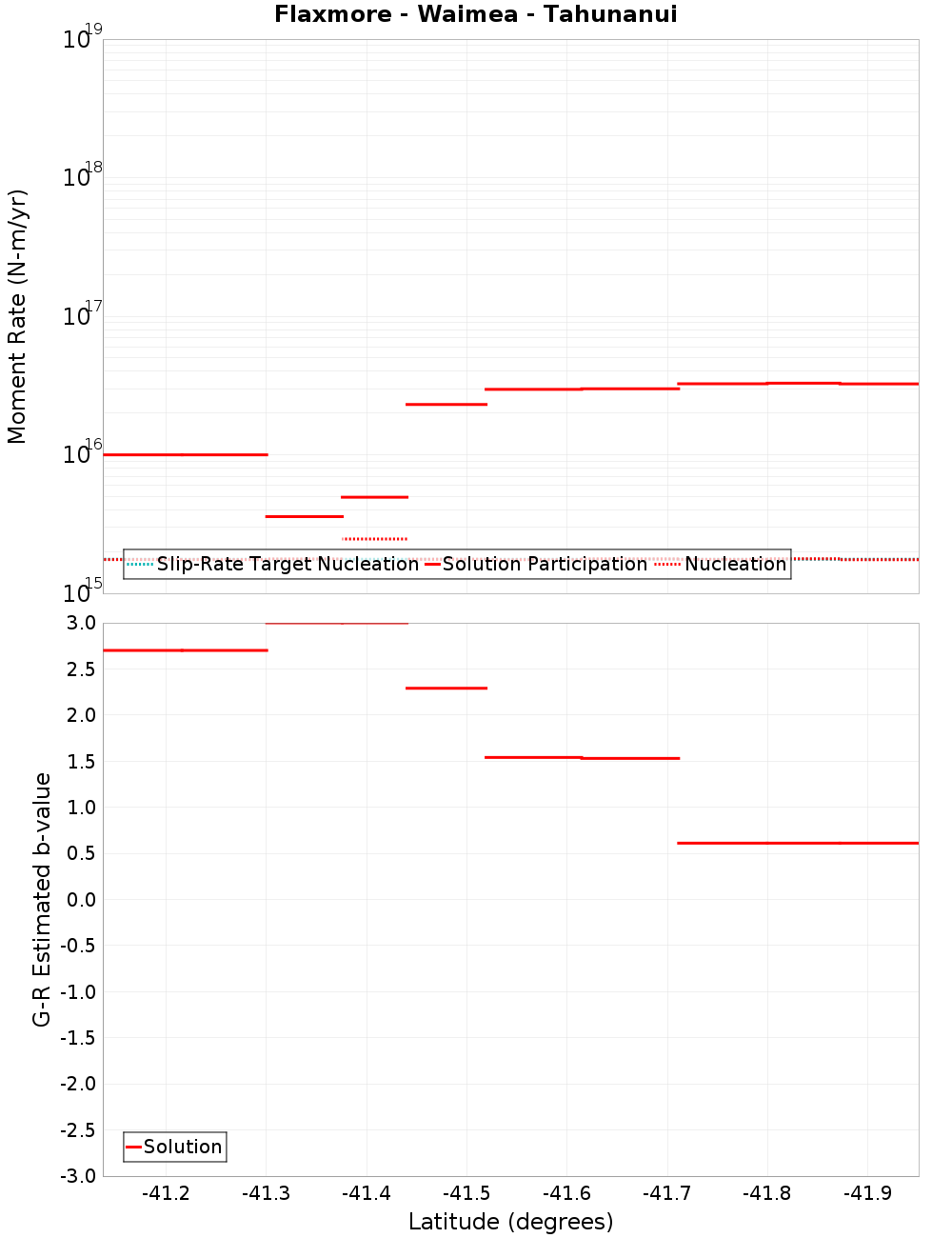

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count4,756
Co-rupture Rate2.6138976E-5

Wairau, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count136
Co-rupture Rate2.665543E-6

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate1.03243365E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count4,716
Co-rupture Rate1.4352119E-5

Tutaki, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate2.6300464E-7

Surville, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?false
Co-rupture Count130
Co-rupture Rate1.0892425E-6

Ruby Bay - Moutere, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate9.2128505E-7

Awatere: Southwest, 12.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTAuMHN5TkhN
Connected?true
Directly Connected?true
Co-rupture Count3,354
Co-rupture Rate1.6635939E-5
