Wakamarama Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 1,814 |
| Ruptures Above Sect Min Mag | 1,809 |
| Ruptures w/ Nonzero Rates | 225 |
| Magnitude Range | [6.85, 8.26] |
| Length Range | [17, 404] km |
| Total Rate | 1.1039778E-4 /yr |
| Multi-Fault Rate | 2.7787739E-5 /yr (25.17%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

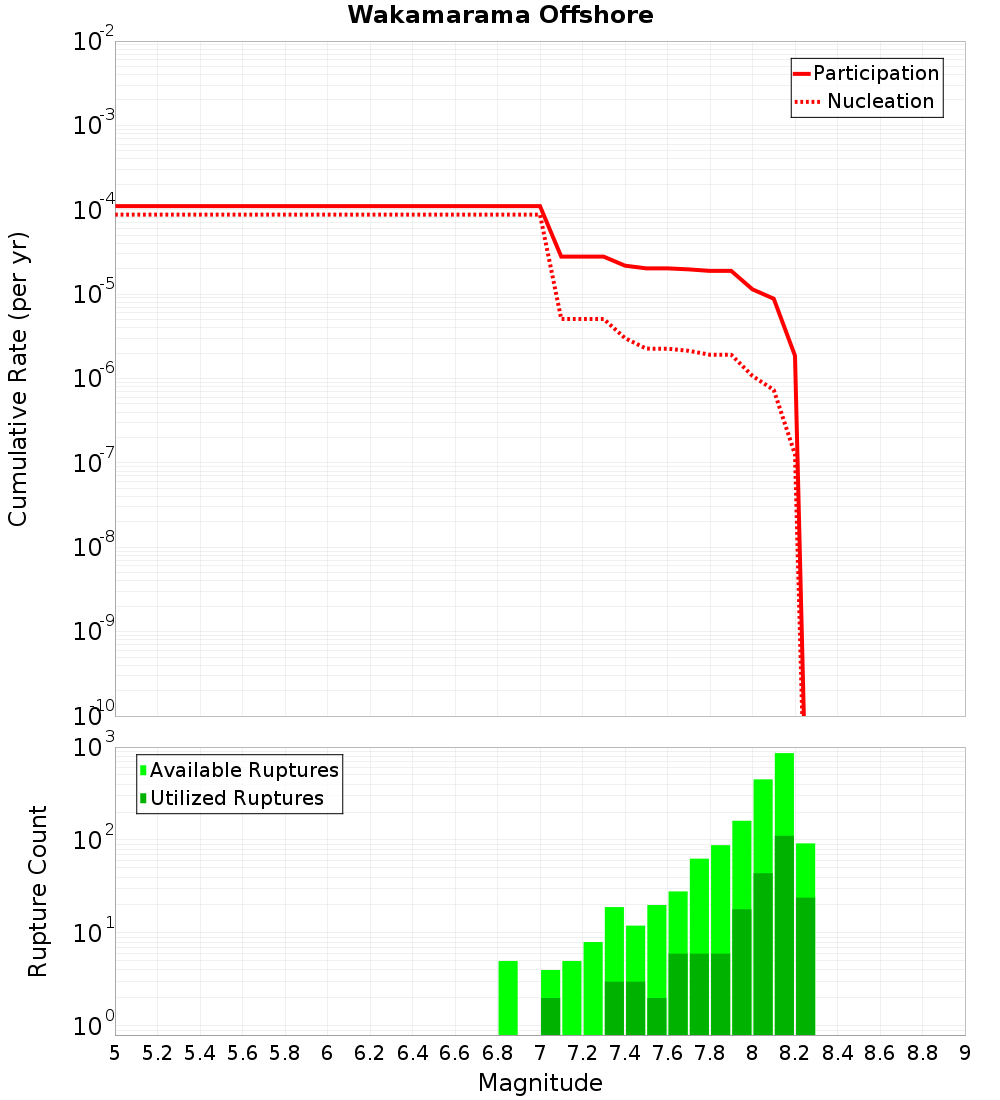

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

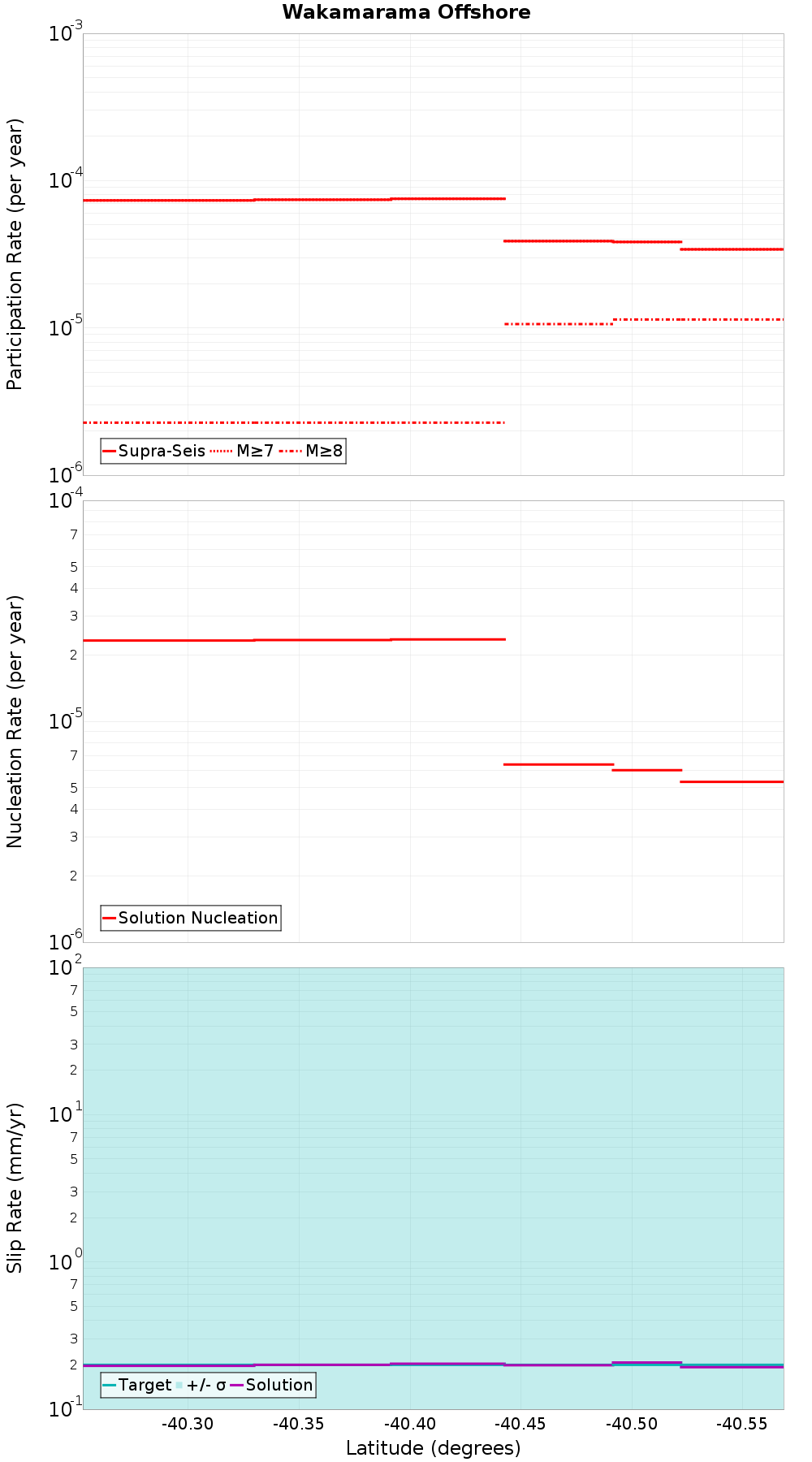

Along-Strike Values

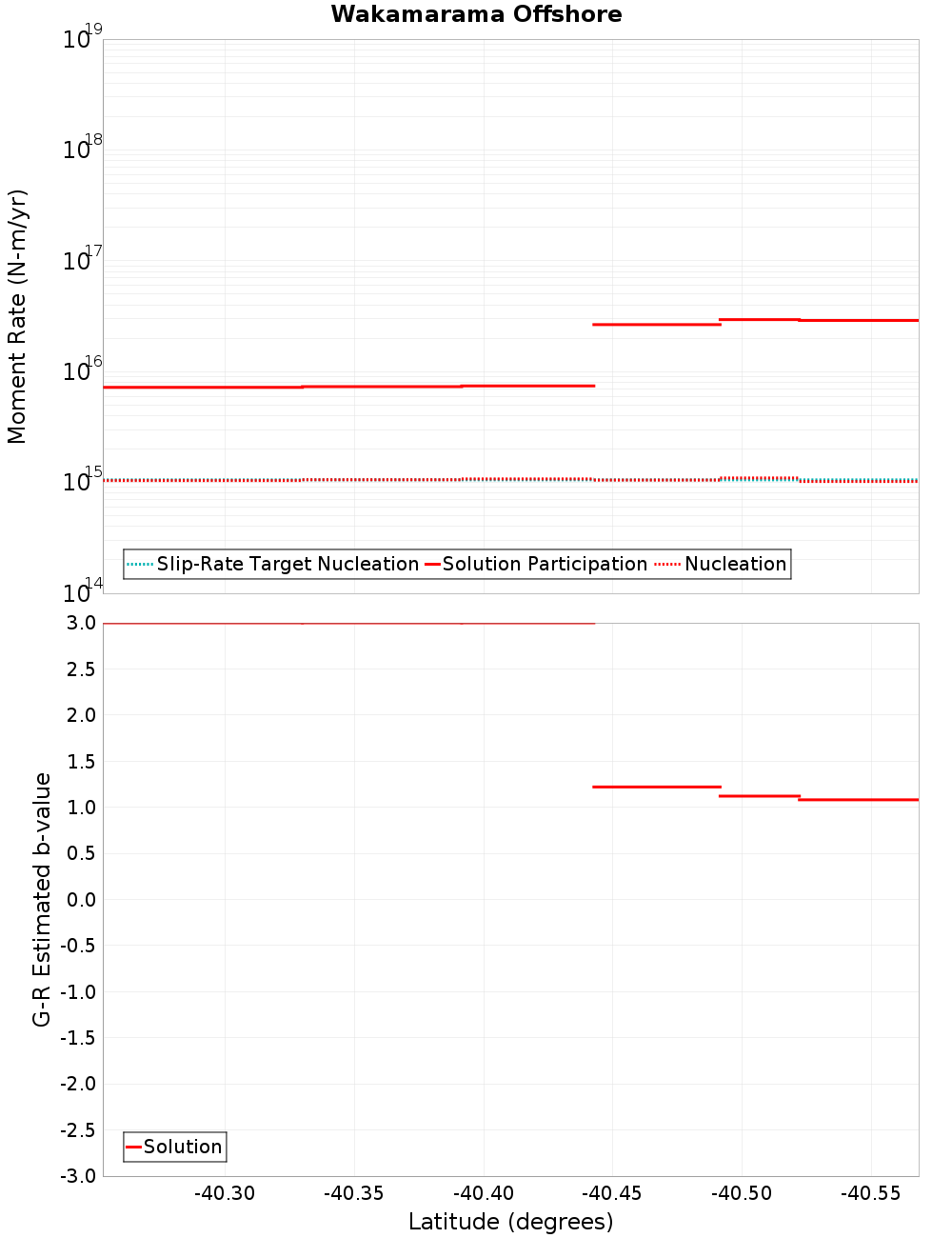

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.22 km away |
| Wakamarama, 1.32 km away |
Farewell, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTYuMHpVNFdv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 9.154687E-6 |
Wakamarama, 1.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MTYuMHpVNFdv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,160 |
| Co-rupture Rate | 1.8633053E-5 |
