Waimana: South Details

Property	Value
Rupture Count	24,353
Ruptures Above Sect Min Mag	24,349
Ruptures w/ Nonzero Rates	92
Magnitude Range	[6.92, 8.51]
Length Range	[25, 1,132] km
Total Rate	1.8269394E-4 /yr
Multi-Fault Rate	1.6013203E-4 /yr (87.65%)
Directly-Connected Faults	5
All Co-Rupturing Faults	126

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

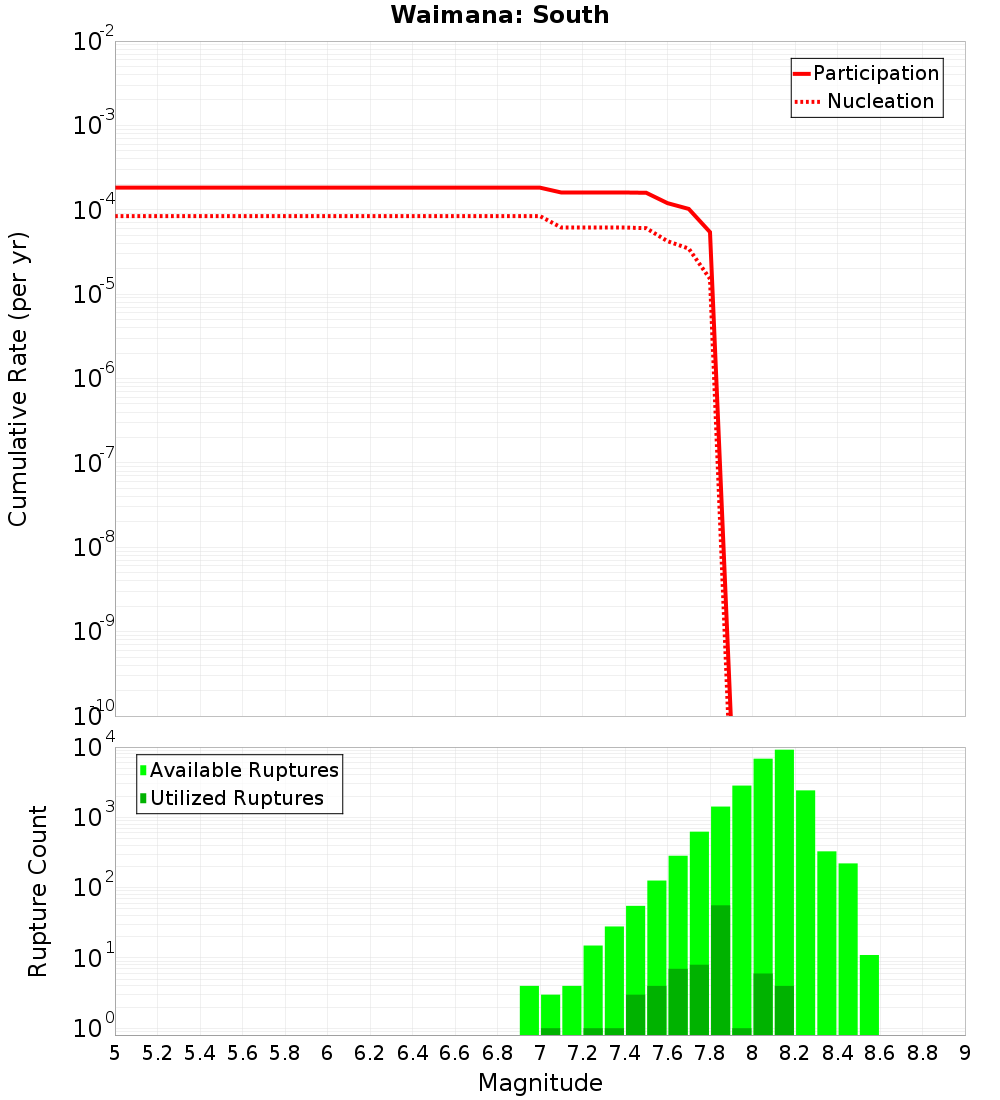

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.15 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.02 km away
Whakatane: North, 8.55 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.57 km away

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	true
Co-rupture Count	17,662
Co-rupture Rate	1.0252312E-4

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	5.009798E-11

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	true
Co-rupture Count	23,921
Co-rupture Rate	1.3896251E-4

Waiotahi: South, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	true
Co-rupture Count	2,028
Co-rupture Rate	1.5577808E-10

Waiotahi: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	true
Co-rupture Count	2,202
Co-rupture Rate	2.2970642E-5

Waiohau: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 8.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	false
Co-rupture Count	481
Co-rupture Rate	5.009798E-11

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	false
Co-rupture Count	1,030
Co-rupture Rate	8.465832E-5

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	false
Co-rupture Count	244
Co-rupture Rate	0.0

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	true
Directly Connected?	false
Co-rupture Count	1,066
Co-rupture Rate	0.0

Te Whaiti South, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0MjcuMFVrd1du
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
