Otara East 2 Details
| Property | Value |
|---|---|
| Rupture Count | 438 |
| Ruptures Above Sect Min Mag | 438 |
| Ruptures w/ Nonzero Rates | 85 |
| Magnitude Range | [7.03, 8.43] |
| Length Range | [16, 567] km |
| Total Rate | 1.9014388E-4 /yr |
| Multi-Fault Rate | 1.9014388E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 44 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

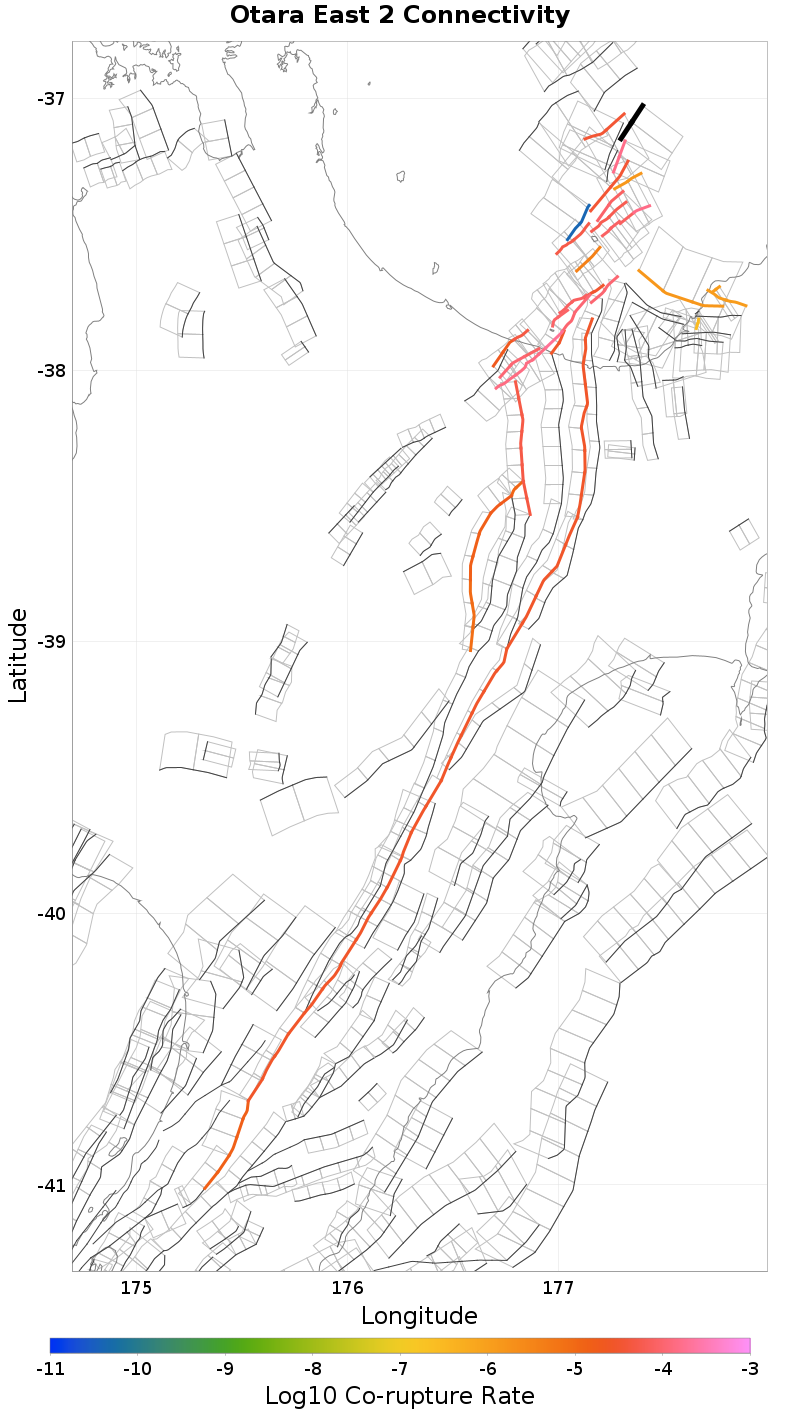

Connectivity
 |  |
|---|
Nearby Sections
Otara East 1, 1.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 417 |
| Co-rupture Rate | 1.5522224E-4 |
Otara West 2, 1.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 3, 3.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 3.4921635E-5 |
Otara West 1, 4.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Volkner 4, 5.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 27 |
| Co-rupture Rate | 3.4922497E-5 |
Tuatoru 2, 8.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 344 |
| Co-rupture Rate | 1.5377336E-4 |
Te Arawa 3, 13.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 64 |
| Co-rupture Rate | 1.4480167E-6 |
Tauranga Trough East 2, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
