Poulter Details

Property	Value
Rupture Count	1,484
Ruptures Above Sect Min Mag	1,479
Ruptures w/ Nonzero Rates	94
Magnitude Range	[6.79, 8.53]
Length Range	[16, 668] km
Total Rate	1.7739115E-4 /yr
Multi-Fault Rate	1.702776E-4 /yr (95.99%)
Directly-Connected Faults	4
All Co-Rupturing Faults	54

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

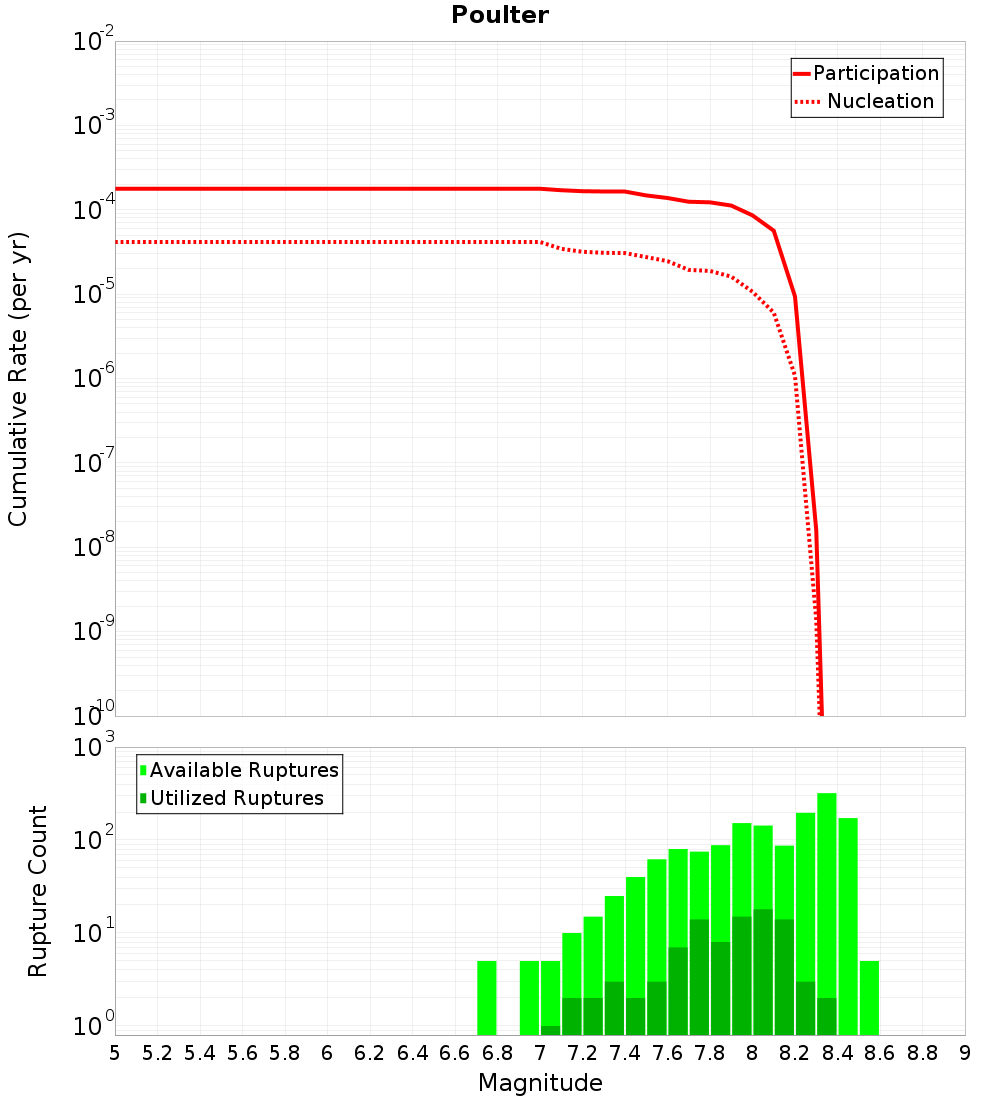

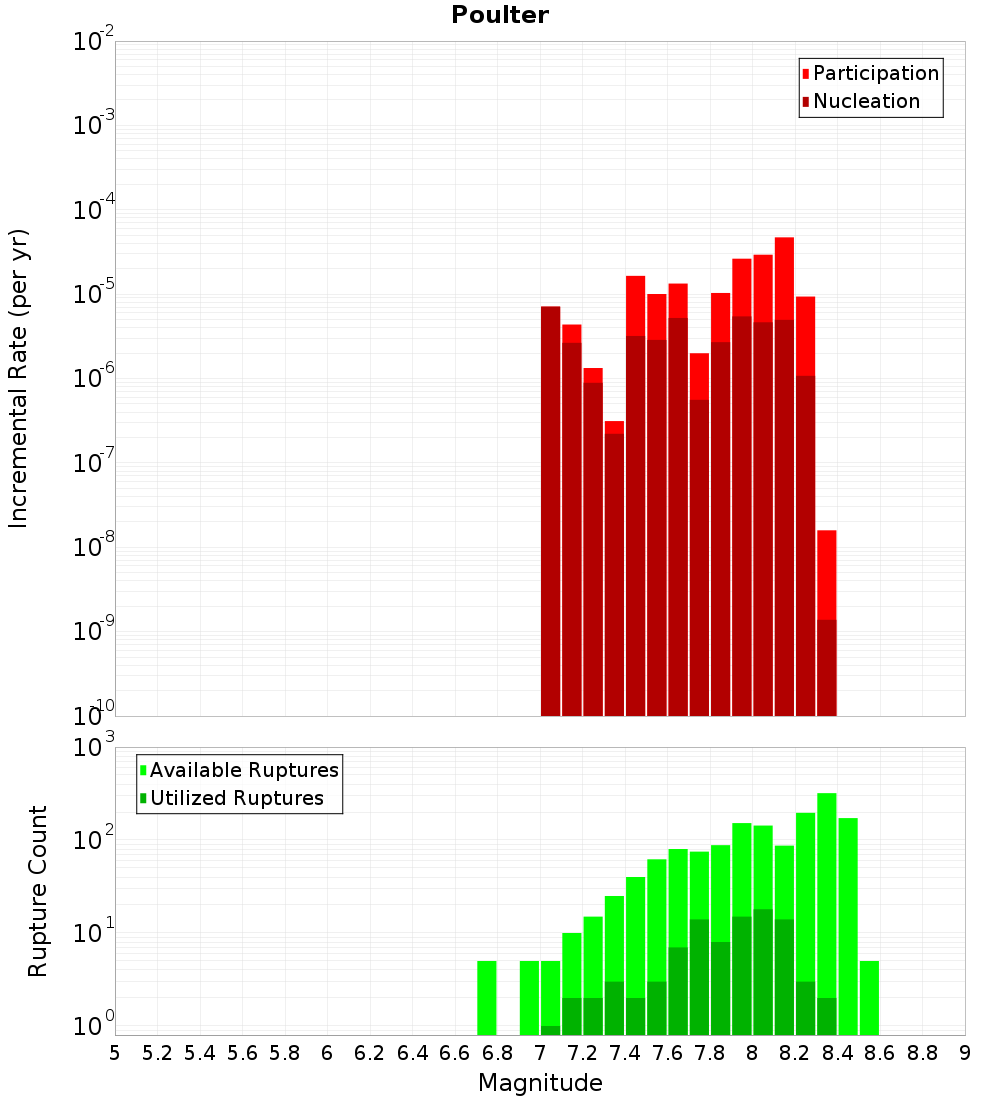

Magnitude-Frequency Distribution

Incremental	Cumulative

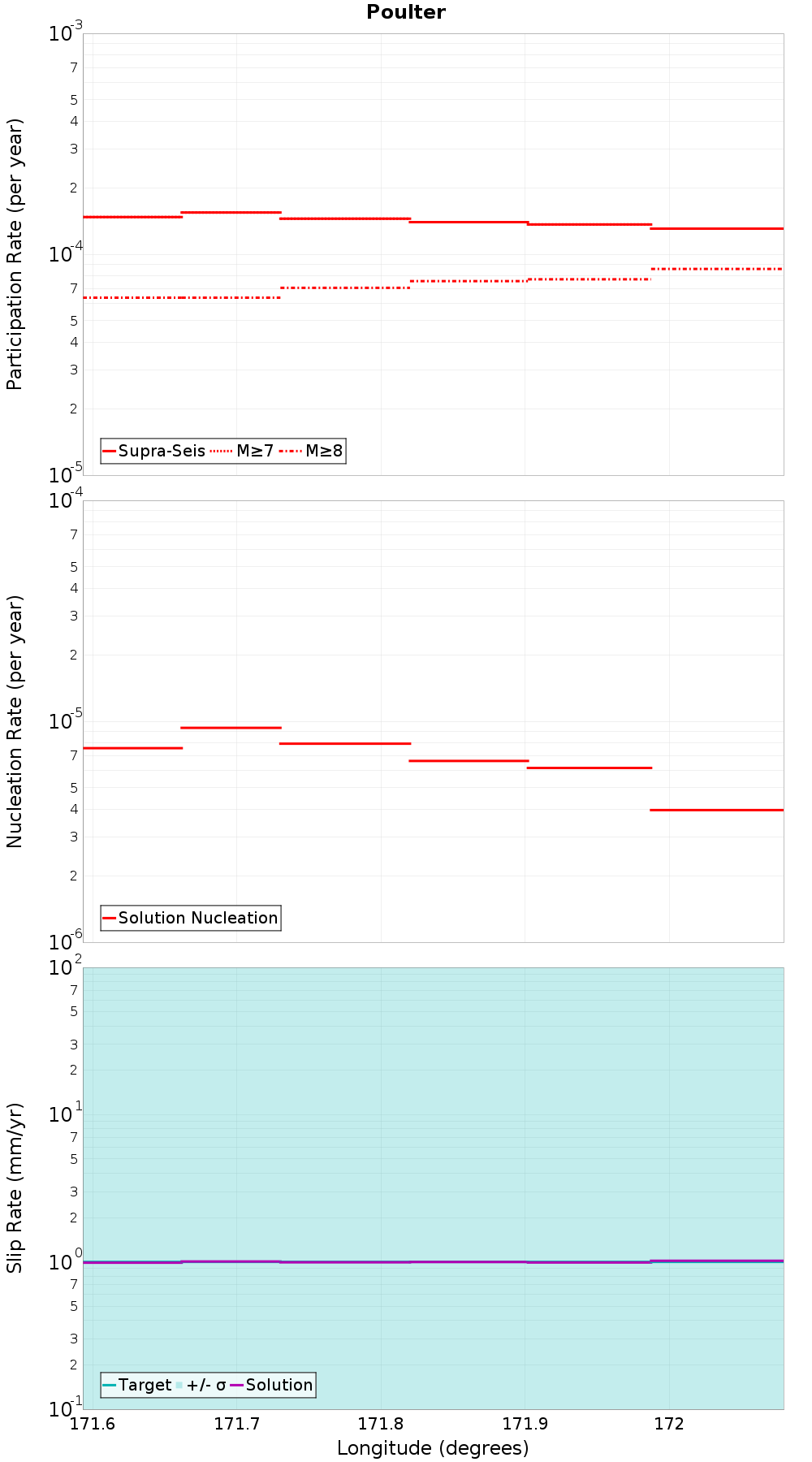

Along-Strike Values

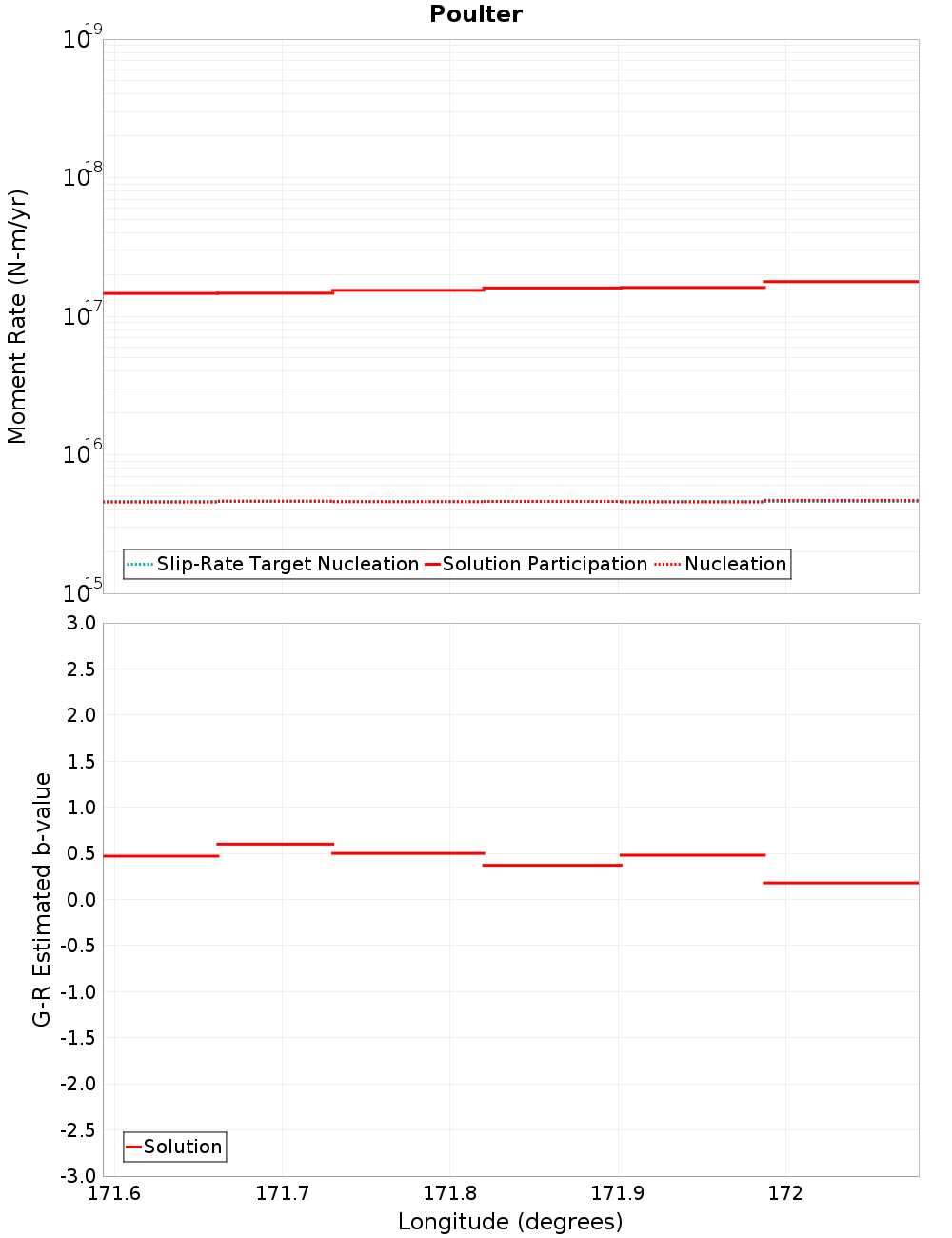

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kakapo, 5.65 km away
Hope: Hurunui, 7.27 km away
Hope: Taramakau, 7.5 km away
Hope: Hope River, 7.81 km away
Kelly, 9.5 km away
Esk North, 9.54 km away
Cheeseman, 10.59 km away
Sailor, 11.01 km away
Browning Pass, 14.55 km away

Kakapo, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	true
Co-rupture Count	522
Co-rupture Rate	1.1275517E-5

Hope: Hurunui, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	0.0

Hope: Taramakau, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	true
Co-rupture Count	989
Co-rupture Rate	1.2310005E-4

Hope: Hope River, 7.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	1.0430193E-9

Kelly, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	false
Co-rupture Count	375
Co-rupture Rate	8.802045E-6

Esk North, 9.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cheeseman, 10.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	true
Co-rupture Count	368
Co-rupture Rate	3.92179E-5

Sailor, 11.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	7.958607E-6

Browning Pass, 14.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMEJxeGZ4
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0
