Lachlan 3 Details

Property	Value
Rupture Count	620
Ruptures Above Sect Min Mag	584
Ruptures w/ Nonzero Rates	80
Magnitude Range	[6.50, 7.76]
Length Range	[15, 250] km
Total Rate	0.0017148189 /yr
Multi-Fault Rate	0.0017148189 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

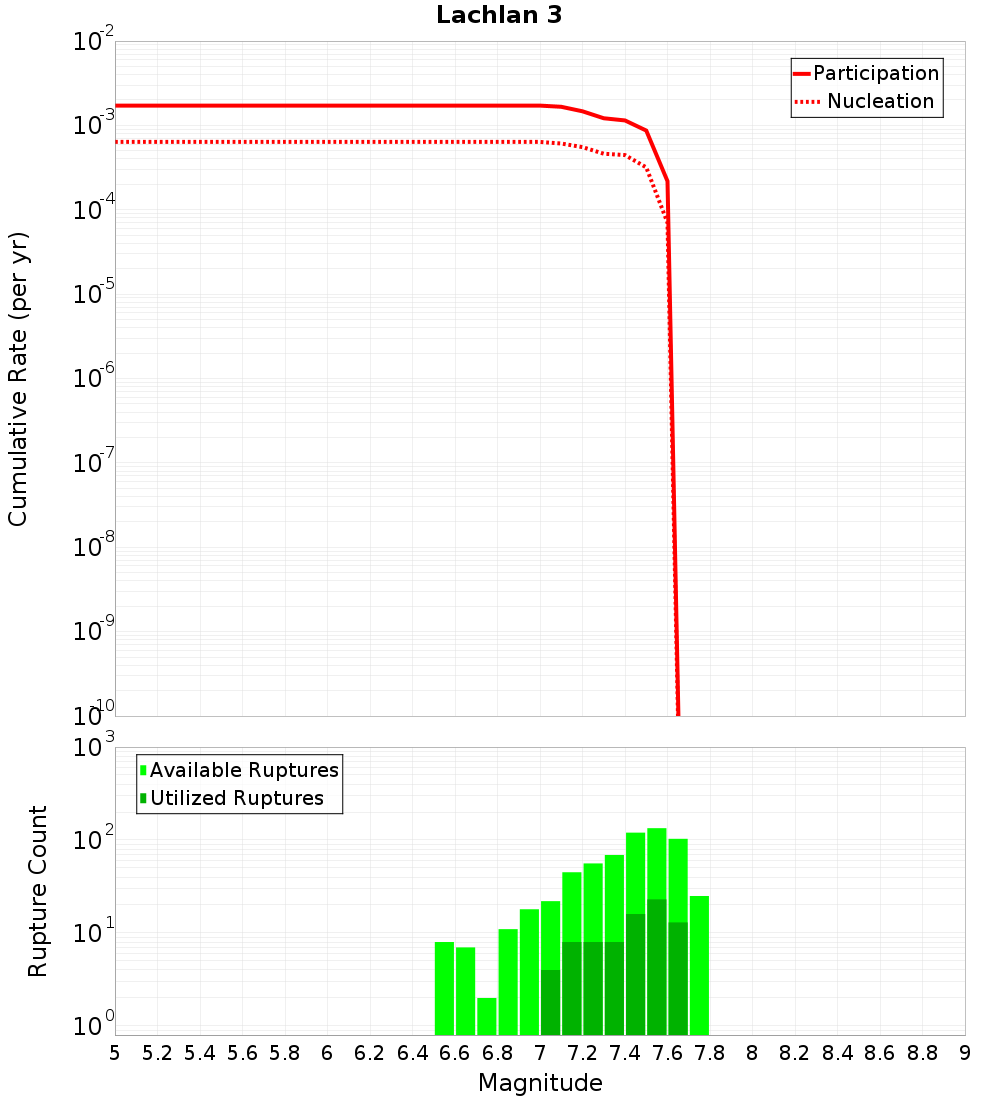

Magnitude-Frequency Distribution

Incremental	Cumulative

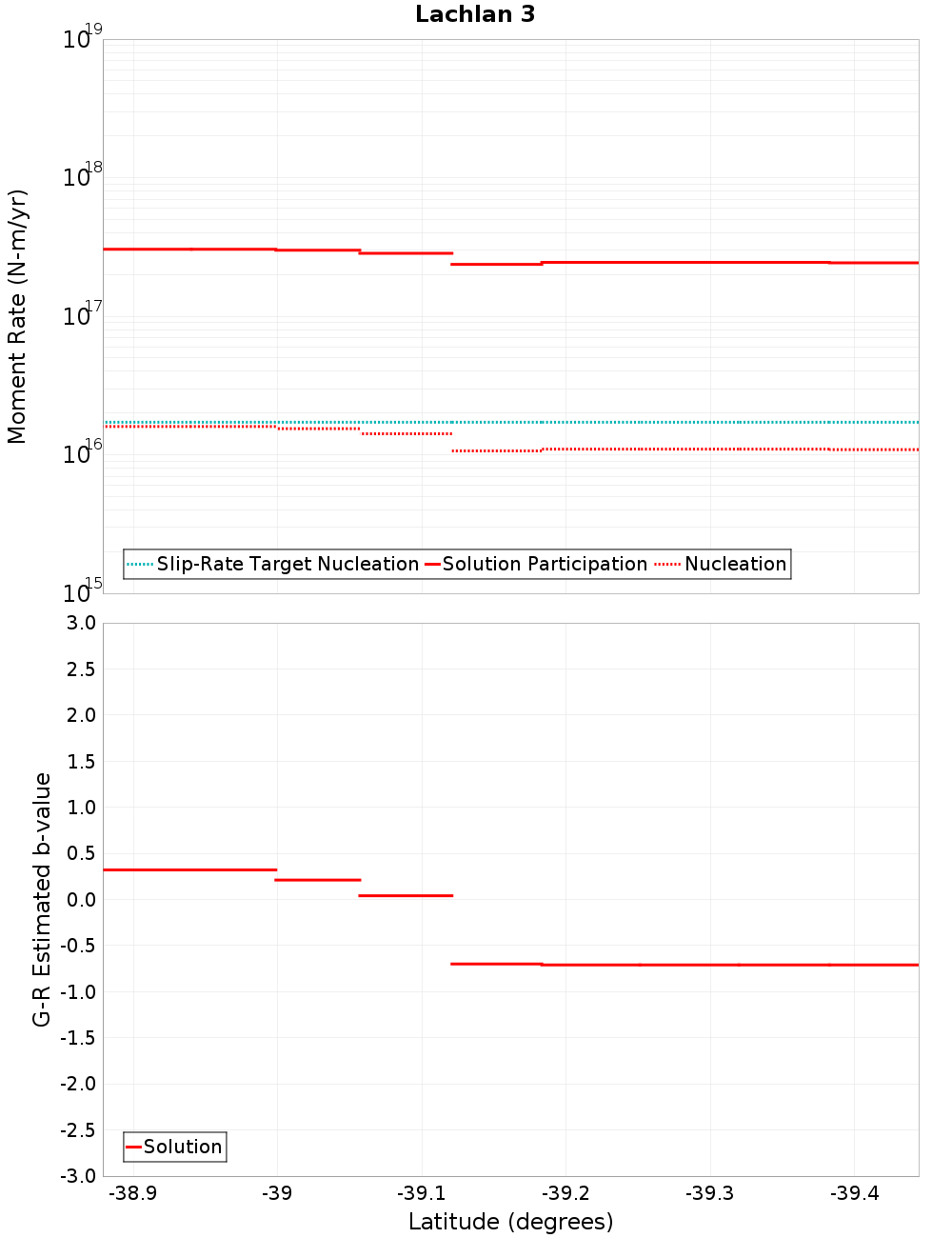

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lachlan 1 & 2, 0.51 km away
Mahia 2, 2.42 km away
Ariel East, 3.12 km away
Poverty Bay, 3.85 km away
Ariel Bank, 6.74 km away
Gable End South, 14.5 km away

Lachlan 1 & 2, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMFJkcGly
Connected?	true
Directly Connected?	true
Co-rupture Count	348
Co-rupture Rate	6.0131075E-4

Mahia 2, 2.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMFJkcGly
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel East, 3.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMFJkcGly
Connected?	true
Directly Connected?	true
Co-rupture Count	162
Co-rupture Rate	3.6729174E-4

Poverty Bay, 3.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMFJkcGly
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	8.0145313E-4

Ariel Bank, 6.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMFJkcGly
Connected?	true
Directly Connected?	true
Co-rupture Count	232
Co-rupture Rate	5.997627E-4

Gable End South, 14.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NTcuMFJkcGly
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	7.58829E-4
