Ostler North Details

Property	Value
Rupture Count	4,143
Ruptures Above Sect Min Mag	4,142
Ruptures w/ Nonzero Rates	124
Magnitude Range	[7.08, 8.44]
Length Range	[24, 679] km
Total Rate	3.096938E-4 /yr
Multi-Fault Rate	3.096938E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	89

Table Of Contents

Magnitude-Frequency Distribution

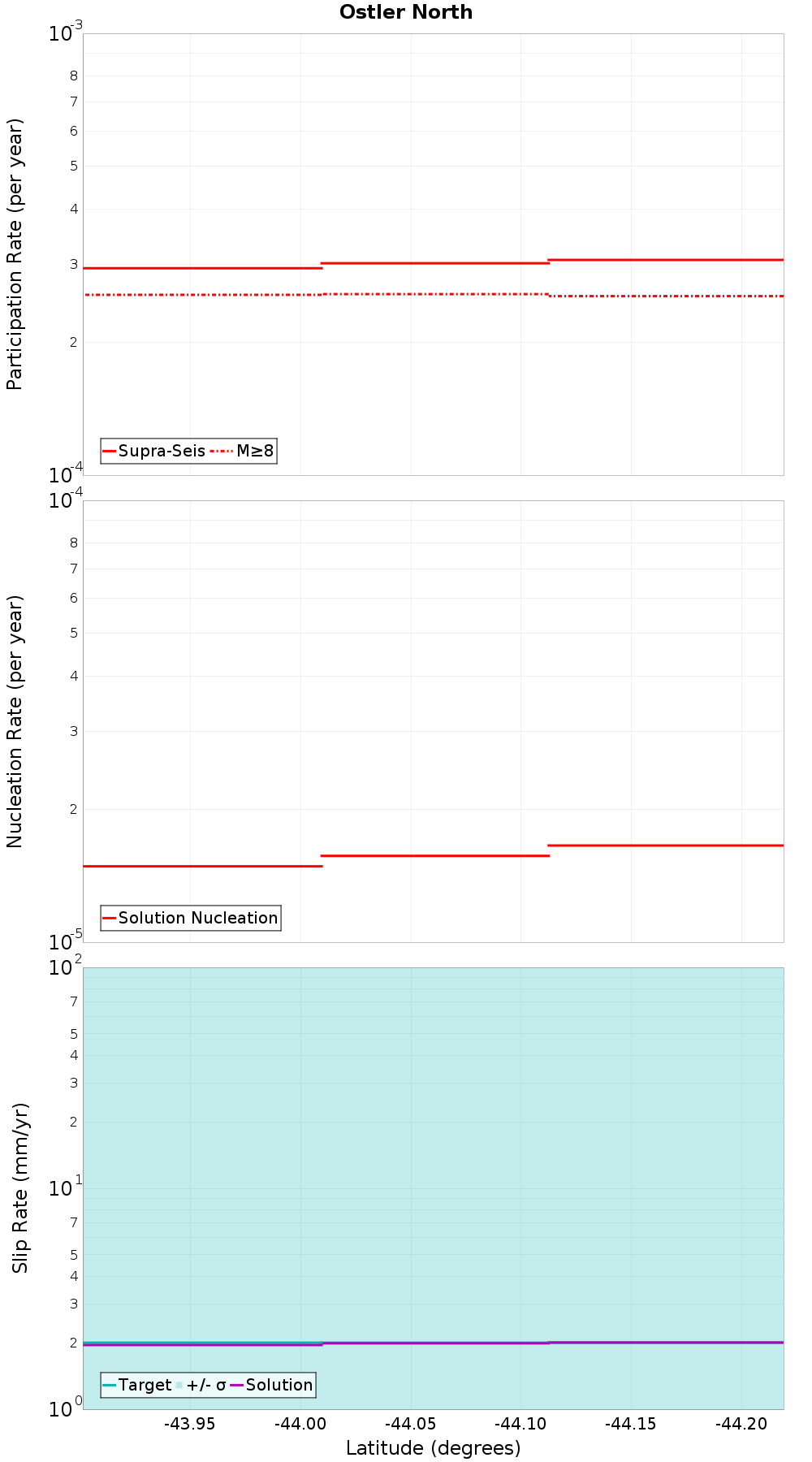

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

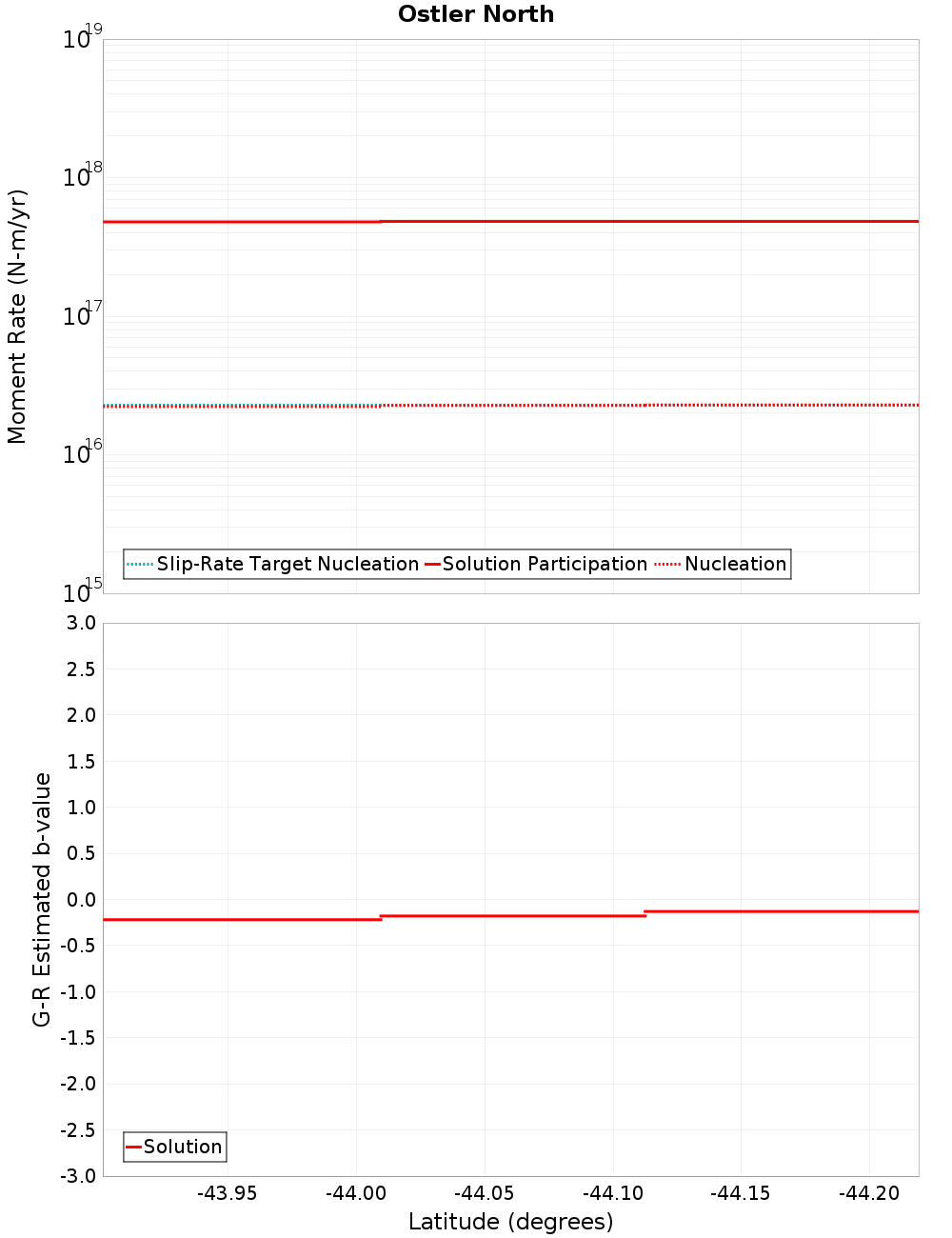

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ostler South, 1.89 km away
Barrier Range, 2.09 km away
Hopkins, 4.64 km away
Irishman Creek, 8.16 km away
Huxley, 10.38 km away
Falstone, 11.42 km away
Alpine: Jacksons to Kaniere, 14.33 km away

Ostler South, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	true
Directly Connected?	true
Co-rupture Count	2,995
Co-rupture Rate	3.0132878E-4

Barrier Range, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	7.187281E-7

Hopkins, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	8.6731075E-7

Irishman Creek, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Huxley, 10.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,091
Co-rupture Rate	1.02110896E-7

Falstone, 11.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	1.169484E-5

Alpine: Jacksons to Kaniere, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NjQuMFRtM1lC
Connected?	true
Directly Connected?	true
Co-rupture Count	3,341
Co-rupture Rate	2.802117E-4
