Caswell High 67 Details
| Property | Value |
|---|---|
| Rupture Count | 1,046 |
| Ruptures Above Sect Min Mag | 1,036 |
| Ruptures w/ Nonzero Rates | 40 |
| Magnitude Range | [6.71, 8.53] |
| Length Range | [16, 742] km |
| Total Rate | 1.976614E-4 /yr |
| Multi-Fault Rate | 1.3887405E-4 /yr (70.26%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 21 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

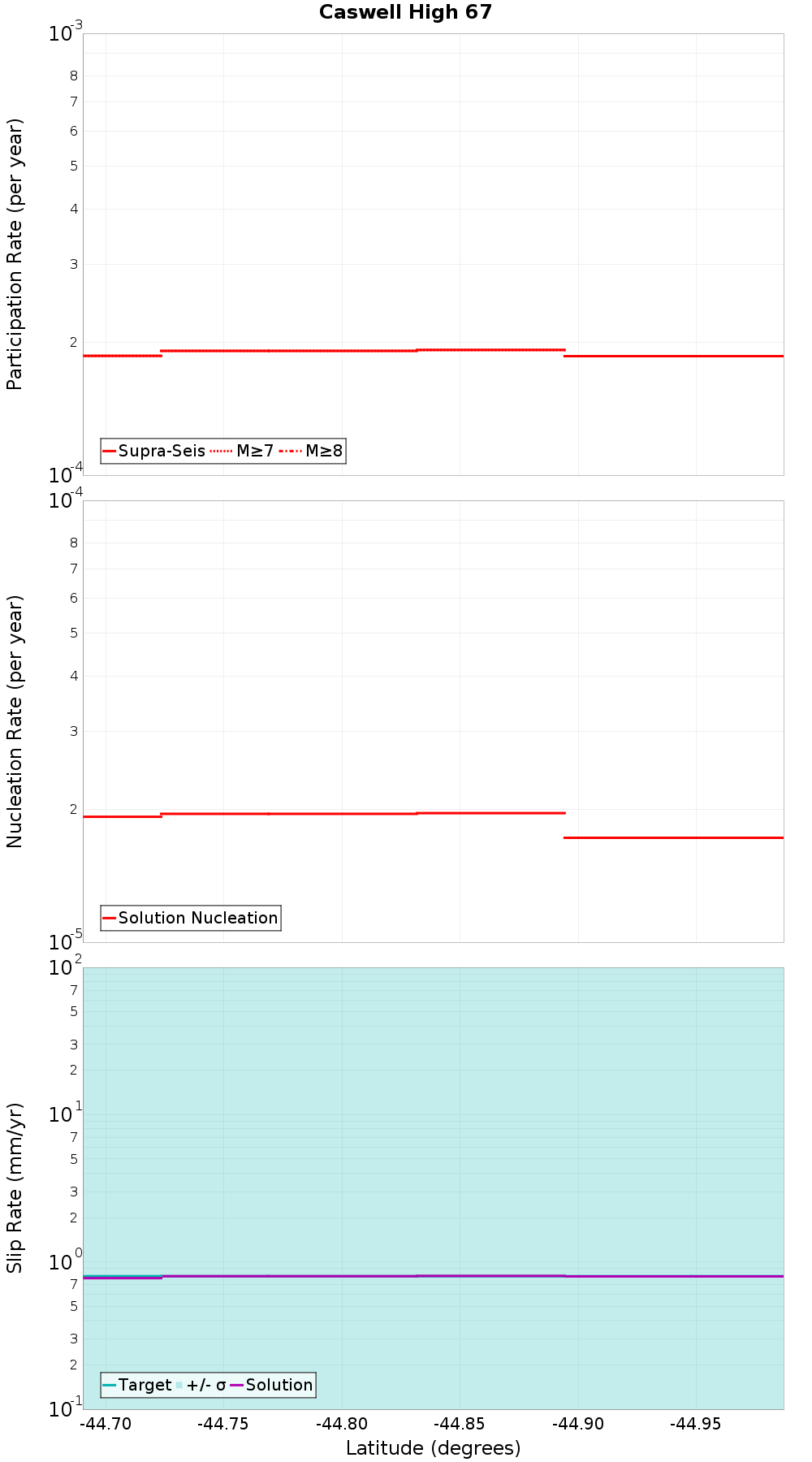

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Caswell High 5, 1.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 9, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Central Wedge 1 & 2 & 3, 4.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 905 |
| Co-rupture Rate | 3.3679486E-20 |
Caswell High 10, 5.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Central Wedge 4 - South Wedge 411, 7.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 4, 8.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 456 |
| Co-rupture Rate | 1.3887405E-4 |
Caswell High 8, 10.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzEuMHk4bWZD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
