White Creek Details

Property	Value
Rupture Count	9,157
Ruptures Above Sect Min Mag	9,148
Ruptures w/ Nonzero Rates	191
Magnitude Range	[6.81, 8.36]
Length Range	[23, 816] km
Total Rate	1.5829675E-4 /yr
Multi-Fault Rate	1.5829675E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

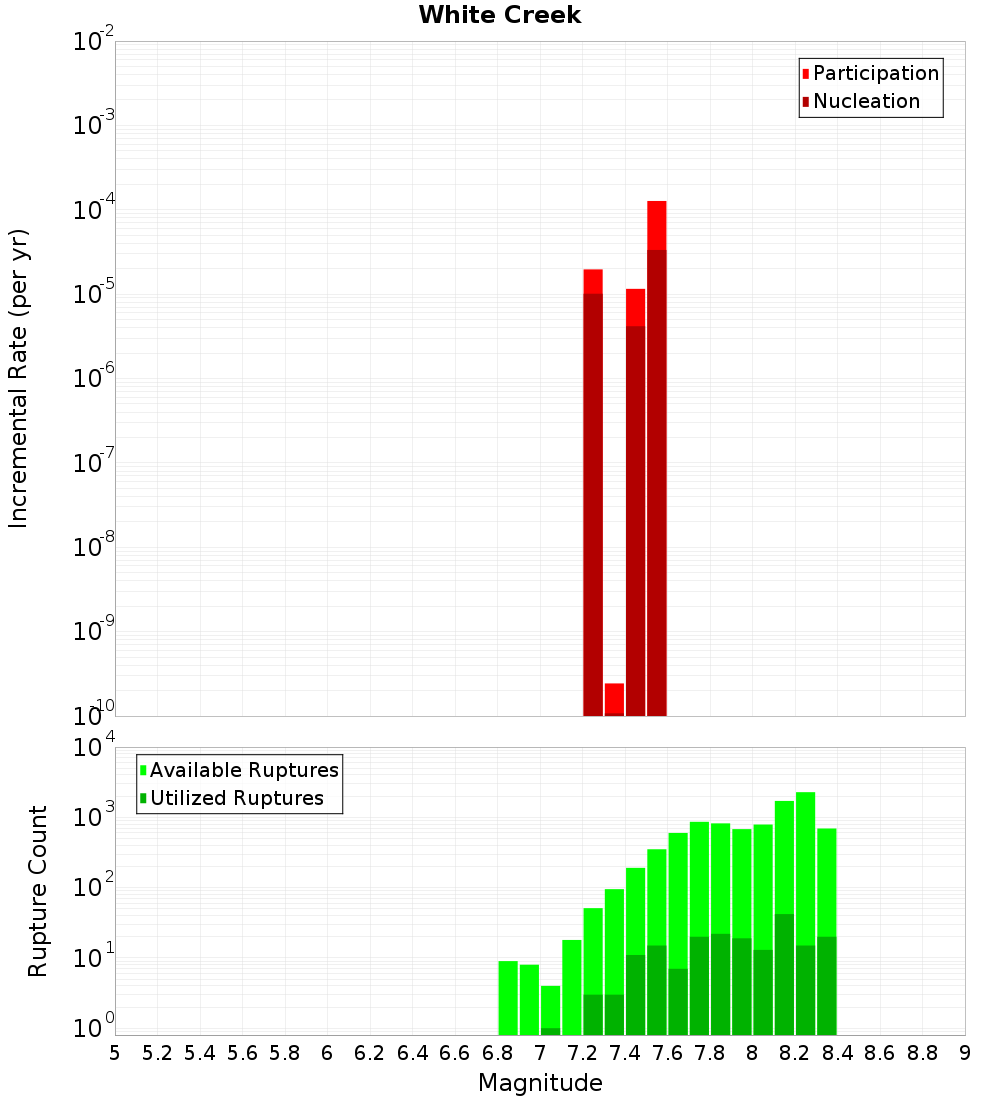

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lyell, 0.23 km away
Kohaihai South, 0.56 km away
White Creek - buried, 0.99 km away
Kohaihai, 2.2 km away
Lyell South, 6.32 km away
Kongahau, 11.75 km away
Inangahua, 13.07 km away

Lyell, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,133
Co-rupture Rate	1.582967E-4

Kohaihai South, 0.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	889
Co-rupture Rate	7.895424E-12

White Creek - buried, 0.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	7,115
Co-rupture Rate	4.616793E-11

Kohaihai, 2.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,065
Co-rupture Rate	8.859505E-12

Lyell South, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,894
Co-rupture Rate	1.3865384E-4

Kongahau, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,367
Co-rupture Rate	2.0236616E-11

Inangahua, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk0NzMuMFdvWEs0
Connected?	true
Directly Connected?	true
Co-rupture Count	618
Co-rupture Rate	1.2858576E-11
