Awanui Details

Property	Value
Rupture Count	1,899
Ruptures Above Sect Min Mag	1,897
Ruptures w/ Nonzero Rates	32
Magnitude Range	[7.09, 8.13]
Length Range	[26, 408] km
Total Rate	1.7102412E-4 /yr
Multi-Fault Rate	1.7102412E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

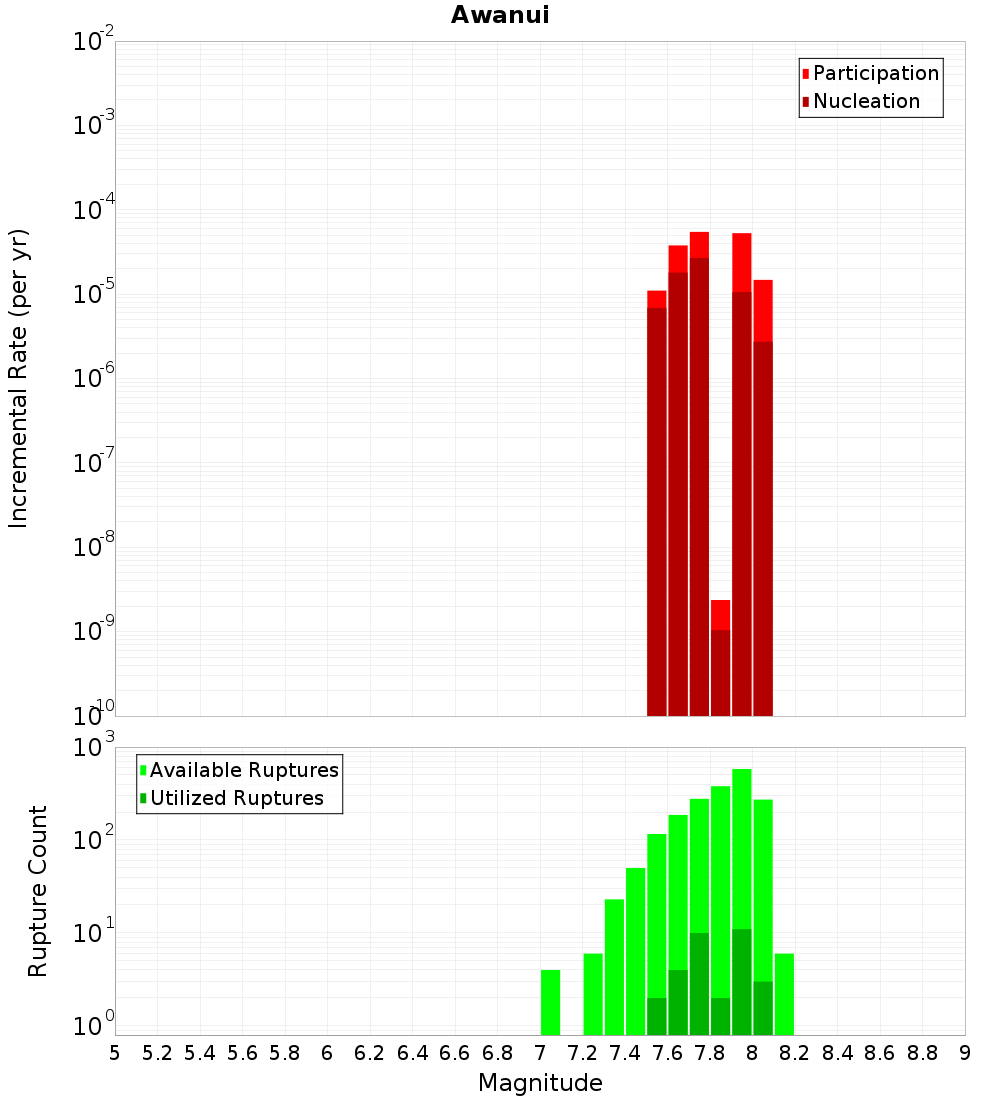

Magnitude-Frequency Distribution

Incremental	Cumulative

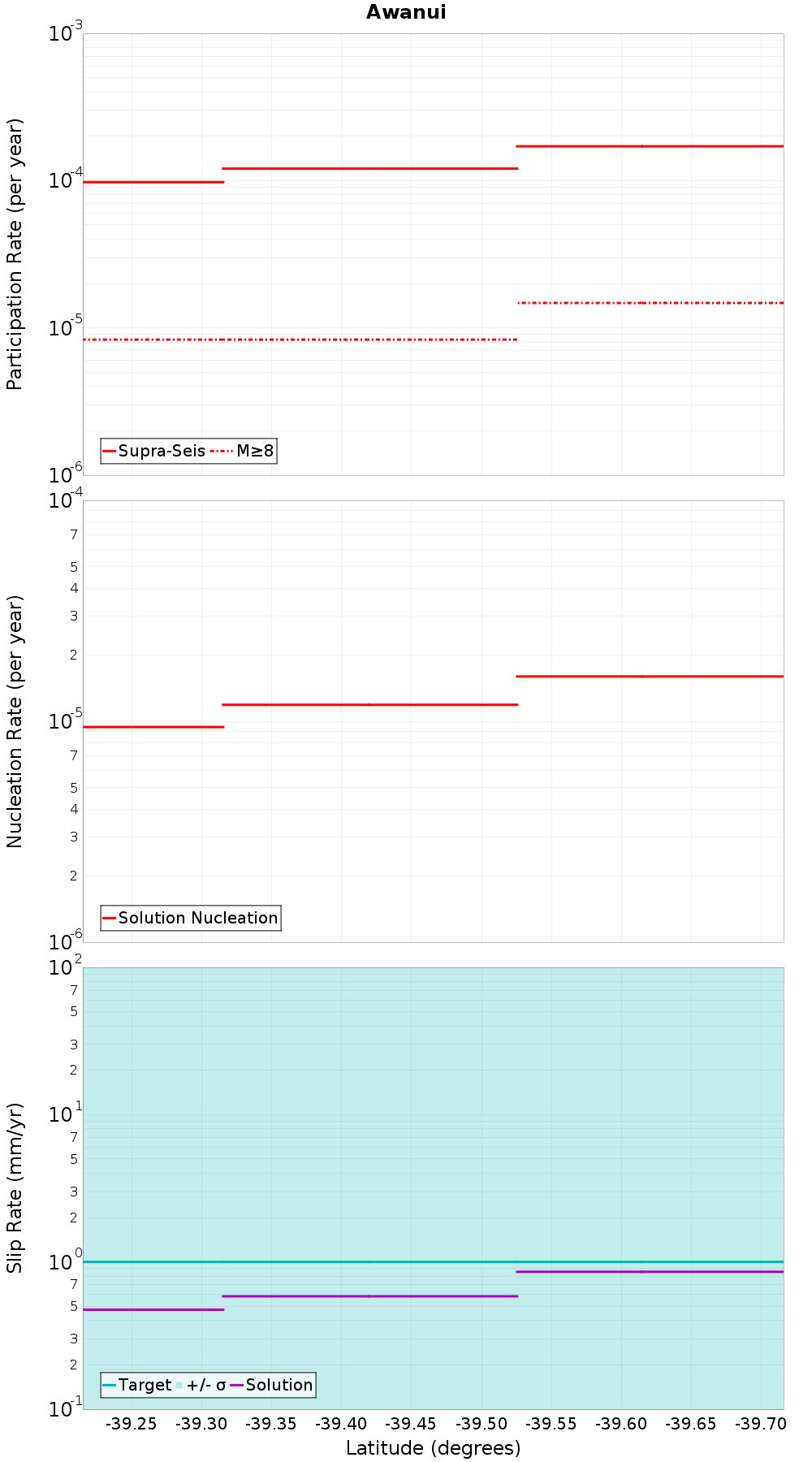

Along-Strike Values

Moment-Rates and b-Values

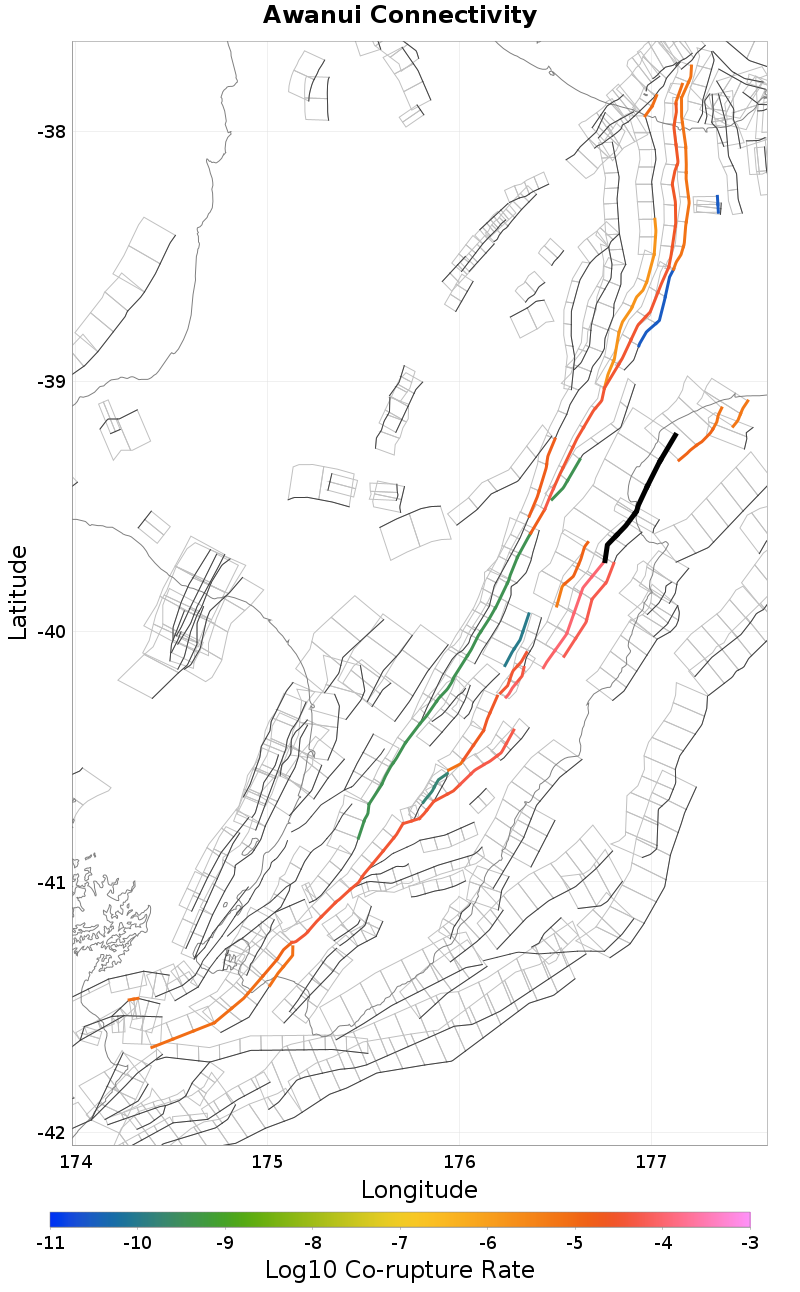

Connectivity

Nearby Sections

Fault Section
Waipukurau - Poukawa, 0 km away
Te Heka, 0.14 km away
Patoka - Rangiora, 3.5 km away
Tukituki Thrust, 3.57 km away
Hawke Bay 1, 4.64 km away
Hawke Bay 8, 6.81 km away
Mohaka: North, 11.19 km away
Mohaka: South, 12.7 km away

Waipukurau - Poukawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,110
Co-rupture Rate	1.0115806E-4

Te Heka, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	1.3218195E-5

Patoka - Rangiora, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	true
Co-rupture Count	236
Co-rupture Rate	3.8065984E-10

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	true
Co-rupture Count	216
Co-rupture Rate	6.144352E-5

Hawke Bay 1, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	1.2378729E-5

Hawke Bay 8, 6.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: North, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,289
Co-rupture Rate	5.053695E-5

Mohaka: South, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MDIuMEIzelFj
Connected?	true
Directly Connected?	false
Co-rupture Count	289
Co-rupture Rate	1.6714359E-5
