Virginia Details
| Property | Value |
|---|---|
| Rupture Count | 167 |
| Ruptures Above Sect Min Mag | 166 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.71, 8.18] |
| Length Range | [16, 554] km |
| Total Rate | 4.258372E-5 /yr |
| Multi-Fault Rate | 4.258372E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 43 |
Table Of Contents

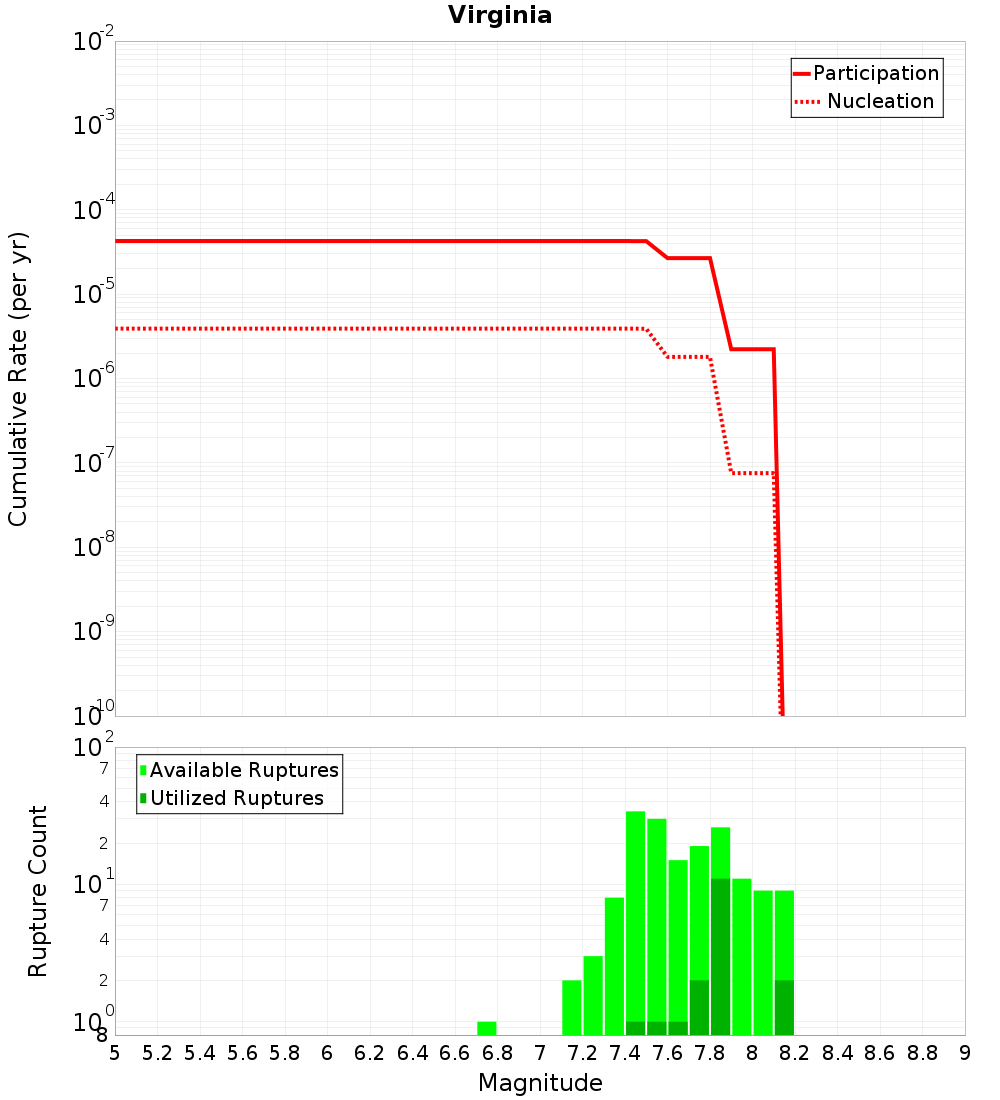

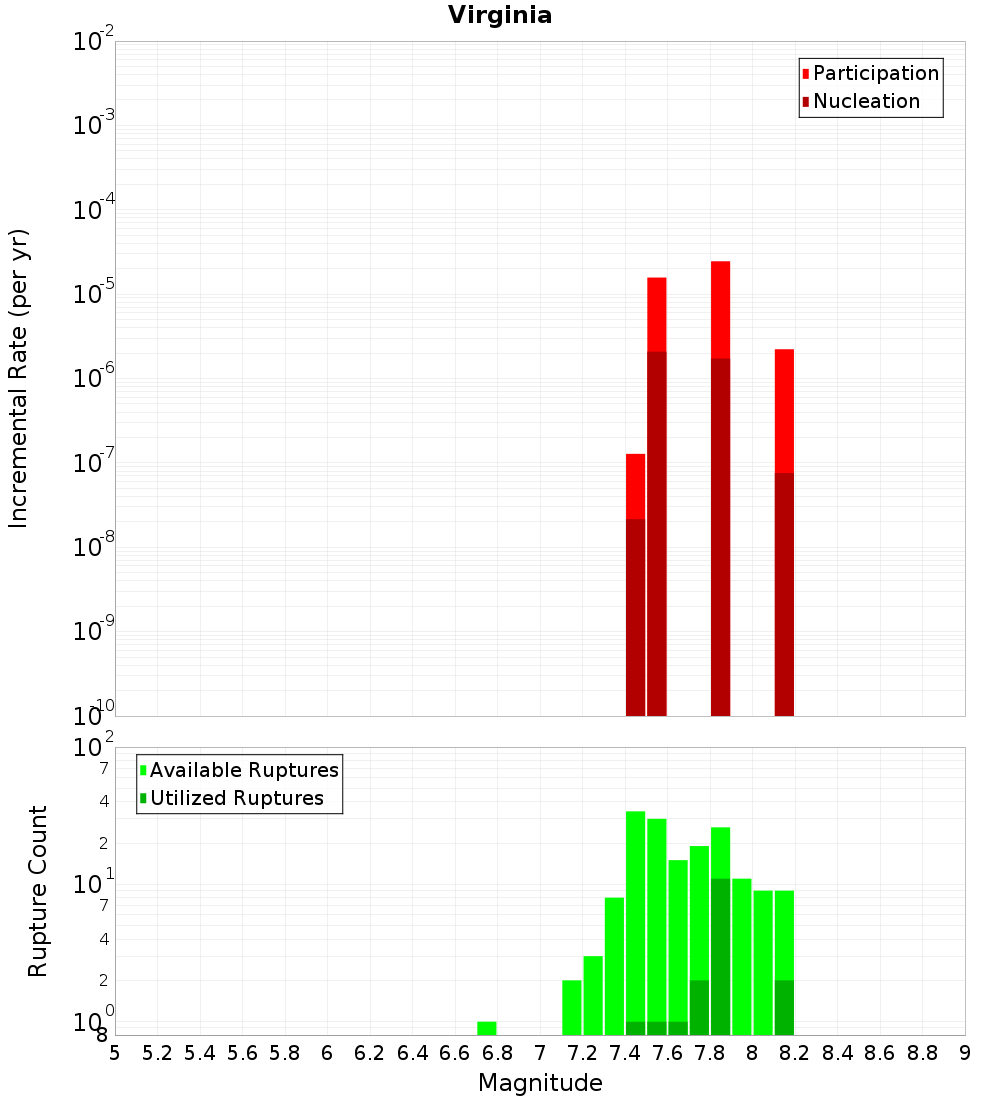

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

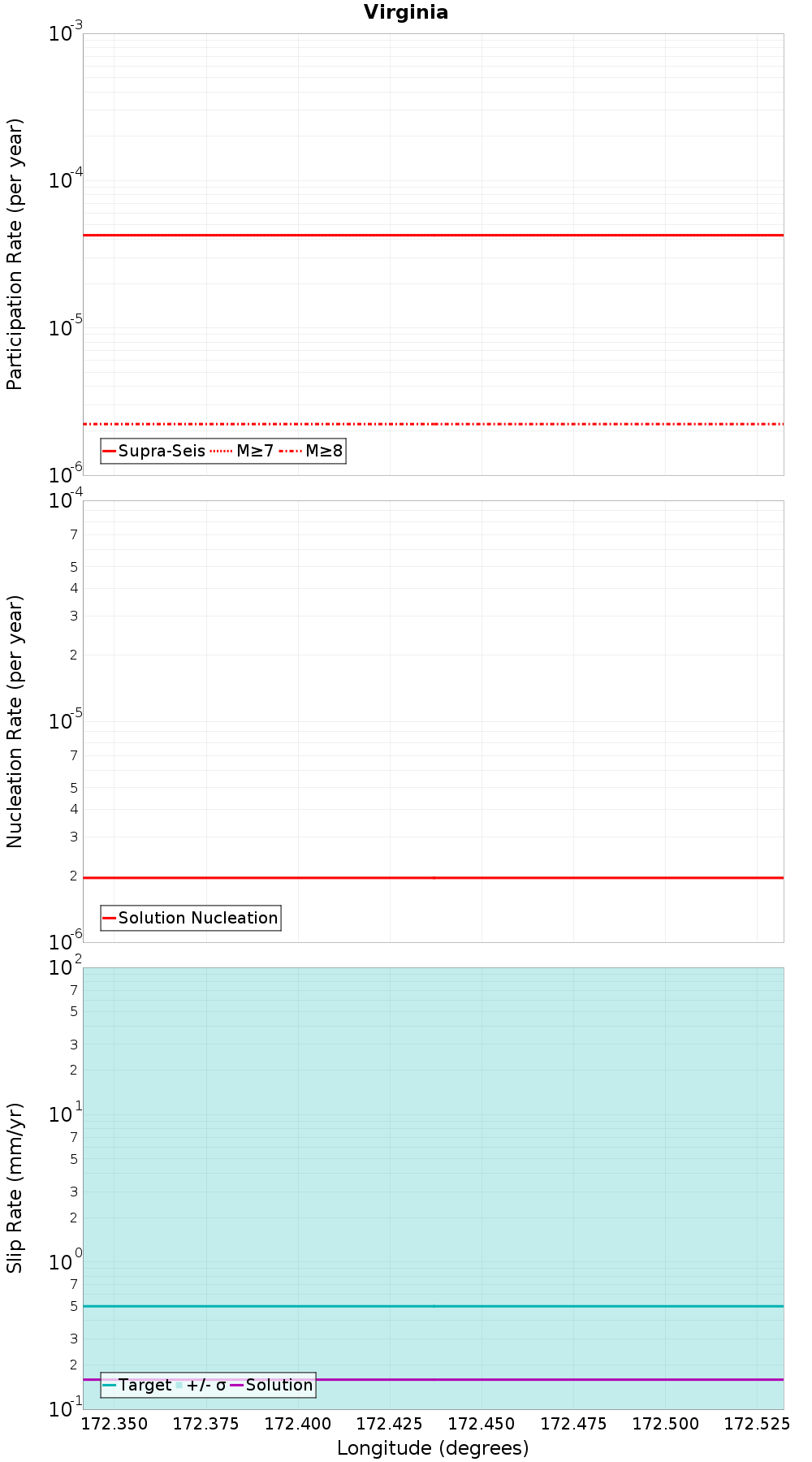

Along-Strike Values
Moment-Rates and b-Values

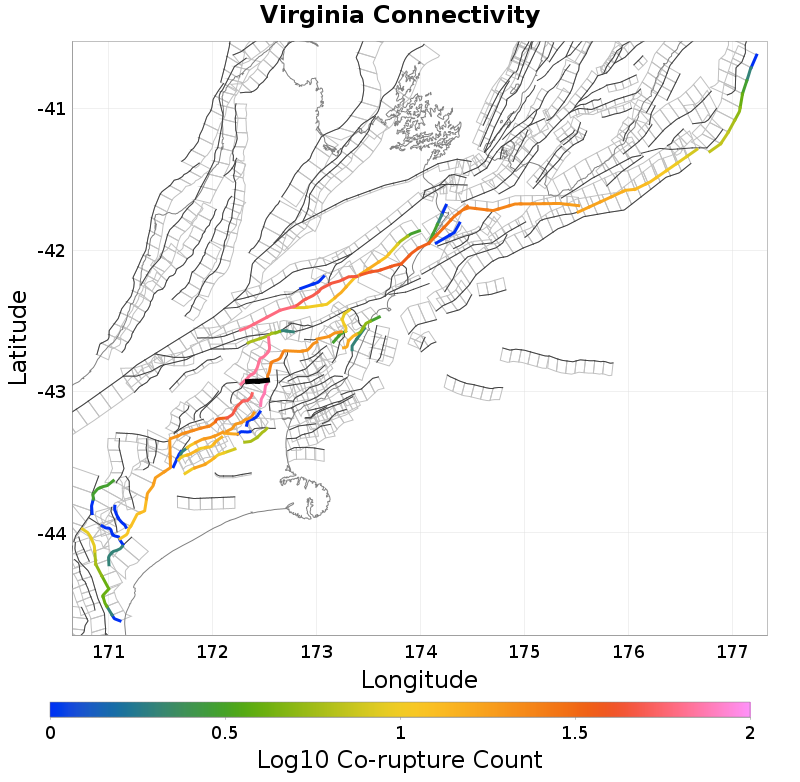

Connectivity
 |  |
|---|
Nearby Sections
Balmoral, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hurunui Peak, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 25 |
| Co-rupture Rate | 1.5725554E-5 |
Mt Arden, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 74 |
| Co-rupture Rate | 1.2923502E-7 |
Pancake, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Esk North, 2.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 67 |
| Co-rupture Rate | 2.672893E-5 |
Esk South, 6.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Doctors, 7.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lowry, 9.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lees Valley, 9.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 57 |
| Co-rupture Rate | 1.2923502E-7 |
Kaiwara South, 12.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MTMuMGpmNTN2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
