Maunga Details

Property	Value
Rupture Count	663
Ruptures Above Sect Min Mag	660
Ruptures w/ Nonzero Rates	26
Magnitude Range	[6.75, 8.13]
Length Range	[17, 365] km
Total Rate	1.2416176E-4 /yr
Multi-Fault Rate	1.2416176E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	35

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

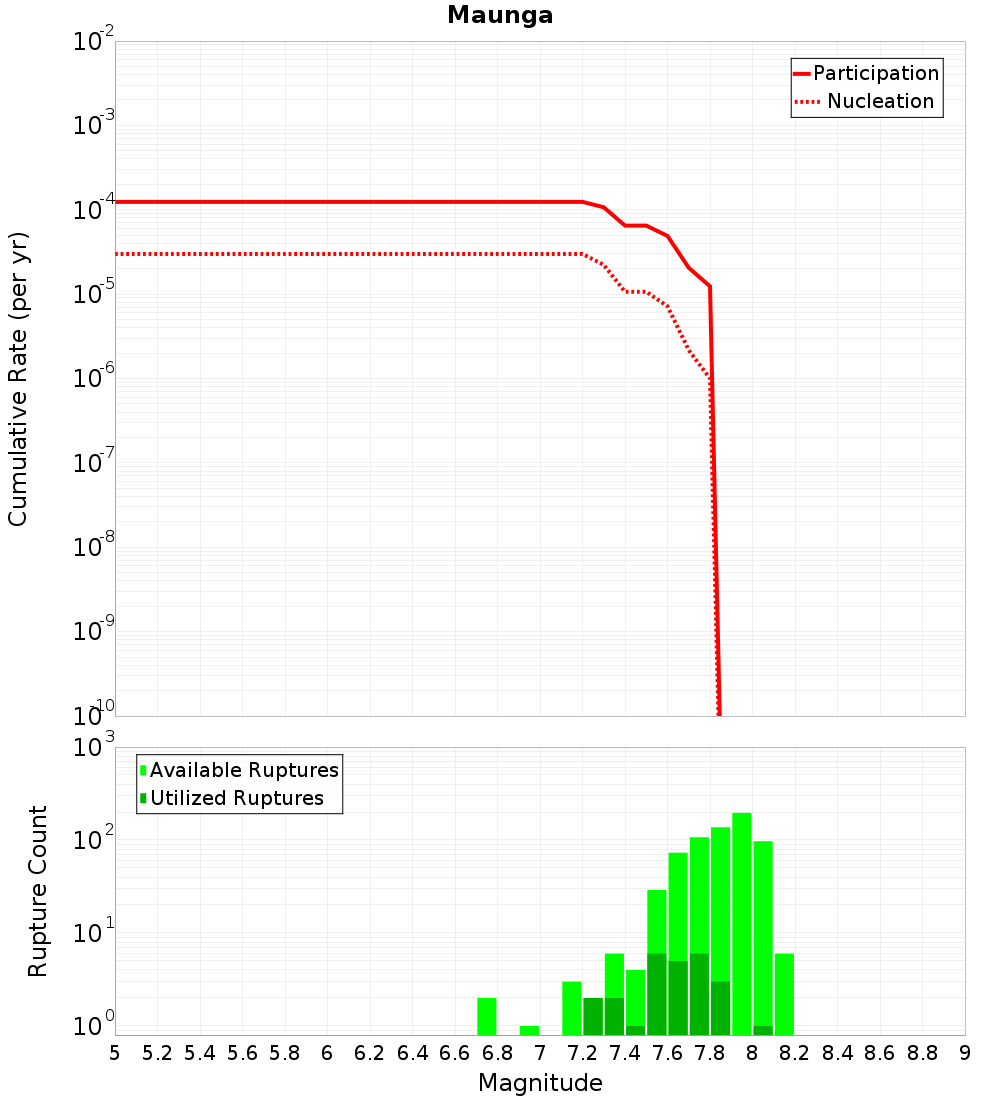

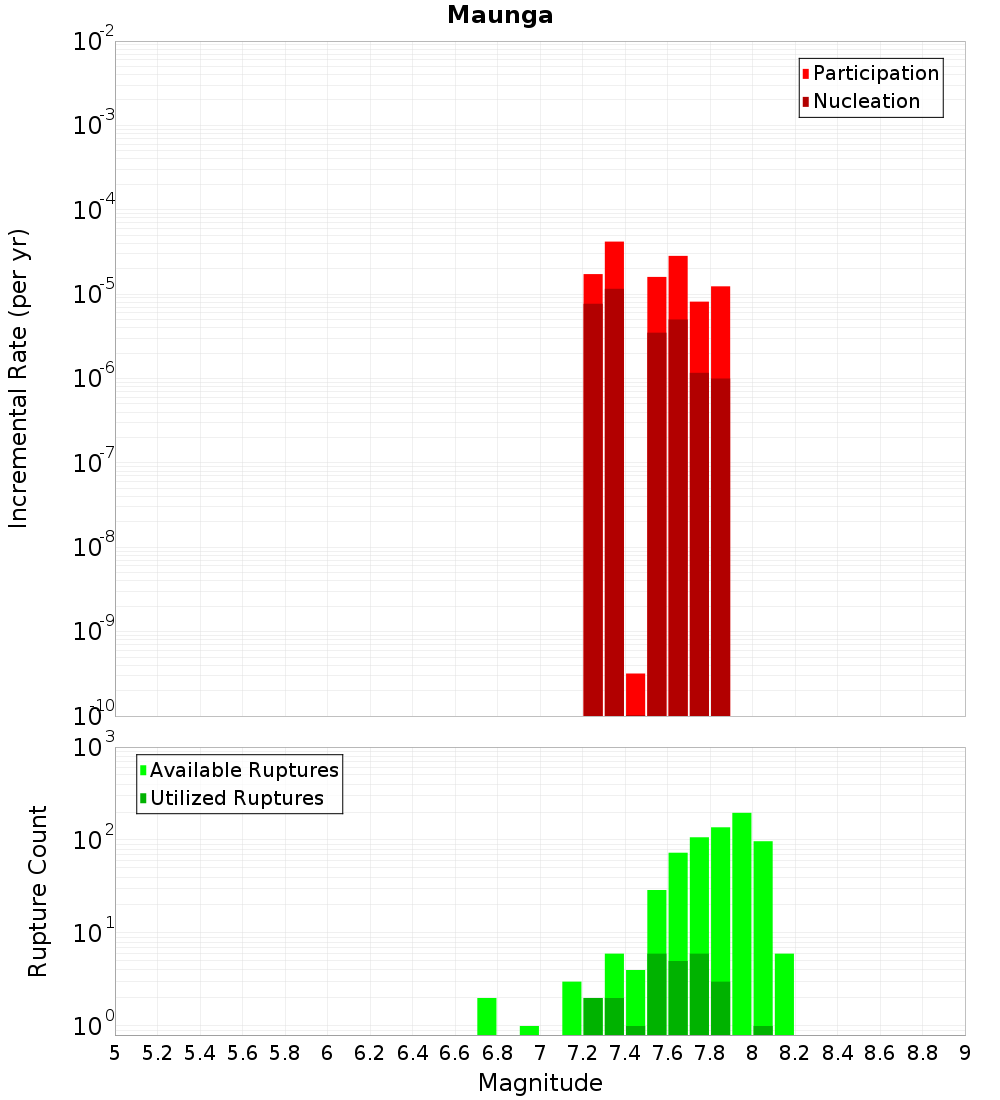

Magnitude-Frequency Distribution

Incremental	Cumulative

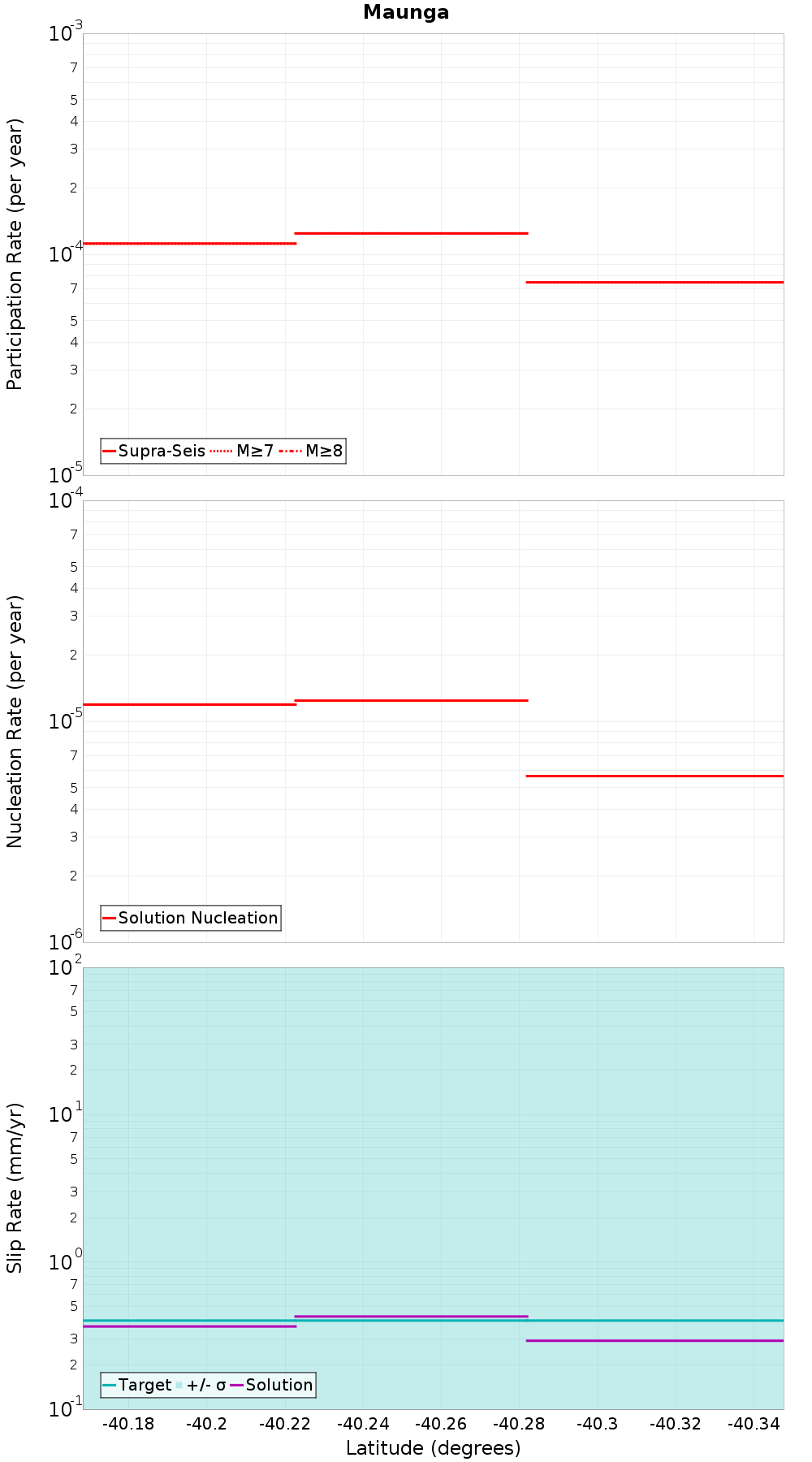

Along-Strike Values

Moment-Rates and b-Values

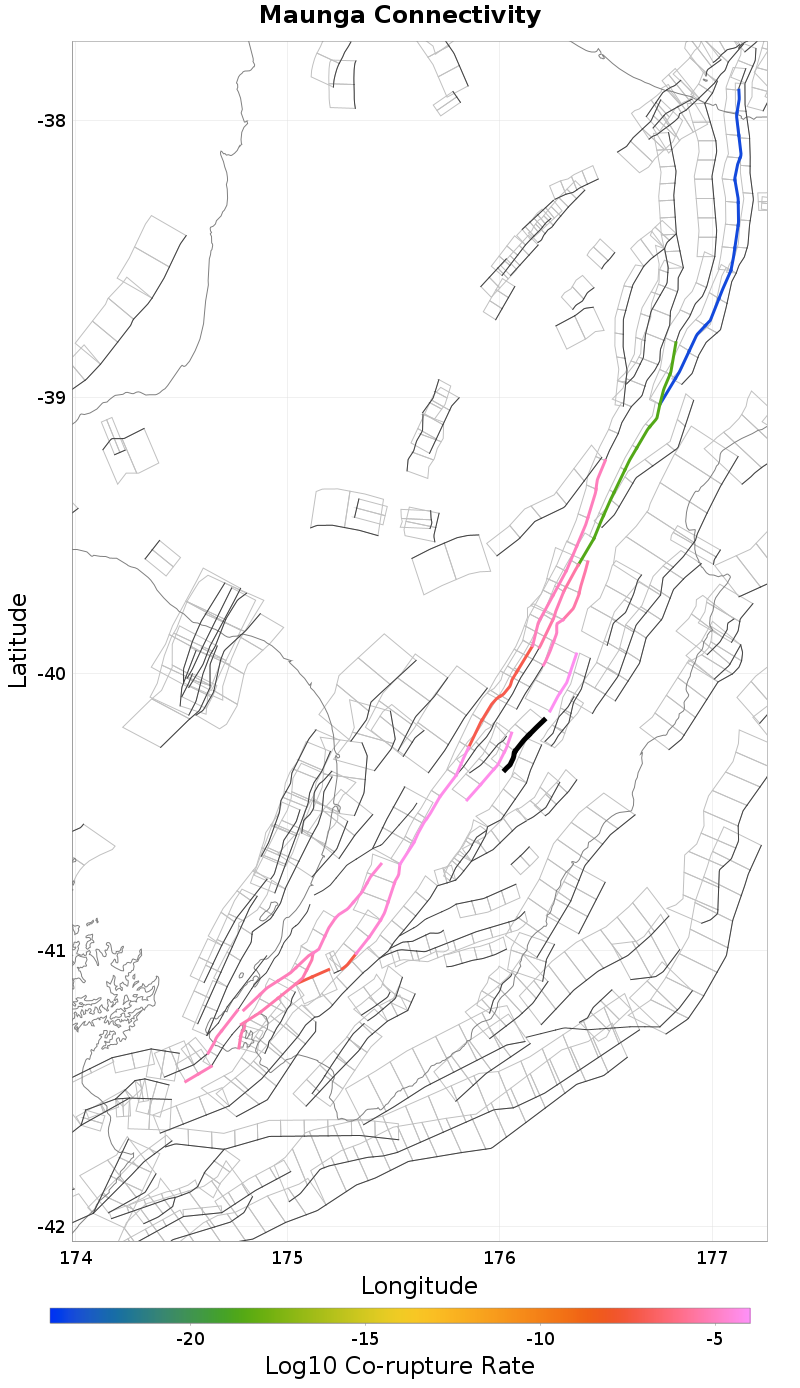

Connectivity

Nearby Sections

Fault Section
Pahiatua, 3.33 km away
Ruataniwha, 3.9 km away
Clear Hills - Waikopiro, 5.16 km away
Woodville, 5.91 km away
Waewaepa, 6.08 km away
Oruawharo - Mangatoro, 8.13 km away
Mohaka: South, 9.06 km away
Makuri - Waewaepa, 9.19 km away
Rangefront, 10.17 km away
Ruahine: South, 13.33 km away

Pahiatua, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	true
Directly Connected?	true
Co-rupture Count	423
Co-rupture Rate	9.947702E-5

Ruataniwha, 3.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	true
Directly Connected?	true
Co-rupture Count	468
Co-rupture Rate	6.981737E-5

Clear Hills - Waikopiro, 5.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Woodville, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 6.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 8.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	true
Directly Connected?	false
Co-rupture Count	469
Co-rupture Rate	6.3228213E-6

Makuri - Waewaepa, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	true
Directly Connected?	false
Co-rupture Count	191
Co-rupture Rate	1.1748643E-5

Ruahine: South, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1MzYuMFZURkpE
Connected?	true
Directly Connected?	false
Co-rupture Count	213
Co-rupture Rate	5.000043E-5
