Roaring Lion Details

Property	Value
Rupture Count	16,706
Ruptures Above Sect Min Mag	16,705
Ruptures w/ Nonzero Rates	277
Magnitude Range	[7.21, 8.52]
Length Range	[33, 963] km
Total Rate	9.502561E-6 /yr
Multi-Fault Rate	9.502514E-6 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	78

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

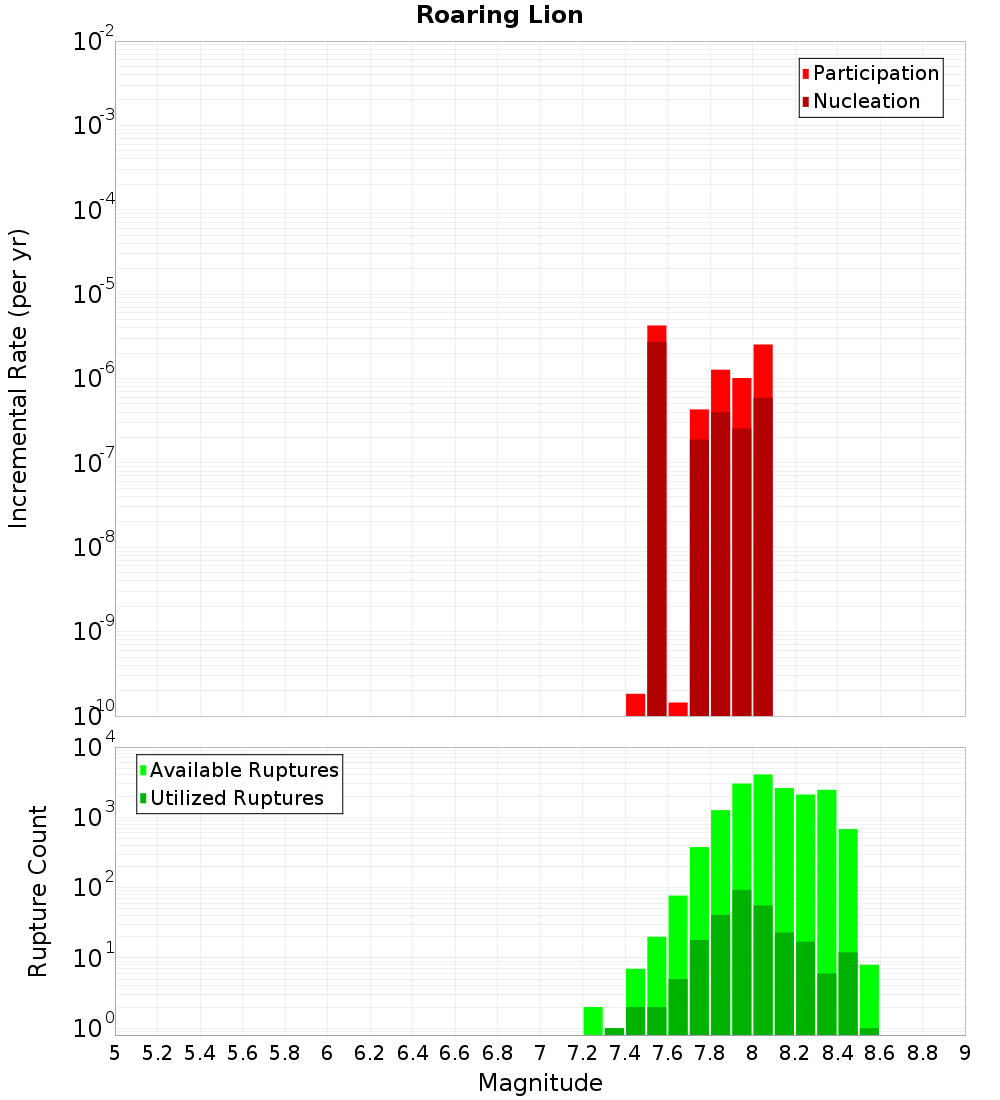

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

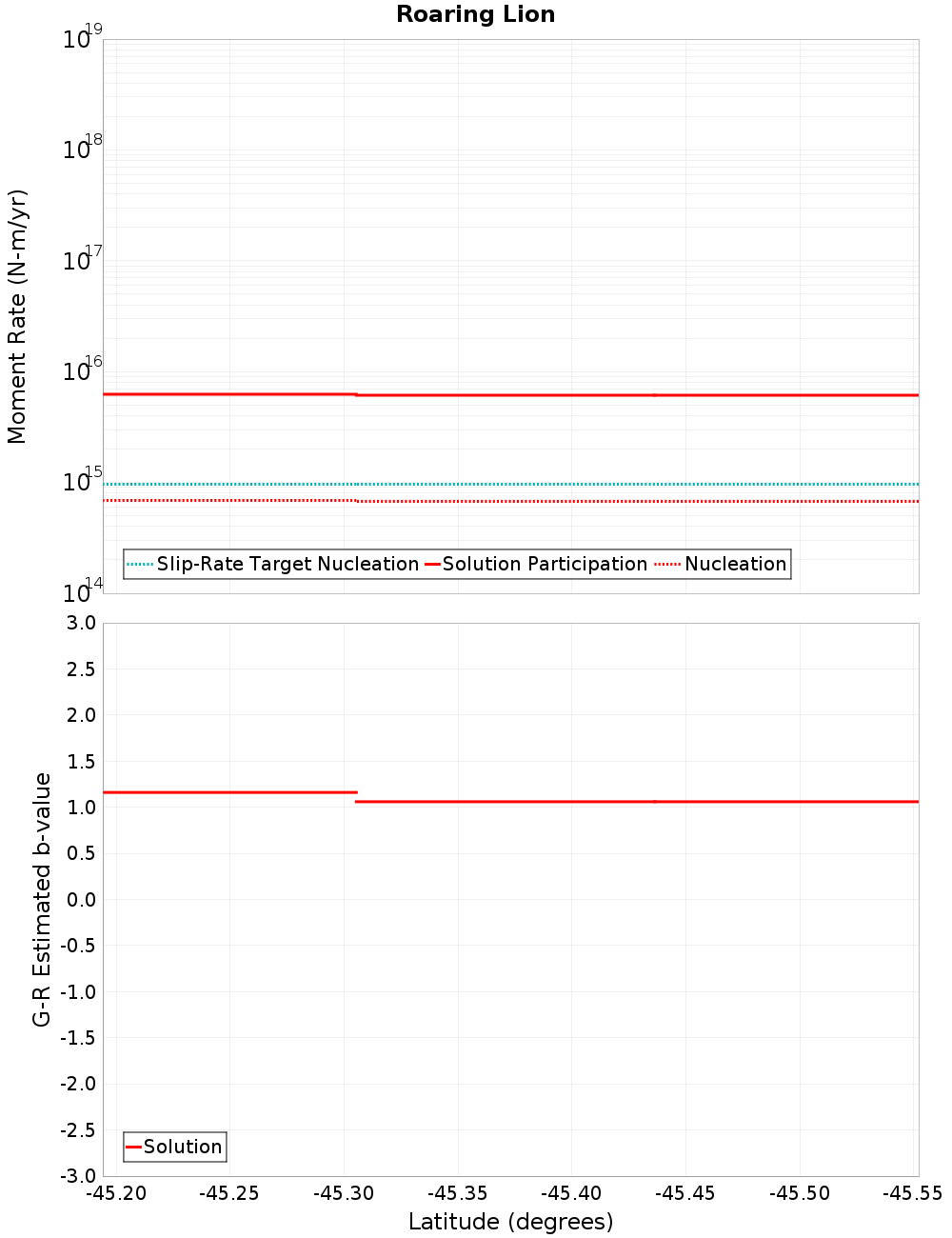

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Old Man, 0.17 km away
Nevis, 0.43 km away
Pisa, 0.83 km away
Garvie, 2.74 km away
Teviot, 3.33 km away
Mid Dome, 5.36 km away
Roaring Meg, 6.05 km away
Waikaia, 6.12 km away
Dunstan, 6.22 km away
Wendon Valley, 9.71 km away
NW Cardrona South, 10.86 km away
Lake Onslow, 12.03 km away
Galloway, 13.84 km away

Old Man, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,957
Co-rupture Rate	1.1502358E-6

Nevis, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	true
Co-rupture Count	3,814
Co-rupture Rate	4.440472E-6

Pisa, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	true
Co-rupture Count	16,680
Co-rupture Rate	7.2108055E-6

Garvie, 2.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,005
Co-rupture Rate	2.773274E-9

Teviot, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	true
Co-rupture Count	5,109
Co-rupture Rate	2.5349123E-6

Mid Dome, 5.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,359
Co-rupture Rate	1.0215789E-8

Roaring Meg, 6.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	false
Co-rupture Count	2,845
Co-rupture Rate	3.7760478E-6

Waikaia, 6.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	false
Co-rupture Count	2,252
Co-rupture Rate	2.8044194E-9

Dunstan, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	1.9277305E-12

Wendon Valley, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	false
Co-rupture Count	495
Co-rupture Rate	1.1501763E-6

NW Cardrona South, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	true
Directly Connected?	false
Co-rupture Count	1,872
Co-rupture Rate	1.1583955E-10

Lake Onslow, 12.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Galloway, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDIuMEJVZ1Zh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
