AmberBlyth Details

PropertyValue
Rupture Count4,407
Ruptures Above Sect Min Mag4,402
Ruptures w/ Nonzero Rates149
Magnitude Range[6.91, 8.34]
Length Range[20, 530] km
Total Rate3.9825766E-4 /yr
Multi-Fault Rate3.482051E-4 /yr (87.43%)
Directly-Connected Faults9
All Co-Rupturing Faults59

Table Of Contents

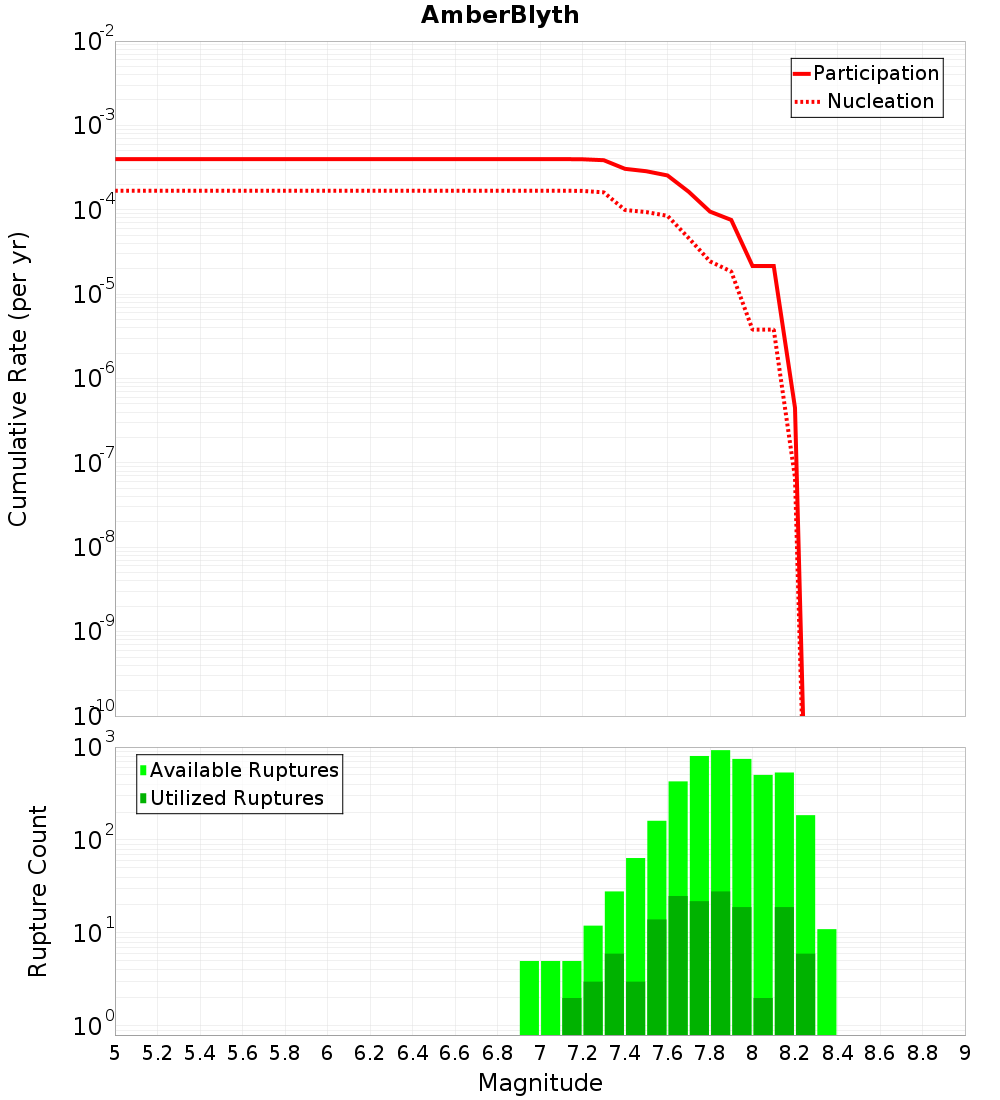

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

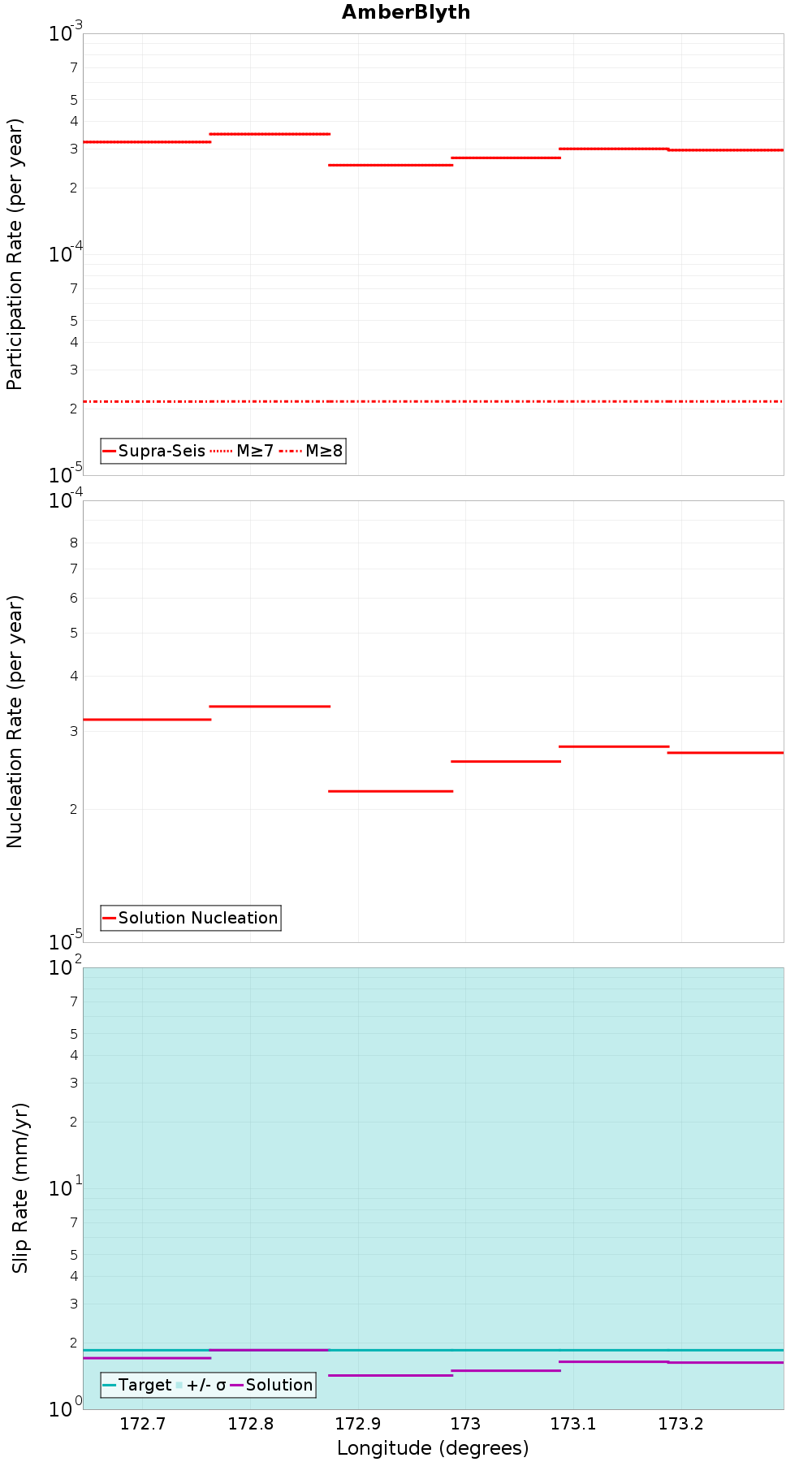

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
OmihiLwrHuru, 1.98 km awayNorth Canterbury Shelf 11, 7.7 km away
Motunau, 2.59 km awayStarvation - Ashley, 7.86 km away
Hawkswood, 3.15 km awayKaiwara South, 8.44 km away
Boby Stream, 3.76 km awayWaikuku, 9.2 km away
Point Gibson, 4.29 km awayAlexander, 11.84 km away
North Canterbury Shelf 2, 4.87 km awayNorth Canterbury Shelf 4, 12.25 km away
Leithfield - NCVI - NCVII, 5.71 km awayMt Lawry, 14.29 km away
Doctors, 5.78 km awayPegasus Bay, 14.66 km away

OmihiLwrHuru, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count394
Co-rupture Rate4.2128548E-5

Motunau, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count716
Co-rupture Rate5.6351742E-5

Hawkswood, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count2,735
Co-rupture Rate2.2437966E-4

Boby Stream, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count1,371
Co-rupture Rate2.3438828E-5

Point Gibson, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count448
Co-rupture Rate4.7975205E-5

North Canterbury Shelf 2, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate1.7711667E-5

Leithfield - NCVI - NCVII, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?false
Co-rupture Count173
Co-rupture Rate3.7938212E-6

Doctors, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?false
Co-rupture Count229
Co-rupture Rate1.8585943E-5

North Canterbury Shelf 11, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?false
Co-rupture Count192
Co-rupture Rate4.163478E-5

Starvation - Ashley, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count3,404
Co-rupture Rate8.868783E-5

Kaiwara South, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count281
Co-rupture Rate2.899434E-5

Waikuku, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate1.9856616E-7

Alexander, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 4, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.8996321E-5

Pegasus Bay, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NDguMFU5M296
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
