Hope: Seaward Details

Property	Value
Rupture Count	13,726
Ruptures Above Sect Min Mag	13,713
Ruptures w/ Nonzero Rates	393
Magnitude Range	[6.52, 8.42]
Length Range	[16, 946] km
Total Rate	8.419753E-4 /yr
Multi-Fault Rate	8.419753E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	155

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

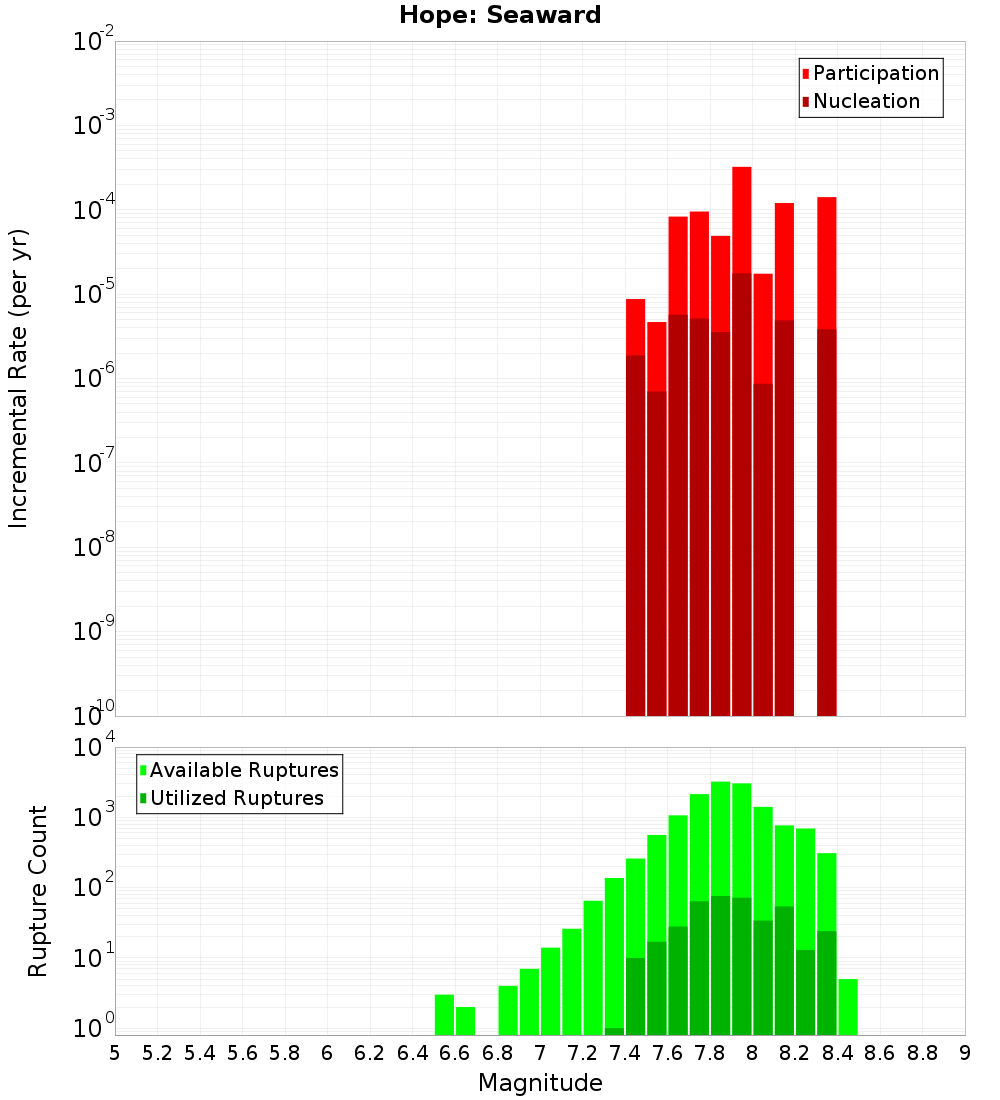

Magnitude-Frequency Distribution

Incremental	Cumulative

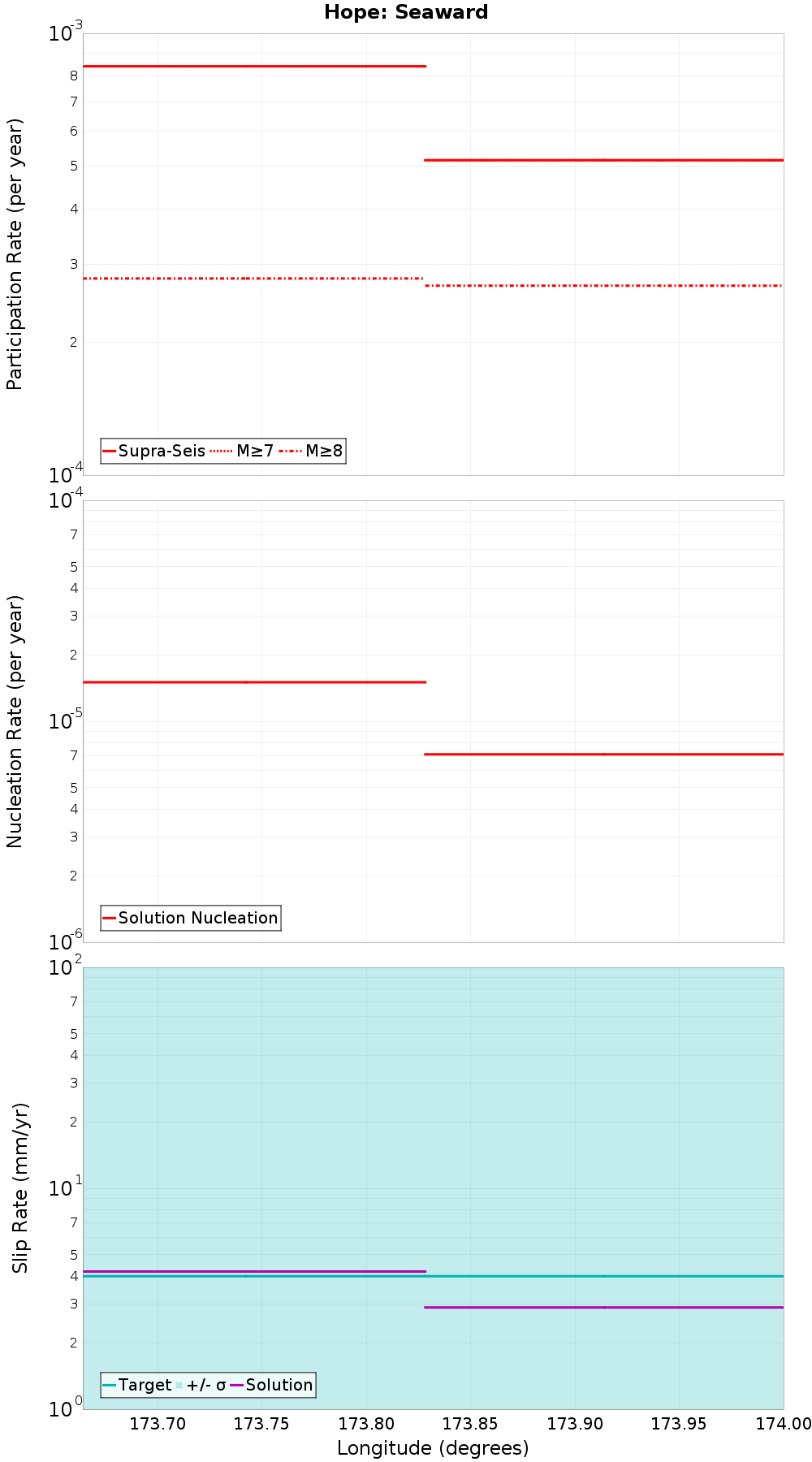

Along-Strike Values

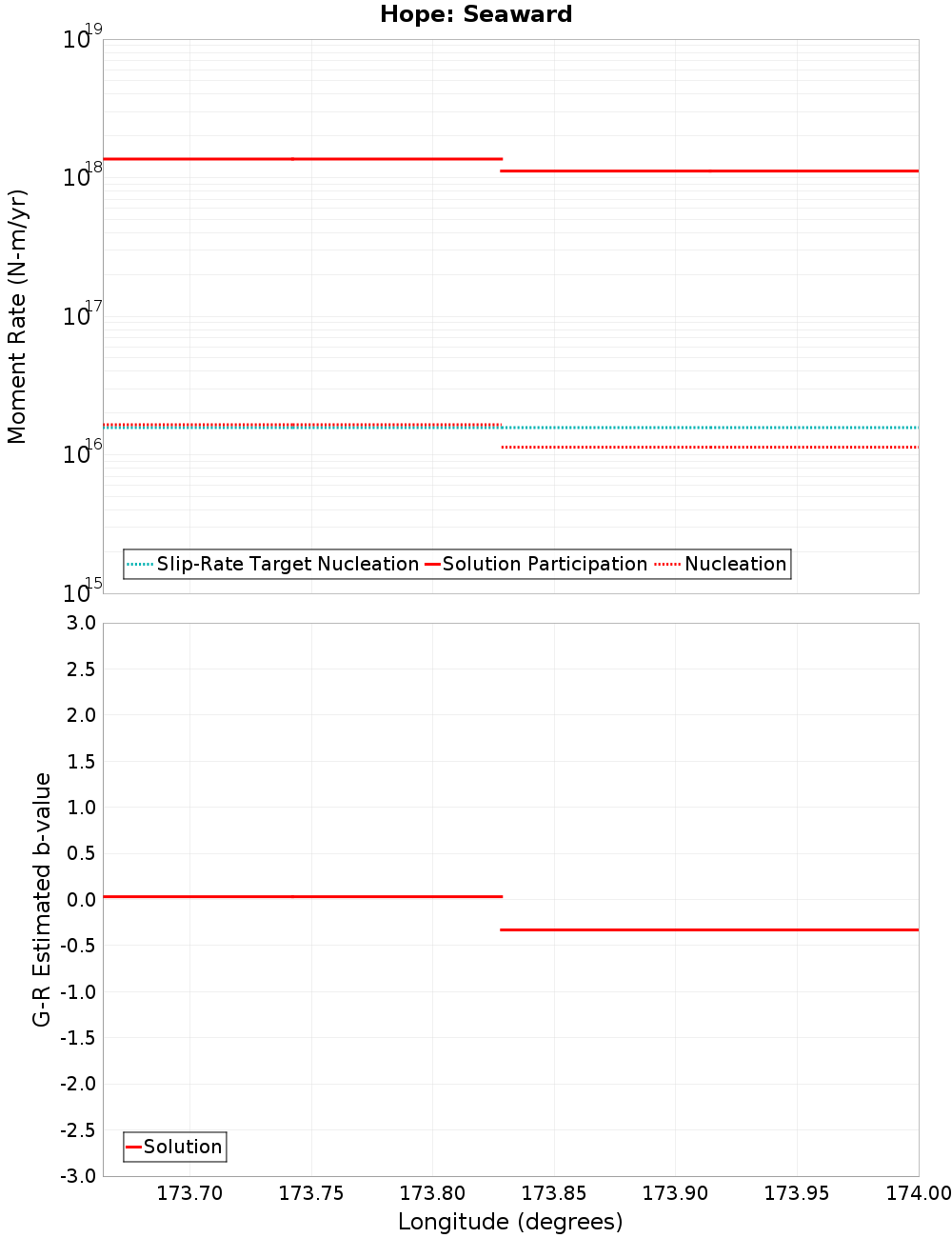

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Conway, 0 km away
Jordan, 0 km away
Papatea, 0.03 km away
Kaikoura - Mangamaunu, 1.03 km away
Hope: Te Rapa, 3.47 km away
Upper Slope, 10.39 km away
Fidget, 13.67 km away

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	true
Co-rupture Count	12,247
Co-rupture Rate	8.3952316E-4

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	false
Co-rupture Count	118
Co-rupture Rate	1.4815154E-12

Papatea, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	true
Co-rupture Count	3,358
Co-rupture Rate	3.2576104E-4

Kaikoura - Mangamaunu, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	1.20273335E-5

Hope: Te Rapa, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	true
Co-rupture Count	9,186
Co-rupture Rate	5.162043E-4

Upper Slope, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	false
Co-rupture Count	1,113
Co-rupture Rate	9.841582E-5

Fidget, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NjcuMGVSR3VX
Connected?	true
Directly Connected?	false
Co-rupture Count	14
Co-rupture Rate	4.285064E-13
