Alpine: Resolution - Dagg Details

PropertyValue
Rupture Count30,605
Ruptures Above Sect Min Mag30,600
Ruptures w/ Nonzero Rates843
Magnitude Range[7.03, 8.70]
Length Range[22, 1,082] km
Total Rate0.0026000505 /yr
Multi-Fault Rate0.0026000505 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults102

Table Of Contents

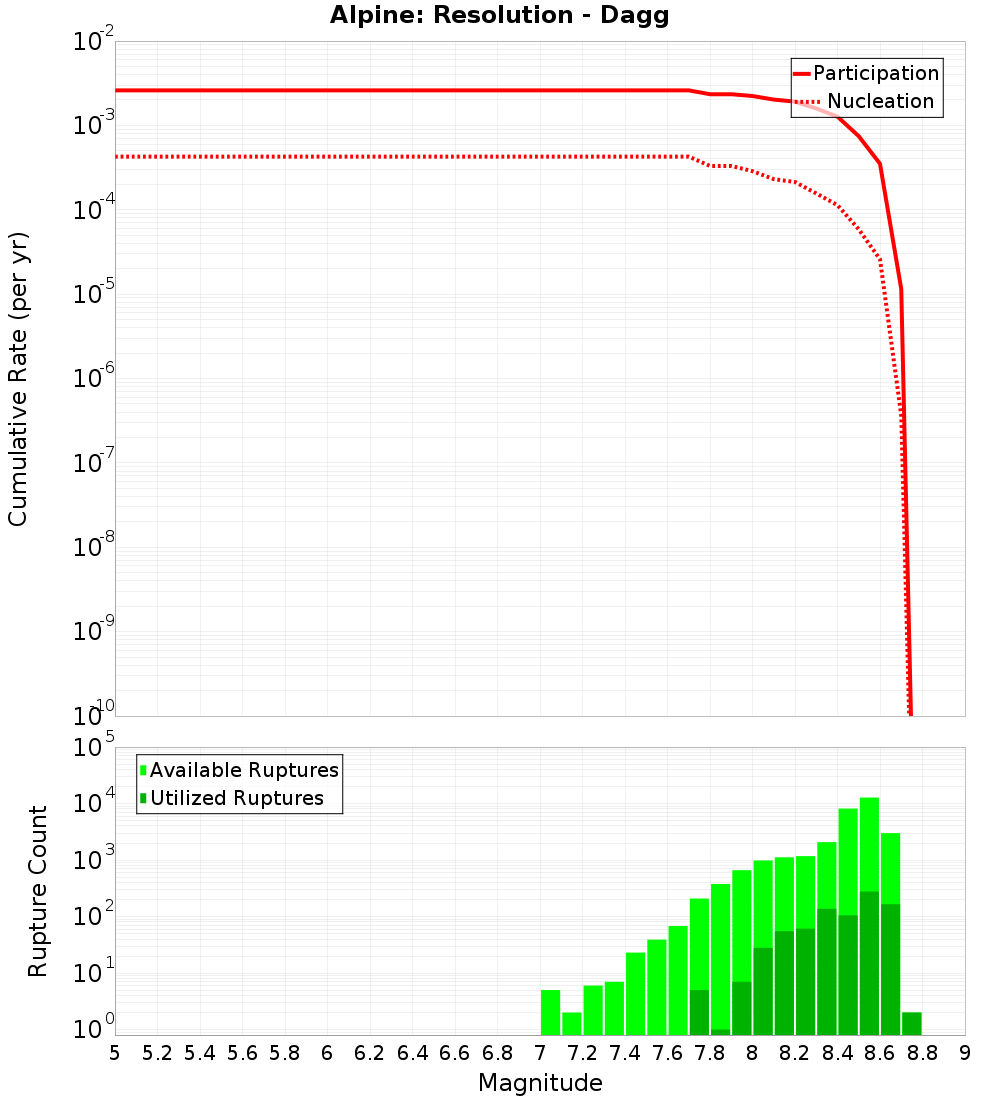

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

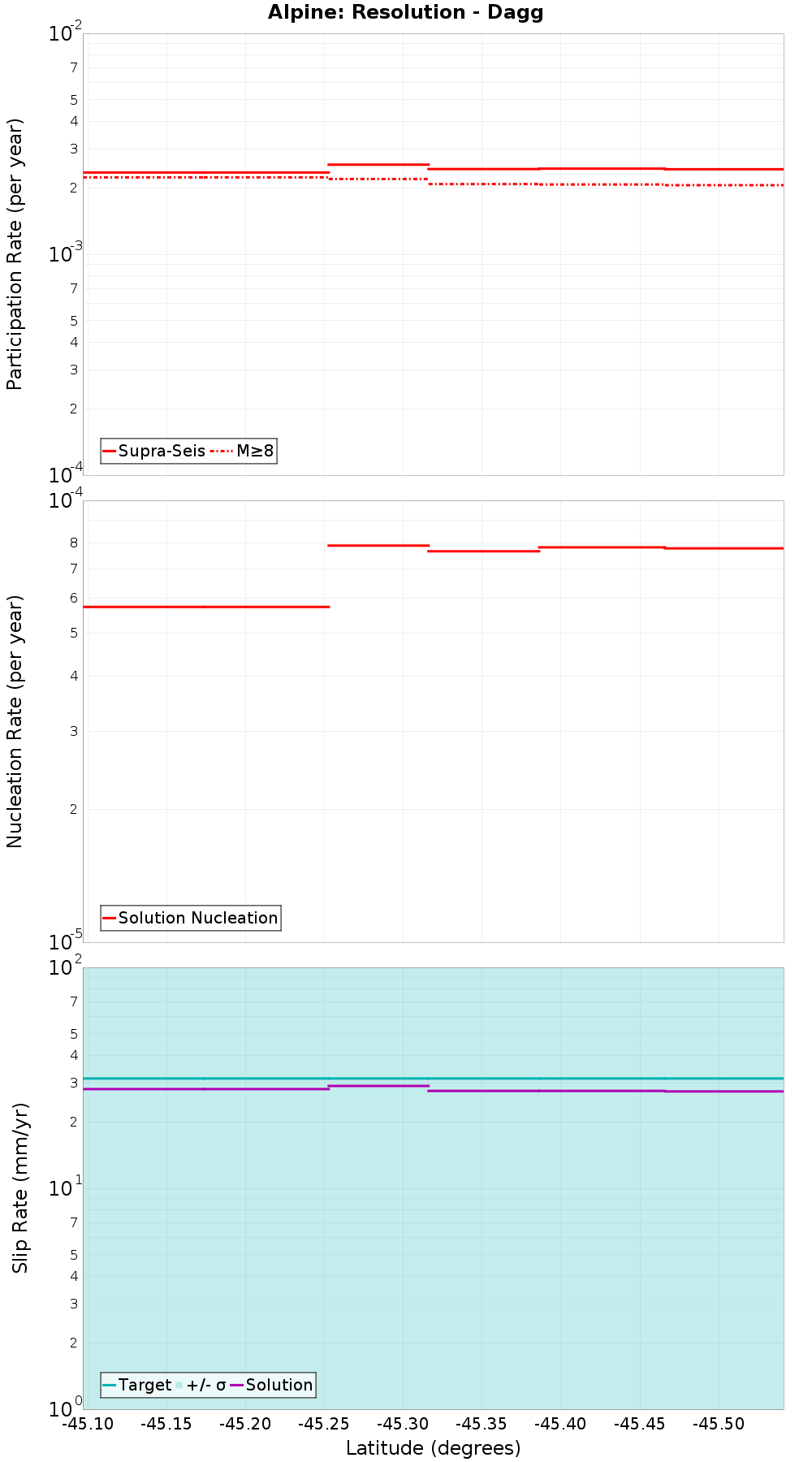

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 3-6-10, 0.1 km away
South Wedge 5, 0.13 km away
South Wedge 2, 0.16 km away
South Wedge 1, 0.22 km away
Central Wedge 4 - South Wedge 411, 0.24 km away
Alpine: Resolution - Five Fingers, 0.91 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 11.23 km away
Central Wedge 1 & 2 & 3, 12.75 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?true
Co-rupture Count12,769
Co-rupture Rate0.0012696934

South Wedge 3-6-10, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?true
Co-rupture Count3,021
Co-rupture Rate1.196133E-4

South Wedge 5, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 2, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?true
Co-rupture Count251
Co-rupture Rate5.5221044E-5

Central Wedge 4 - South Wedge 411, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?true
Co-rupture Count16,656
Co-rupture Rate0.0024980914

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?true
Co-rupture Count18,179
Co-rupture Rate0.0010734616

Alpine: Caswell, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?false
Co-rupture Count29,743
Co-rupture Rate0.0022916938

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?true
Directly Connected?false
Co-rupture Count1,004
Co-rupture Rate5.272856E-5
