Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 33 |
| Ruptures Above Sect Min Mag | 31 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [7.02, 7.60] |
| Length Range | [21, 79] km |
| Total Rate | 1.3002324E-4 /yr |
| Multi-Fault Rate | 1.0154229E-4 /yr (78.10%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

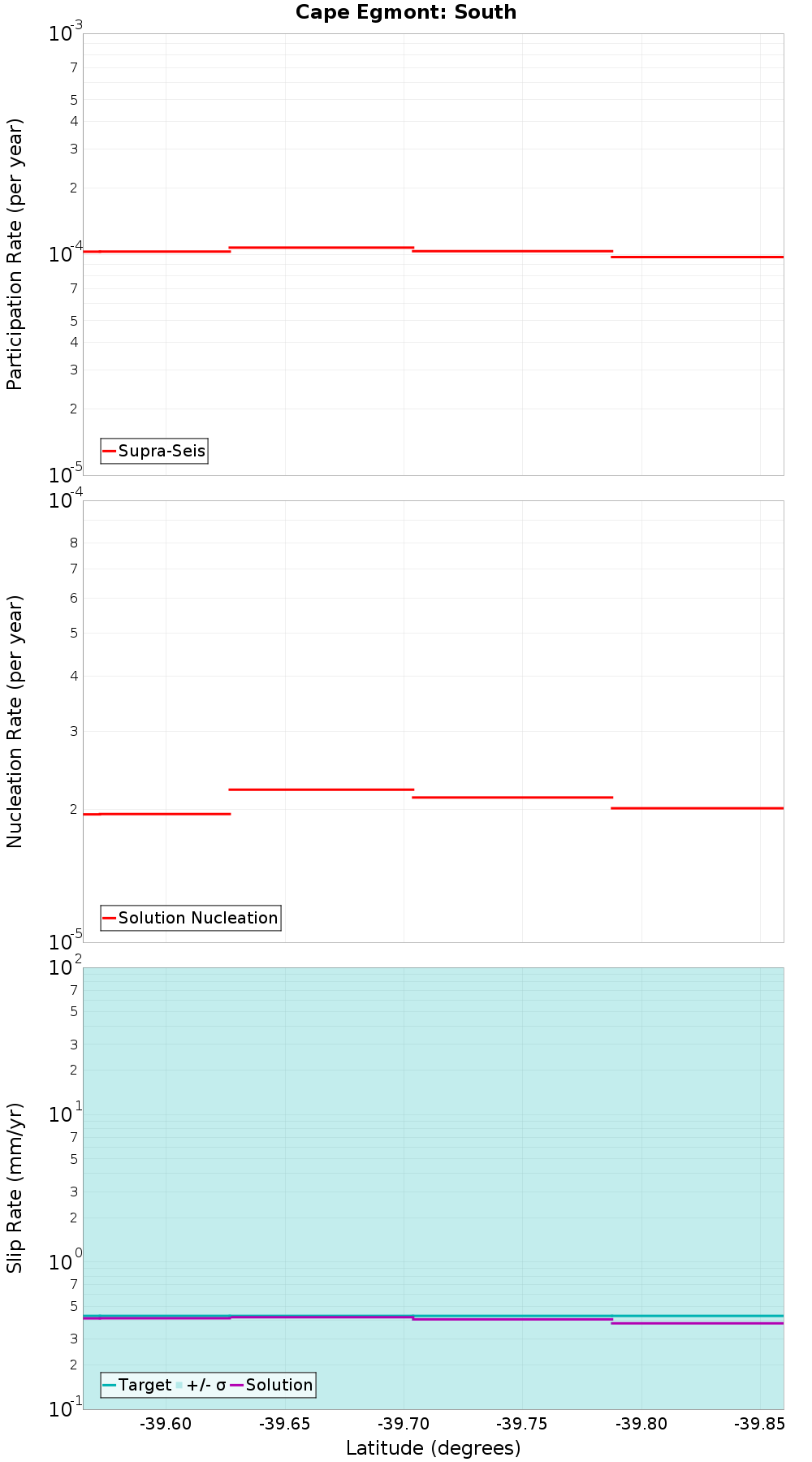

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Egmont: Central, 0.35 km away |
| Pihama, 0.38 km away |
| Manahi 1, 7.93 km away |
| Cape Egmont: North, 10.11 km away |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 7.869747E-5 |
Pihama, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 2.284482E-5 |
Manahi 1, 7.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 6.601101E-6 |
Cape Egmont: North, 10.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
