Waitotara 8 & 9 Details

Property	Value
Rupture Count	10
Ruptures Above Sect Min Mag	9
Ruptures w/ Nonzero Rates	7
Magnitude Range	[7.35, 7.85]
Length Range	[33, 103] km
Total Rate	9.0867674E-5 /yr
Multi-Fault Rate	3.9420036E-5 /yr (43.38%)
Directly-Connected Faults	2
All Co-Rupturing Faults	3

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

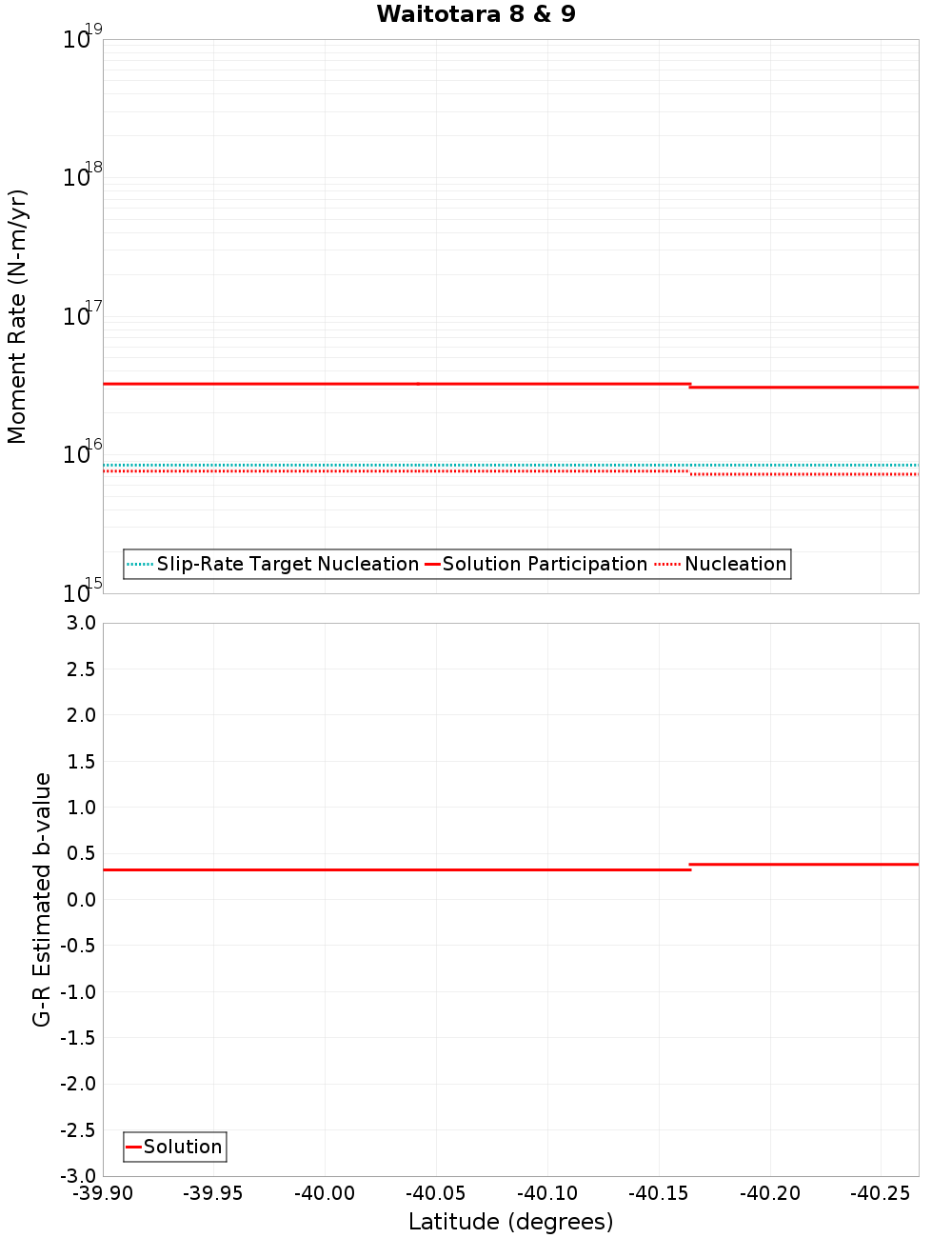

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Okaia 3, 0.09 km away
Waverley - Okaia 1, 0.11 km away
Okaia 5, 0.14 km away
Moumahaki - Okaia 4, 0.2 km away
Nukumuru - Waitotara 1-6, 0.51 km away
Waitotara 10 & 11, 0.72 km away
Ridge Road - Okaia 2, 2.25 km away

Okaia 3, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waverley - Okaia 1, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 5, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	5.814938E-6

Moumahaki - Okaia 4, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nukumuru - Waitotara 1-6, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 10 & 11, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1NzIuMEE1c1Q2
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	3.3605098E-5
