Lachlan 1 & 2 Details
| Property | Value |
|---|---|
| Rupture Count | 462 |
| Ruptures Above Sect Min Mag | 453 |
| Ruptures w/ Nonzero Rates | 41 |
| Magnitude Range | [6.62, 7.76] |
| Length Range | [18, 250] km |
| Total Rate | 9.1589376E-4 /yr |
| Multi-Fault Rate | 7.605746E-4 /yr (83.04%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

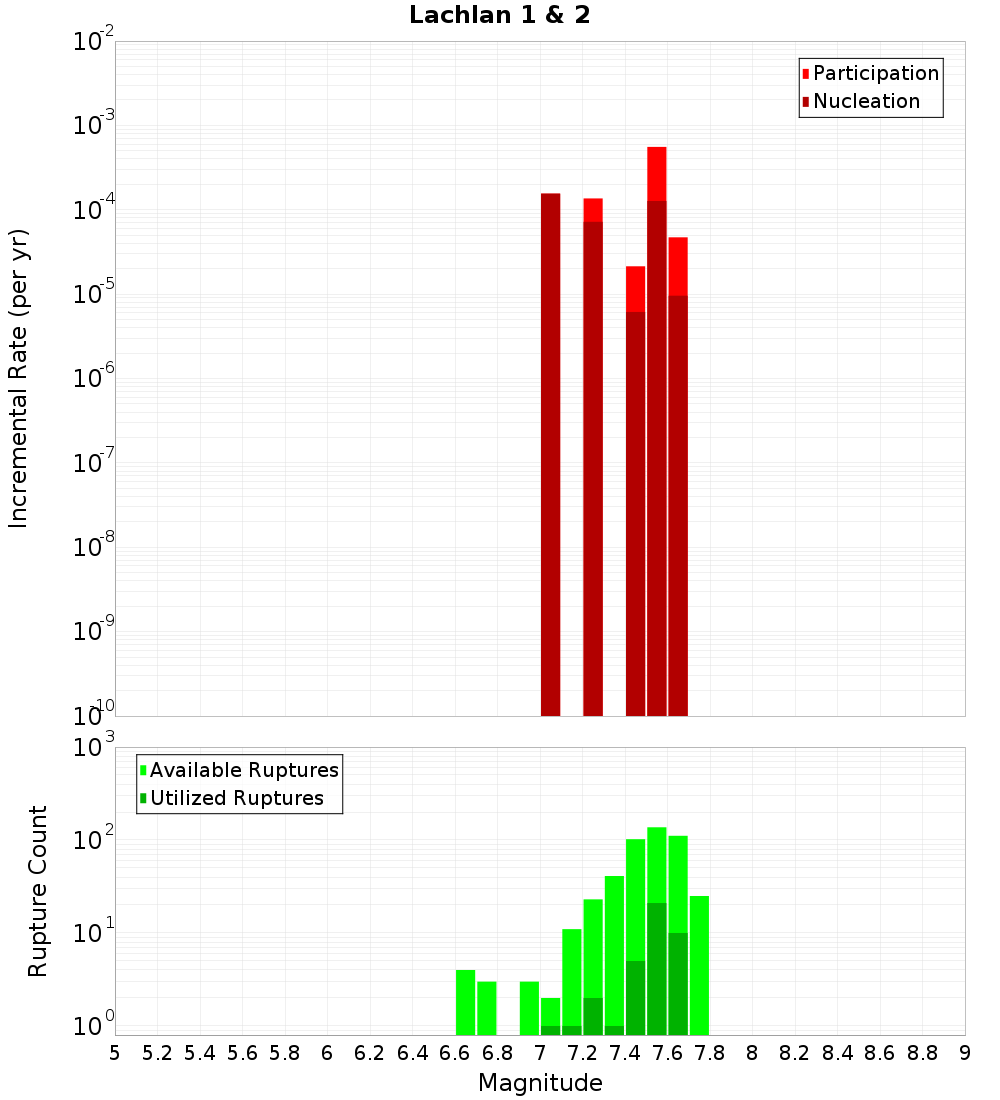

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

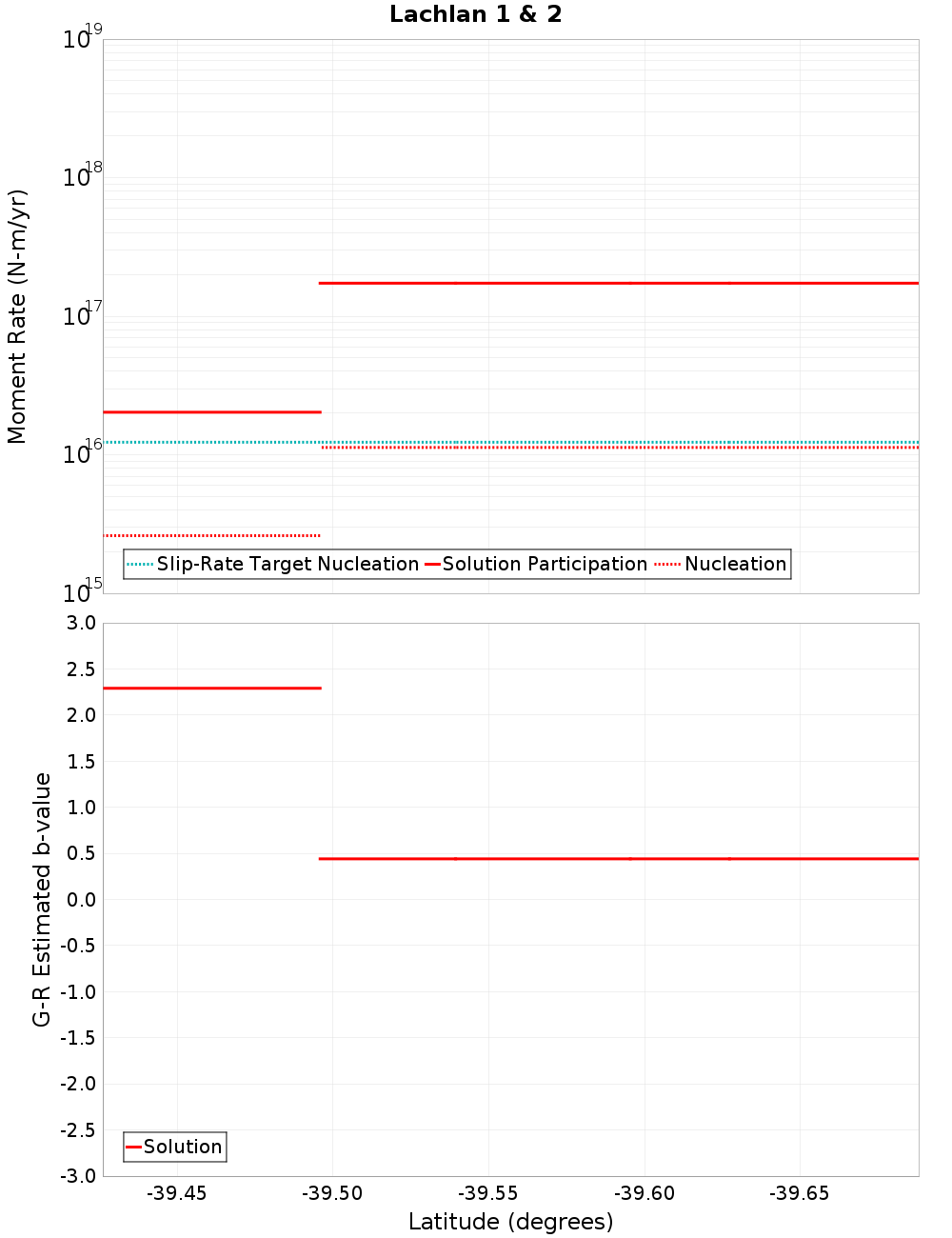

Moment-Rates and b-Values

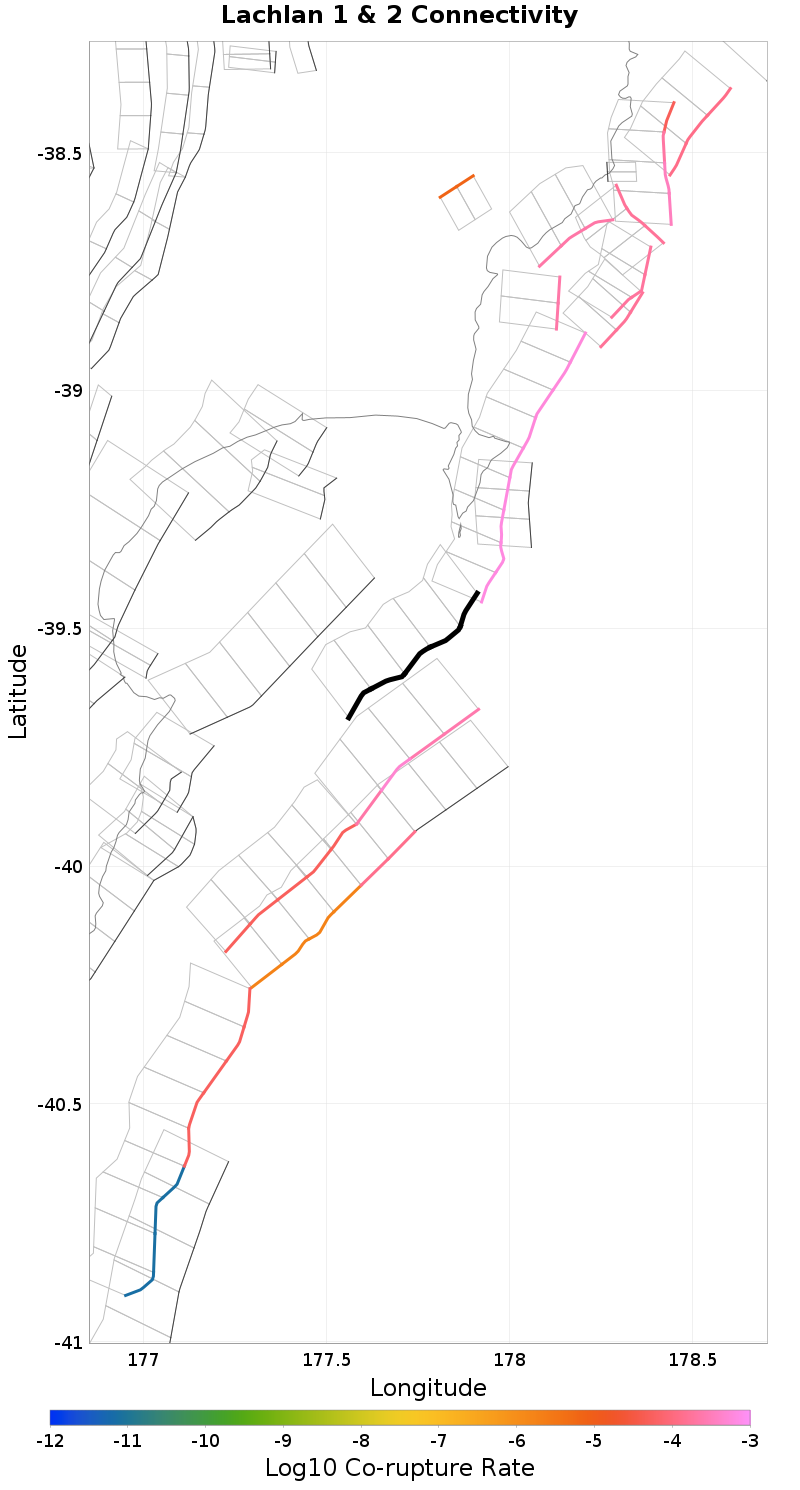

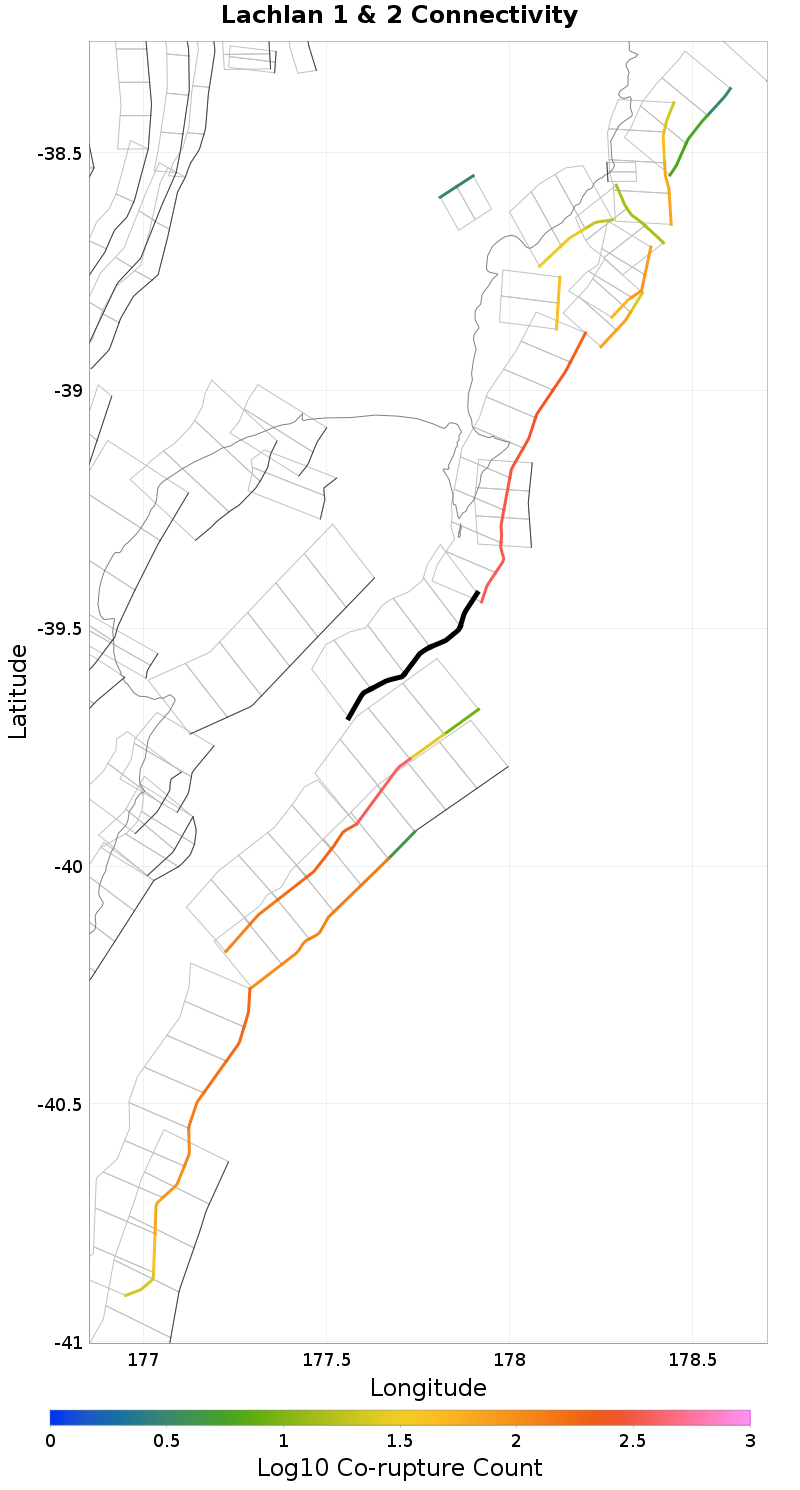

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 0.51 km away |
| Mahia 2, 7.45 km away |
| Motuokura North, 10.61 km away |
| Kidnappers Ridge, 10.9 km away |
Lachlan 3, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1ODMuMHlVNlhC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 348 |
| Co-rupture Rate | 6.216167E-4 |
Mahia 2, 7.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1ODMuMHlVNlhC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motuokura North, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1ODMuMHlVNlhC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 380 |
| Co-rupture Rate | 4.637101E-4 |
Kidnappers Ridge, 10.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1ODMuMHlVNlhC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
