Clarence: Northeast Details

PropertyValue
Rupture Count4,839
Ruptures Above Sect Min Mag4,830
Ruptures w/ Nonzero Rates202
Magnitude Range[6.74, 8.43]
Length Range[21, 862] km
Total Rate0.0014119965 /yr
Multi-Fault Rate0.0014119965 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults106

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

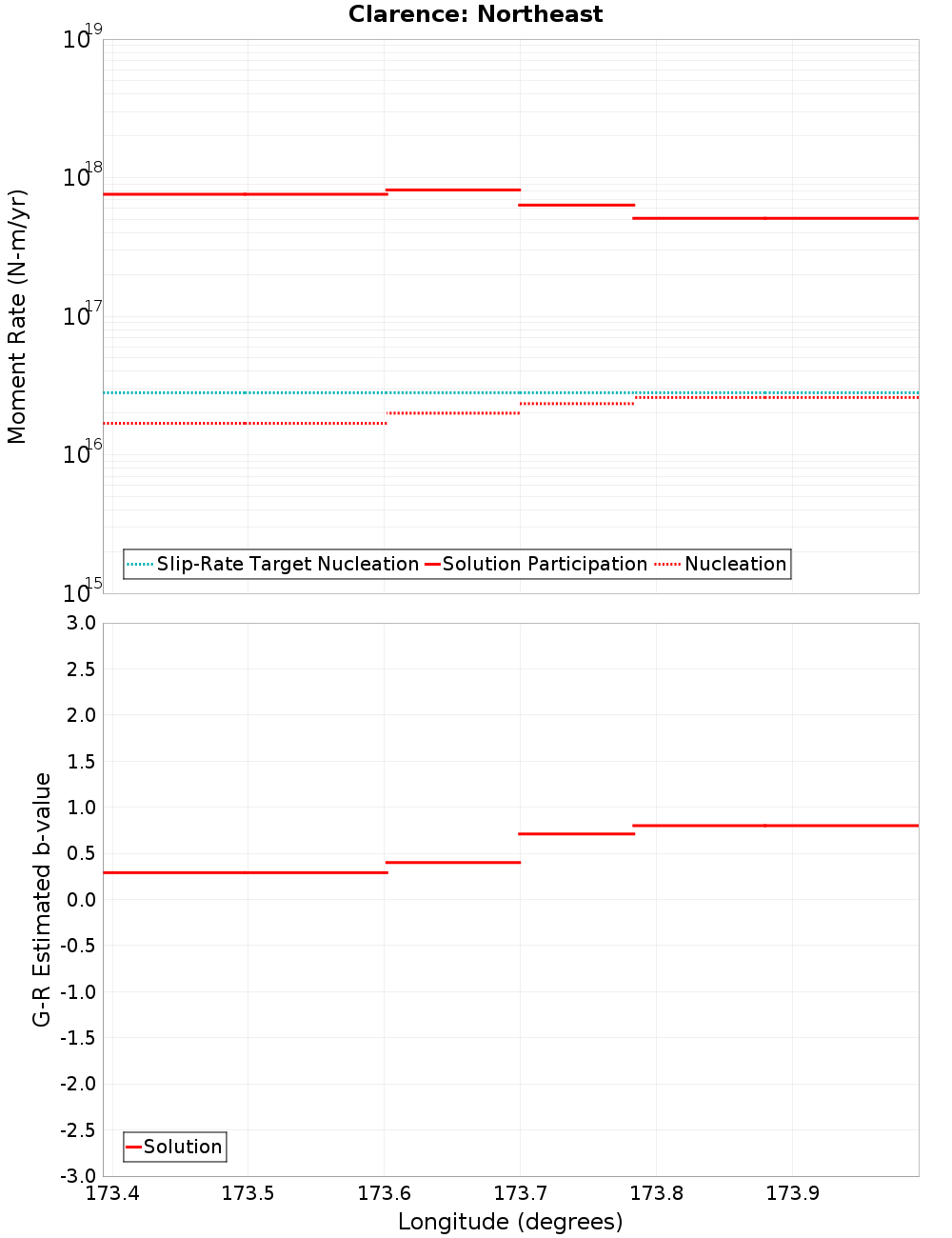

Moment-Rates and b-Values

(top)

Along-strike plot

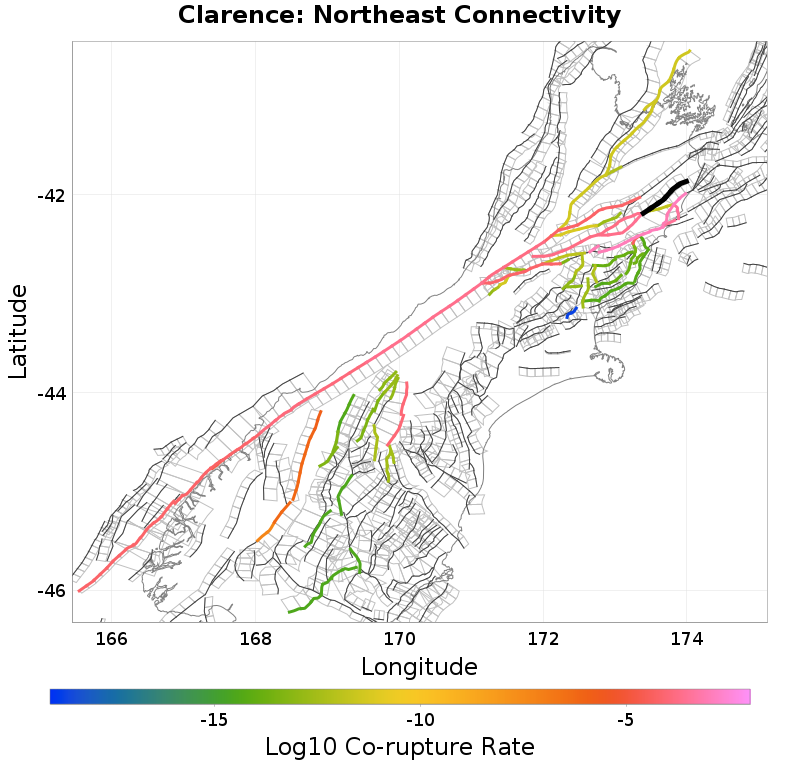

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Elliott, 0.01 km away
Clarence: Central, 0.09 km away
Fidget, 0.64 km away
Jordan, 0.78 km away
Needles East 2, 8.38 km away
Awatere: Northeast 1, 9.18 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Awatere: Southwest, 11.07 km away
Papatea, 11.87 km away
Needles, 11.97 km away

Elliott, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?true
Co-rupture Count1,930
Co-rupture Rate2.517734E-4

Clarence: Central, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?true
Co-rupture Count2,701
Co-rupture Rate2.1373345E-4

Fidget, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?true
Co-rupture Count88
Co-rupture Rate1.5070647E-12

Jordan, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate8.29995E-4

Needles East 2, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 1, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Kekerengu 1, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?true
Co-rupture Count182
Co-rupture Rate0.0011982631

London Hill, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 11.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate5.671083E-5

Papatea, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?true
Directly Connected?true
Co-rupture Count189
Co-rupture Rate3.6826808E-4

Needles, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
