Surville Details
| Property | Value |
|---|---|
| Rupture Count | 8,884 |
| Ruptures Above Sect Min Mag | 8,880 |
| Ruptures w/ Nonzero Rates | 247 |
| Magnitude Range | [6.99, 8.46] |
| Length Range | [27, 947] km |
| Total Rate | 1.5296126E-5 /yr |
| Multi-Fault Rate | 5.2099153E-6 /yr (34.06%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 74 |
Table Of Contents

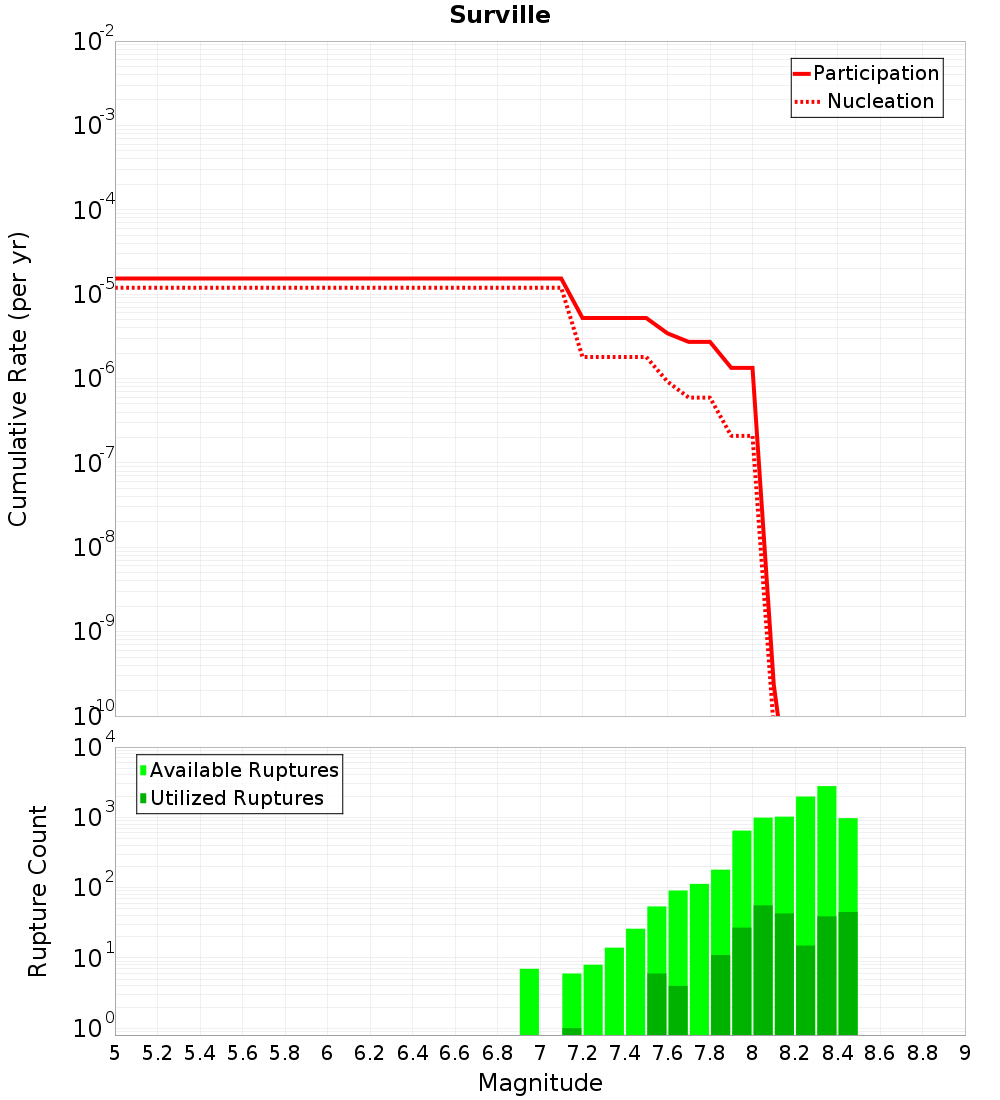

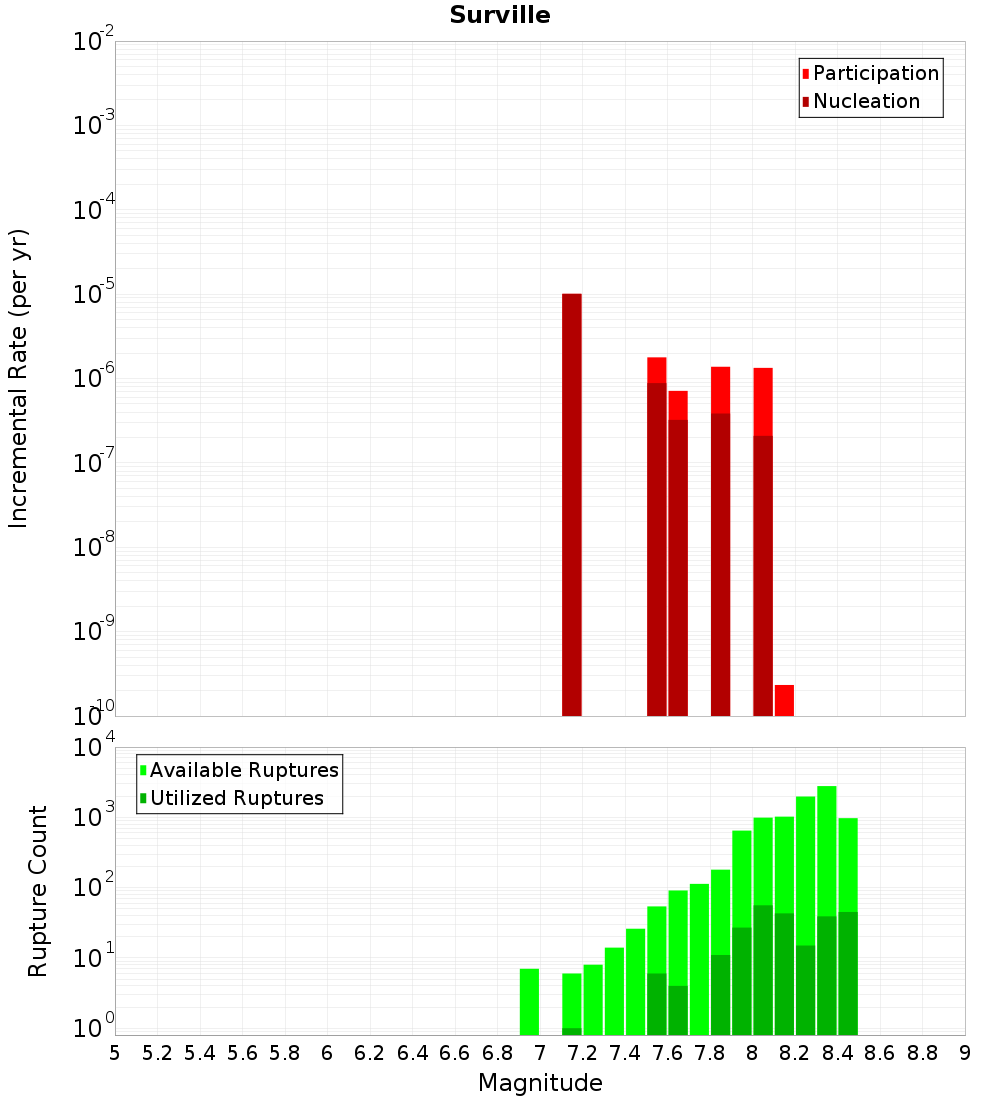

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

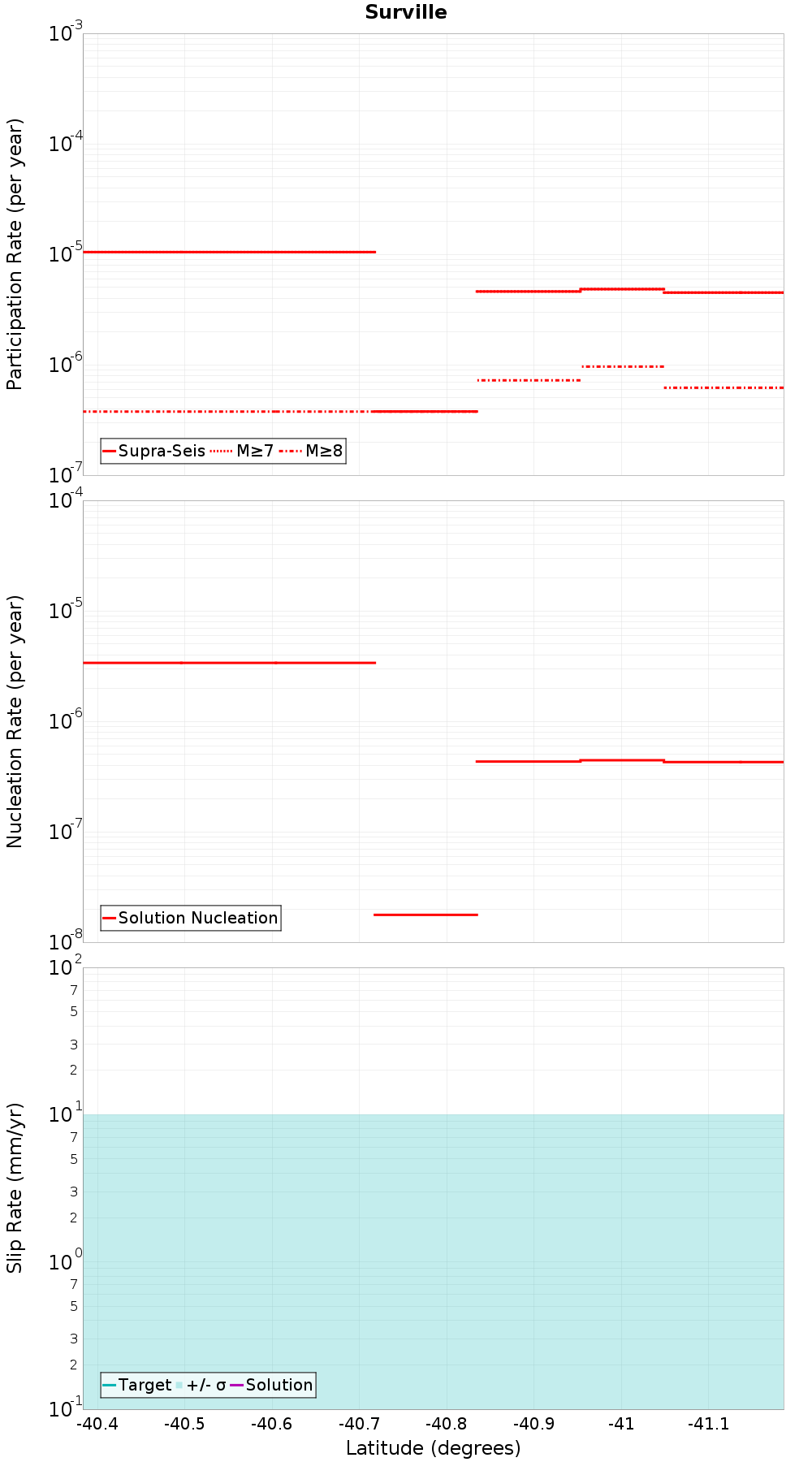

Along-Strike Values

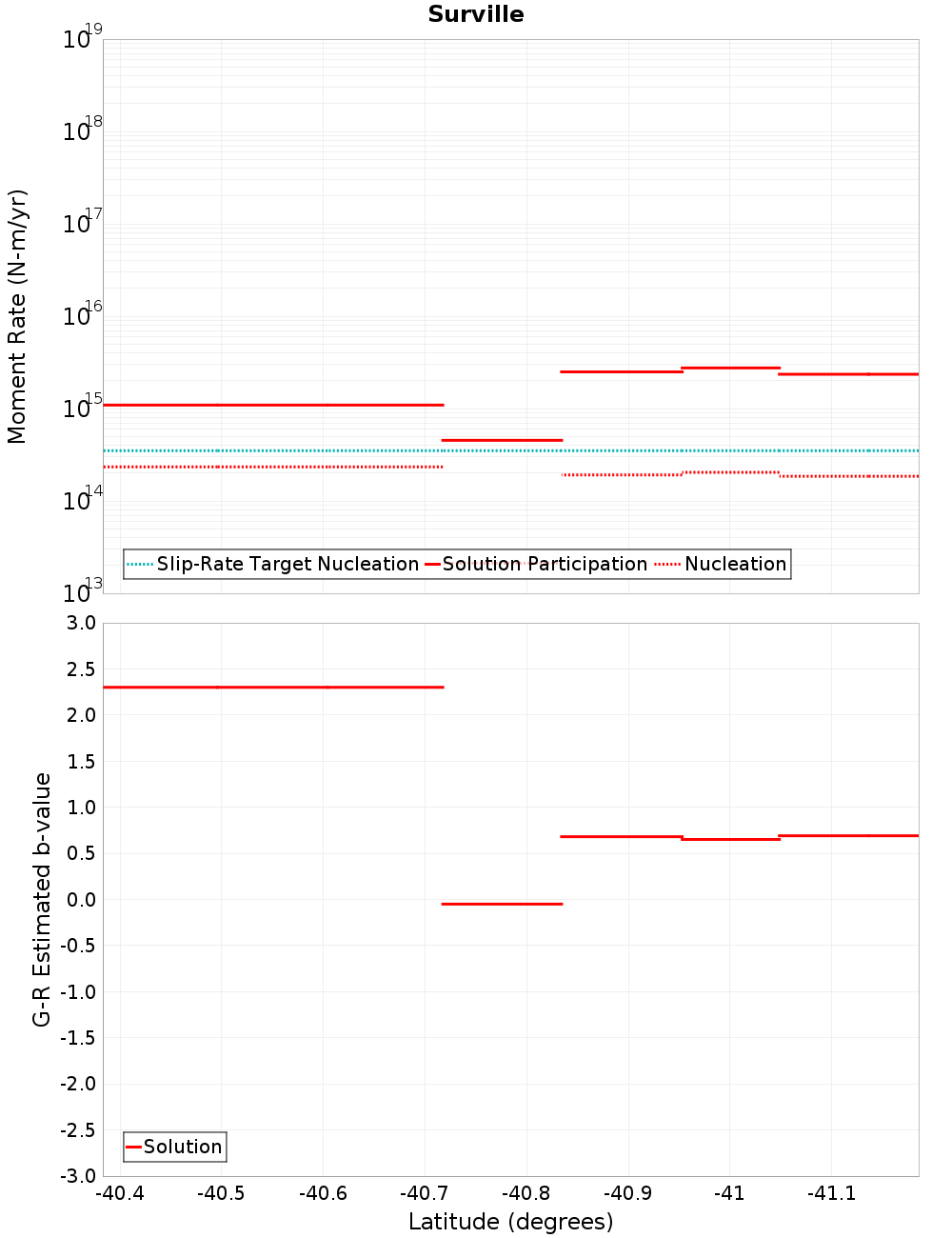

Moment-Rates and b-Values

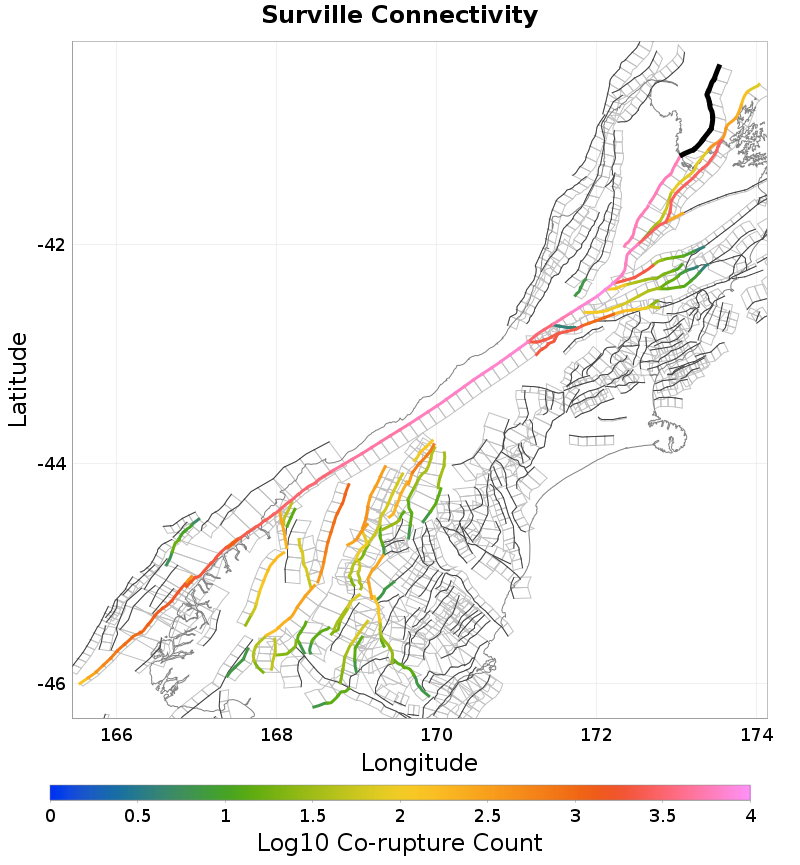

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruby Bay - Moutere, 0.09 km away |
| Flaxmore - Waimea - Tahunanui, 8.79 km away |
| Waimea Offshore, 9.76 km away |
| Whangamoa, 14.06 km away |
Ruby Bay - Moutere, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,925 |
| Co-rupture Rate | 4.490919E-6 |
Flaxmore - Waimea - Tahunanui, 8.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 130 |
| Co-rupture Rate | 2.648433E-13 |
Waimea Offshore, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 415 |
| Co-rupture Rate | 2.639376E-13 |
Whangamoa, 14.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMEx1MlRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,882 |
| Co-rupture Rate | 4.59124E-6 |
