Waitahuna 2 Details

Property	Value
Rupture Count	19
Ruptures Above Sect Min Mag	18
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.59, 7.70]
Length Range	[9, 132] km
Total Rate	1.8441298E-5 /yr
Multi-Fault Rate	1.8441298E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

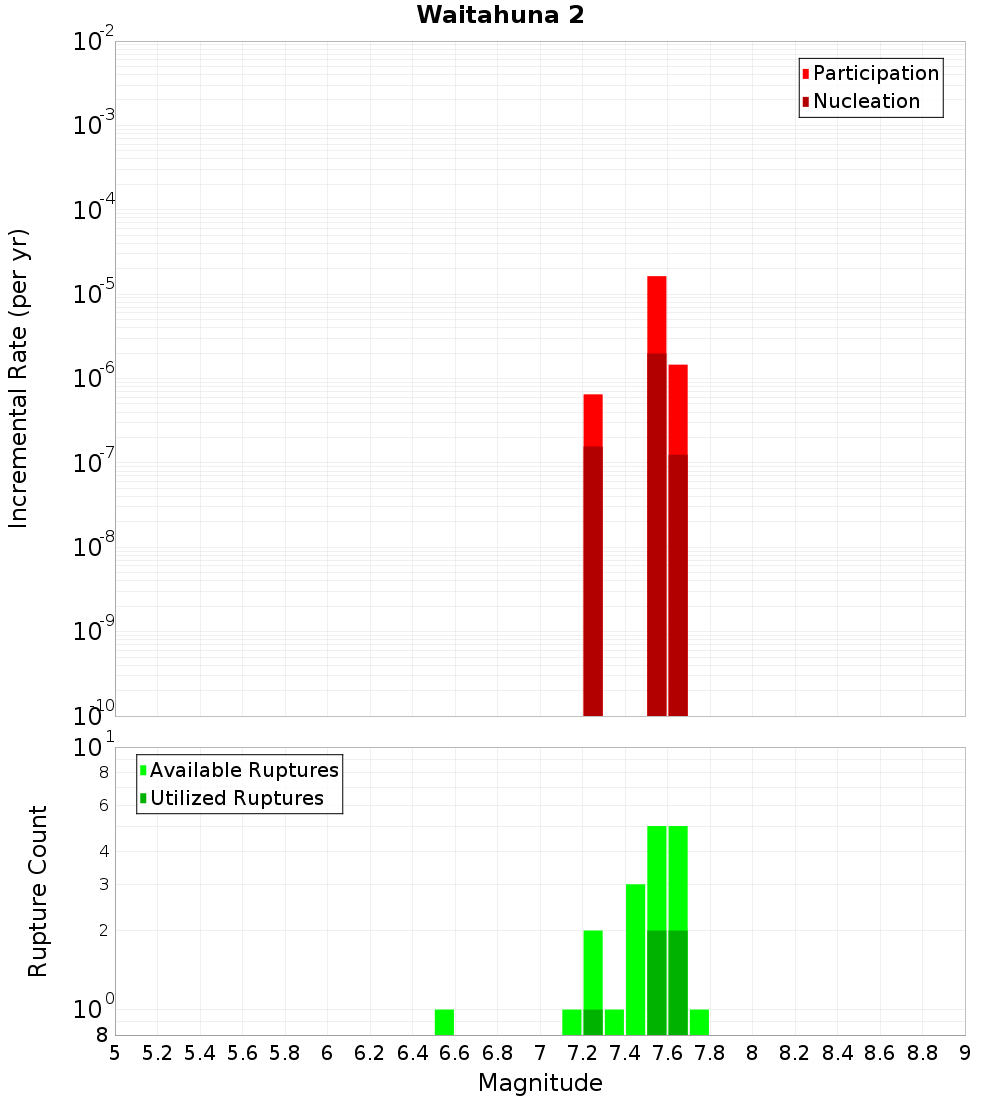

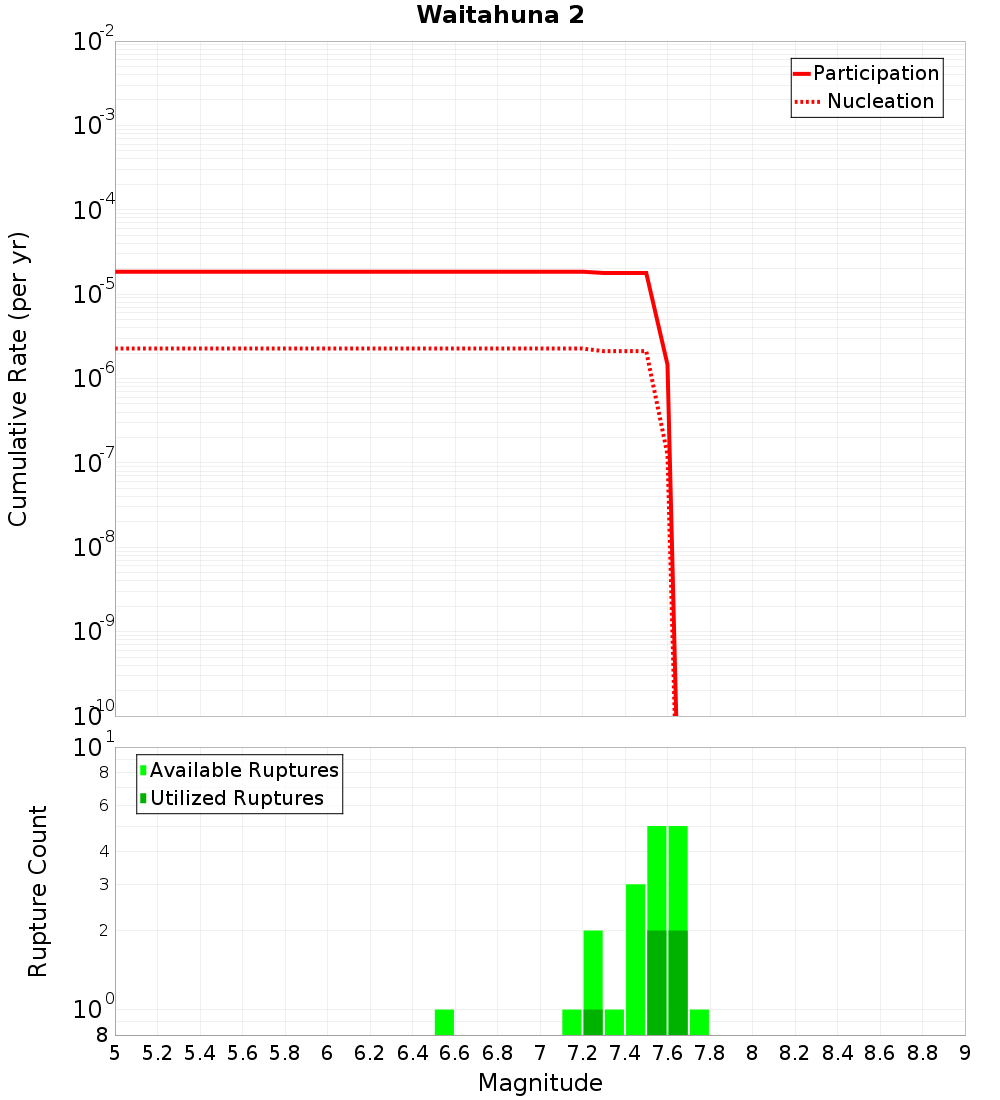

Magnitude-Frequency Distribution

Incremental	Cumulative

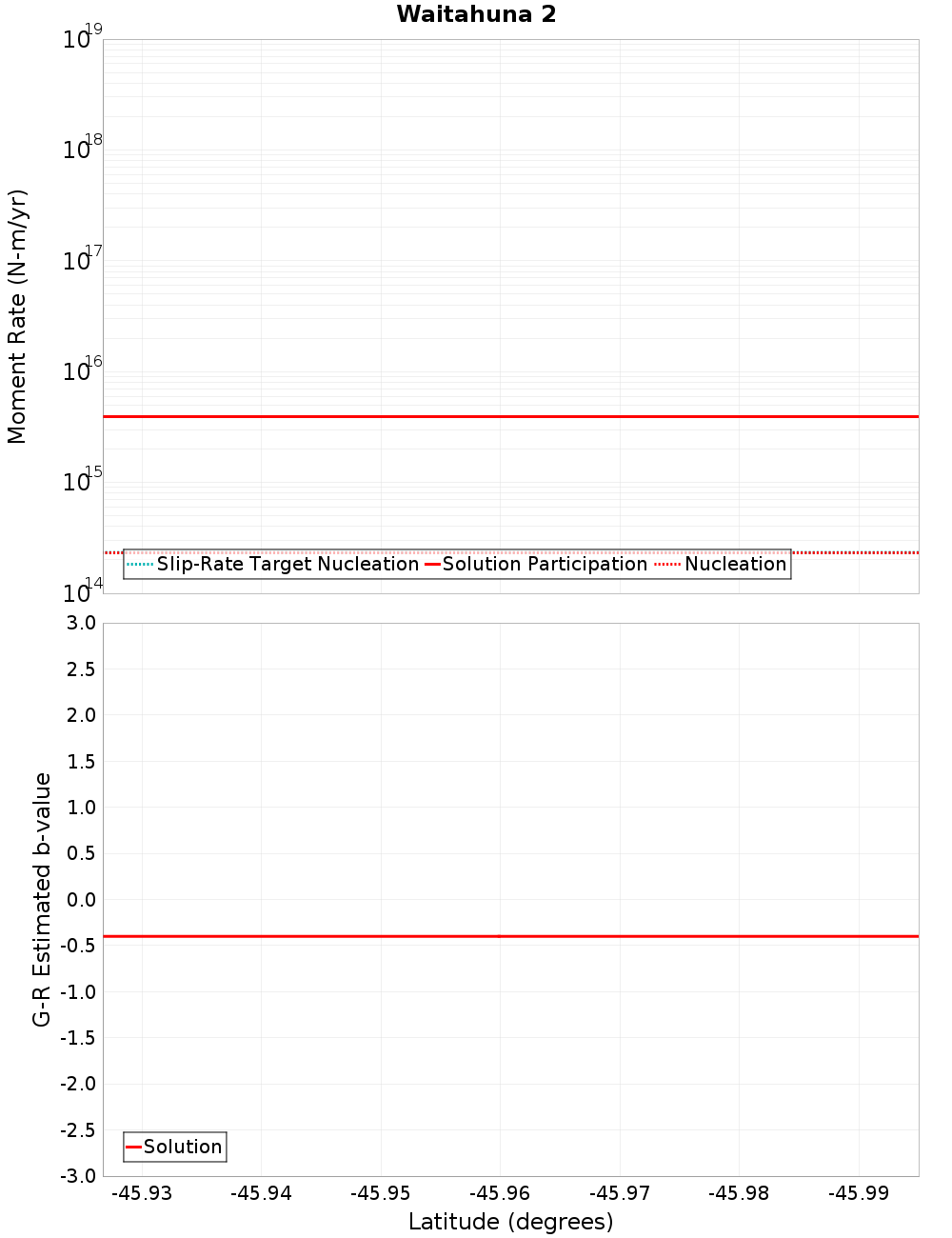

Along-Strike Values

Moment-Rates and b-Values

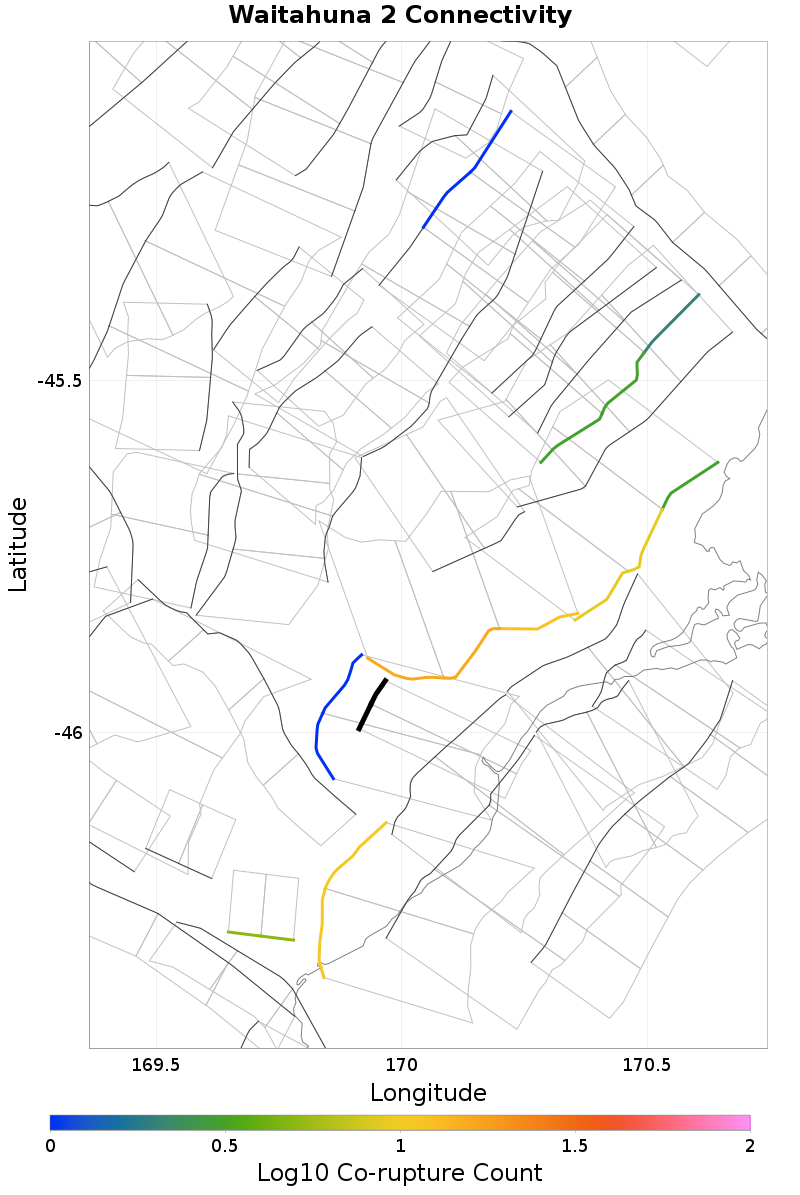

Connectivity

Nearby Sections

Fault Section
Maungatua - North Taieri, 1.55 km away
Waitahuna 1, 3.29 km away
Titri Central, 8.3 km away
Tuapeka, 10.05 km away
Titri South, 11.05 km away
Titri North, 11.55 km away

Maungatua - North Taieri, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMGNCUG1I
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	1.779215E-5

Waitahuna 1, 3.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMGNCUG1I
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	7.852644E-7

Titri Central, 8.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMGNCUG1I
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuapeka, 10.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMGNCUG1I
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri South, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMGNCUG1I
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	1.8441298E-5

Titri North, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk1OTAuMGNCUG1I
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
