Hope: Taramakau Details

PropertyValue
Rupture Count3,941
Ruptures Above Sect Min Mag3,934
Ruptures w/ Nonzero Rates51
Magnitude Range[6.58, 8.33]
Length Range[16, 716] km
Total Rate0.0012563312 /yr
Multi-Fault Rate0.0012563312 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults116

Table Of Contents

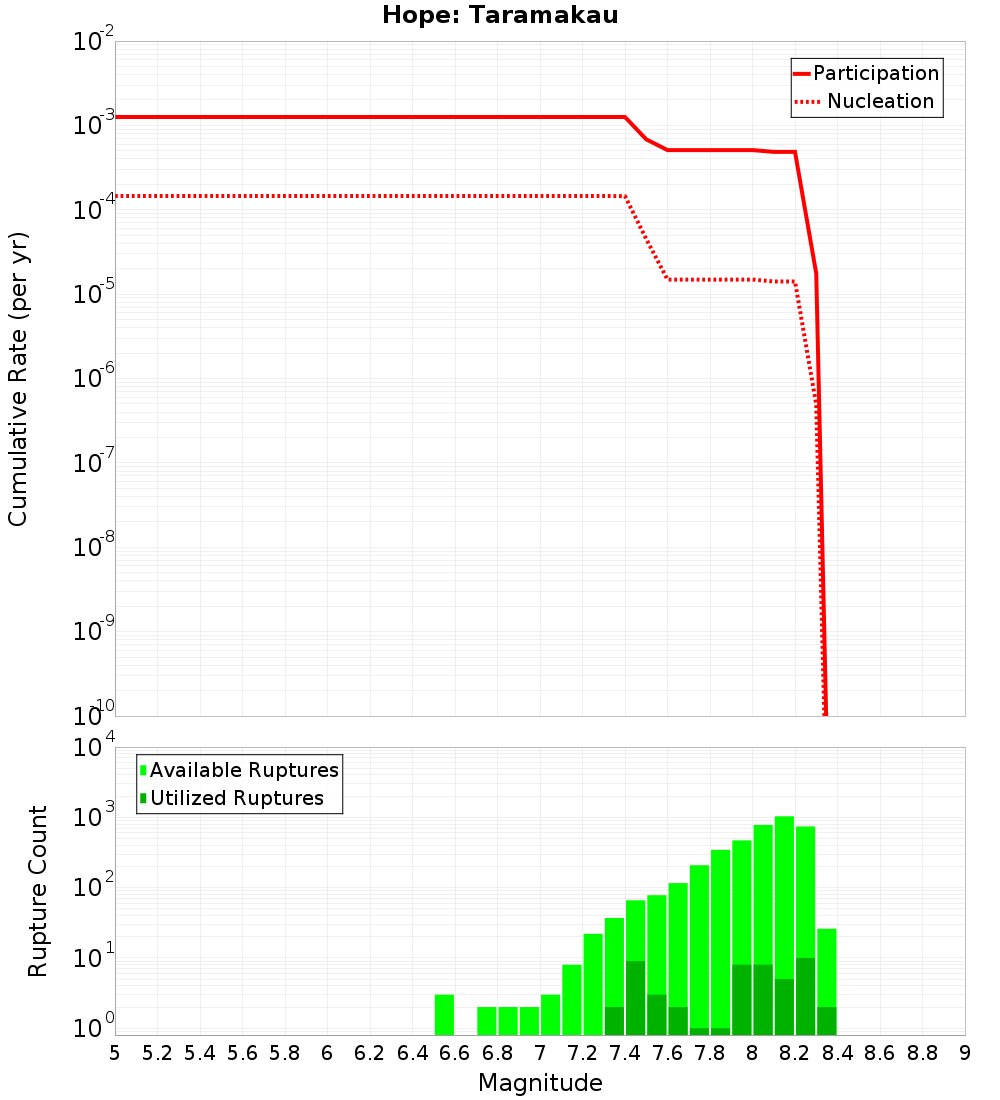

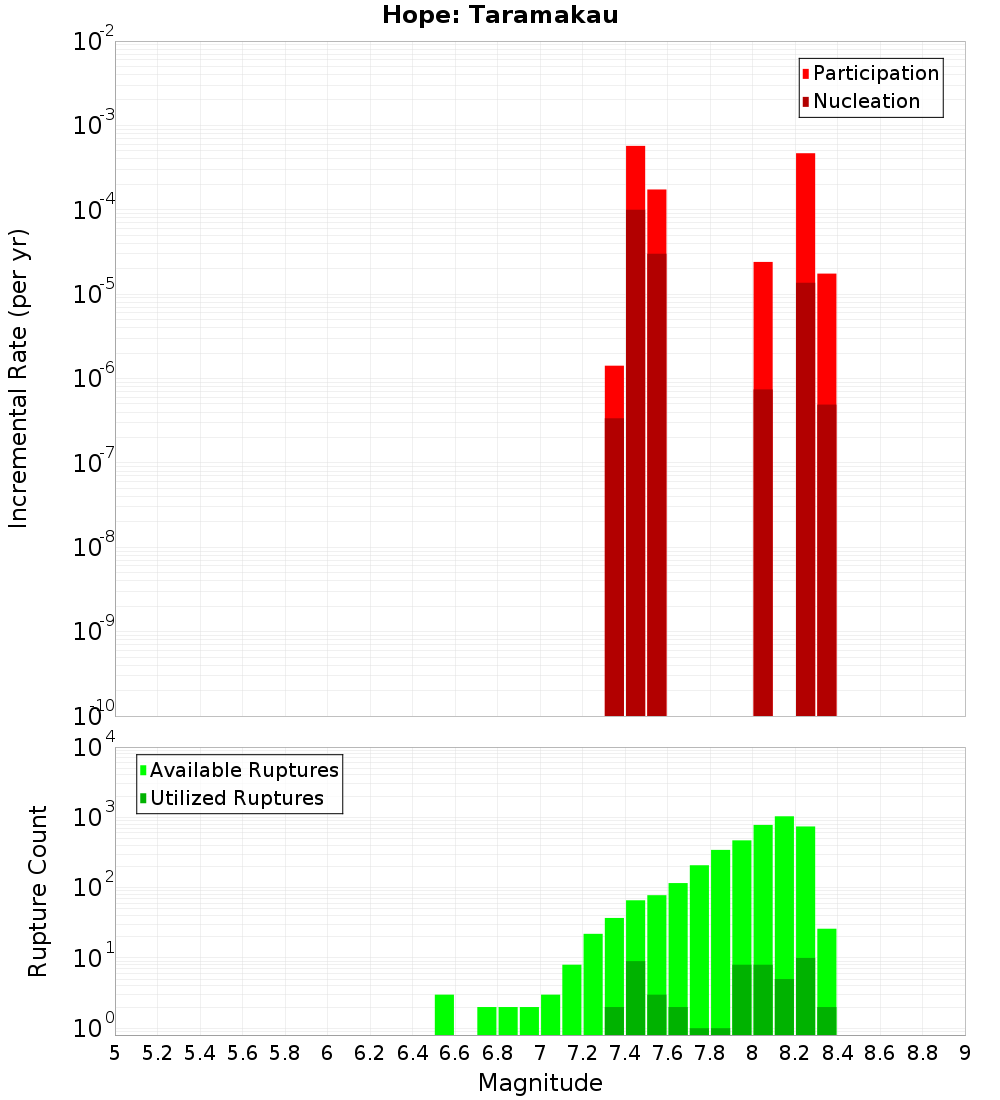

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

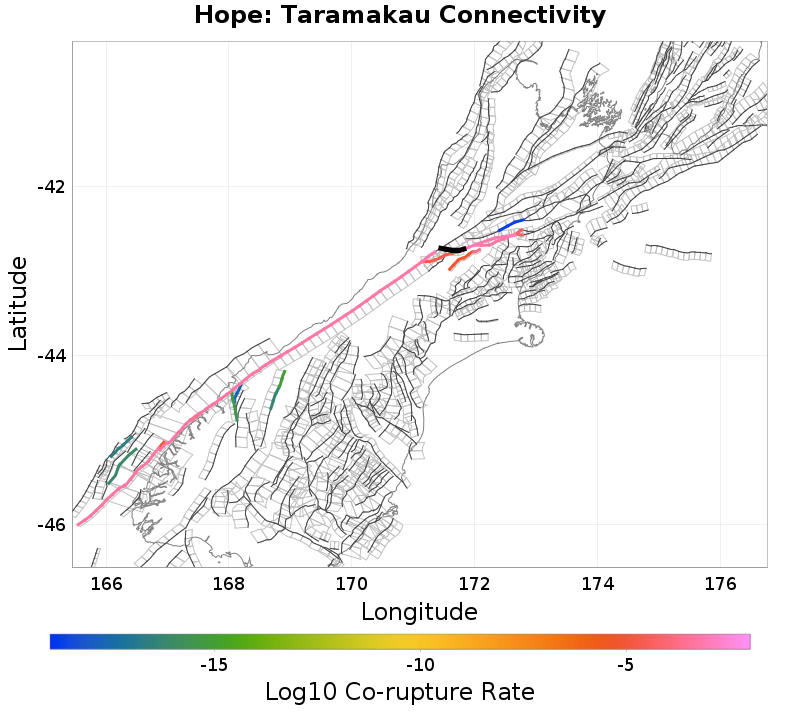

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hurunui, 0 km away
Kelly, 0 km away
Alpine: Kaniere to Springs Junction, 0.23 km away
Browning Pass, 0.25 km away
Poulter, 7.5 km away
Clarence: Southwest, 13.86 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?false
Co-rupture Count1,721
Co-rupture Rate0.0010744681

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?true
Co-rupture Count2,576
Co-rupture Rate0.0010985519

Alpine: Kaniere to Springs Junction, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?true
Co-rupture Count2,961
Co-rupture Rate6.8858644E-4

Browning Pass, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Poulter, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?true
Co-rupture Count989
Co-rupture Rate1.8186304E-4

Clarence: Southwest, 13.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?false
Co-rupture Count172
Co-rupture Rate2.1513799E-19

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?false
Co-rupture Count1,146
Co-rupture Rate5.062339E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MDQuMG5lbUZU
Connected?true
Directly Connected?false
Co-rupture Count848
Co-rupture Rate7.4325857E-4
