Wairau Details

Property	Value
Rupture Count	27,936
Ruptures Above Sect Min Mag	27,912
Ruptures w/ Nonzero Rates	393
Magnitude Range	[6.70, 8.51]
Length Range	[20, 1,132] km
Total Rate	8.95967E-4 /yr
Multi-Fault Rate	8.959638E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	126

Table Of Contents

Magnitude-Frequency Distribution

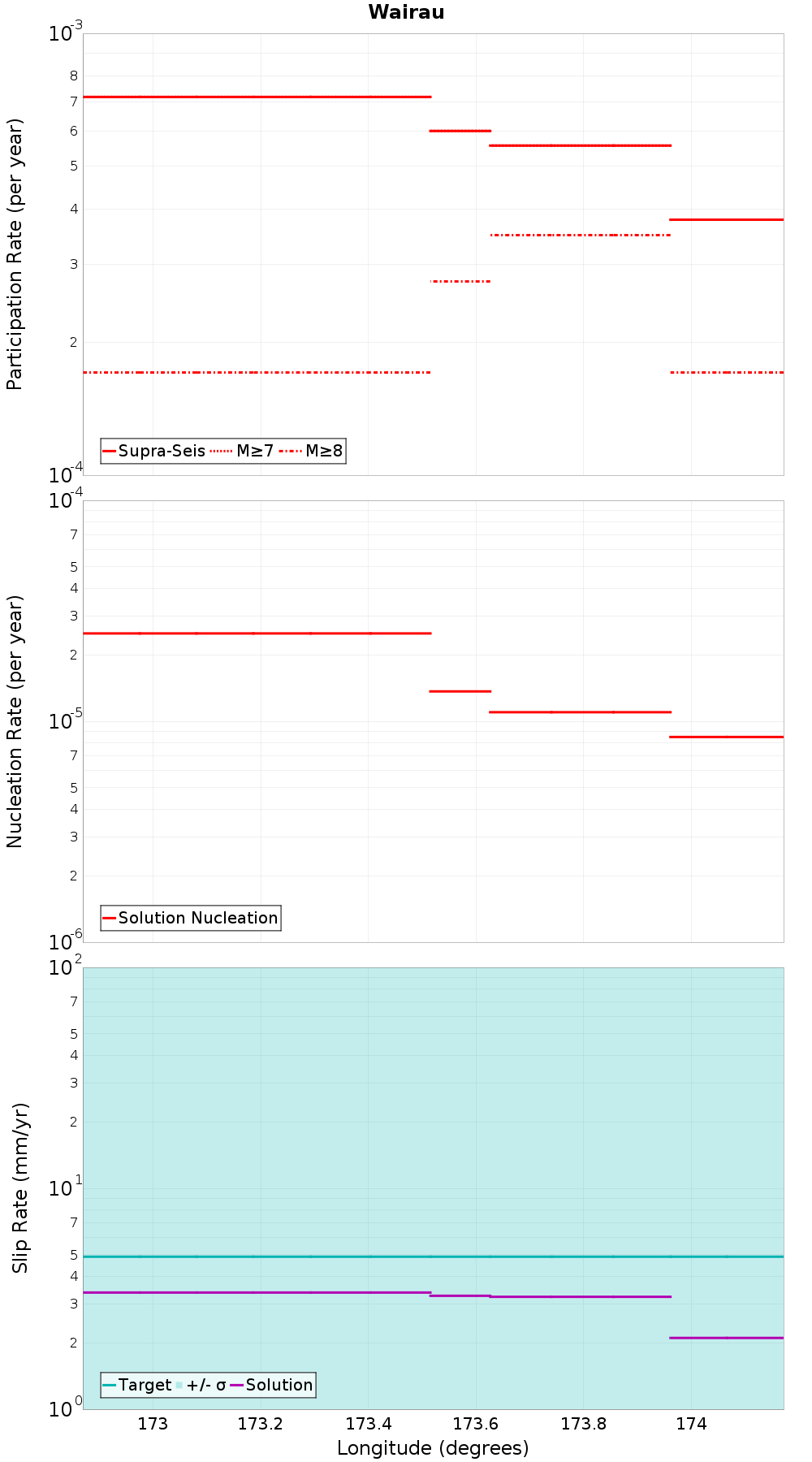

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

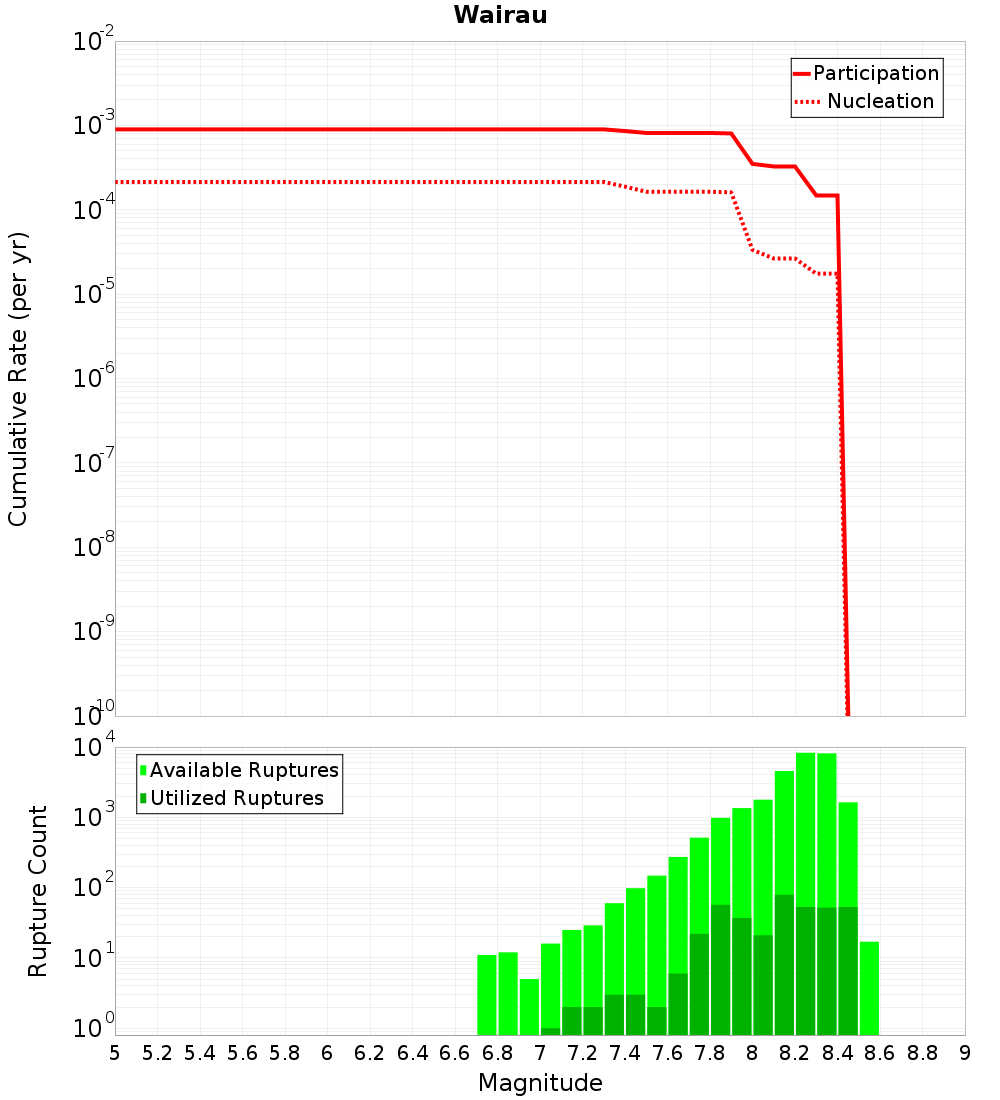

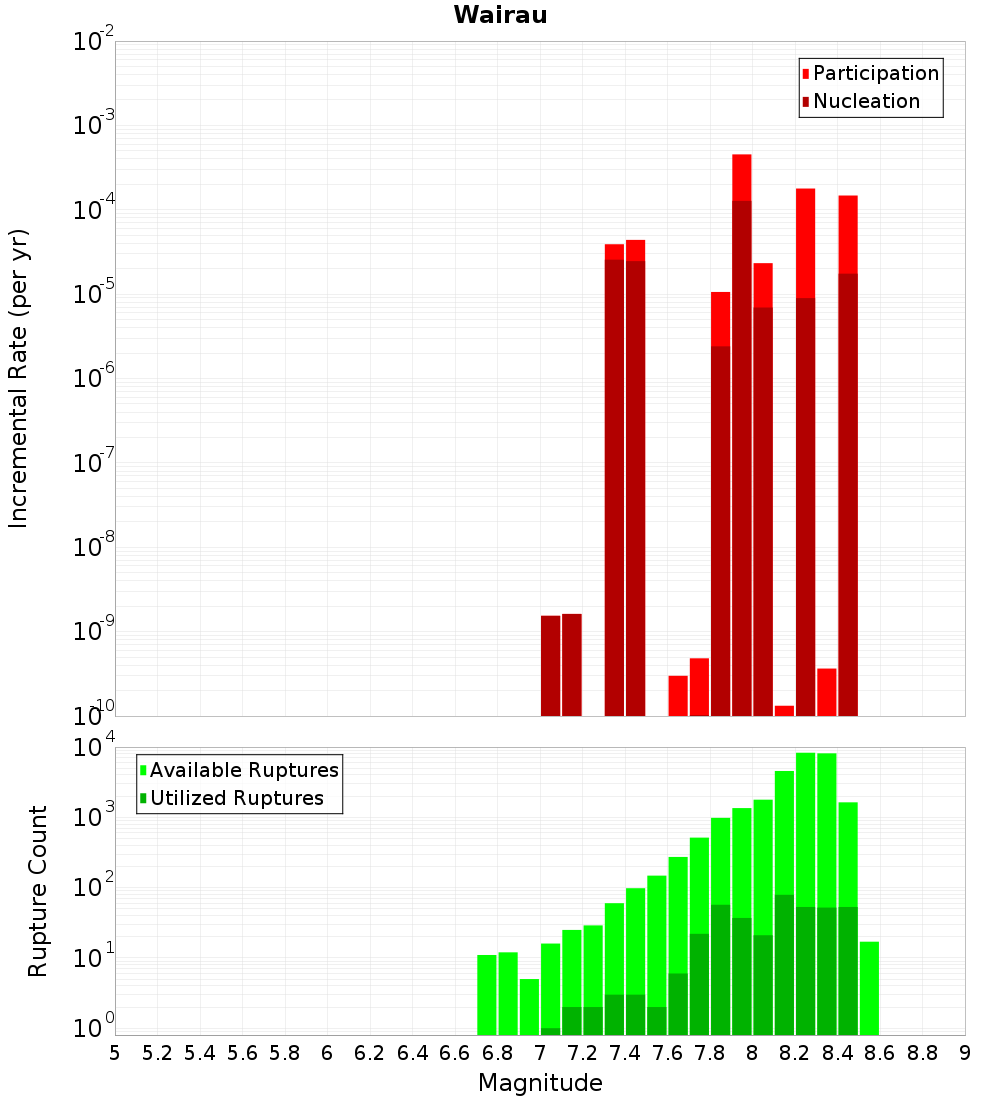

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

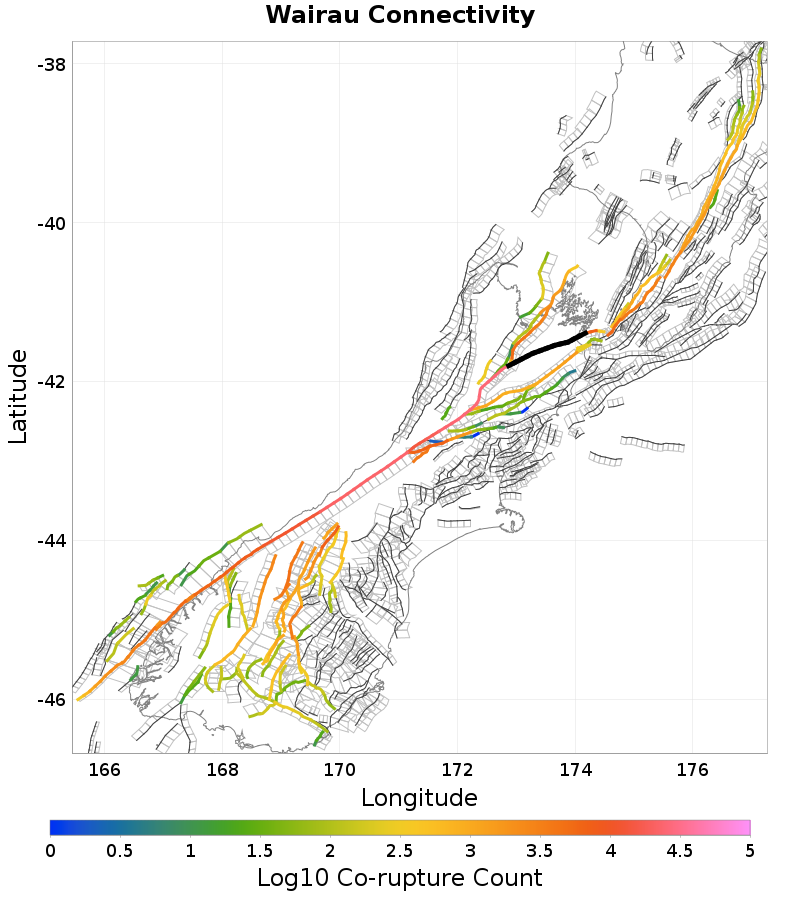

Connectivity

Nearby Sections

Fault Section
Wairau 2, 0 km away
Whangamoa, 0 km away
Alpine: Springs Junction to Tophouse, 0 km away
Flaxmore - Waimea - Tahunanui, 0.17 km away
Tutaki, 7.34 km away
Awatere: Northeast 1, 11.05 km away
Awatere: Northeast 2, 12.04 km away
Cloudy 2, 12.85 km away
Cloudy 1, 12.85 km away
Wairau 3, 13.7 km away
Vernon 1, 14 km away
Vernon 2, 14 km away
Ruby Bay - Moutere, 14.99 km away

Wairau 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	6,922
Co-rupture Rate	1.7078829E-4

Whangamoa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	9.174291E-13

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	25,931
Co-rupture Rate	7.174972E-4

Flaxmore - Waimea - Tahunanui, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	136
Co-rupture Rate	7.40438E-11

Tutaki, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	295
Co-rupture Rate	0.0

Awatere: Northeast 1, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,606
Co-rupture Rate	1.7846657E-4

Awatere: Northeast 2, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	false
Co-rupture Count	263
Co-rupture Rate	0.0

Cloudy 2, 12.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	0.0

Cloudy 1, 12.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	0.0

Wairau 3, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	389
Co-rupture Rate	2.0766766E-4

Vernon 1, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	true
Co-rupture Count	341
Co-rupture Rate	2.9186063E-11

Vernon 2, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	true
Directly Connected?	false
Co-rupture Count	247
Co-rupture Rate	6.9443666E-11

Ruby Bay - Moutere, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjcuMHN4U0U3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
