Otanomomo Details

PropertyValue
Rupture Count291
Ruptures Above Sect Min Mag290
Ruptures w/ Nonzero Rates1
Magnitude Range[6.67, 8.26]
Length Range[10, 386] km
Total Rate2.5268262E-5 /yr
Multi-Fault Rate2.5268262E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults60

Table Of Contents

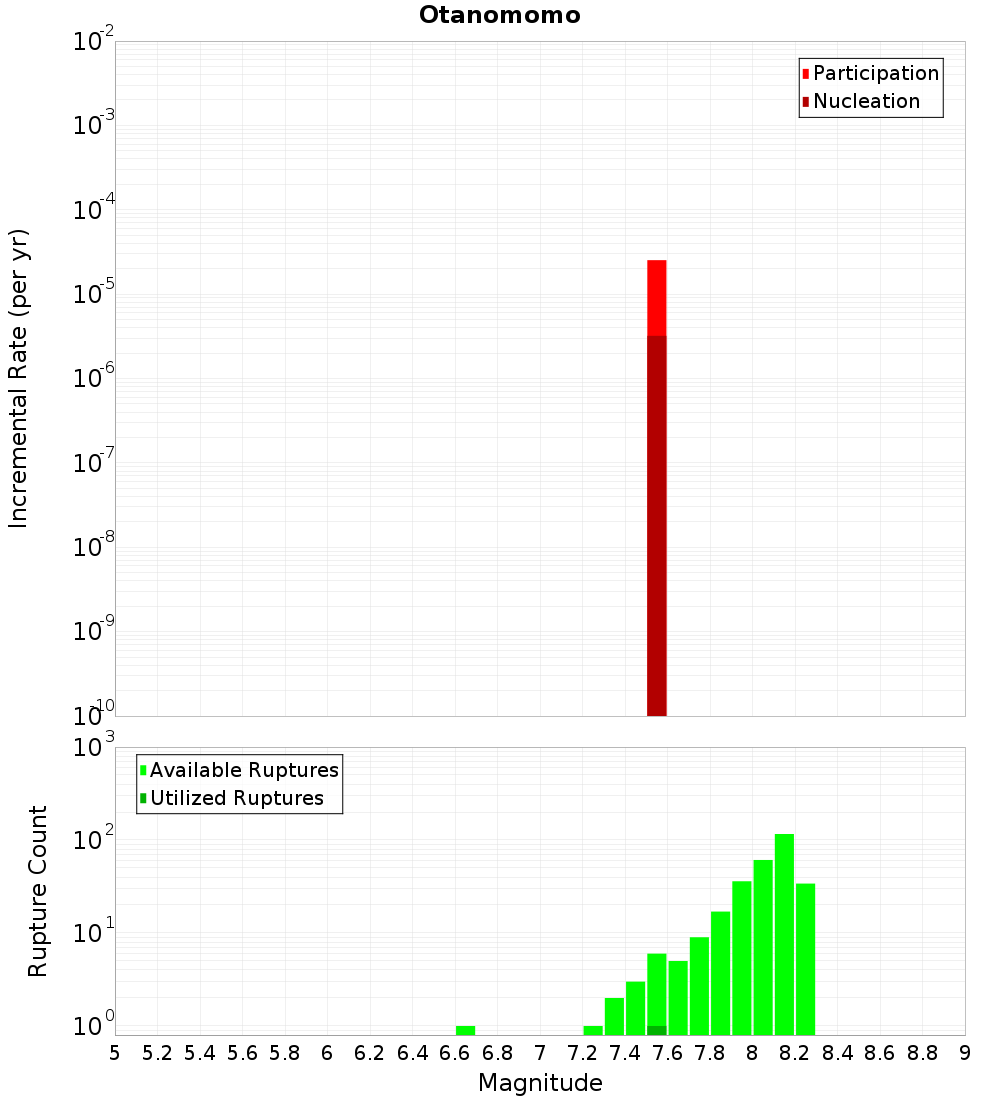

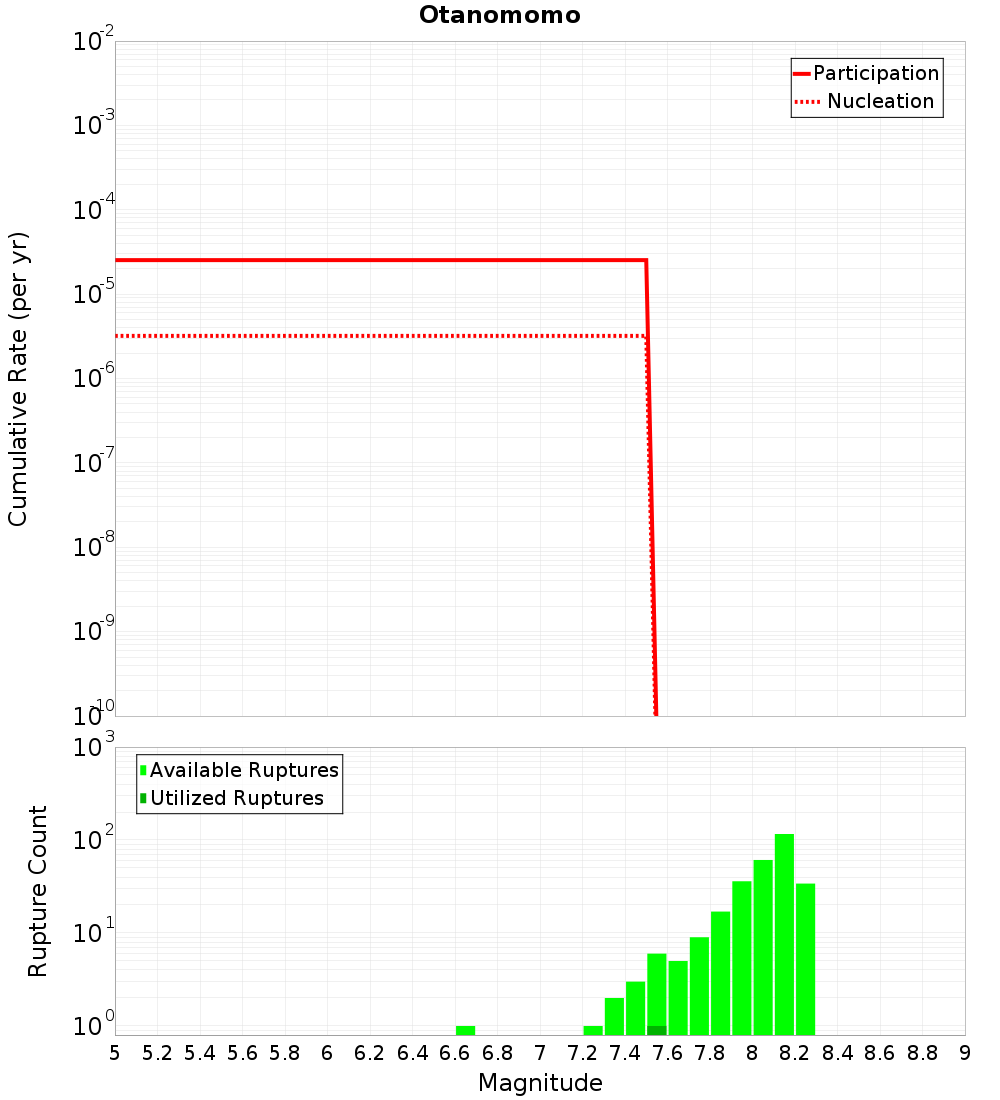

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

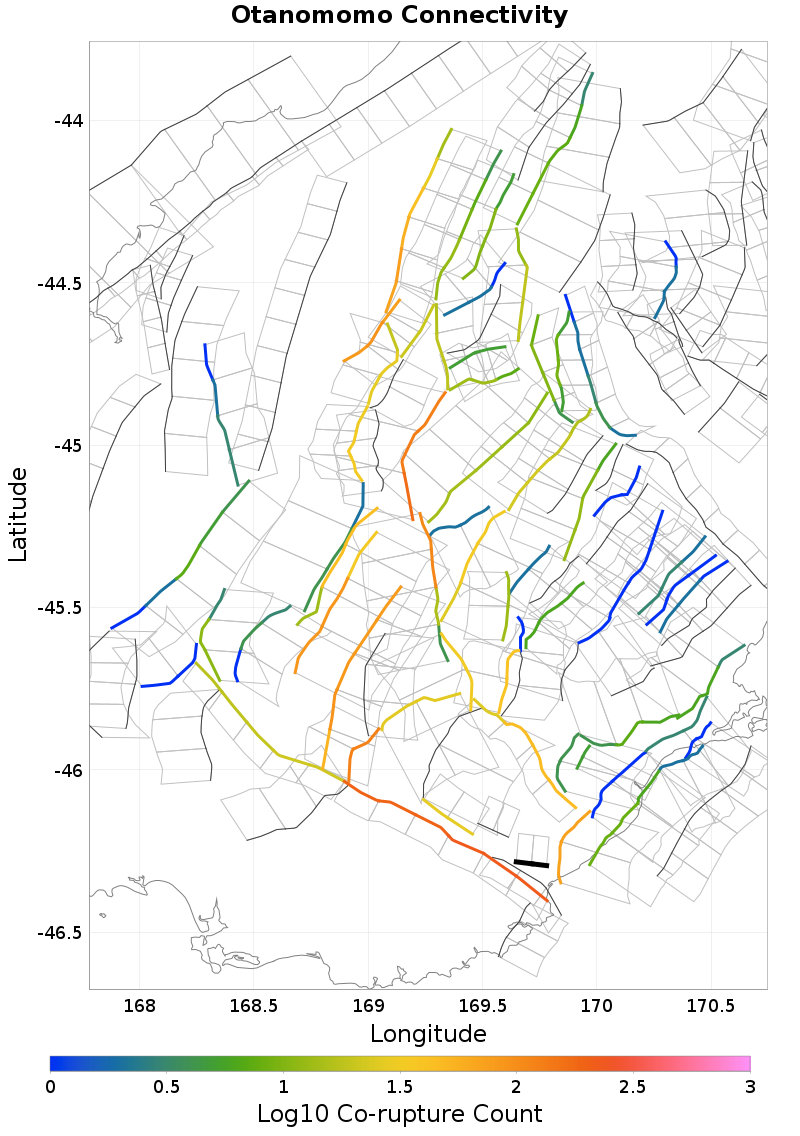

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Little Hillfoot, 1.78 km away
Hillfoot, 3.97 km away
Titri South, 4.13 km away
Tuapeka, 6.25 km away
Blue Mountain, 7.22 km away
Clifton, 7.36 km away
Beacon Hill, 13.03 km away
Settlement, 13.4 km away
Akatore, 14.48 km away

Little Hillfoot, 1.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hillfoot, 3.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?true
Directly Connected?true
Co-rupture Count226
Co-rupture Rate0.0

Titri South, 4.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate0.0

Tuapeka, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate0.0

Blue Mountain, 7.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clifton, 7.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beacon Hill, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Settlement, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2MjguMDJyRkQ1
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate2.5268262E-5
