Mangatangi Details

Property	Value
Rupture Count	3
Ruptures Above Sect Min Mag	1
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.71, 7.09]
Length Range	[17, 42] km
Total Rate	2.2133298E-5 /yr
Multi-Fault Rate	2.2133298E-5 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

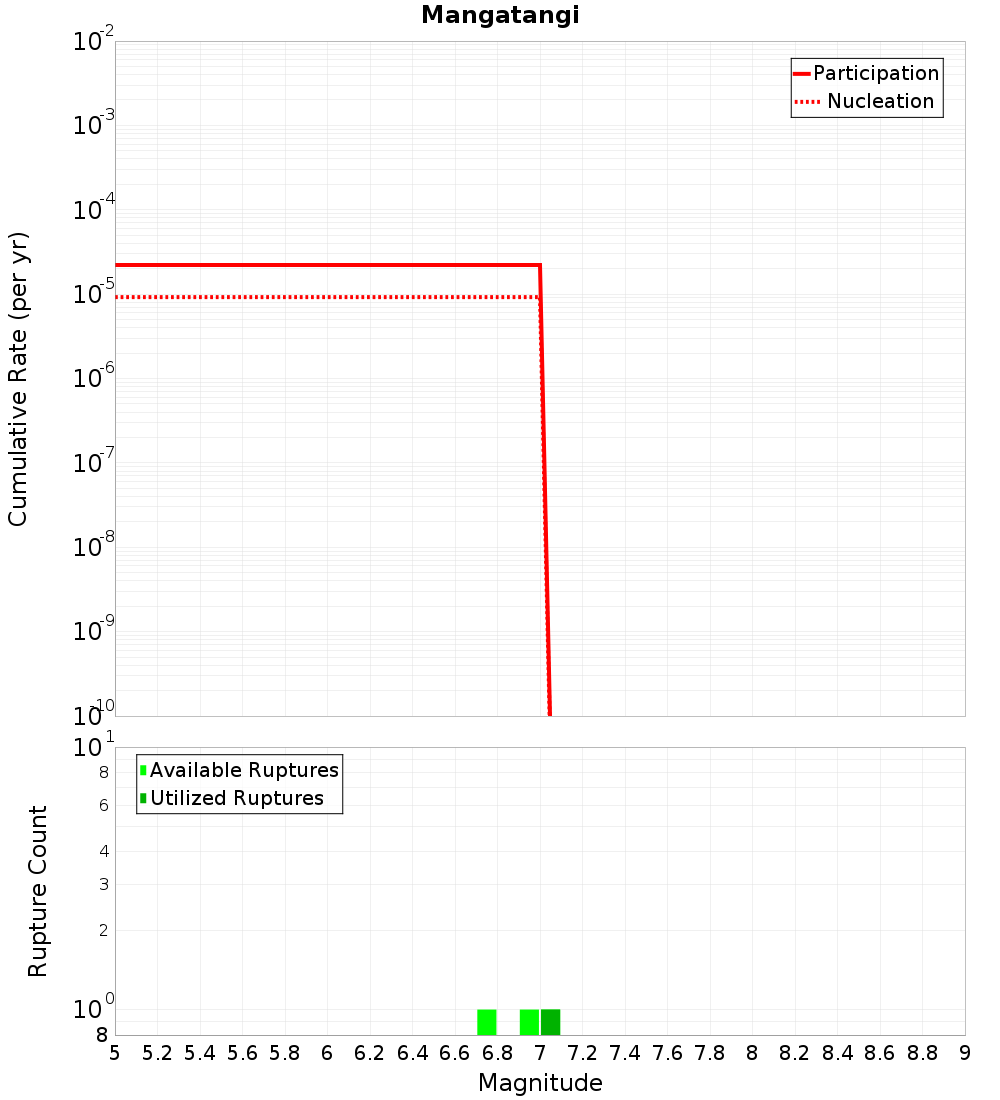

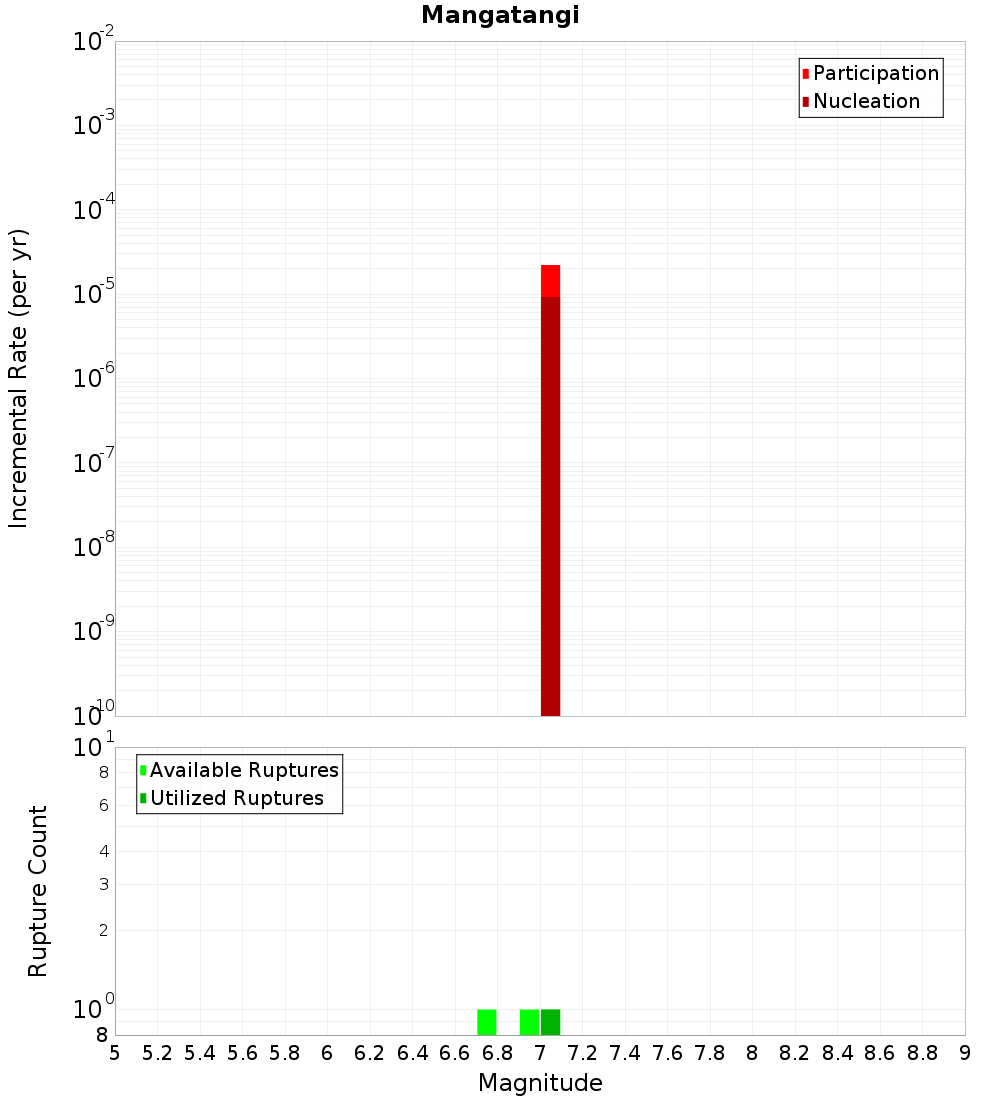

Magnitude-Frequency Distribution

Incremental	Cumulative

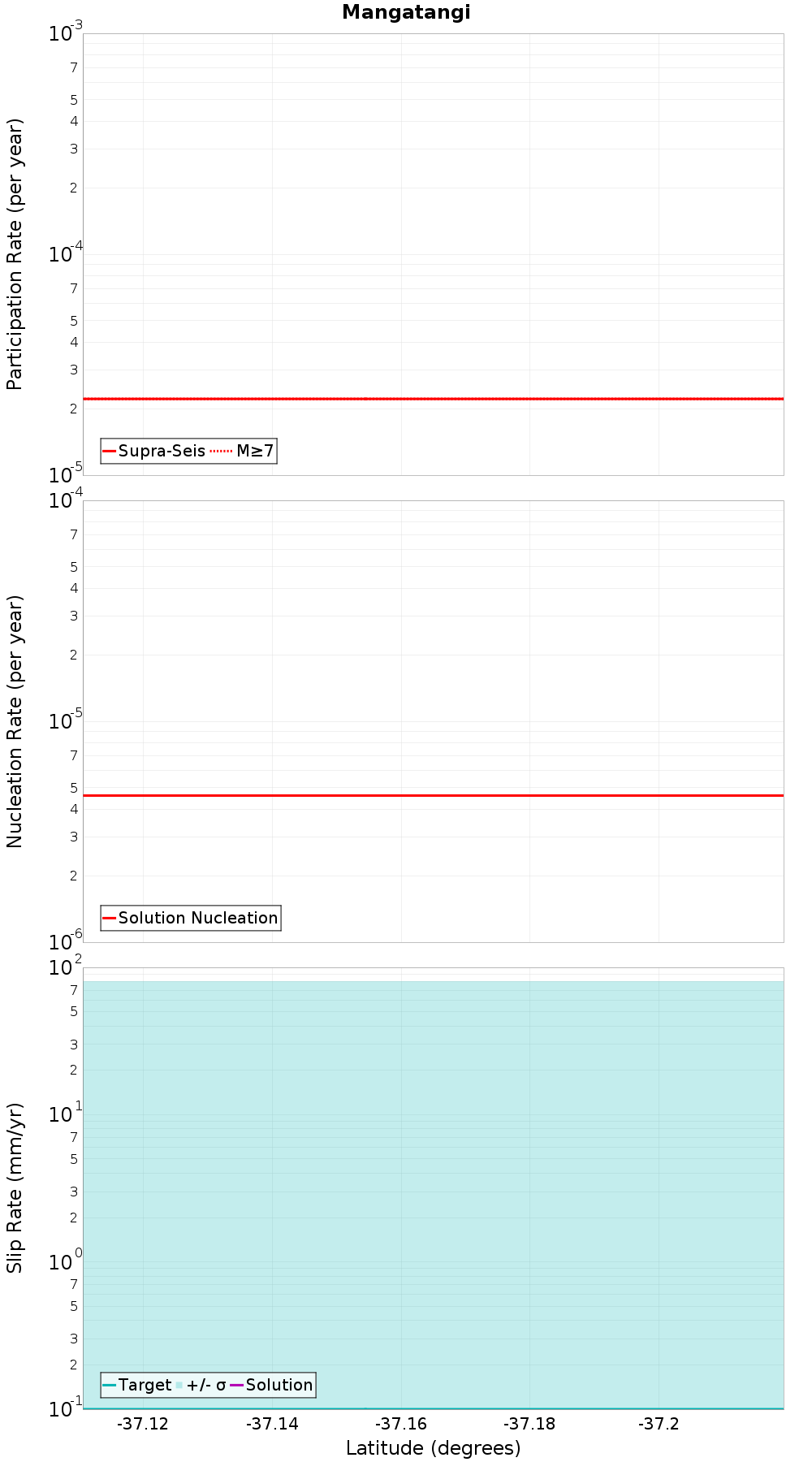

Along-Strike Values

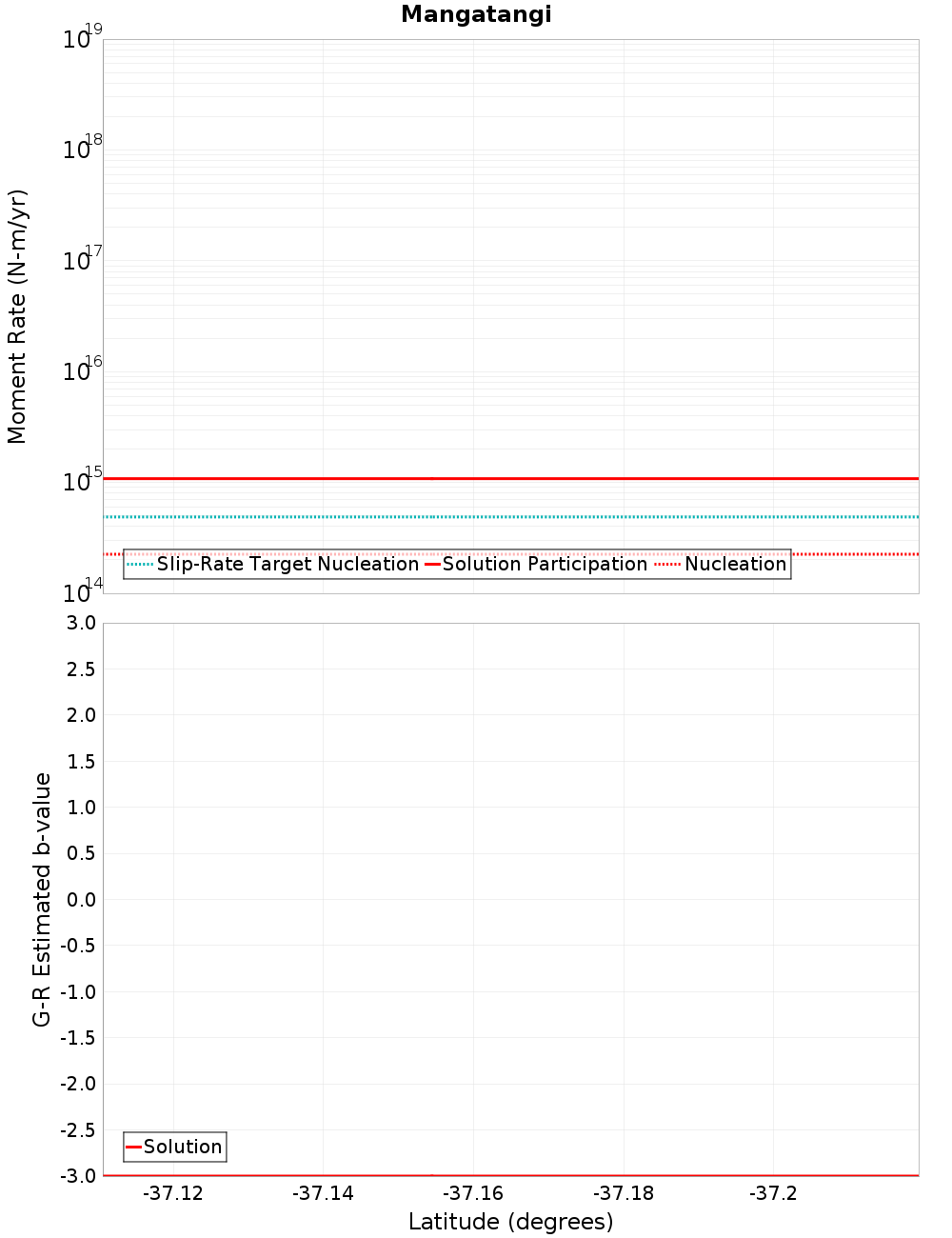

Moment-Rates and b-Values

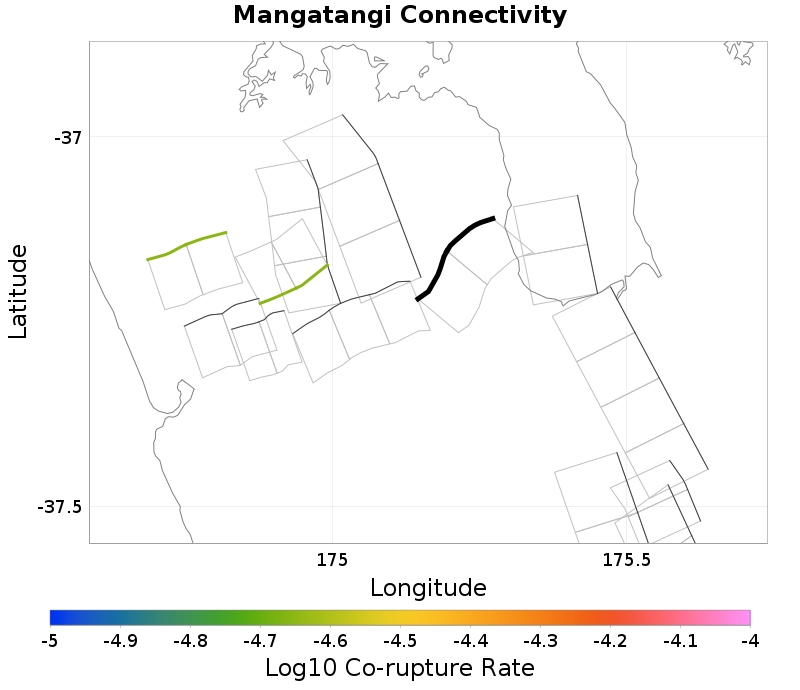

Connectivity

Nearby Sections

Fault Section
Kerepehi Offshore, 0.11 km away
Wairoa North, 2.07 km away
Pokeno, 2.61 km away
Kerepehi Awaiti, 9.99 km away
Drury, 11.66 km away
St Stephens, 14.57 km away

Kerepehi Offshore, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NTEuMGlITnlN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairoa North, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NTEuMGlITnlN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pokeno, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NTEuMGlITnlN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kerepehi Awaiti, 9.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NTEuMGlITnlN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Drury, 11.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NTEuMGlITnlN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

St Stephens, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NTEuMGlITnlN
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	2.2133298E-5
