Edgecumbe Coastal Details

Property	Value
Rupture Count	7,654
Ruptures Above Sect Min Mag	7,651
Ruptures w/ Nonzero Rates	107
Magnitude Range	[6.54, 8.48]
Length Range	[7, 679] km
Total Rate	4.903492E-4 /yr
Multi-Fault Rate	4.903492E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

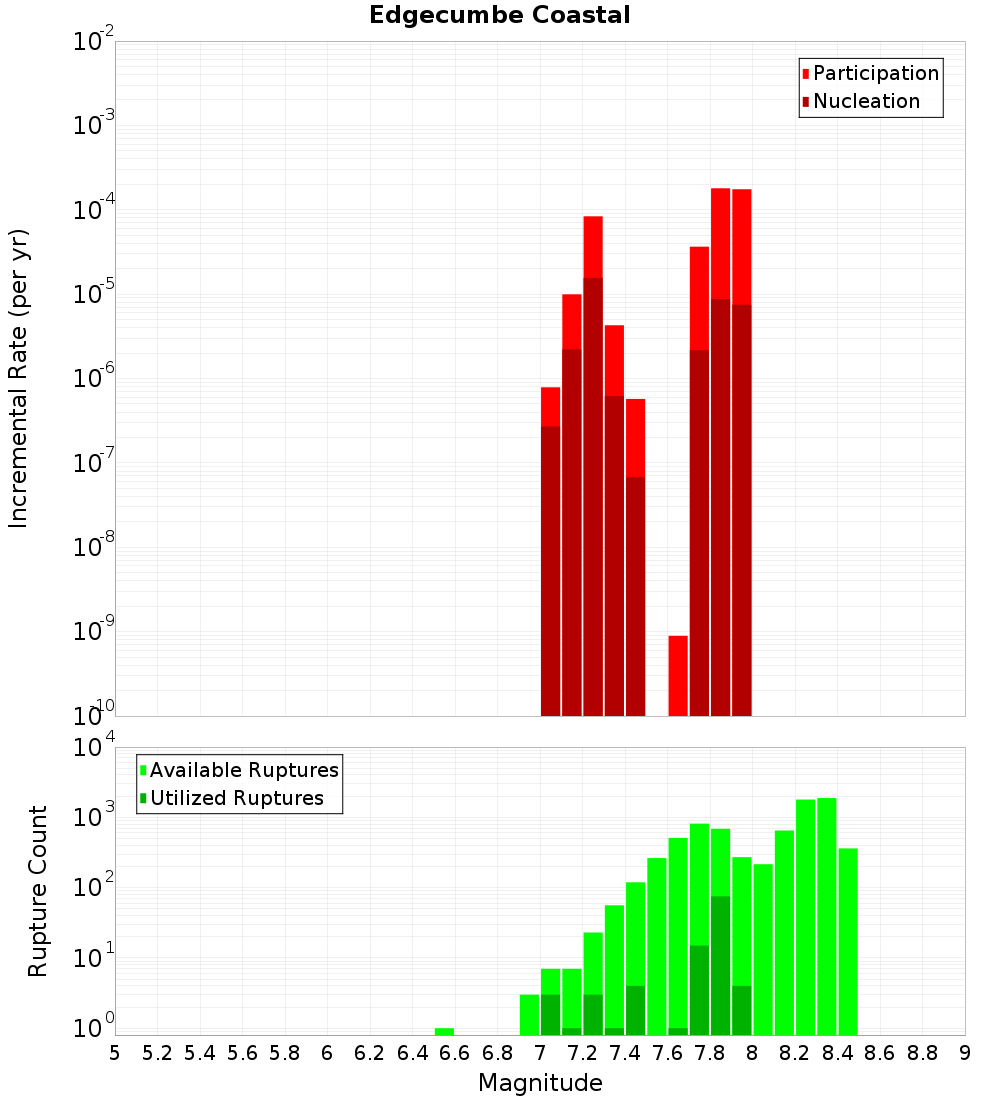

Magnitude-Frequency Distribution

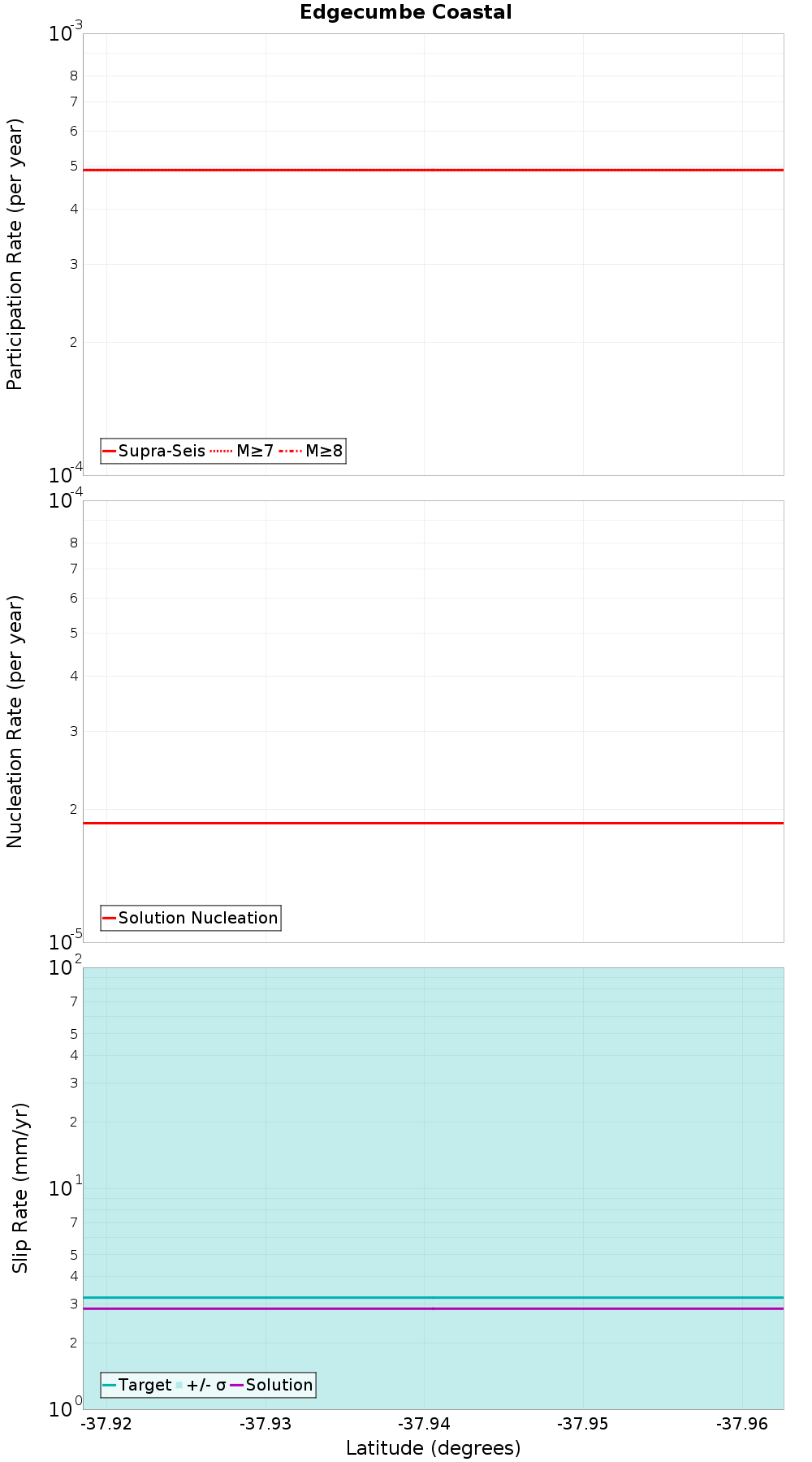

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Keepa, 3.06 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	true
Co-rupture Count	7,417
Co-rupture Rate	4.4231667E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	true
Co-rupture Count	6,312
Co-rupture Rate	4.1355495E-4

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,128
Co-rupture Rate	2.05978E-4

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	true
Co-rupture Count	941
Co-rupture Rate	5.9519756E-5

Keepa, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	false
Co-rupture Count	530
Co-rupture Rate	4.305066E-5

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	true
Co-rupture Count	558
Co-rupture Rate	5.2195017E-5

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	false
Co-rupture Count	2,379
Co-rupture Rate	1.3553405E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	false
Co-rupture Count	5,761
Co-rupture Rate	1.0329502E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTk2NjMuMFJTdzZj
Connected?	true
Directly Connected?	false
Co-rupture Count	1,625
Co-rupture Rate	9.6662414E-5
